EGig eG2G24T Manuale utente
24 Port 10/100Mbps plus 2 GigabitTX/FX
Auto-MDIX Modular Gigabit Ethernet Switch
User's Manual
III
24 Ports + 2 Ports Gigabit Ethernet Switch Auto MDIX
246810 12 14 16 18 20 22 24
135791113 15 17 19 21 23
RESET
POWER
135791113 15 17 19 21 23
246810 12 14 16 18 20 22 24
LINK / ACT
10 / 100M
FDX
LINK / ACT
10 / 100M
FDX
LINK/ACT
Fiber Optic Gigabit Ethernet
TX RX
1000BASE-T Gigabit Ethernet
1G
100M
L.A.
FDX
AUTO MDIX
FCC Warning
This device has been tested and found to comply with limits for
a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses
and radiates radio frequency energy and, if not installed and
used in accordance with the user's manual, may cause
interference in which case user will be required to correct the
interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this
product may cause radio interference in which case the user
may be required to take adequate measures.
Table Of Contents
Chapter 1 -------------------------------------------------------------------1
Introduction---------------------------------------------------------------------1
Key Features -------------------------------------------------------------------2
Chapter 2 -------------------------------------------------------------------3
Package Contents ------------------------------------------------------------3
Chapter 3 -------------------------------------------------------------------4
Front Panel Layout -----------------------------------------------------------4
24 RJ-45 10/100Mbps Switch Ports --------------------------------4
Uplink port----------------------------------------------------------------4
Reset----------------------------------------------------------------5
LED Definitions ----------------------------------------------------------6
Power LED --------------------------------------------------------------6
FDX LED -----------------------------------------------------------------6
10/100M LED -----------------------------------------------------------6
LINK/ACT LED ---------------------------------------------------------6
Gigabit Optional module series: -------------------------------------7
Gigabit 1000Base-T Gigabit Ethernet Module ------------------7
Gigabit 1000Base-SX Fiber Module(Multi-Mode) --------------8
Gigabit 1000Base-SX Fiber Module(Multi-Mode) --------------9
Gigabit 1000Base-LX Fiber Module(Single-Mode) ----------10
Gigabit 1000Base-LX Fiber Module(Single-Mode) ----------11
Rear Panel Layout ----------------------------------------------------------11
ACinput-------------------------------------------------------------------11
Chapter4------------------------------------------------------------------12
Rack Mounting ---------------------------------------------------------------12
Chapter5------------------------------------------------------------------13
Installation---------------------------------------------------------------------13
ToconnecttheSwitchtoPCs,servers,andother
network devices. -------------------------------------------------------13
To connect the Switch to a Switch or a Hub --------------------13
Chapter6------------------------------------------------------------------14
Technical Specifications ---------------------------------------------------14
Appendix------------------------------------------------------------------16
ANSI/TIA/EIA-568-A PLUG & Twisted-pair Cable -----------------16
EIA568A pin assignment:------------------------------------------------16
Recommend CAT5 UTP specifications ------------------------------16
RJ-45 Modular Phone Jack:---------------------------------------------17
I.
II.
III.
IV.
V.
I.
II.
I.
II.
III.
IV.
Chapter 1

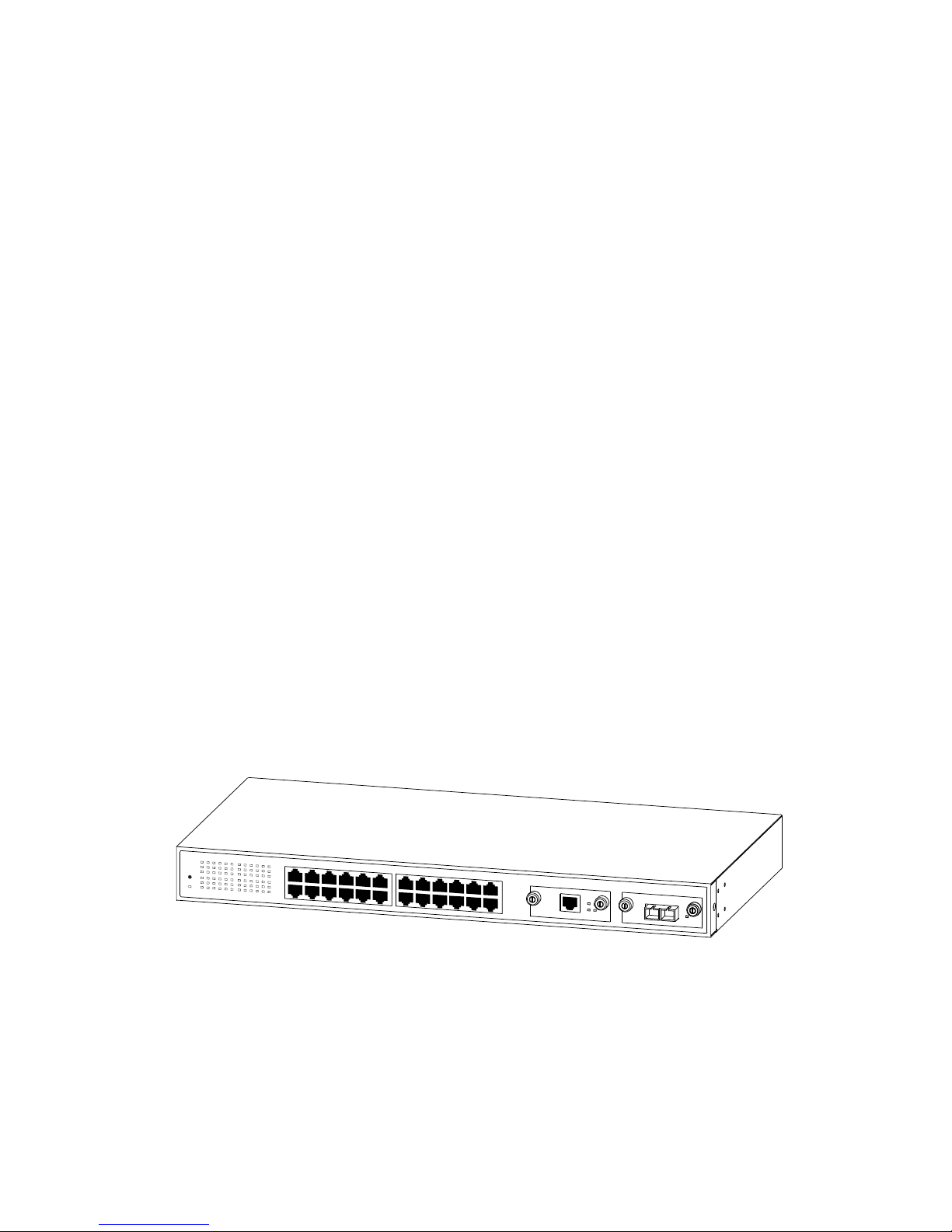

24 Port 10/100Mbps plus 2 Gigabit TX/FX Auto-MDIX
Modular switch
Introduction
The Switch provides 24 10/100Mbps ports. The Switch was designed
for easy installation and high performance in an environment where
traffic on the network and the number of user increase continuously.
The 19-inch standard rack-mount size was specifically designed for
ROBO (Remote Office & Branch Office) and medium to large
workgroups. The Switch can be installed where space is limited;
moreover it provides smooth network migration and easy upgrade to
network capacity.
-1-
III
24 Ports + 2 Ports Gigabit Ethernet Switch Auto MDIX
246810 12 14 16 18 20 22 24
135791113 15 17 19 21 23
RESET
POWER
135791113 15 17 19 21 23
246810 12 14 16 18 20 22 24
LINK / ACT
10 / 100M
FDX
LINK / ACT
10 / 100M
FDX
LINK/ACT
Fiber Optic Gigabit Ethernet
TX RX
1000BASE-T Gigabit Ethernet
1G
100M
L.A.
FDX
AUTO MDIX
Key Features
Fully compliant with IEEE 802.3 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3z 1000BASE-SX, 1000BASE-LX
IEEE802.3ab 1000BASE-TStandards
24 ports 10/100Mbps Fast Ethernet switch and 2 ports
Gigabit Ethernet optional slots, each allows for single-port
Gigabit Ethernet Switch module
1000BASE-SX or 1000BASE-LX or 1000BASE-T
Provided non-blocking and non-head-of-line-blocking full wire
speed forwarding
Built-in 16K MAC addresses
96Mbits dynamic packet buffer allocation for each port. - Total
8,000 Packet Capacity
Store-and-forward switch mode
Automatic learning of network configuration
Broadcast storm control
Flow control fully supported:
Half-duplex mode a Collision-based Congestion Control
Full duplex mode a 802.3x compliant Flow Control
Status LEDs:
Gigabits copper module:
100M, 1000M, Full Duplex, Link/Activity.
Gigabits fiber module:
Link/Activity.
10/100TX port:
Link/Act, Speed, Full Duplex/Collision.
System:
Power
All 100Base-TX or 1000Base-T (twisted pair) port support
Auto MDIX crossover capabilities
Provided front panel reset button
-2-
Chapter 2

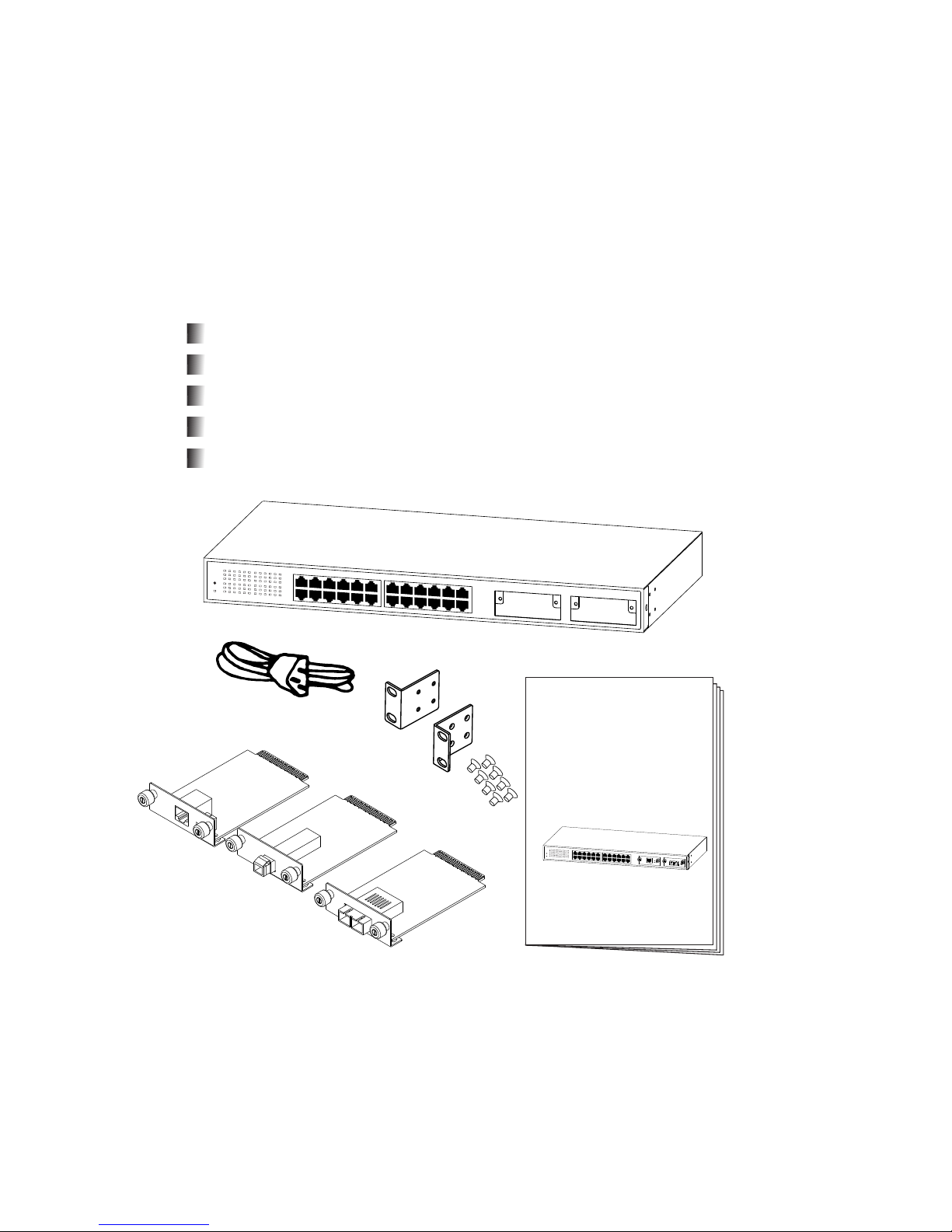

Package Contents
Before you start to install the Switch, please verify your package that
contains the following items:
One Fast Ethernet Switch
Rack-mount Kit For Rack Installation
One Power Cord
One User's Manual
Option Gigabit Module
Note: If any of these items is found missing or damaged, please
contact your local supplier for replacement.
-3-
24 Port 10/100Mbps plus 2 GigabitTX/FX
Auto-MDIX Modular Gigabit Ethernet
Switch Hub
User's Manual
24 Port Gigabit Switch
Power Cord
Rack-mount Kit
User's Manual
III
24 Ports + 2 Ports Gigabit Ethernet Switch Auto MDIX
246810 12 14 16 18 20 22 24
135791113 15 17 19 21 23
RESET
POWER
135791113 15 17 19 21 23
246810 12 14 16 18 20 22 24
LINK / ACT
10 / 100M
FDX
LINK / ACT
10 / 100M
FDX
III
24 Ports+ 2 Ports Gigabit Ethernet Switch Auto MDIX
246810 12 14 16 18 20 22 24
135791113 15 17 19 21 23
RESET
POWER
135791113 15 17 19 21 23
246810 12 14 16 18 20 22 24
LINK/ACT
10/100M
FDX
LINK/ACT
10/100M
FDX
LINK/ACT
FiberOptic Gigabit Ethernet
TX RX
1000BASE-TGigabit Ethernet
1G
100M
L.A.
FDX
AUTOMDIX
1000BASE-T Gigabit Ethernet
AUTO MDIX
Fiber Optic Gigabit Ethernet
TX
RX
MT-RJ Gigabit Ethernet
Option Gigabit Module
Chapter 3
Front Panel Layout
I. 24 RJ-45 10/100Mbps Switch Ports
There are 24 RJ-45 connectors on the front panel for connecting to
servers, workstation or other devices. The Switch provides 24
10/100Mbps switching ports that could sense the 10/100M speed
and negotiate Full/Half-duplex mode automatically.
The Switch provided new Auto-MDIX technology. Besides, it can
auto detect the cable signal to make optimum connection. Please
make sure the CAT. 5, 5e or CAT. 6 twisted pair cable meet the
E/TIA568 standards. Please refer to the appendix at page 16 for
quickly trouble-shooting.
II. 2 Gigabit Optional module
The Switch provided 2Gigabit modular slots on the front panel for
connecting to servers or other gigabit switches. The Gigabit modules
have copper & fiber selection. The Gigabit modules only could
negotiate Full-duplex mode and do not need jumper or software to
configuration.
The copper supports Auto-MDIX and Auto-negotiation function. The
fiber supports multi-mode and single-mode at the SC or MT-RJ
connector. Please refer to the gigabit modular list at page 7, 8, 9, 10
and 11 for detail.
-4-
III. Reset
Allows the users refresh Automatic-learning of network configuration.
-5-
10 / 100M
FDX
10 / 100M
FDX
LINK / ACT
LINK / ACT
POWER
RESET
1 3 5 7 9 11 13 15 17 19 21 23
2 4 6 8 10 12 14 16 18 20 22 24
Yellow
Yellow
Yellow
Green
Green
Green
Green
IV. LED Definitions
Power LED
On : The unit is powered on and ready for use.
Off : The unit is powered off.
FDX LED
On : The port is operating at Full-duplex.
Off : The port is operating at Half-duple without any
data being transmitted or received.
Flashing : Collisions occurred and the port is operating at
Half-duplex mode.
10/100M LED (on the 24 10/100TX port)
On : The port is on the 100Mbps status.
Off : The port is on the 10Mbps status.
LINK/ACT LED (on the 24 10/100TX port)
On : The port is ready for 10/100Mbps connection.
Flashing : The data is transmitted or received on the port.
100M LED (on the Gigabit module)
On : The port link & work on the 100Mbps.
LINK/ACT LED (on the Gigabit module)
On : The port is ready for 100/1000Mbps connection.
Flashing : The data is transmitted or received on the port.
1G LED (on the Gigabit module)
On : The port link & work on the 1000Mbps.
-6-
V. Gigabit Optional module series:
1000Base-T Gigabit Ethernet Module
Model Name Description
Compliant with IEEE802.3ab 1000Base-T Std.
1 x 1000Mbps STP port (RJ-45 connector).
Support Auto-MDIX & Auto-negotiation.
Supports Cat5, 5e or 6 twisted pair cable.
Jumper-less configuration.
Full duplex operation only.
LED-indicators for 1000M, 100M, Link/ACT, FDX.
-7-
MB-001T
1000BASE-T Gigabit Ethernet
AUTO MDIX
