The Smoke/Heat Alarm is mounted on the EI 127 & EI 127R.

The EI 127 pattress facilitates installation of bulky wiring and conduits.

The EI 127R has an additional socket for connecting to the R spade termi-

nal on the EI161R or EI 166R. This can be used for remote test & hush or

manual call points.

WARNING: This pattress must only be used with one of the above smoke

alarms as per these instructions - otherwise the unit will not comply with

the mandatory safety regulations.

WARNING: First disconnect the mains from the circuit to be used.

1.Choose a mounting position following the siting instructions in the

Smoke/Heat Alarm leaflet. Where the incoming wiring is on the surface of

the ceiling, the appropriately sized ducting/conduit must be chosen to

mate with the unit. Use a sharp knife to remove material from the selected

knockout, making sure that there is no gap when mated with ducting / con-

duit. There are three knockouts – two on the sidewall and one on the rear.

Installation

Pattress Models EI 127 & EI 127R

For use only with EI 140, 141, 144, 145, 146, 161, 161R,

164, 166, 166R Easi-Fit Smoke/Heat Alarms

Professional

CONDUIT

CONNECT TO SMOKE ALARM

MOUNTING PLATE TERMINALS

FOR EI161R/166R

REMOTE CONTROL ONLY

KNOCKOUT

FOR MOUNTING PLATE

- EARTH (IF PRESENT)

- NEUTRAL

- INTERCONNECT

-LIVE

KNOCKOUT

Figure 1

2.Screw the pattress to the ceiling after first removing the required knock-

out and bringing the house wires through it (see figure 1). If the central

knockout is being used, seal around the wires (and the openings at the

rear of the pattress) with silicone or similar to prevent air draughts affecting

the smoke entering the alarm.

3.Connect the house wires (L - Live, N - Neutral and IC - Interconnect, if it is

being used) to the terminal block on the pattress. If an EI 161R or EI 166R

(with remote TEST/HUSH) is being installed, attach the “R” wire from the

EI 152 (see the EI 152 instructions) to the terminal marked “R” in the

pattress (see figure 1). If the EI 161R or EI 166R is being used with a man-

ual call point MCP400 or MCP400A then connect the R terminal to the call

point (see figures 1& 2). Otherwise do not connect anything to the ”R” ter-

minal.

4.Connect the three wires (L, N and IC) from the pattress connector block

to the connectors on the Smoke/Heat Alarms mounting plate. Connect the

earth wire (if present) from the house wiring directly to the terminal on the

mounting plate. Replace the cover over the terminal wires.

5.Screw the mounting plate to the pattress pillars using the two screws

supplied.

6.Slide the alarm on to the mounting plate.

7.Connect the mains power – the green LED light on the alarm should be

on. When the test button is pressed the horn should sound.

If an EI 128R pattress with relay is being used, replace the EI 127R with the

EI 128R and follow the instructions supplied with the EI 128R.

Aico Ltd., Mile End Business Park, Maesbury Road, Oswestry,

Shropshire SY10 8NN, U.K.

EI Electronics., Shannon Industrial Estate, Shannon, Co. Clare.

R - Remote

N - Neutral

IC - Interconnect

L - Live

Smoke Alarm

EI 161R or EI 166R

EI 152 Manual Call Point

MCP 400

(or MCP 400A)

Pattress

EI 127R/128R

Mounting

Plate

EI 16XR

Figure 2

P/N A13894 Rev 1

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Ei Electronics Rilevatore di fumo

Ei Electronics

Ei Electronics Ei100R Manuale utente

Ei Electronics

Ei Electronics Ei 105C Optical Manuale

Ei Electronics

Ei Electronics EiA605MRF Manuale utente

Ei Electronics

Ei Electronics Ei 100B Ionisation Manuale di istruzioni

Ei Electronics

Ei Electronics Ei161e Manuale utente

Ei Electronics

Ei Electronics Ei151TL Manuale utente

Ei Electronics

Ei Electronics RadioLINK Ei170RF Manuale utente

Ei Electronics

Ei Electronics Ei161RC Ionisation Manuale utente

Ei Electronics

Ei Electronics Ei141 Ionisation Manuale utente

Ei Electronics

Ei Electronics Ei 175 Ionisation Manuale utente

Ei Electronics

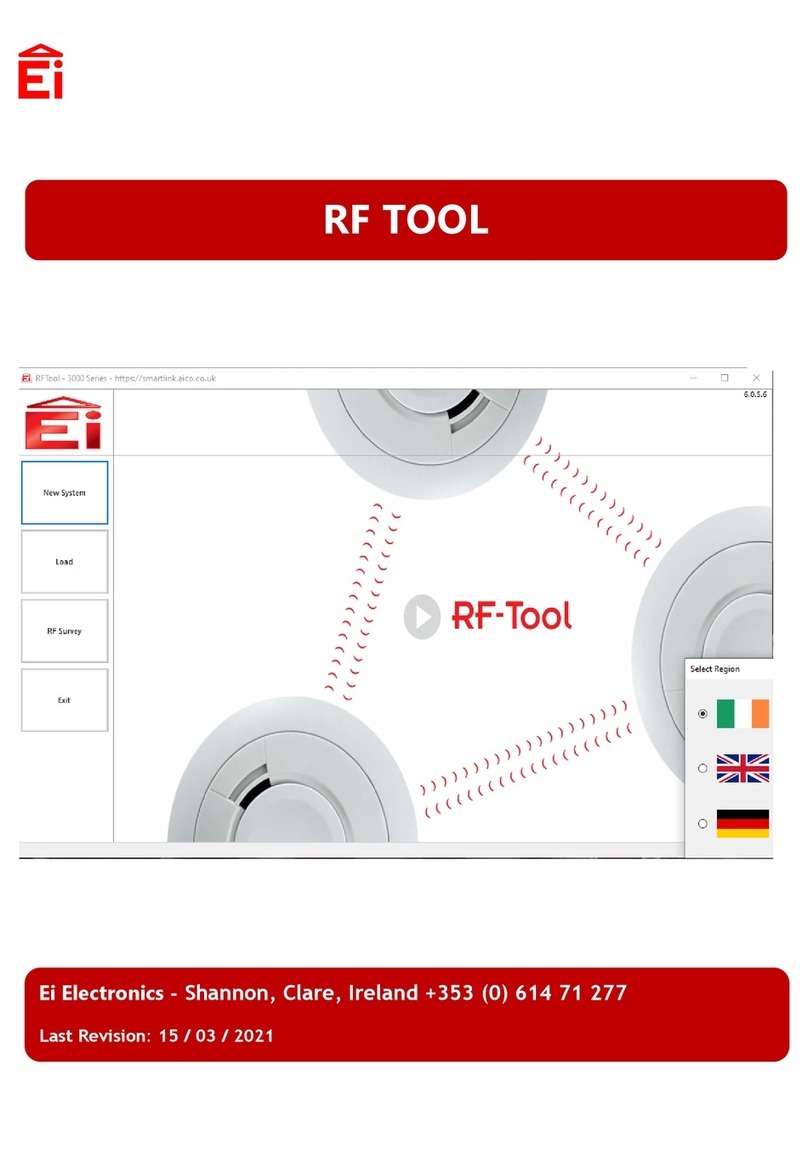

Ei Electronics RF Tool Manuale utente
