Installation and mounting manual for EK-Vector TRIO RTX 2080

Backplate:

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability

whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at www.ekwb.com for updates. Before

installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

STEP 1: GENERAL INFORMATION. Sample picture of RTX Trio 2080 graphics card.

STEP 2: PREPARING YOUR GRAPHICS CARD

First install EK-Vector TRIO RTX 2080 series water block according to its installation manual. If you have it already installed, please check the picture

below to see which mounting screws are to be left in their position and which are to be removed. Please remove the six (6) M2.5x4 AX1 screws and their

PVC washers as well (marked with arrow).

STEP 3: APPLYING THE THERMAL PADS

EK-Vector TRIO RTX 2080 features passive cooling of the printed circuit board and its components therefore it is mandatory to install the

enclosed thermal pad. Please install enclosed 1,5mm thick thermal pad (Thermal Pad F –1,5mm (120x16)) and 2mm thick thermal pad (Thermal

Pad F –2mm (120x16)) as shown on the picture below. You may need to trim the excess thermal pad.

PLEASE REMOVE THE PROTECTIVE FOIL FROM BOTH SIDES OF THE THERMAL PADS PRIOR TO INSTALLATION!

1.Thermal Pad F-1.5mm EAN(3830046996749)

2.Thermal Pad F-2.0mm EAN(3830046996756)

EK–VECTOR TRIO RTX 2080

BACKPLATE

All disclosures, notices and warranty conditions are being written on the back of the box.

STEP 4: ATTACHING EK-Vector RTX TRIO 2080 TO THE GRAPHICS CARD

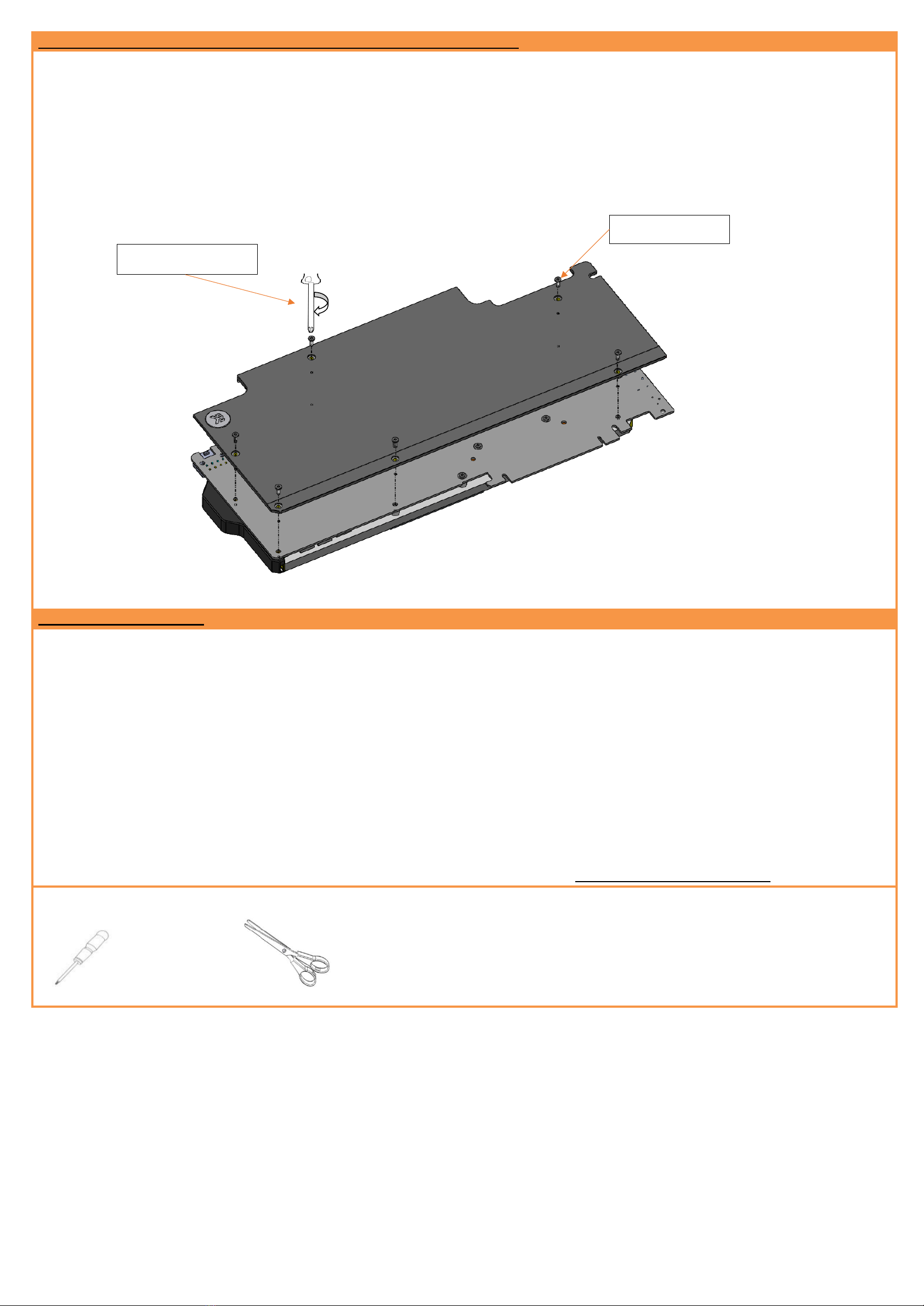

Take enclosed mounting screws and install them as shown on picture below. Use six (6) M2.5x6 AX1 screws, and tighten them using Philips head screwdriver.

HINT: Do not tighten screws until they are all positioned in their mounting holes. The backplate has milled in standoffs, so there is no fear of over tightening of

the screws. Nevertheless do not exaggerate with screwing force as there is no need for it.

By all means users must also consider that this product is intended to be used only with EK-Vector TRIO RTX 2080 series water blocks. No other 3rd party

heat sinks or coolers are officially supported! EK does not offer any assistance or support in the latter application.

IMPORTANT DISCLOSURES

VERY IMPORTANT NOTICE: Once the installation is completed, it is a recommended practice to test the cooling circuit for leaks prior to powering up the

computer. We recommend a 24 hour leak test prior to powering up the computer. Do not test the water block using city water pressure. This will rupture the top

of the housing and render the block unusable (and will void your warranty).While all efforts have been made to provide the most comprehensive tutorial possible,

EK Water Blocks assumes no liability expressed or implied for any consequential damage(s) occurring to your equipment as a result of using EK Water Blocks

cooling products, either due to errors or omissions on our part in the above instructions, or due to failure or defect in the EK Water Blocks cooling products.

WARRANTY:

Our products are warranted against defects in materials or workmanship for a period of 24 months beginning from the date of delivery to the final user. During

this period, products will be repaired or have parts replaced at our discretion provided that: (I) the product is returned to the agent from whom it was purchased;

(II) the product has been purchased by an end user and has not used for commercial purposes; (III) the product has not been misused, handled carelessly, or

used in a manner other than in accordance with the instructions provided describing its installation and proper use. This warranty does not confer rights other

than those expressly set out above and does not cover any claims for consequential loss or damage. This warranty is offered as an extra benefit and does not

affect your statutory rights as a consumer. This warranty is voided if the product comes in contact with aggressive UV additives or other improper liquids.

EK blocks are sealed with warranty void circular label, which proves that the block has withstood a pressure leak test. Removing it will void leak-free guarantee

and not the guarantee on the product itself. Any other RMA issues can be reported to EK Support at http://www.ekwb.com/support for further analysis.

REQUIRED TOOLS AND MOUNTING SCREWS:

Philips head screwdriver scissors

M2.5X6 AX1 Screw

Phillips head screwdriver
