Ekwb EK-PRO GPU WB AMP-Trinity RTX 4090 Ni+Inox Manuale utente

USER GUIDE

GPU WATER BLOCK

EK-PRO

GPU WB AMP-Trinity RTX 4090 Ni+Inox

Before you start using this product, please follow these basic guidelines:

Carefully read the manual before beginning with the

installation process.

Remove your graphics card from the computer for the safest

mounting process to prevent any possible damage to your

GPU or its circuit board (PCB).

EK Fittings require only a small amount of force to screw

them ﬁrmly in place since the liquid seal is ensured with the

rubber O-ring gaskets.

The use of quality market-proven corrosion-inhibiting

coolants is always strongly recommended for any liquid

cooling system.

Do not use pure distilled water as a cooling liquid! For best

results, EK recommends the use of EK-CryoFuel Coolants.

Make sure to bleed air out of your water block thoroughly in

order to reach optimal performance.

- 3 -

TABLE OF CONTENTS

BOX CONTENTS 4

WATER BLOCK DIMENSIONS 5

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS 6

PREPARING YOUR GRAPHICS CARD 7

REMOVING THE STOCK COOLER 7

ZOTAC GAMING GeForce RTX 4090 AMP Extreme AIRO 7

CUTTING AND PLACING THERMAL PADS 8

CLEANING THE PCB 8

APPLYING THERMAL COMPOUND 9

ATTACHING THE WATER BLOCK 10

INSTALLING THE BACKPLATE 11

ATTACHING THE BACKPLATE 12

CHECKING THE CONTACT IN CASE OF HIGH TEMPERATURES 12

INSERTING THE GRAPHICS CARD INTO THE CHASSIS 13

TESTING THE LOOP 13

SUPPORT AND SERVICE 14

SOCIAL MEDIA 14

- 4 -

Screw size guide (1x) 103012

120 mm

24 mm

120 mm

24 mm

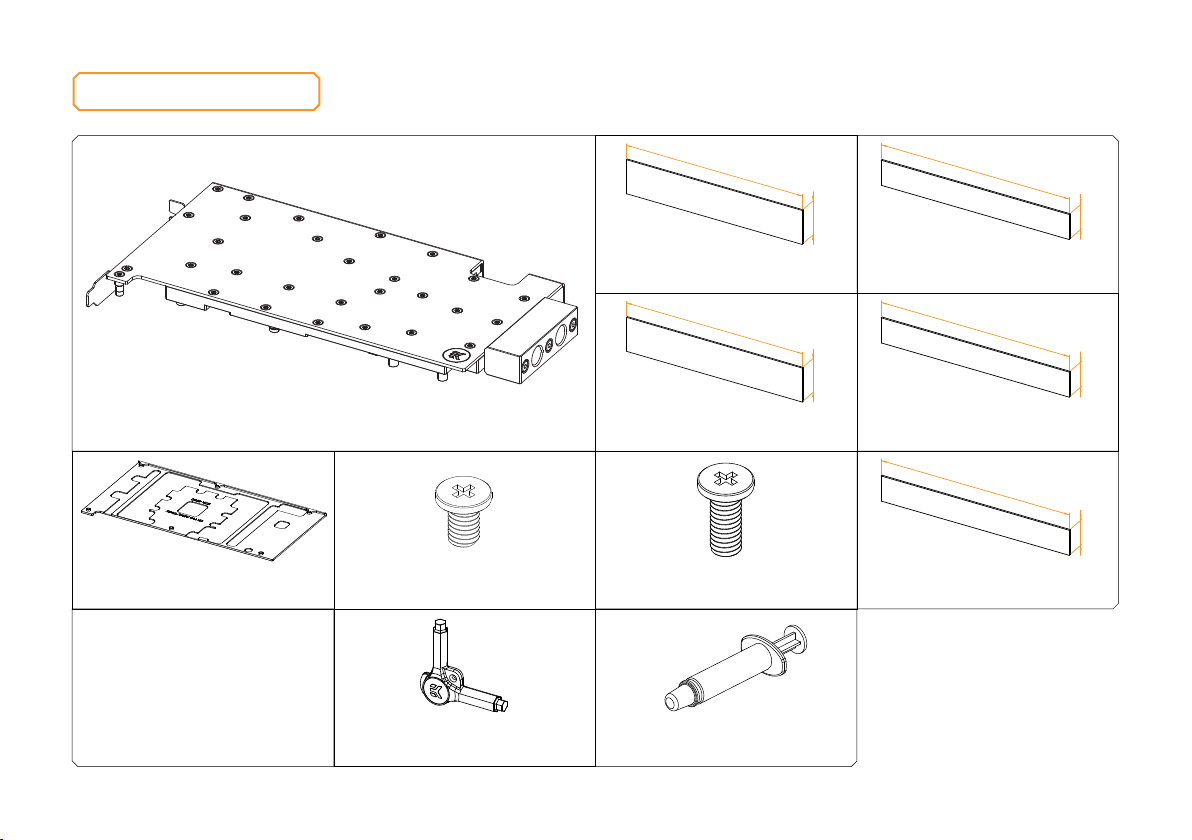

BOX CONTENTS

Zotac RTX Pro Backplate (1x)

106362

Screw M2.5 x 4 ax1 (12x)

9047

Thermal PAD F 1.0 mm - (120 x 16 mm)

(2x)

Thermal PAD F 1.5 mm - (120 x 16 mm)

(2x)

Thermal PAD F 2.0 mm - (120 x 16 mm)

(1x)

EK-Pro GPU WB AMP-Trinity RTX 4090 Ni+Inox

Thermal PAD G 0.5mm - (120 x 24 mm)

(2x)

Thermal PAD G 2.0 mm - (120 x 24 mm)

(2x)

120 mm

16 mm

120 mm

16 mm

120 mm

16 mm

Thermal Grizzly Hydronaut (1g)

(1x)

Screw M2.5 x 7 AX1 (10x)

9049

EK-Loop Multi Allen Key (6mm,

8mm, 9mm) (1x)

- 5 -

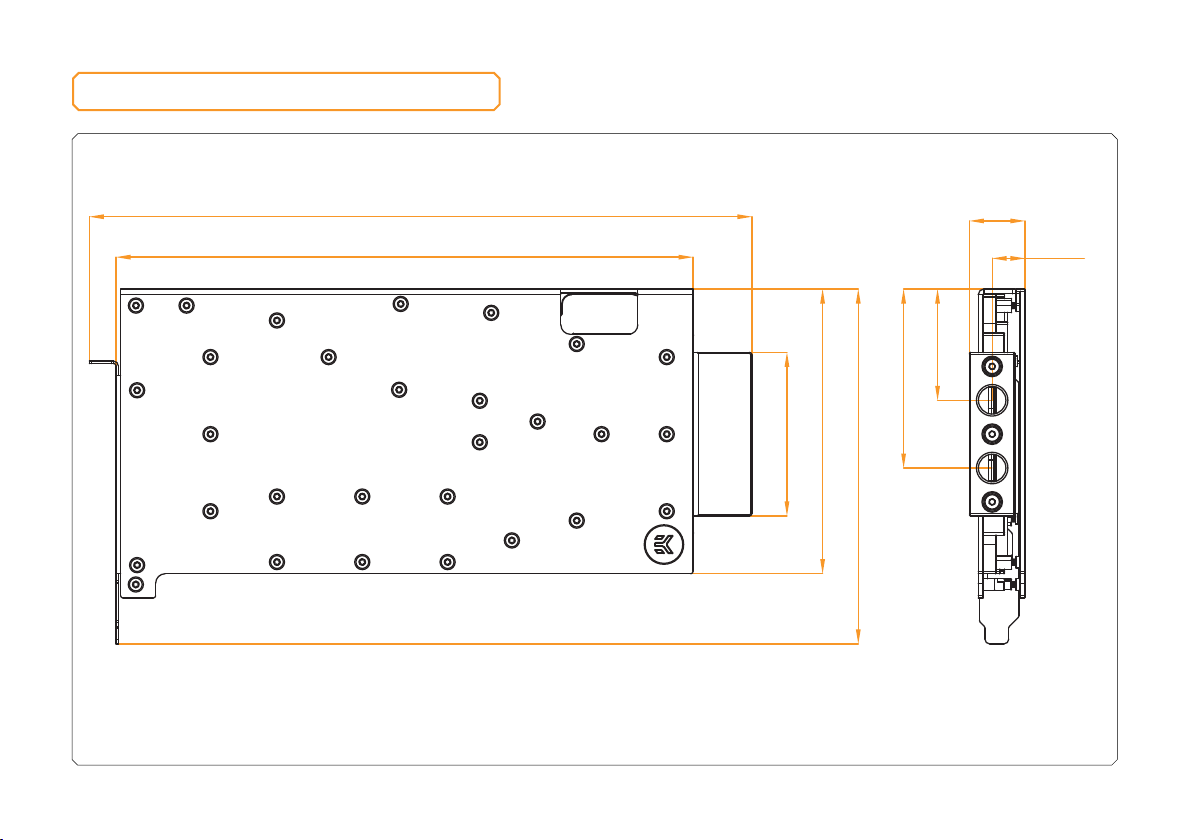

WATER BLOCK DIMENSIONS

247.4 mm

284 mm

70 mm

121.9 mm

151.9 mm

47.7 mm

76.7 mm

14.1 mm

23.8 mm

- 6 -

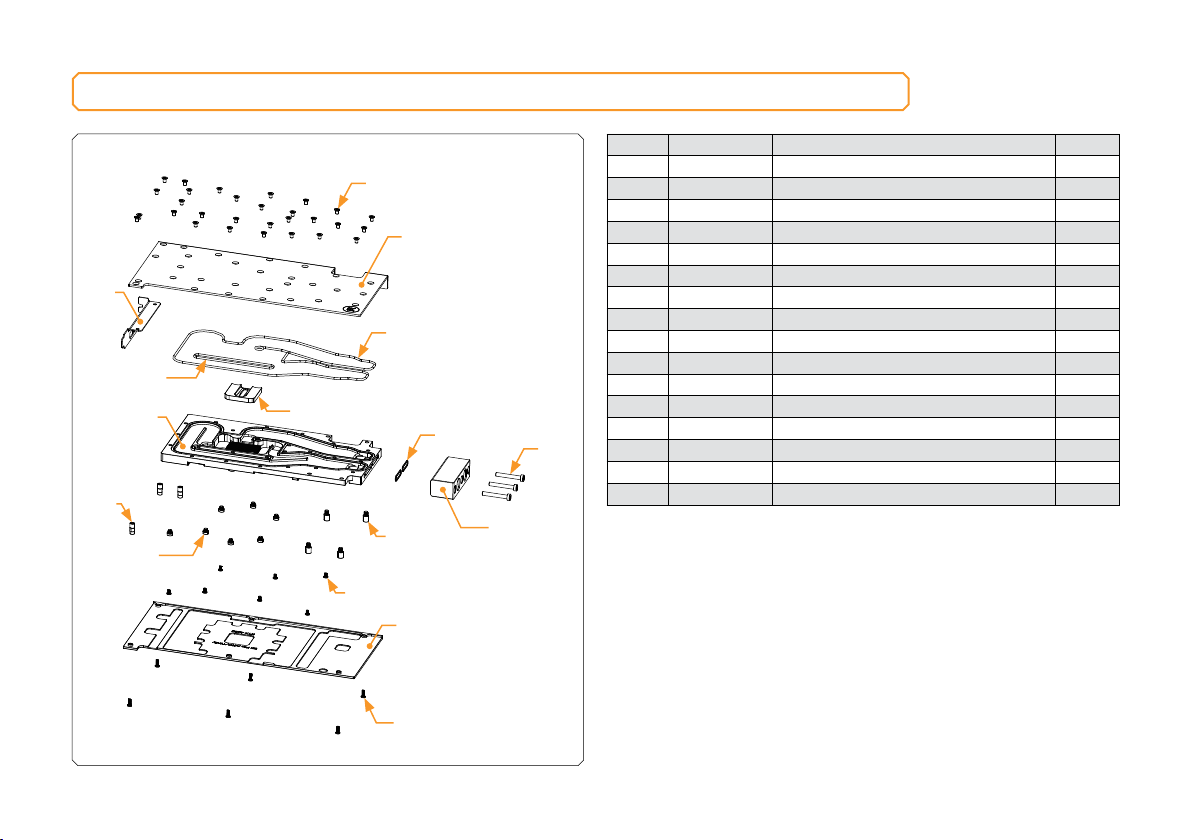

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS

Position EAN Description Quantity

1106351 Coldplate (Nickel) 1

2106355 Top plate (Inox) 1

3106359 IO Bracket (Nickel) 1

4106133 Plexi insert 1

5103767 FC terminal Direct (Acetal) 1

6106362

Backplate (Bl. elox)

75155 Terminal OR 15 x 1 mm 2

8106360 Main OR Zotac RTX 4090 Pro 1

9106367 Inner OR 170 x 2 mm 1

10 10006 Screw M4 x 27 DIN7984 3

11 9049 Screw M2.5 x 7 AX1 10

12 9047 Screw M2.5 x 4 AX1 12

13 103089 Screw M3 x 5 ISO14581 TX Inox 29

14 106357 Standoff M3-M2.5 x 12.3 Brass (female) 3

15 103988 Standoff M4-M2.5 x 3 Brass 7

16 8541 Standoff M4-M2.5 x 6.6 Brass 4

- 7 -

STEP 1

PREPARING YOUR GRAPHICS CARD

Phillips Head Screwdriver

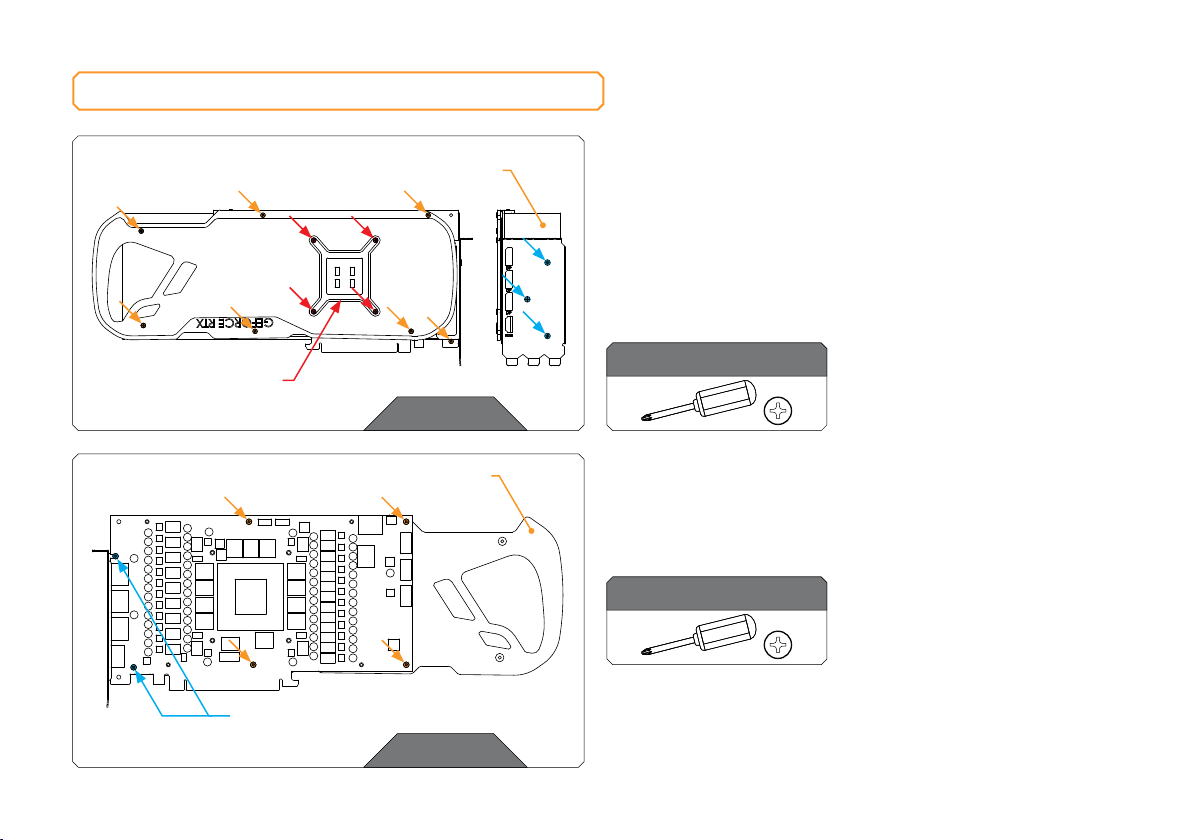

REMOVING THE STOCK COOLER

ZOTAC GAMING GeForce RTX 4090 AMP Extreme AIRO

STEP 1

Using a Philips-head screwdriver, unscrew marked screws to detach

the stock cooler and retention bracket from the GPU PCB. After

removing, carefully unplug all the LEDs and FANs cables.

For this step, you will need:

STEP 2

Phillips Head Screwdriver

STEP 2

From the front side of the GPU PCB, additional two (2) screws must

be unscrewed to remove the I/O Bracket from the GPU PCB. Lastly,

unscrew four (4) backplate screws. Remove the Backplate.

For this step, you will need:

RETENTION

BRACKET

I/O BRACKET

SCREWS

STOCK COOLER

BAC KP L ATE

- 8 -

STEP 3

CLEANING THE PCB

Wipe off the remains of the original thermal compound using a

nonabrasive cloth or Q-tip, as shown in the sample image, until the

components and circuit board are completely clean. EK recommends

the use of denatured alcohol for removing TIM leftovers. After that,

remove all remaining stock thermal pads from the PCB.

STEP 3

STEP 1

Thermal Pad F – 1.0 mm (120 x 16 mm)

120 mm

16 mm

1 mm

Thermal Pad F – 1.5 mm (120 x 16 mm)

1.5 mm

120 mm

16 mm

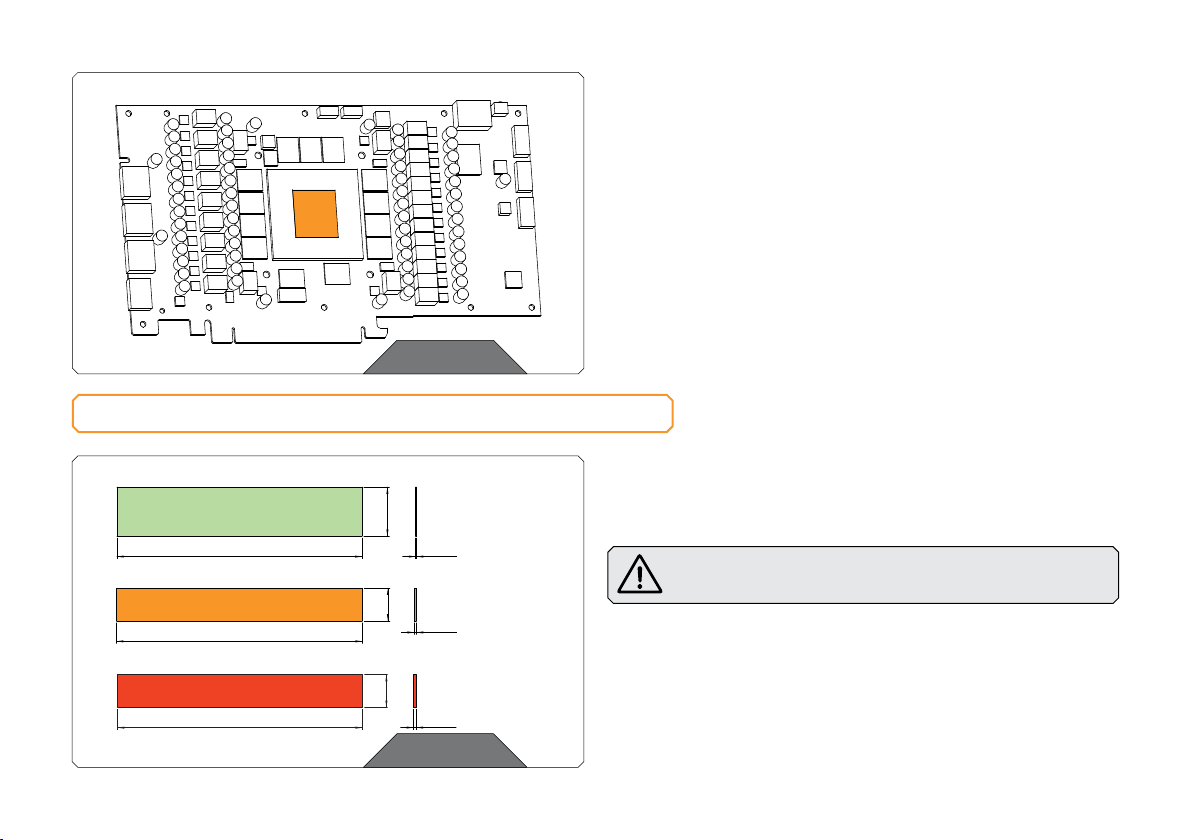

CUTTING AND PLACING THERMAL PADS

STEP 1

The GPU water block comes with thermal pads that have to be cut

into smaller pieces to cover all the VRM components, such as COILs,

MOSFETs, and drivers.

Remove the protective foil from both sides of the thermal

pad before installation.

Replacement thermal pads:

Thermal Pad G 0.5 mm – (120 x 24 mm) EAN: 3830046996763

Thermal Pad F 1.0 mm – (120 x 16 mm) EAN: 3830046996732

Thermal Pad F 1.5 mm – (120 x 16 mm) EAN: 3830046996756

Thermal Pad G – 0.5 mm (120 x 24 mm)

120 mm

24 mm

0.5 mm

- 9 -

STEP 2

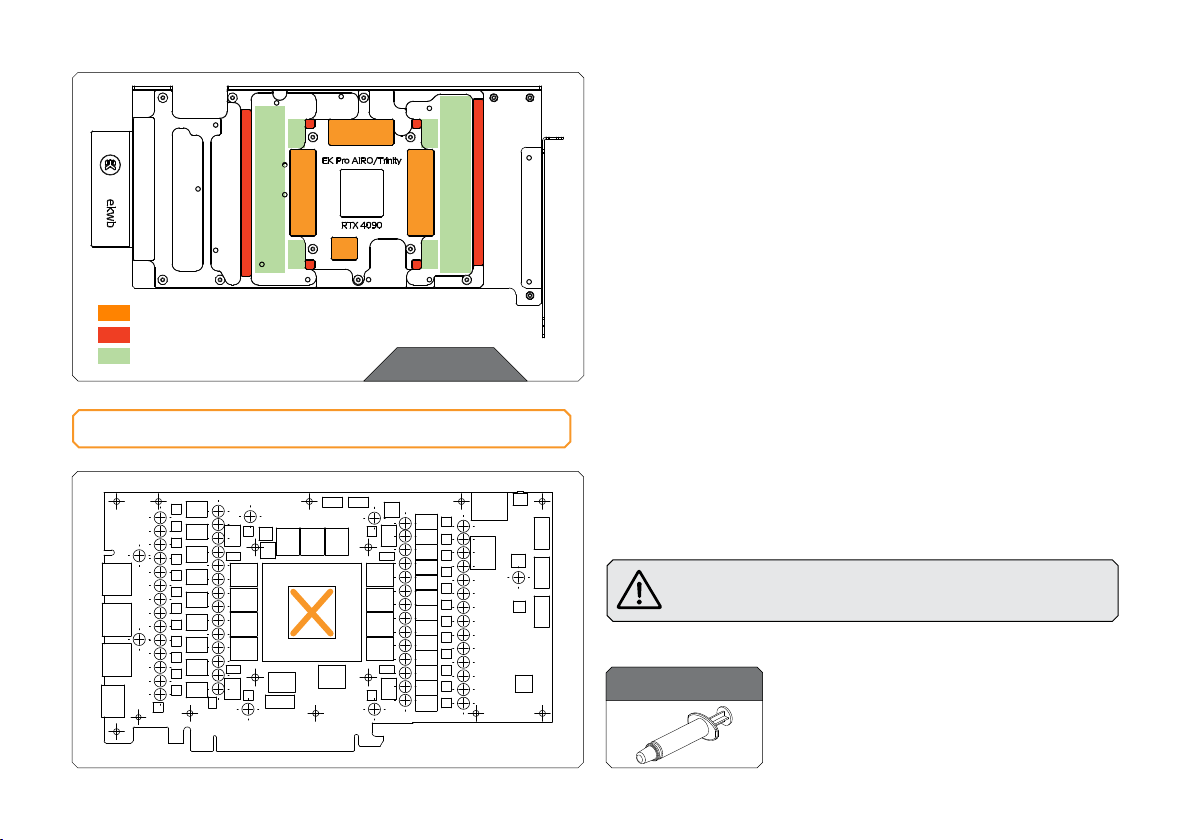

Once cut to the size, Thermal Pads should be placed on the

coldplate, as shown in the picture.

Thermal Grease

Apply the enclosed EK-TIM Ectotherm thermal grease (thermal

compound) on the GPU heat spreader – IHS – as shown in the

image. The layer of the thermal compound must be thin and even

over the entire surface of the IHS.

The excessive or uneven application of thermal grease

may lead to poor performance!

APPLYING THERMAL COMPOUND

For this step, you will need:

Thermal Pad - 120 x 16 x 1.0 mm

Thermal Pad - 120 x 16 x 1.5 mm

F1.5

Thermal Pad - 120 x 24 x 0.5 mm

G0.5

F1.5

F1.5 F1.5

F1.5

G0.5

F1 F1

- 10 -

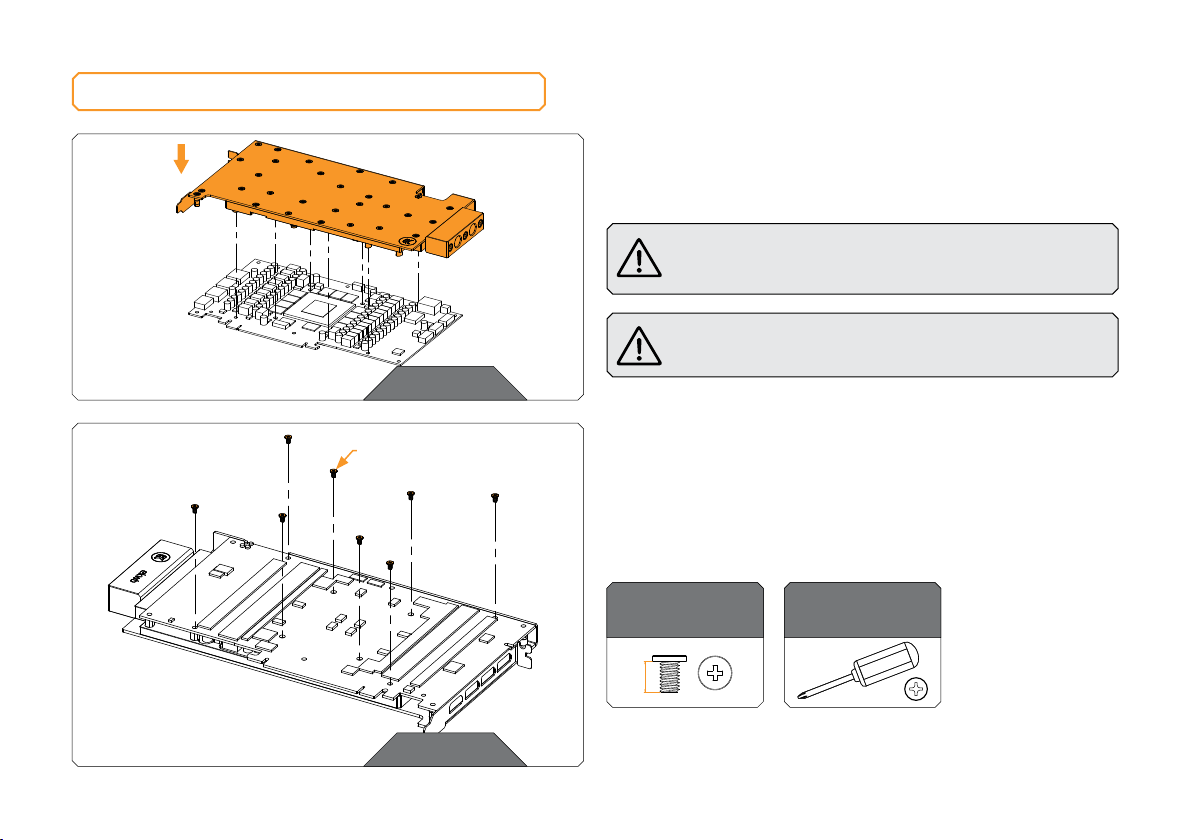

ATTACHING THE WATER BLOCK

STEP 1

For this Step, you will need:

M2.5 x 4 AX1

Screw (8 pcs)

4 mm

STEP 2

M2.5 x 4 AX1 SCREW

STEP 2

Use eight (8) M2.5 x 4 AX1 Screws and tighten the PCB on the

water block. Tighten the screws evenly using the Philips-head

screwdriver. EK recommends you start tightening the screws

around the GPU core ﬁrst and then continuing outwards to prevent

damage to the GPU.

Phillips Head

Screwdriver

STEP 1

Carefully position the water block with preinstalled standoffs on the

graphics card. During this process, make sure you have aligned the

mounting holes of the PCB with the holes of the water block.

Pay attention not to use too much force when pressing

the block down to the PCB since chip dies are prone

to cracking.

Before attaching the PCB to the Water Block, make sure

all the Thermal Pads are placed correctly!
