Ekwb EK-XRES Revo D5 Manuale utente

EK-XRES Revo D5

2nd revision, Oct 25th 2016

USER GUIDE

/ 2 /

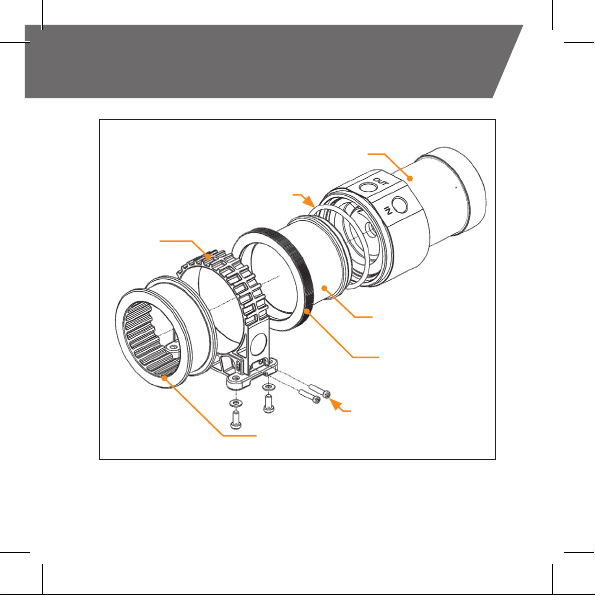

INSTALLING THE XRES D5 (already done by EK)

61x3mm sealing gasket (OR)

D5 pump body

with motor

Screws M3x12

NU T M74

Pump

holder

Rubber damper

EK-XRES D5

/ 3 /

STEP 1

Install the EK-XRES Revo D5 onto the pump main motor

housing. Make sure you install EK provided 61x3mm o-ring

gasket! Reseat the gasket if needed. You can rotate the

pump and use it in any direction except upside-down to best

suit your installation.

STEP 2

Secure the pump on the EK-XRES Revo D5 using en-

closed M74 Nut.

/ 4 /

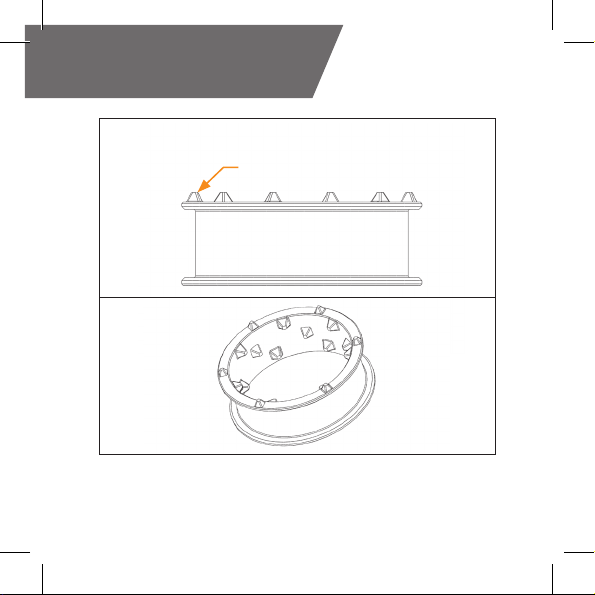

ADDITIONAL DAMPER

Top pyramids must be facing UP

/ 5 /

Additional Revo D5 Damper is enclosed. If pump vibrations

are higher than expected additional Revo D5 Soft dump-

er can be used. When replacing damper, take care that top

pyramids are faced up as shown on picture below. In case of

severe tilting of the computer chassis reservoir unit may fall

out of the holder. Additional damper use is recommended in

vertical reservoir unit mount

/ 6 /

USING POLYETHER ANTI-VORTEX FOAM or EK-HD Tube

EK-XRES Revo D5 series pump top / reservoir comes pre-

installed with Anticyclone by default. In case your system

suffers from excessive vortex issues, air bleeding problems

or if the pump is sucking in air you may replace the anticy-

clone with the enclosed polyether foam or EK-HD Tube.

There are two ways to use the polyether anti-vortex foam:

Default conﬁguration PE foam – use whole

This is the default conﬁguration

of EK-XRES Revo D5 series

reservoir.

Use the foam as a whole to re-

place the Anticyclone.

/ 7 /

PE foam – trim to ﬁt recess HD Tub e

Trim the foam to size to ﬁt into

the desired inlet recess on the

EK-XRES Revo D5 main body.

Insert enclosed o-ring 16x2 into

the groove inside center hole

and insert enclosed EK-HD

Tub e 12/ 16 .

/ 8 /

INSTALLING THE RESERVOIR

By default the EK-XRES Revo D5 ships with EK-Revo D5

Holder. This holder is meant to be installed directly on the

computer chassis. User may need to drill 4 (four) Φ5mm

(enclosed sticker with designated holes) holes through the

metal chassis using electric power drill if there are no appro-

priate mounting holes available.

Computer chasis

metal plate

Washer

M4x10 screw

OUTLET

INLET

EK-Revo D5 Holder

/ 9 /

EK recommends users to ﬁnd an appropriate position in your

computer chassis to install the EK-XRES Revo D5 pump as-

sembly. To successfully install the EK-XRES Revo D5 pump/

reservoir assembly please complete the following steps:

1. Find an appropriate position for the unit inside (or perhaps

outside) of your computer chassis; drill mounting holes if

needed. Sticker with designated holes position is enclosed.

Before drilling stick it to the Computer chassis.

2. Attach the EK-Revo D5 Holder to the computer chas-

sis metal frame using enclosed 4 (four) M4x10 DIN7984

screws and PVC washers. Secure the screws using en-

closed Allen key 2.5mm.

3. Insert the rubber damper into the EK-Revo D5 Holder.

Insert the pump into the damper. And secure it using two

M3x12 DIN7984 screws from the side of the holder. Use

enclosed 2mm Allen key. Your installation is now complete.

/ 10 /

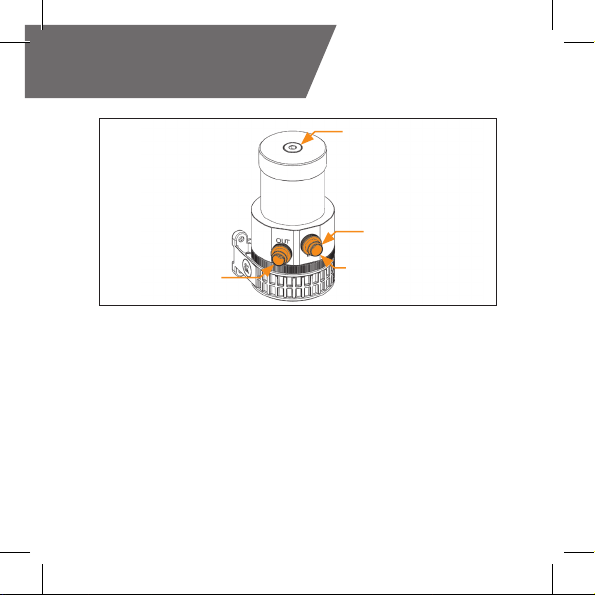

AT TACHING FIT TINGS

EK-XRES Revo D5 PWM (incl. pump) series reservoir

pump combo featured 3 (three) G1/4 threaded ports on the

main body of which 1 (one) is inlet and other is outlet. When

reservoir is in upright position outlet port is positioned lower

than inlet port. EKWB recommends using EK-ACF ﬁttings

with the EK-XRES Revo D5 PWM series reservoir pump

combo units. To ensure that the tubes are securely attached

to the barb/ﬁttings, please use hose clamps or an appropri-

ate substitute.

OUTLET INLET

EK-Plug G1/4

EK-ACF Fitting
