Elation VISION 575 Manuale utente

Service Manual

www.elationlighting.com

S e rv ic e M a n u a l pa ge 2

( )

E xploded View (B ase )

No.24-004-2022 R ev 1.0

Assembly P arts List (B ase )

01. 25-022-0230 Lock ring

02. 22-007-0036 Hexagon nut

03. 25-022-0231 B all bearing

04. 25-022-0228 Holder ball bearing

05. 25-022-0289 R ing part

06. 23-001-1184 P las tic gear

07. 25-022-0229 Antifriction ring

08. 23-001-1217 Metal stopper

09. 25-022-0227 B ase s haft

10. 27-001-0574 K IT Y P O C 250-PAN

11. 23-001-1216 U-like metal plate

12. 23-001-1215 R etaining metal board

13. 25-024-0051 B elt

14. 07-006-0026 S mall magnet

15. 25-022-0272 Magnet holder

16. 25-022-0224 E ncoder wheel holder

17. 25-022-0223 E ncoder wheel

18. 27-001-0575 P C B of the S ens or

19. 23-001-1214 Metal plate for motor fixation

20. 08-001-0021 Motor

21. 23-110-0020 Metal cover for B as e (right)

22. 23-001-1220 Metal cover for B as e (left)

23. 23-001-2040 R etaining B oard

24. 23-001-1837 Hook part

25. 25-022-0446 Lock R ing

26. 25-022-0550 C amlock (G LP )

S e rv ic e M a n u a l pa ge 3

No.24-004-2022 R ev 1.0

S e rv ic e M a n u a l pa ge 4

E xploded View of B as e

No.24-004-2022 R ev 1.0

Assembly P arts List (B ase )

01. 03-010-0001 C apacitor

02. 07-002-0053 F ilter

03. 23-110-0032 R etaining metal board of the base

04. 11-001-0019 S witch

05. 22-002-0022 F us e

06. 25-003-0031 C able nut

07. 09-001-0001 C ondens er Mic

08. 25-017-0061 R ubber washer

09. 23-001-1223 C arrying handle

10. 23-001-2042 F ixing s heet

11. 23-001-1224 P lastic bas e cover

12. 16-004-0336 Terminal part

13. 27-001-0577 K IT Y P O C -DMX-S O

14. 10-006-0020 B allast

15. 10-005-0135 R ing transformer

16. 25-008-0238 B lue transparent Lens

17. 27-001-0798 K IT Y P OC 575 C ompactDisplay module

18. 23-001-2036 S upport part1

19. 23-001-1210 S hielding plate

20. 25-022-0499 S upport pole

21. 23-001-2037 S upport part 2

22. 23-001-2041 Motor fixing board

23. 25-022-0511 Metal part

24. 25-022-0518 C amlock

25. 25-022-0494 Metal accessory

26. 08-022-0020 C ooling F an

27. 27-001-0888 K IT Y P OC C P U P C B

28. 23-001-2043 P C B fixing board

S e rv ic e M a n u a l pa ge 5

No.24-004-2022 R ev 1.0

S e rv ic e M a n u a l pa ge 6

Arm E xploded View

12310 11

789

456

17 16

19 18

26 27 28

24 32

29 33

No.24-004-2022 R ev 1.0

Assembly P arts List (Arm)

01. 25-022-0570 B earing holder

02. 25-022-0231 B earing

03. 23-001-2035 Ignitor fixing part

04. 25-022-0220 Metal part

05. 22-006-0006 R ubber was her

06. 07-002-0070 F ilter coil

07. 16-003-0028 Terminal connector (white)

08. 23-001-2034 F ixing part

09. 23-001-2033 Metal balancing part

10. 07-009-0003 E lectronic ignitor

11. 23-001-1207 C over of Arm

12. 23-001-1205 U-like metal part

13. 23-001-1204 U-like retaining part

14. 23-001-1219 R etaining metal part

15. 23-001-1218 S upporting metal part

16. 25-006-0009 Isolating pole

17. 27-001-0563 K IT Y P OC 250 T R B T ILT 4.B R D

18. 25-022-0224 E ncoder wheel holder

19. 25-022-0223 E ncoder wheel

20. 23-001-1206 Metal plate for motor fixation

21. 27-001-0575 K IT Y P OC 250 P OS -F B

22. 23-001-1203 Motor fixing board

23. 08-001-0021 S tepping Motor

24. 24-005-0647 S ticker

25. 27-001-0571 K IT Y P OC 250 T ILT

26. 25-022-0313 Metal pole

27. 25-024-0050 B elt

28. 07-006-0026 Magnet

29. 25-022-0187 Magnet holder

30. 23-001-1184 B ig plas tic gear

31. 25-022-0571 B earing holder

32. 25-022-0222 Inside lock ring

33. 25-022-0230 Outside lock ring

S e rv ic e M a n u a l pa ge 7

No.24-004-2022 R ev 1.0

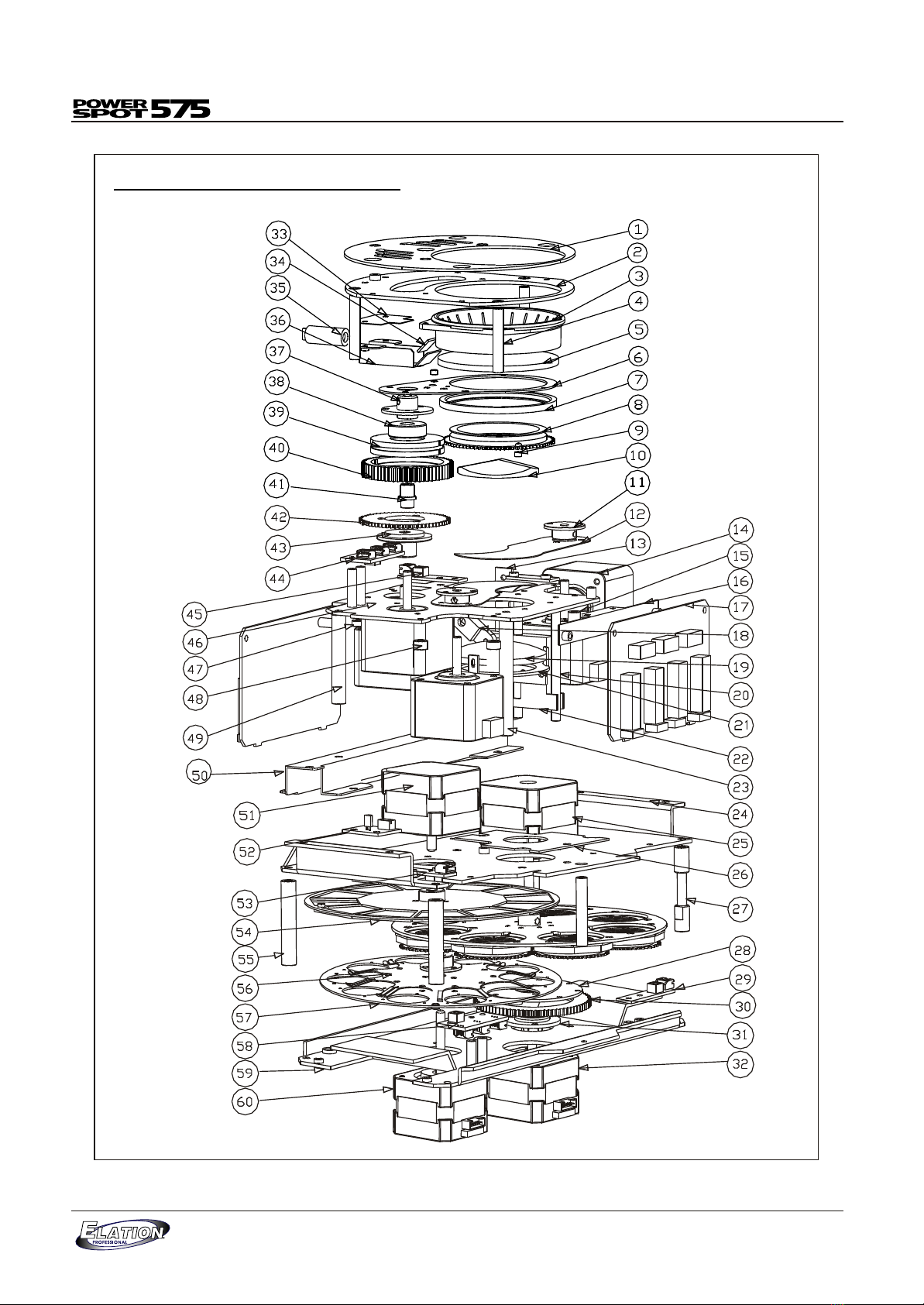

Head E xploded View

S e rv ic e M a n u a l pa ge 8

No.24-004-2022 R ev 1.0

Assembly P arts List (Head)

01. 23-001-2198 S hield B oa rd

02. 23-001-2030 C over of the Head

03. 25-024-0115 T hree-cornered plastic part

S e rv ic e M a n u a l pa ge 9

No.24-004-2022 R ev 1.0

S e rv ic e M a n u a l pa ge 1 0

No.24-004-2022 R ev 1.0

F ront -Head E xploded View
