Elecrow CrowPi All-in-One Kit Manuale utente

Please

read

this

instruction

carefully

before

using

this

Kit

and

keep

for

future

reference.

by Elecrow

CrowPi All-in-One Kit

Quick Start Guide

* Product pictures are for reference only

Table of Contents

The CrowPi

About the CrowPi development board --------------------------------------------- 1-2

Enclosure and materials ----------------------------------------------------------------- 3

Hardware, sensors & GPIO usage--------------------------------------------------4-7

Safety notes and warnings------------------------------------------------------------7-8

Initial Installation

CrowPi Pre-installation Requirements --------------------------------------------- 8-9

Downloading CrowPi image --------------------------------------------------------- 9-10

Burning the image into an Micro SD Card -------------------------------------- 10-11

Attaching the Raspberry Pi to the CrowPi board ----------------------------- 11-13

First time booting into the Operating System----------------------------------- 14-16

Summary

Summary and downloadable Lessons--------------------------------------------- 17

After months of dedicated working with our top R&D engineers and teams at Elecrow,

We are proudly presenting the “CrowPi” , a one of a kind Raspberry Pi Development

board, Which we truly believe you'll like just as we do.

The CrowPi Board was specially crafted for those who are passionate about STEM

education, Making, Computer Science, Robotics, teaching others or just learning out of

curiosity!

We've been working hard to make the CrowPi board as easy as possible so anyone

(literally) will be able to learn how to code and make incredible projects using the

Raspberry Pi Single Board Computer.

The CrowPi

About

the

CrowPi

development

board

Thank you for supporting and purchasing our Elecrow CrowPi Board!

All-in-One Kit, CrowPi embeds regular materials for doing RPI projects

CrowPi DevelopmentBoard

Sensors

LCDdisplay

Switches

Button

Buzzer

Relay

Servo

Bread boards

Steper motor

IR receiverI2C

LCD

NFC moudle

LEDmatrix

4 Bitesegment

Buttonarry

Jumpers

...

With our board we are solving issues that have been in the wild for quite a while .. issues

like:

Being in an unproductive, messy environment - full of sensors, jumpers, bread boards and

cables. Our CrowPi solves it by offering an all-in-one board with on-board necessary

sensors for learning and rapid development.

Being unable to start using Raspberry Pi or Python Coding due to the complex, old

fashionable learning methods. We offer 21 lessons to get started with hands-on, detailed

examples that anyone canmake.

The Raspberry CrowPi Kit can be used as laptop, gaming console, IOT project, studying,

making, prototyping and more! The imagination is the limit.

You can fit Raspberry Pi 3 into the CrowPi and extend support of sensors and modules

using the on-board breadboard.

We'd like to thank you again for supporting us and purchasing your first CrowPi Develop-

ment board. We can't wait to see what you'll make with it!

Enclosure & Materials

Beautifully Designed for Everyday Life

Black Blue

CrowPi case is made of ABS plastic. The case edge is made of Aluminium alloy. The

monitor frame is made of arcylic.The fastener and hinge is made of iron. The handle is

made of plastic with metal coating. The development board is made of hasl lead free

FR-4. All the materials we use are non-toxic.

Hardware,

Sensors

GPIO

Usage

Module List:

1. ABS Plastic Case

2. Camera

11. Sound Sensor

12. PIR Motion Sensor(LH1778)

21. Relay

22. Matrix Buttons

3. 7inch HDMI Touch Screen

13. Ultrasonic Sensor

23. Independent Buttons

4. Power Circuit

14. Servo Inteface

24. RFID Module(MFRC522)

5. LCD Module(MCP23008)

15. UART

25. Switches

6. Segment LED (HT16K33)

16. Step Motor Interface

26. Bread board

7. Vibration Motor

17. Tilt Sensor(SW-200D)

27. Raspberry Pi

8. Matrix LED(MAX7219)

18. IR Sensor

28. GPIO LED Indicator

9. Light sensor(BH1750)

19. Touch Sensor(TTP223)

29. Acrylic board

10. Buzzer

20. Temperature and Humidity

30. Microphone

Sensor (DH11)

Note: The CHIP name (module) of each sensor is inside the parenthesis

Sensor Control Description

Sensor Name

Control Pin

Control

Method

Remarks

BUZZER

pin12/GPIO18

GPIO

OUTPUT

RELAY

pin40/GPIO21

GPIO

OUTPUT

SOUND SENSOR

pin18/GPIO24

GPIO INPUT

TILT SWITCH

pin15/GPIO22

GPIO INPUT

UX5-2 ON

VIBRATION MOTOR

pin13/GPIO27

GPIO

OUTPUT

UX5-1 ON

MOTION SENSOR

pin16/GPIO23

GPIO

OUTPUT

TOUCH SENSOR

pin11/GPIO17

GPIO INPUT

STEPPER MOTOR

pin29/GPIO5

pin31/GPIO6

pin33/GPIO13

pin35/GPIO19

GPIO

OUTPUT

UX5-3 ON

UX5-4 ON

UX5-5 ON

UX5-6 ON

SERVO

pin22/GPIO25

GPIO

OUTPUT

UX5-8 ON

IR RECEIVER

pin38/GPIO20

GPIO BOTH

TEMPERATURE&HUMIDITY

pin7/GPIO4

GPIO INPUT

ULTRASONIC SENSOR

ECHO:Pin32/GPIO12

TRIG:Pin36/GPIO16

GPIO INPUT

LIGHT SENSOR

I2C

Address:0x5c

I2C LCD

I2C

Address:0x21

4 BITE SEGMENT

I2C

Address:0x70

LED MATRIX

SPI

CS:

pin26/GPIO8

NFC MOUDLE

SPI

CS:

pin24/GPIO7

INDEPENDENT BUTTON

UP: pin37/GPIO26

DOWN: pin33/GPIO13

RIGHT: pin35/GPIO19

LEFT:pin22/GPIO25

GPIO INPUT

UX1-5 ON

UX1-6 ON

UX1-7 ON

BUTTON ARRY

Row1: pin13/GPIO27

Row2: pin15/GPIO22

Row3: pin29/GPIO5

Row4: pin31/GPIO6

Col1: pin22/GPIO25

Col2: pin37/GPIO26

Col3: pin35/GPIO19

Col4: pin33/GPIO13

GPIO INPUT

UX1-1 ON

UX1-2 ON

UX1-3 ON

UX1-4 ON

UX1-5 ON

UX1-6 ON

UX1-7 ON

UX1-8 ON

Note : UX1 and UX5 are dialing switches, some sensors use the same GPIO, so if you

want to use those sensors, you have to turn on the right switch, for example: button-LEFT

using the same GPIO with the SERVO 2, if you want to use the SERVO, You can open

UX5-8, if you want to use button-LEFT , you can open UX1-8.

The CrowPi Safety Notes and warnings

Elecrow puts their customer's safety and security at the first priority, for the same reason

Elecrow doesn't use dangerous materials while manufacturing, and we follow extremely

strict QA tests to make sure the highest quality product will be shipped to our customers.

The CrowPi is a safe-to-use product with 5V input by power supply. Even though it's

completely safe to use it under normal circumstances there are a few rules that parents

should be aware of when buying this product for their children.

* Children should be under parent's supervision while using such a product, the product

contains small parts which might cause chocking to small children if swallowed.

* The relay module supplied inside our CrowPi board should ONLY be used within the

breadboard circuit designing, standing with 3v/5v power supply and SHOULD NOT

under any circumstances be used / connected or wired to a 220v/110v power plug like

light bulb, air conditioner etc …

* We care about your children's eyes and health just as you do, we do not recommend

using the device in dark room with no light for safety reasons and to protect the eyes

from the light of the LED’ s and LCD display.

* The device was designed to be portable. It's possible to take it anywhere including

out-doors, school, train etc … The device should not be left out-doors without

supervision and / or in bad weather conditions such as rain and snow. The device is

neither water or dust proof.

Initial Installation

Pre-installation requirements

Before diving right into the CrowPi Initial installation guide we'd like to confirm you have

everything that is required in order to make the installation process as smooth as possible.

Please go through the following checklist and make sure you have it all

Note: These are not optional. They are all necessary for the installation process.

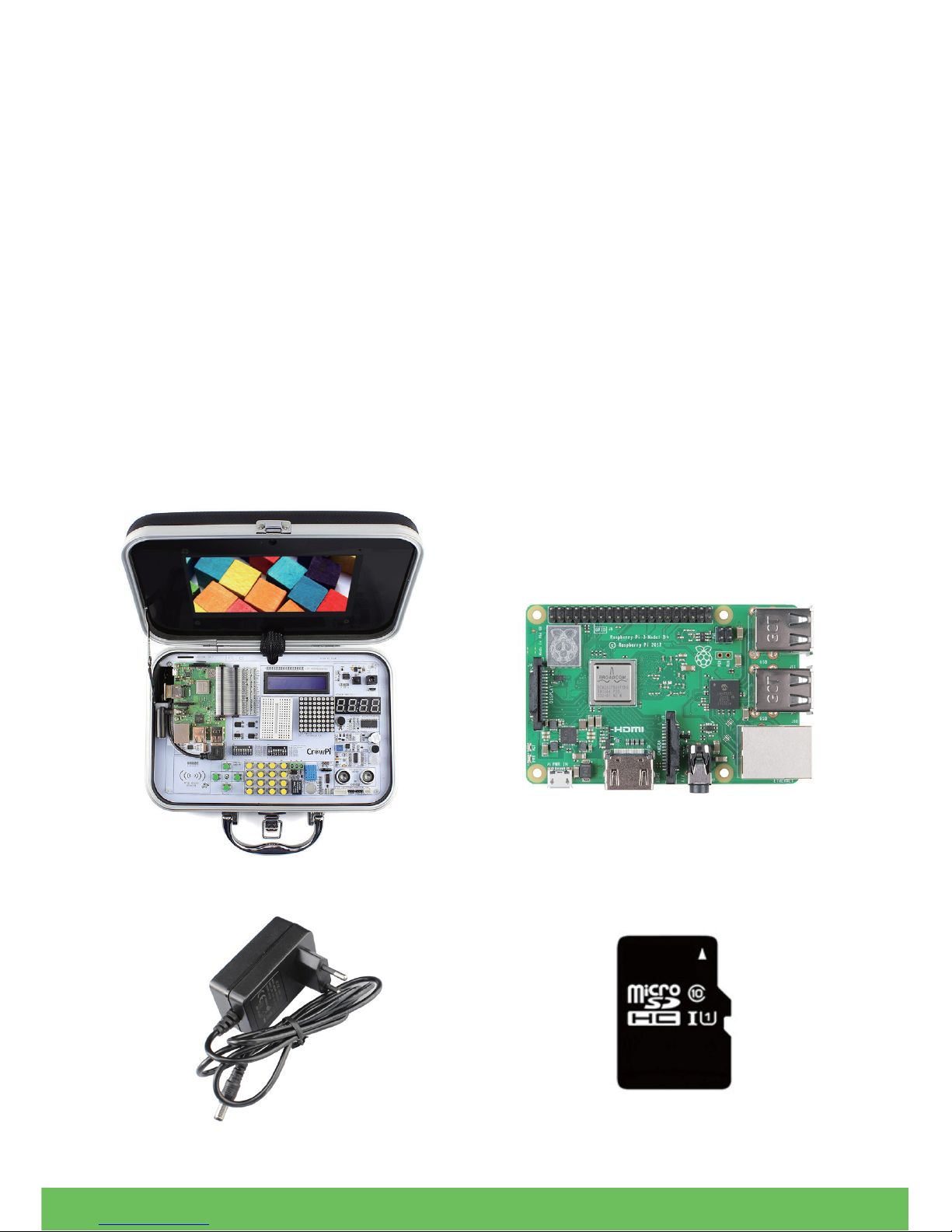

Official Elecrow CrowPi Board

CrowPi Power Adapter

Raspberry Pi 3

Micro SD Card (Highly recommended

Class 10, With high Read/Write speed)
