ElectrIQ EiQCURV60SC Manuale utente

INSTALLATION AND USER MANUAL

COOKER HOOD

60cm Hood

90cm Hood

Stainless Steel

eiQCURV60SC

eiQCURV90SC

Black

eiQCURV60BL

eiQCURV90BL

White

eiQCURV60WH

eiQCURV90WH

Please read this manual before using or installing the cooker hood and

keep it safe for future reference.

Visit our page www.electriQ.co.uk for our entire range of electricals

CONTENTS

IMPORTANT SAFETY INFORMATION

PARTS

INSTALLATION DIAGRAM

OPTIONS FOR VENTILLATION

INSTALLATION

OPERATION

REPLACING THE BULB

INSTALLING THE CARBON FILTER (OPTIONAL)

REMOVAL AND REFITTING OF THE GLASS CANOPY

CLEANING AND MAINTENANCE

TROUBLESHOOTING

SPECIFICATION

MANUFACTURER SUPPORT

IMPORTANT SAFETY INFORMATION

Please read this instruction manual carefully and retain for future

reference. It contains important information concerning the safe

operation, installation and maintenance of the appliance.

There must be adequate ventilation of the room when the

hood is used at the same time as appliances burning gas or

other fuels.

This cooker hood is only designed for domestic use, and

should not be used in a commercial environment.

Never use the hood for any purpose other than its intended

use.

Do not check the status of the filters during operation of the

cooker hood.

Do not touch the light bulb within 30 minutes of use.

Do not flambé or excessively flame under the hood.

Never leave frying food unattended as it can be a serious fire

hazard.

If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or a similarly qualified person

in order to avoid a hazard.

The socket outlet for the hood must be located so it is easily

accessible for the user after installation.

Ensure the mains supply voltage corresponds with that of the

appliance.

There is a fire risk if cleaning is not carried out in accordance

with the instructions.

Ensure that the socket used provides adequate earthing of

the appliance, if unsure professional advice must be sought.

This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the

hazards involved.

Children must not play with the appliance.

Cleaning and user maintenance must not be carried out by

children without supervision.

When the hood is being maintained, cleaned or filters

changed, make sure it is switched off at the mains supply.

The exterior of the hood should be cleaned with mild

detergent on a warm damp sponge or cloth.

The air must not be discharged into a flue that is used for

exhausting fumes from appliances burning gas or other fuels.

Regulations concerning the discharge of air have to be

fulfilled.

The minimum distance between the supporting surface for

the cooking vessels on the hob and the lowest part of the

hood must be at least 65 cm.

When the cooker hood is used in conjunction with appliances

supplied with energy other than electric, the negative

pressure in the room must not exceed 0,04 mbar to prevent

fumes being drawn back into the room by the cooker hood.

Failure to install the hood in accordance with these

instructions may result in electrical hazards.

CAUTION:

Accessible parts may become hot when used with cooking

appliances.

Deep fat fryers must be continuously monitored during use:

overheated oil can burst into flames

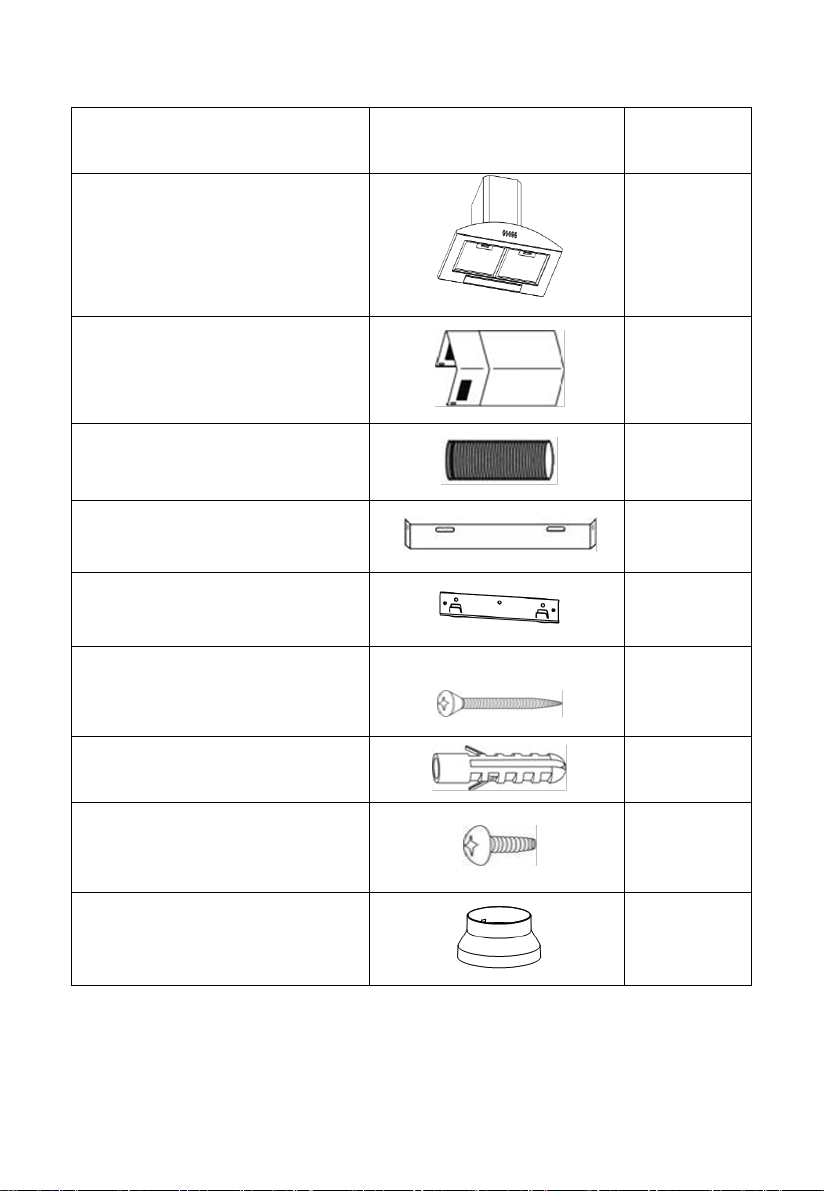

PARTS

DESCRIPTION

ILLUSTRATION

QTY

Cooker Hood

Chimney Sections

Exhaust Pipe

Chimney bracket

Hood Installation Plate

Screw (ST5*50)

Wall plug

Screw (ST4.2*9.5)

Exhaust adaptor

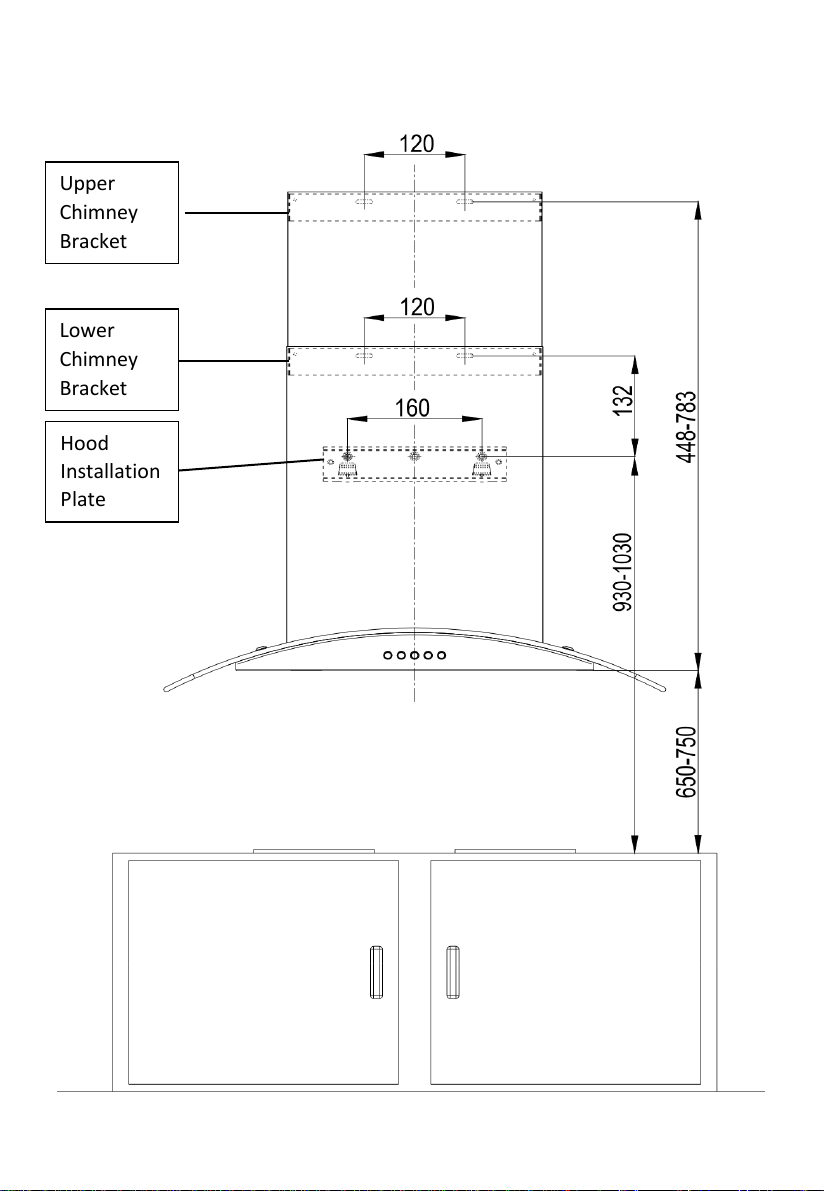

INSTALLATION DIAGRAM

Upper

Chimney

Bracket

Lower

Chimney

Bracket

Hood

Installation

Plate

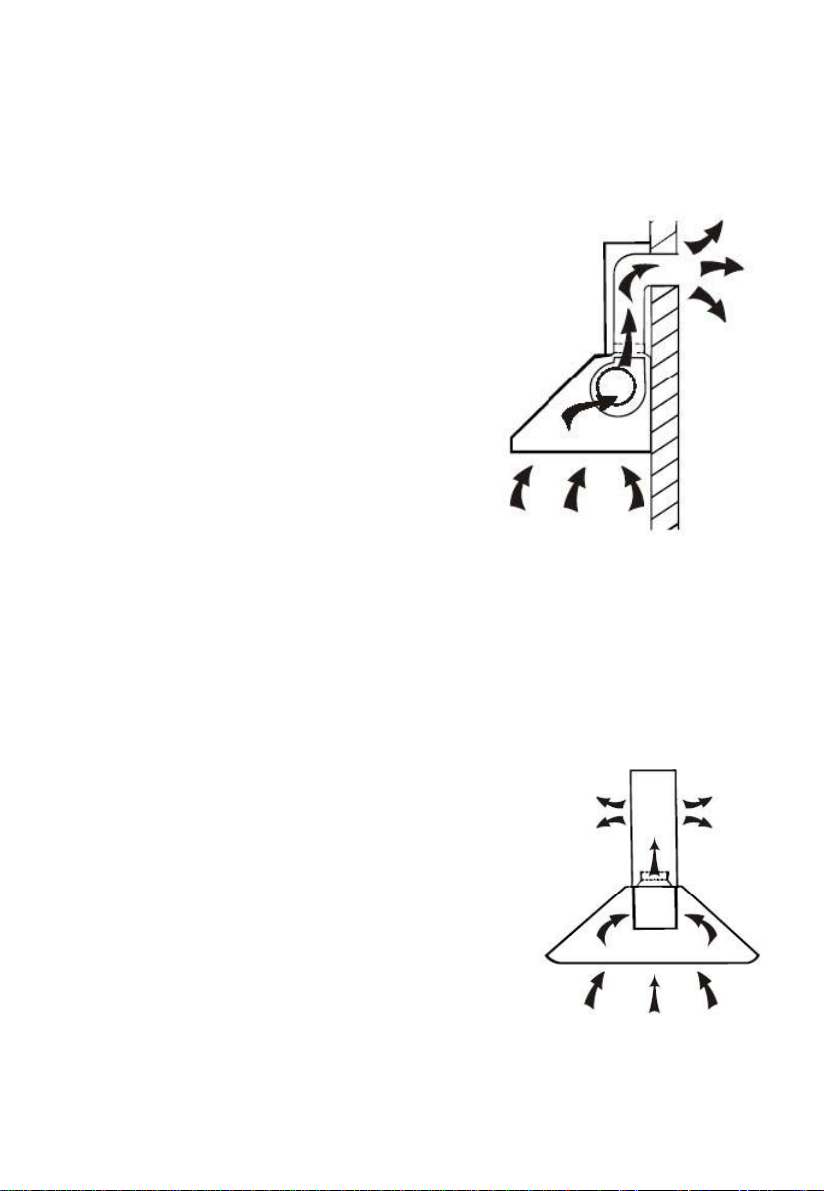

OPTIONS FOR VENTILATION

This hood can be set up for either external venting or recirculation of the

air. The type of setup should be decided before commencing installation.

EXTERNAL VENTING

If you have an outlet to the outside, your

cooker hood can be connected as shown

in the diagram using the flexible exhaust

pipe (supplied). Alternatively any suitable

extraction duct (enamel, aluminium,

flexible pipe or inflammable material with

an interior diameter of 150mm) can be

used.

An adaptor is also supplied to enable you

to connect your hood to pre existing

120mm diameter ducting.

If this is the chosen installation method consideration to the route of the

vent pipe should be made prior to installation.

Please note: the performance of the hood may be affected if the diameter

of the pipe is reduced, or if the airflow is restricted.

RECIRCULATION

This cooker hood also supports the recirculation

of air once it has passed through the filters.

The filtered air is then expelled through the vent

holes in the side of the chimney.

When setting the unit up in this configuration,

carbon filters should also be used to remove

odours from the air. Details of sourcing and

fitting the filters can be found in the carbon filter

section of this manual.

When setting up for recirculation the installation instructions should be

followed, but the vent pipe should not be attached, allowing the air to be

expelled through the vents on the side of the chimney.

INSTALLATION

BEFORE INSTALLING YOUR HOOD:

Unpack the hood and check that all functions are working. Ensure that

the voltage (V) and the frequency (Hz) indicated on the serial plate

match the voltage and frequency at the installation site.

Check that the area behind the installation surface to be drilled is clear

of any electrical cables or pipes, etc.

The surfaces of the hood are very easily damaged during installation if

grazed or knocked by tools. Please take care to protect the surfaces

during installation.

Protect the hob surface with cardboard, or similar, to prevent damage

occurring whilst the hood is being installed above.

The manufacturer shall not be liable for any failure to observe all

safety regulations in force for the correct and normal operation of

electrical products.

Ensure the wall is level and the installation plates are horizontal to

prevent grease from accumulating within the hood.

Ensure the power has been turned off at the mains before starting

installation.

Connection to the mains supply must be in an accessible location.

You may need the following tools to complete this installation:

Drill appropriate for your wall

Phillips Screwdriver

Tape Measure

Hand Saw or Jig Saw

Electrical wiring must be done by a qualified person in accordance with

all applicable codes and standards, including fire rated construction.

INFORMATION

Sufficient air is needed for proper combustion and exhaustion of gases

through the flue (chimney) for fuel burning equipment to prevent back

drafting. Ductless fans must always be vented to the outdoors.

When assessing the air pressure, the entire ventilation system in the

house/apartment must be taken into account.

All legal regulations must be observed for the conveyance of exhaust

air. If the extractor hood is used in recirculating mode with the optional

carbon filter, there are no operating restrictions.

1. Before installation, ensure you have not connected the appliance to the

mains supply.

2. The cooker hood should be placed at a

distance of 65~75cm above the cooking plane

for best effect.

3. Drill all 7 holes for the hood using the

installation diagram as a guide. Use

the supplied screws (ST5 x 50mm) to

attach the hood installation plate, and

the Upper chimney bracket to the wall

in the correct position, ensuring the

plates are level.

4. The 2 air flaps should now be installed on the top of the unit, as access

is easier before the unit is wall mounted. The flaps should be carefully

installed, bending them slightly so the lugs at each end locate into the

holes in the outlet vent. When the unit is in operation the flaps pivot

upwards to allow airflow.

Please note: Ensure the small lugs at each end of each flap locate into

the holes on the housing and not the grooves above them.

5. Slide the chimney sections onto

the hood. Fix the base of the

lower chimney section to the

hood using two ST4.2 x 9.5mm

screws (supplied)

6. Fix the lower chimney bracket

to the top of the lower chimney

using two ST4.2 x 9.5 screws

(supplied).

7. Hang the hood on the

Installation plate, and

secure to the wall

using two screws

(ST5*50) through the

lower chimney

bracket into the wall

plugs previously

inserted.

8. If the hood it to be vented externally, push the exhaust pipe onto the

top of the hood, and route it externally.

9. Slide the inner chimney up to the correct

height and fix into position on the upper

chimney bracket using the remaining two

screws (ST4.2*9.5).
