ElectrIQ EiQTOPVWHITE Manuale utente

INSTALLATION AND USER MANUAL

COOKER HOOD

eiQTOPVWHITE

eiQTOPVBLACK

eiQTOPVSTEEL

Please read this manual before using or installing the cooker hood and

keep it safe for future reference.

Visit our page www.electriQ.co.uk for our entire range of electricals

CONTENTS

IMPORTANT SAFETY INFORMATION

PARTS

INSTALLATION

CHANGING THE VENTILATION METHOD

PREPARING FOR INSTALLATION

CUPBOARD MOUNTING INSTALLATION

WALL MOUNTING INSTALLATION

OPERATION

REPLACING THE BULB

INSTALLING THE OPTIONAL CARBON FILTER

CLEANING AND MAINTENANCE

TROUBLESHOOTING

SPECIFICATION

MANUFACTURER SUPPORT

IMPORTANT SAFETY INFORMATION

Please read this instruction manual carefully and retain for

future reference. It contains important information concerning

the safe operation, installation and maintenance of the

appliance.

•There must be adequate ventilation of the room when the

hood is used at the same time as appliances burning gas or

other fuels.

•This cooker hood is only designed for domestic use, and

should not be used in a commercial environment.

•Never use the hood for any purpose other than its intended

use.

•Do not check the status of the filters during operation of the

cooker hood.

•Do not touch the light bulb within 30 minutes of use.

•Do not flambé or excessively flame under the hood.

•Never leave frying food unattended as it can be a serious

fire hazard.

•If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or a similarly qualified

person in order to avoid a hazard.

•The socket outlet for the hood must be located so it is easily

accessible for the user after installation.

•Ensure the mains supply voltage corresponds with that of

the appliance.

•There is a fire risk if cleaning is not carried out in

accordance with the instructions.

•Ensure that the socket used provides adequate earthing of

the appliance, if unsure professional advise must be sought.

•This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the

hazards involved.

•Children must not play with the appliance.

•Cleaning and user maintenance must not be carried out by

children without supervision.

•When the hood is being maintained, cleaned or filters

changed, make sure it is switched off at the mains supply.

•The exterior of the hood should be cleaned with mild

detergent on a warm damp sponge or cloth.

•The air must not be discharged into a flue that is used for

exhausting fumes from appliances burning gas or other

fuels.

•Regulations concerning the discharge of air have to be

fulfilled.

•The minimum distance between the supporting surface for

the cooking vessels on the hob and the lowest part of the

hood must be at least 65 cm.

•When the cooker hood is used in conjunction with

appliances supplied with energy other than electric, the

negative pressure in the room must not exceed 0,04 mbar

to prevent fumes being drawn back into the room by the

cooker hood.

•Failure to install the hood in accordance with these

instructions may result in electrical hazards.

CAUTION:

Accessible parts may become hot when used with cooking

appliances.

Deep fat fryers must be continuously monitored during use:

overheated oil can burst into flames

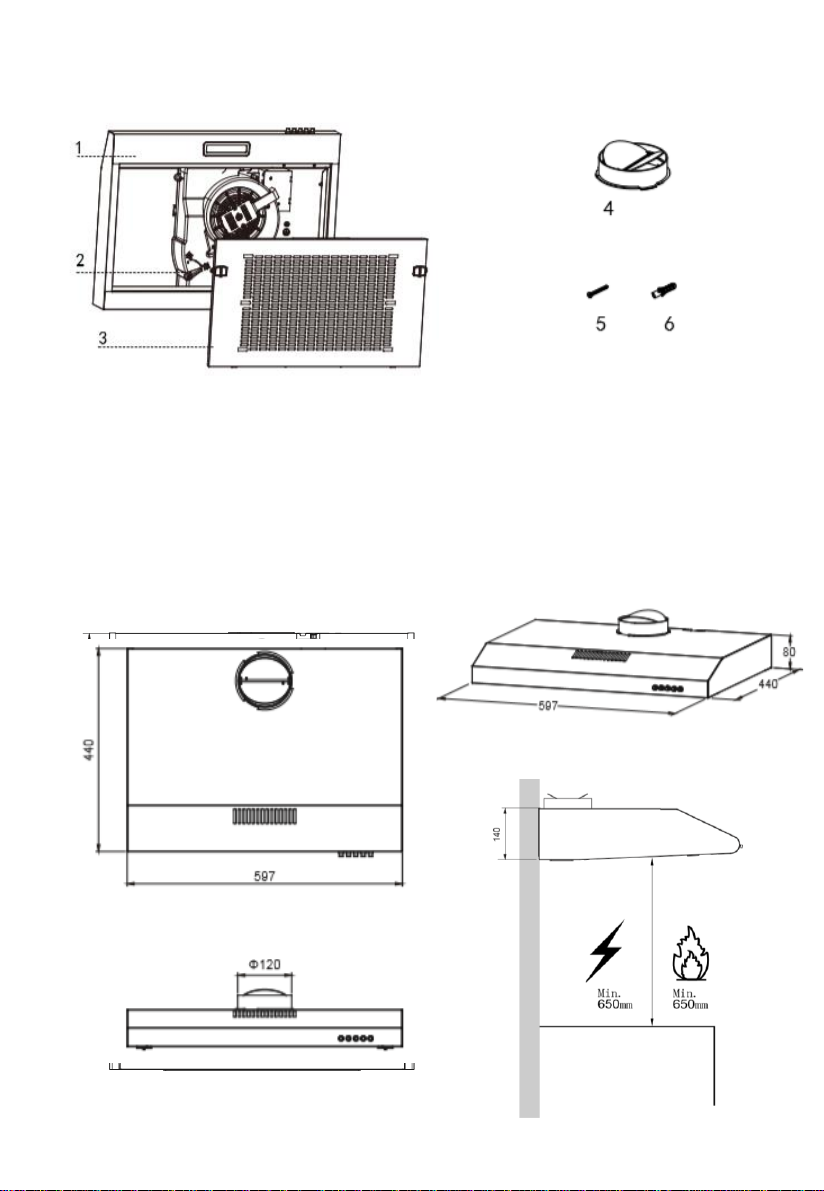

PARTS

DIMENSIONS

THE COOKER HOOD

1. Main Body

2. Venting Control

3. Filter Assembly

4. V-Flap

5. Screws 5mm x49mm

6. Wall Plugs

INSTALLATION

BEFORE INSTALLING YOUR CANOPY HOOD:

•Please read the instructions carefully.

•Unpack the hood and check that all functions are working.

Ensure that the voltage (V) and the frequency (Hz) indicated

on the serial plate match the voltage and frequency at the

installation site.

•Check that the area behind the installation surface to be drilled

is clear of any electrical cables or pipes, etc.

•The surfaces of the canopy are very easily damaged during

installation if grazed or knocked by tools. Please take care to

protect the surfaces during installation.

•Protect the cooktop surface below with cardboard, or similar,

to prevent damage occurring whilst the hood is being installed

above.

•The manufacturer shall not be liable for any failure to observe all safety

regulations in force for the correct and normal operation of electrical

products.

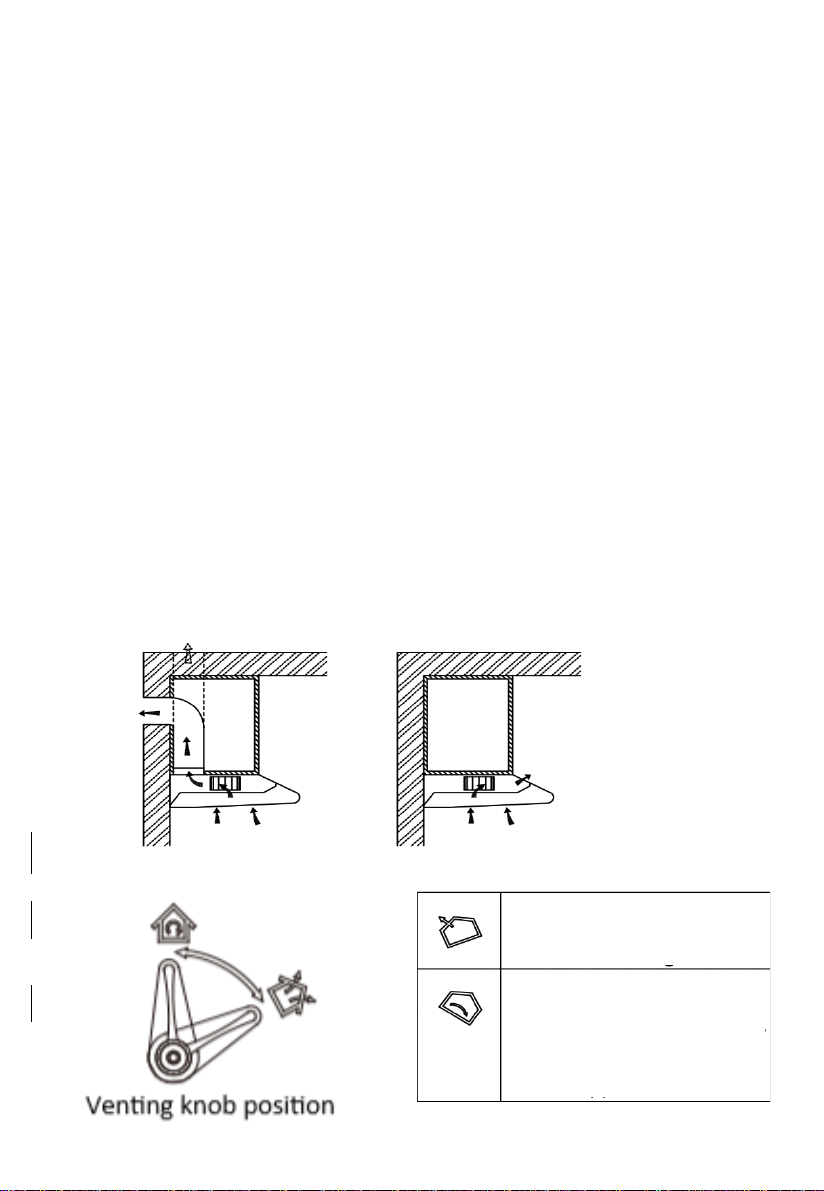

CHANGING THE VENTILATION METHOD

EXTRACTION

(TOP VENT)

RECIRCULATE

EXTRACTION MODE

Turn the lever to this position when

using with an external vent pipe

RECIRCULATE MODE

Turn the lever to this position

when venting back into the room.

This mode must be used with an

optional carbon filter.

INFORMATION

•Sufficient air is needed for proper combustion and exhaustion of

gases through the flue (chimney) of fuel burning equipment to

prevent back drafting. Ductless fans must always be vented to

the outdoors.

•When assessing the air pressure, the entire ventilation system

in the house/apartment must be taken into account.

•All legal regulations must be observed for the conveyance of

exhaust air. If the extractor hood is used in recirculating mode

with the optional carbon filter, there are no operating restrictions.

•Make sure the vent option knob is set correctly (page 6).

PREPARING FOR INSTALLATION:

Ensure the power has been turned off at

the mains before beginning installation.

Connection to the mains supply must be

in an accessible location. To install this

hood you will require two assistants. You

may need the following tools to complete

this installation:

•Drill appropriate for your wall

•Phillips Screwdriver

•Tape Measure

•Hand Saw or Jig Saw

Electrical wiring must be done by a

qualified person in accordance with all

applicable codes and standards,

including fire rated construction.

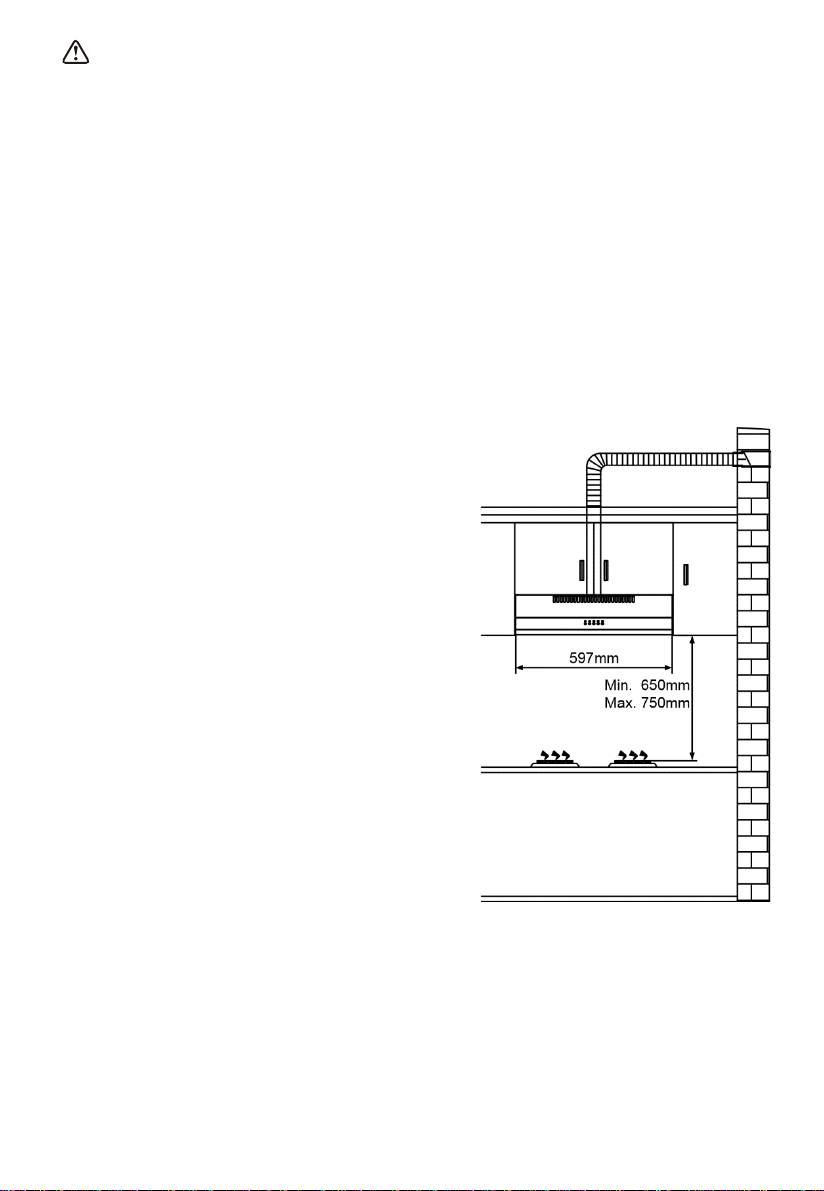

Do not discharge the exhaust air into a flue from other appliances

burning gas or other fuels.

The cooker hood must be placed at a minimum distance of 65cm

above the cooking surface of a hob.

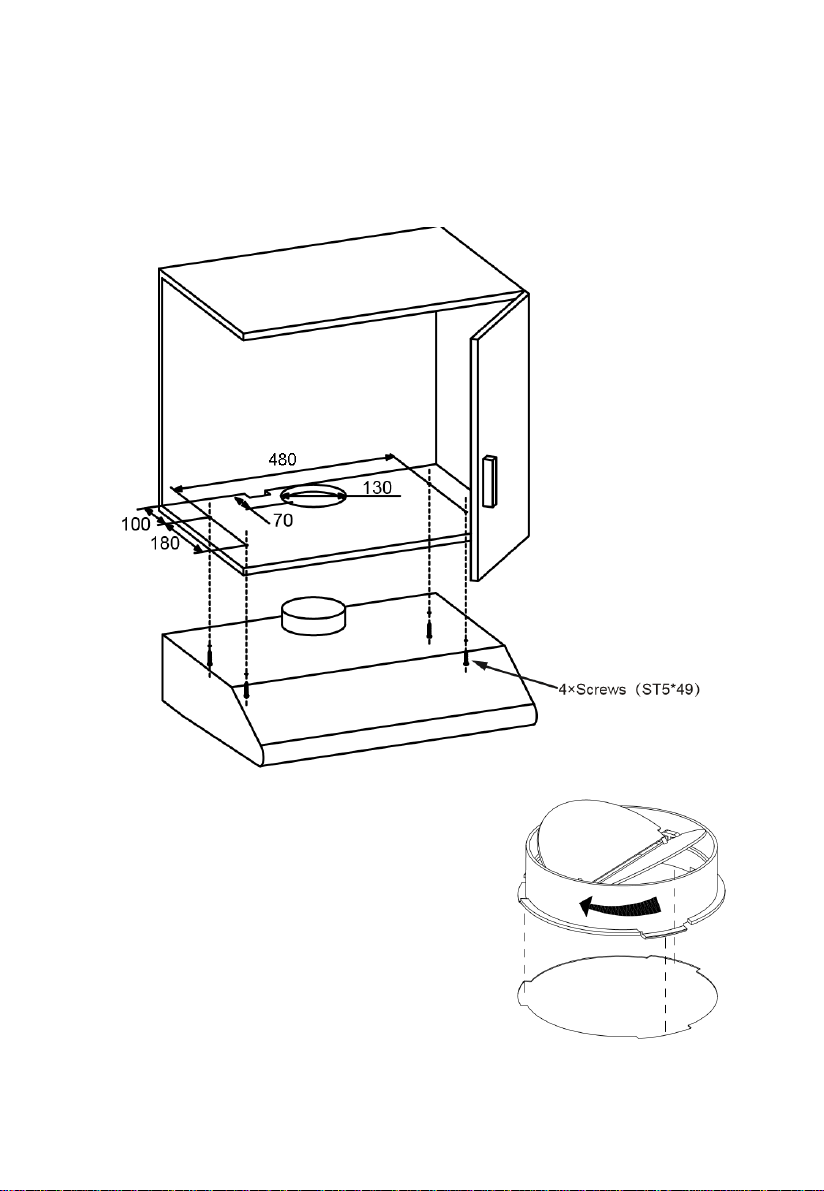

CUPBOARD MOUNTING INSTALLATION:

1. Drill a 130mm diameter and four 3.5mm diameter holes as shown in

the diagram.

NOTE: If your cooker hood is to be used in recirculating air mode, it is

not necessary to cut the 130mm diameter hole.

2. Attach the one way valve and then

use 4 screws to fix the cooker hood

to the underside of the kitchen

cupboard. Check that your fixings

are correctly located, by temporarily

fitting the cooker hood. If correct, fit

the unit into position. Tighten the

screws as necessary.

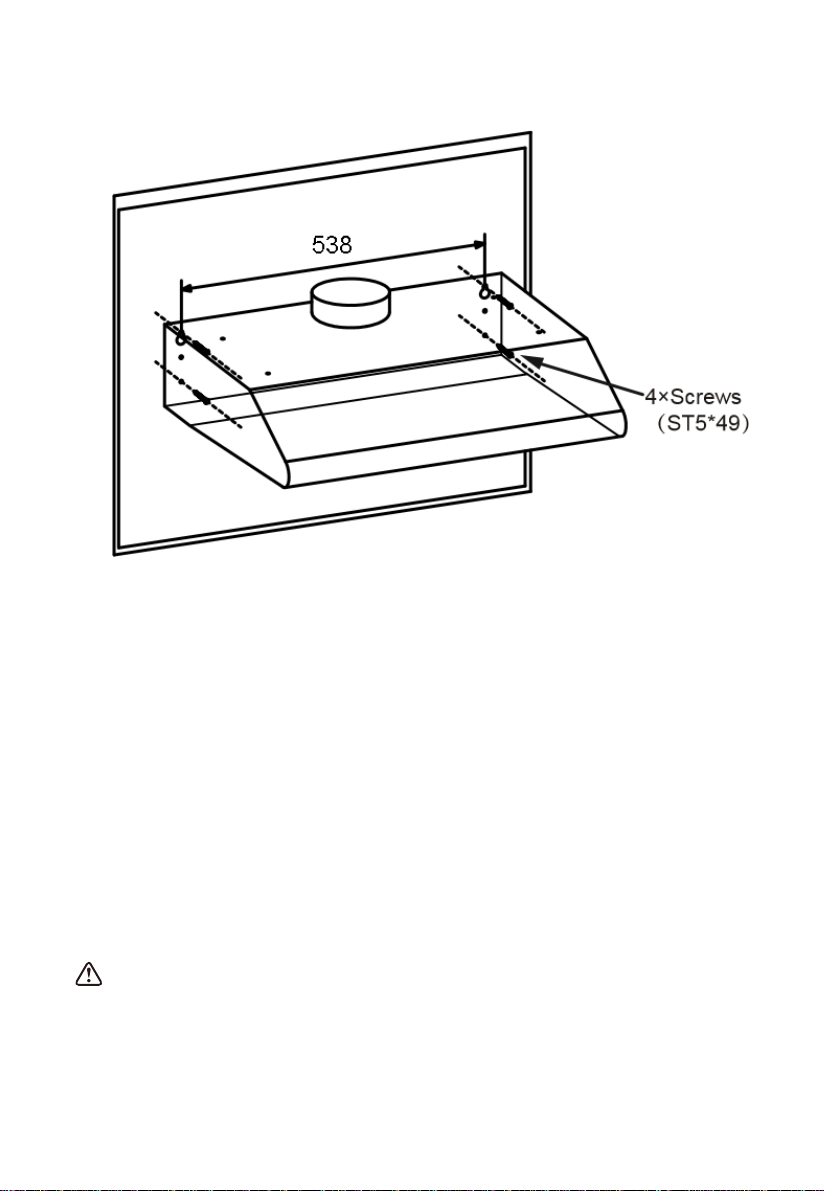

WALL MOUNTING INSTALLATION:

1. Drill two 10mm diameter holes in the correct position on the wall

when compared to the hanging holes on the rear of the hood. Make

sure the hood is aligned directly over the hob, a minimum of 65cm

above the hob surface.

2. Insert two plastics wall plugs into the holes.

3. Insert two screws into the wall plugs and tighten them leaving around

3mm protruding from the wall.

4. Mount the cooker hood onto the two screws and mark the bottom two

screw positions.

5. Remove the hood and drill the bottom two screw holes and insert the

plastic wall plugs.

6. Mount the hood on the top screws, insert the bottom screws and fully

tighten all the screws.

Information

The air must not be discharged into a flue that is used for

exhausting fumes from appliances burning gas or other fuels.

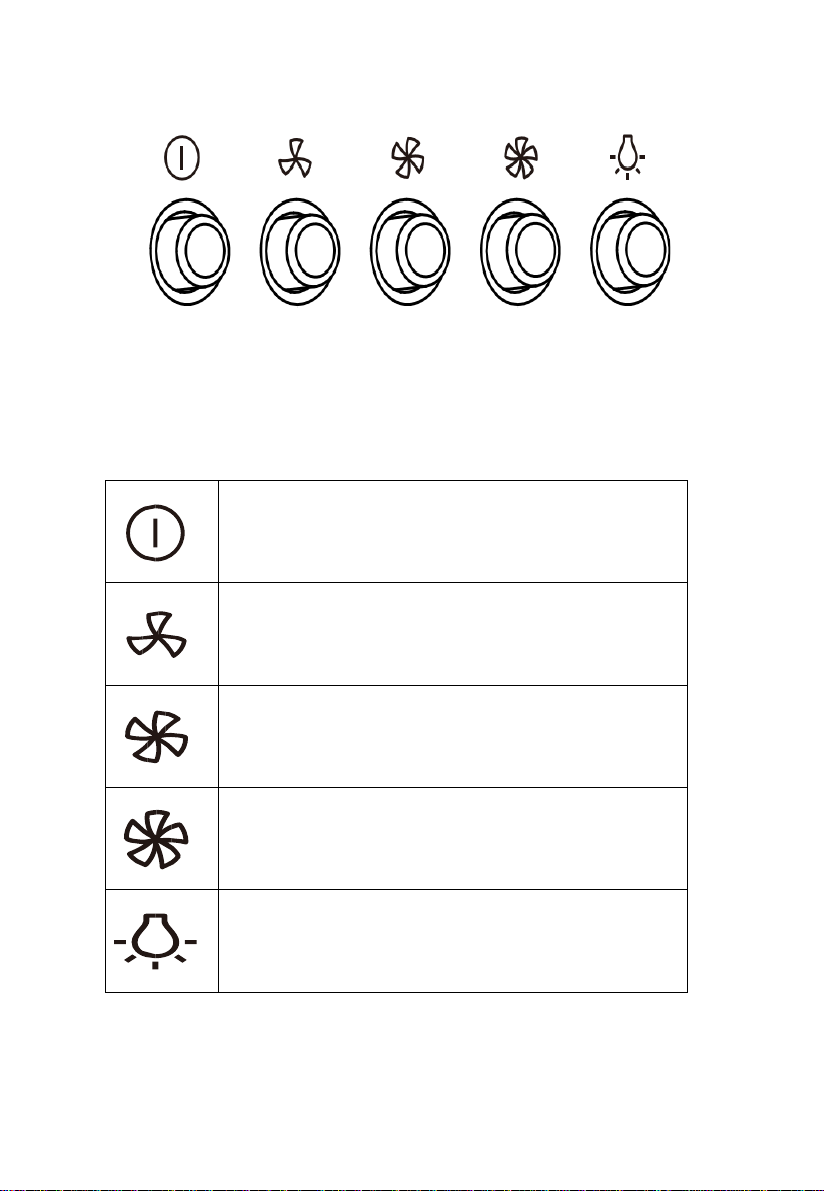

OPERATION

MOTOR OFF BUTTON:

Press on this switch to stop operation of the

motor.

LOW SPEED BUTTON:

Press to run the motor at LOW speed.

MEDIUM SPEED BUTTON:

Press to run the motor at MEDIUM speed.

HIGH SPEED BUTTON:

Press to run the motor at HIGH speed.

LIGHT ON/OFF BUTTON:

Press to turn on the lights, press again to turn

them off.
