Electro-Voice Bass Module Sb122 Manuale utente

Key Features:

• Very Compact and Lightweight --

Only 33 lbs/15.0 kg

• Integral handle

• 400Watt continuous,1,600Watt peak power

handling

• Parallel Neutrik Speakon high current input

connectors

• Cast frame EVS12SB 12-inch high excursion

subwoofer driver

• Integral low-pass filter -- No additional

amplifier or processor needed

SB122

12”400-Watt

Bass Module

General Description:

TheElectro-Voice®SB122bassmoduleisavery

compact,lightweight subwoofer systemthat is designed

to add bass enhancement to EV Sx and Zx Series

speakersystems. TheSB122combinesthe advantages

ofalong-throw12"wooferwithastrong, lightweight

compositeenclosure. Thelargeventprovideslessvent

compressionandturbulenceforincreasedlowfrequency

output. TheEVS12SBcastframetransducer created for

theSB122 usesthe samemotor and suspension design

as the EVS18S used in EV’s larger systems. With

nearlytwoinches of peak-to-peakexcursioncapability,

this is literally a twelve inch with the heart of an eighteen.

An integral low-pass filter allows the SB122 to be directly

connectedinparallel withafull-rangespeakerfortruly

impressivelow-end outputwithouttheneedforan

additionalamplifierandprocessor. Thefilteris transparent

below160Hz, allowingthe SB122 tobe usedas an

independentsubwooferinbiampapplicationswithoutthe

need to disable the internal filter. For maximum output in

biampapplicationsand protectionofthefull-rangesystem

whenrunningin parallel,a40HzHi-pass(subsonic)filter

isrecommended. The SB122featuresaconvenientpole

mount socket on top of the enclosure to allow a small full-

range speaker such as the Zx1 or Sx80 to be mounted on

the optionalASP-1 accessory pole, resulting in a

compact system than sounds much bigger than it looks.

Technical Specifications:

esnopseR.qerF

:)Bd3-(zH541-zH25

egnaR.qerF

:)Bd01-(zH002-zH34

dednemmoceR :ycneuqerFssaP-hgiH zH04

ytivitisneS

:)m1/W1LPS(Bd99

:LPSdetaluclaCxaMBd131

:).tnoC(gnildnaHrewoPsttaW004

:)kaeP(gnildnaHrewoPsttaW006,1

:recudsnarTFL)mm503(ni21,BS21SVE

revossorCdednemmoceR :pmaiB,egnaRycneuqerF zH061-zH08

:ecnadepmIsmhO8

:srotcennoC4LNnokaepSkirtueN)2(

:)DxWxH(miD"3.21x"9.61x"1.32 )mm213xmm924xmm685(

:thgieWteN)gk0.51(sbl33

:thgieWgnippihS)gk5.61(sbl4.63

1 Half Space measurement.

Accessories:

• 302055-000 ASP-1,Adjustable Sub Pole

• 5912525 PDSx,CarryingBag

• 302053-001 TSS-1,TripodStand

Performance Match:

• Q66PowerAmplifier

SB122 Part Number:

• 302013-001 SB122, Black Finish

• 302013-002 SB122, White Finish

12000 Portland Avenue South, Burnsville, MN 55337

Phone:952/884-4051, Fax:952/884-0043

www.electrovoice.com

PartNumber 38110-535 Rev1

U.S.A. and Canada only. For customer orders, contact Customer Service at:

800/392-3497 Fax: 800/955-6831

Europe, Africa, and Middle East only. For customer orders, contact Customer Service at:

+ 49 9421-706 0 Fax: + 49 9421-706 265

Other International locations. For customer orders, contact Customer Service at:

+ 1 952 884-4051 Fax: + 1 952 736-4212

For warranty repair or service information, contact the Service Repair department at:

800/685-2606

For technical assistance, contact Technical Support at: 866/78AUDIO

Specifications subject to change without notice.

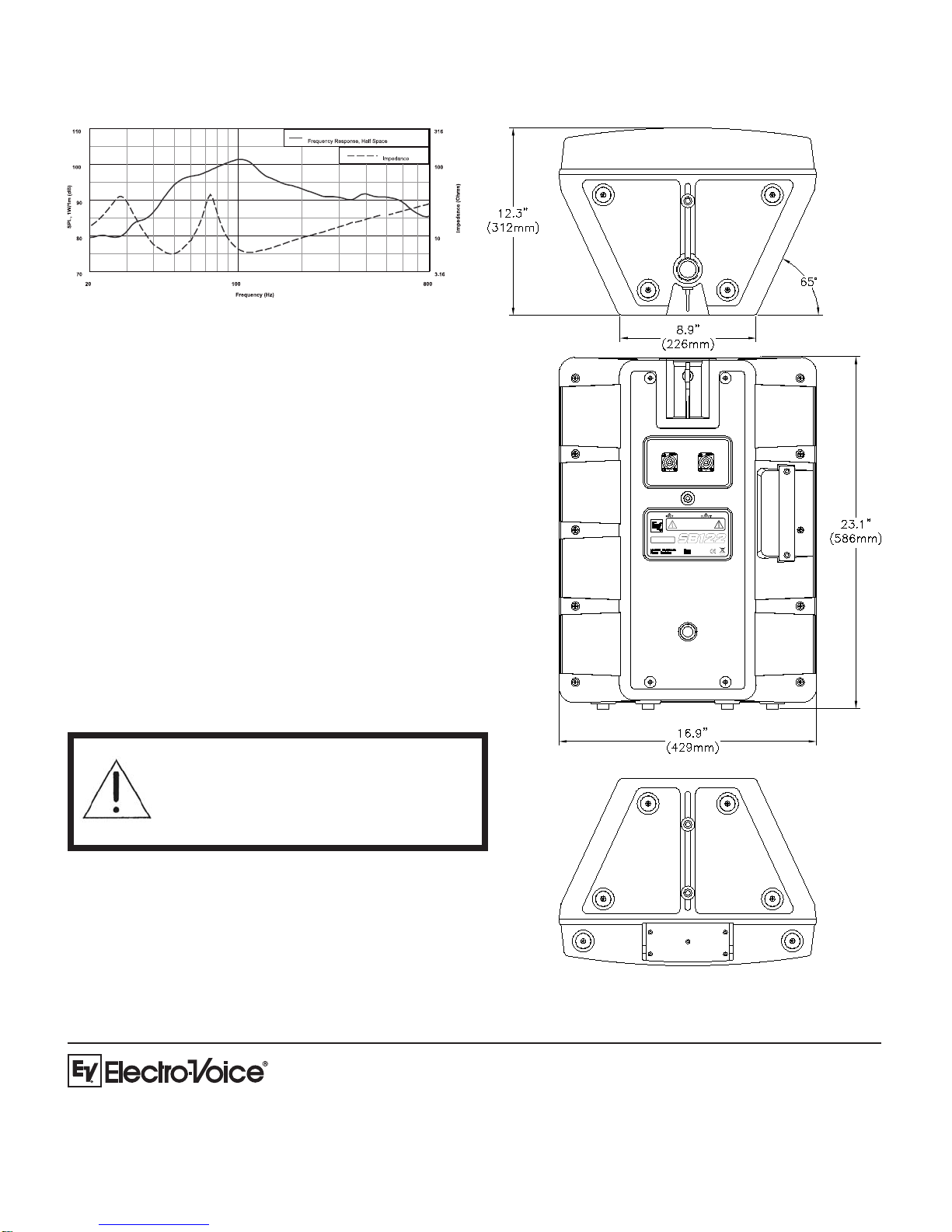

Dimension Drawing:Frequency Response:

WARNING: The SB122 is very

lightweight and has a small footprint.

Do not attempt to pole-mount a

speaker system larger than a Zx1 or

Sx80 on the SB122.
