Electrolux FAK083N7 Manuale utente

Product No. FAK083N7V

Series Slider/Casement

Volts 115

BTU-Cooling 8000

Owner's Guide 309000854

Market North America

P40l2004.eps FAK083N7V.eps A232012.eps

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995413126

04/07/14

(EN/SERVICE/KC)

099

ROOM AIR

CONDITIONER

Model No.

FAK083N7

Publication No: 5995413126 FAK083N7V

07/04 2

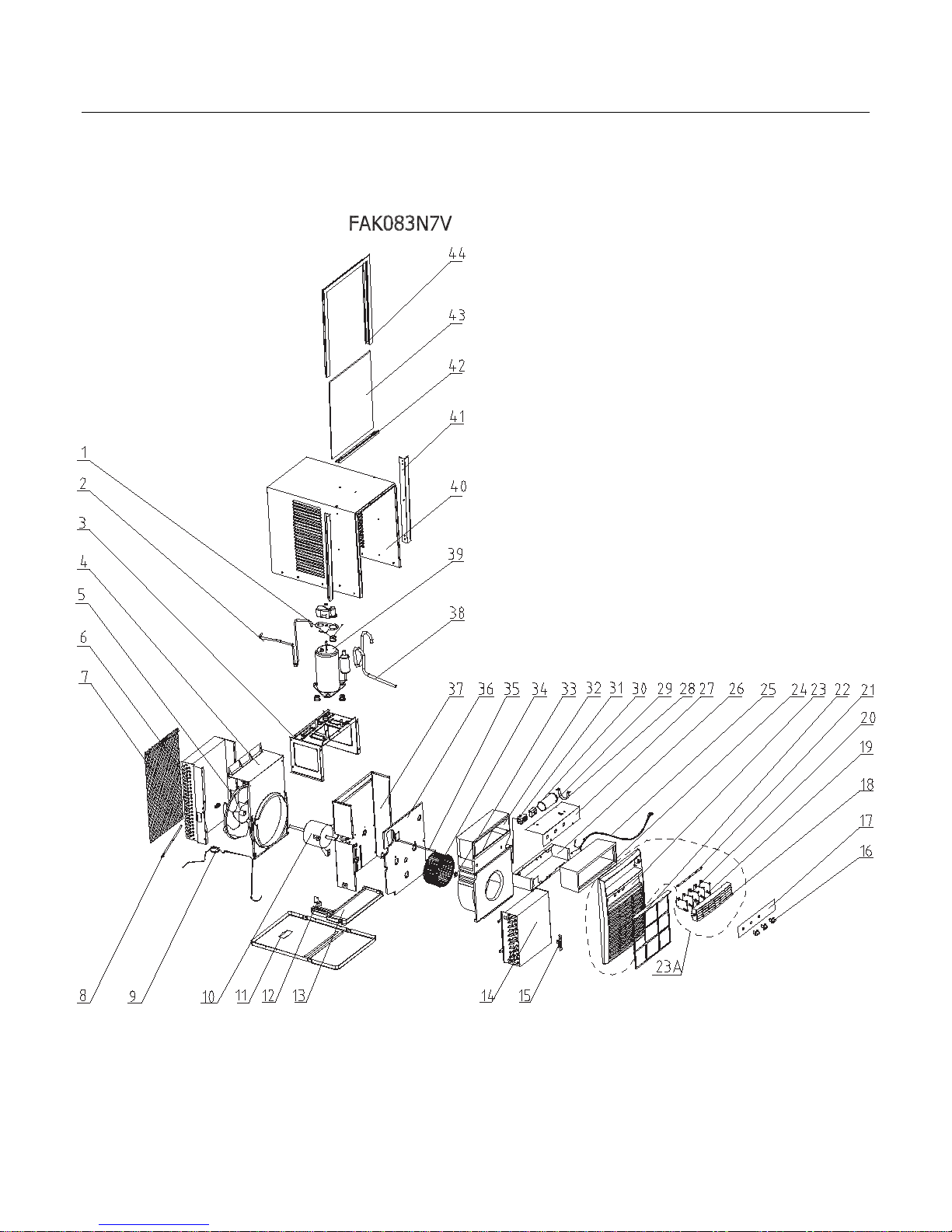

RECOMMENDED SPARE PARTS

FAK083N7V Publication No: 5995413126

# Functional Parts 3 07/04

* Non-Illustrated Parts

RECOMMENDED SPARE PARTS

POS. NO PART NO. DESCRIPTION

1 # 309205101 Overload Protector

2 # 309260801 Tube, discharge, formed

3 309614108 Base, compressor mtg., with studs

4 309642301 Housing, fan shroud

5 # 309626001 Fan Blade, condenser

6 # 309617311 Condenser

7 5303317604 Grille, rear

8 # 5304413933 Tube, process, cond. outlet

9 # 309375001 Tube, capillary, formed

10 # 309646002 Motor, fan

11 309621003 Base, casement unit, with seal

12 309102701 Bracket, condenser/base

13 309624101 Tray, evaporator drip

14 # 309617011 Evaporator

15 309321201 Clip, temp sensor mtg, thermostat

16 309307013 Knob, control

17 309622610 Dial Plate

18 309622204 Louver, horizontal

19 309622103 Louver, vertical

20 309622104 Louver, vertical, w/handle

21 5303303089 Link, louver

22 309622304 Filter, air, front

23 309621804 Frame, cabinet front

23A 309622404 Front Assy, complete

24 309624901 Adapter, scroll/housing, front

25 # 309343105 Cord-electric power, type A, 16 AWG

26 309606402 Control Box

27 309606501 Panel, control mount

28 5303303077 Strap, capacitor mtg.

29 # 5303306135 Capacitor, 370 V, 5+35 mfd

30 # 5303323284 Switch, selector, 7 posn, 3 speed

31 # 5303321674 Control, temperature

32 309624801 Housing, blower scroll

33 309112101 Clamp, blower wheel mt, compression

34 # 309625201 Blower Wheel, plastic

35 309625301 Door Opener, vent mechanism

36 309624601 Plate, scroll/housing, back

37 309615202 Partition, shroud/scroll, galv-steel

38 # 309261101 Tube, suction, formed

39 # 309260301 Compressor Assembly, w/electricals, 115 V, & mtg grommets

40 309622004 Cabinet, wrapper/sleeve

41 309305302 Channel, slide, side mt., (2)

42 5304414112 Retainer, window panel

43 309335102 Panel, window, 19.02 x 15.15, plastic, translucent, corrugated

44 5304414118 Frame, expander, sliding

Publication No: 5995413126 FAK083N7V

07/04 4

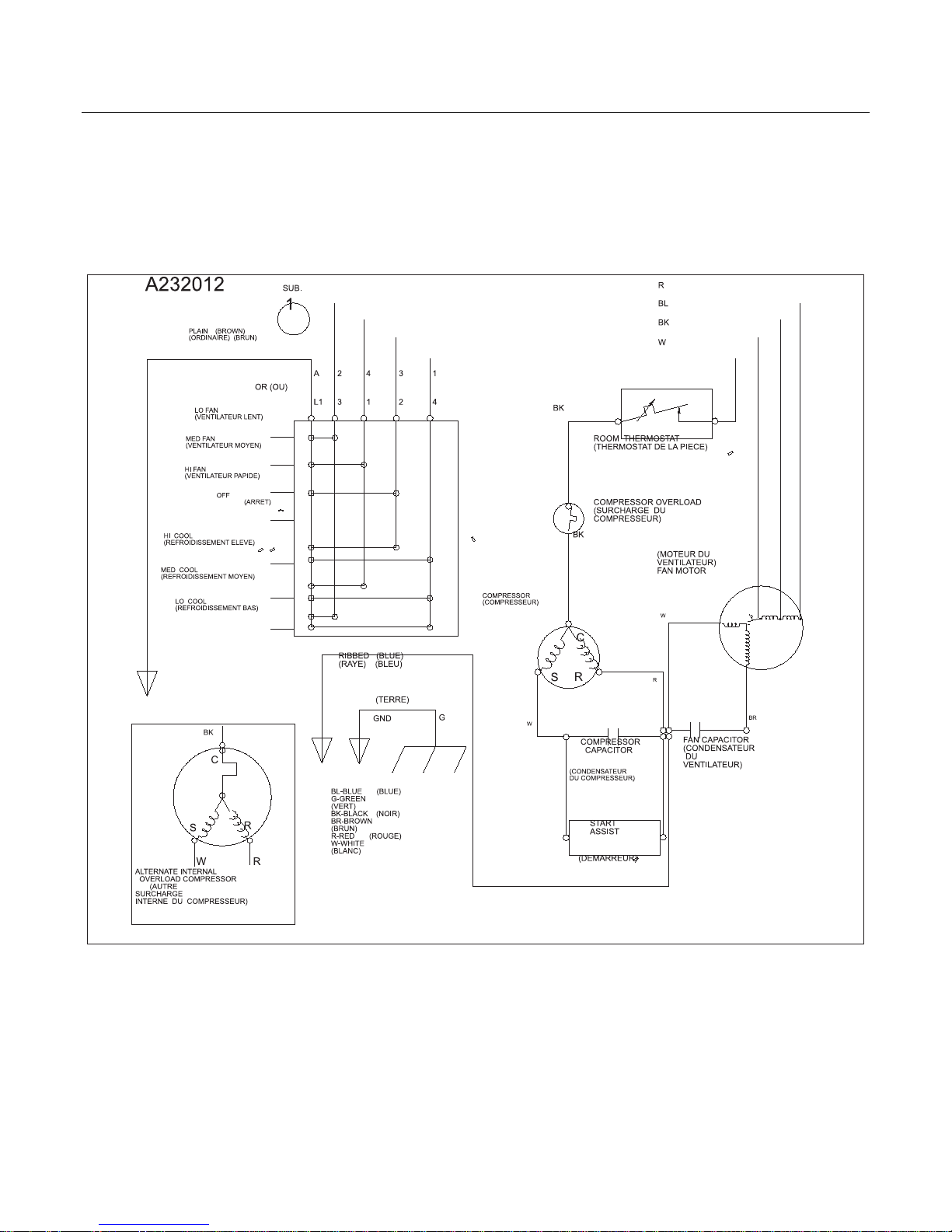

WIRING DIAGRAM
