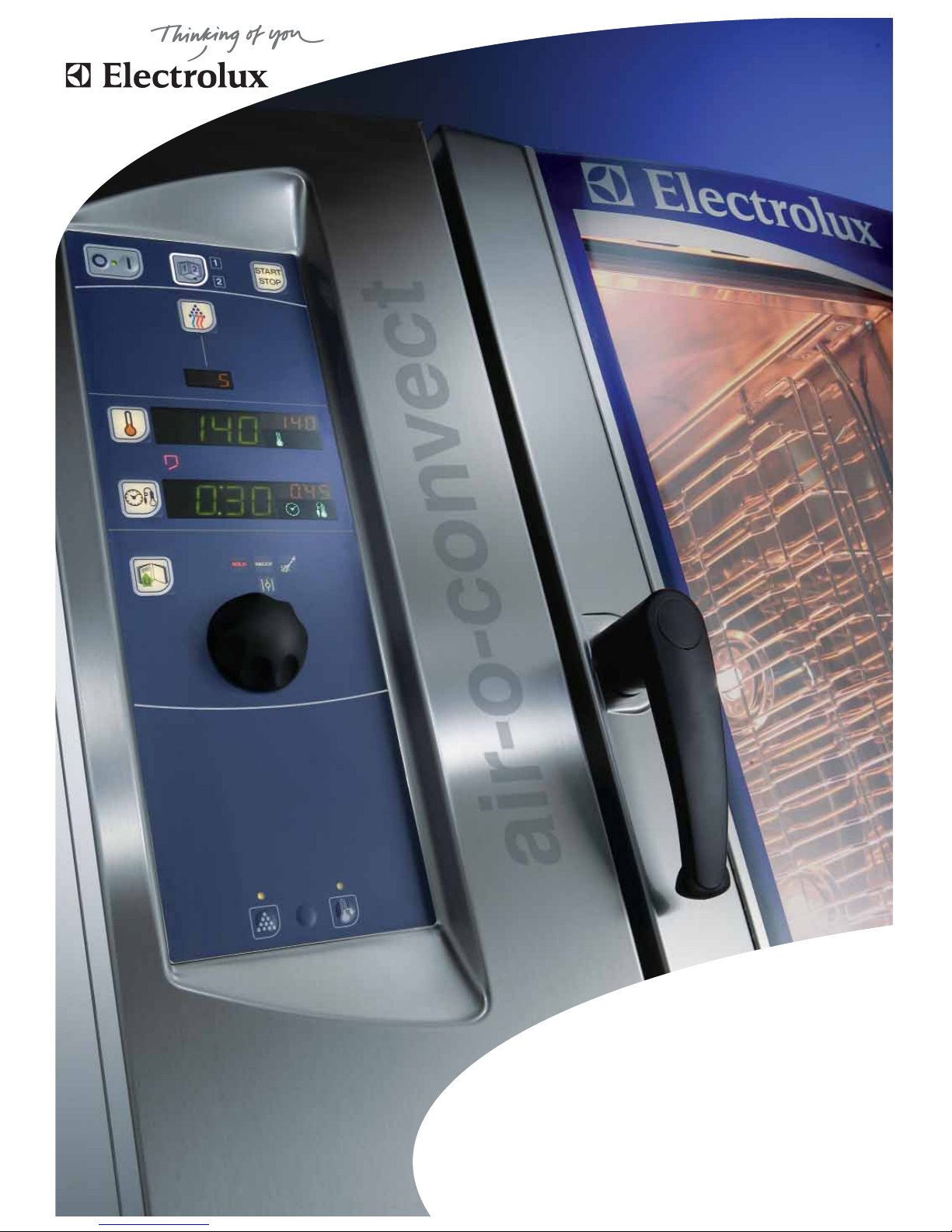

Electrolux 11 Manuale utente

air-o-convect

User Guide

The simple and clear

control panel

Main switch

on/off

Digital temperature display

Time/food probe

display

Hold

Manual water injection

Double step cooking

(indicated for meats)

Start/stop the cooking

process

Automatic humidiﬁer

HACCP

Cleaning cycles

Exhaust valve control

Rapid cooling

2 electrolux user guide

Digital

temperature

display

Automatic

humidifier

11 settings from braising to par-steaming

The large green digits indicate the real time while the small red digits

communicate the set time. Both are displayed at once for operator’s

comfort

Time/food

probe display

The green digits indicate the actual temperature, the small red digits

show the set temperatures. Both are displayed at once for the operator’s

comfort

Exhaust

valve control

Manual water

injection

Keep it open for extra-crispy results

Increases the moisture instantly according to your judgement

Central dial Central dial for setting the humidity, cooking chamber temperature, time

and food probe temperature

Cleaning Choose between 4 automatic cleaning cycles (from soft to extra-strong)

or the low impact of the semi-automatic cycle

HACCP HACCP monitoring via a local printer (HACCP BASIC) or an integrated

PC network (HACCP advanced)

Hold Pulse ventilation recommended for baking, slow roasting and keeping

food warm

Rapid

cooling

To pass from one type of cooking to another in a blink of the eye. This

function is also automatically activated when the temperature becomes

lower than the actual one

3electrolux user guide

5electrolux user guide

Food item

air-o-convect Cooking air-o-convect

accessories

GN 1/1 trays*

6102040

Pitch - mm 60 80 60 80 60 80 60 80

Sausage roll

2/3 per frying griddle

6 4 6 8 20164032

220 °C 200 °C

% H 1% H

3’ 7’

Pitch - mm 60 80 60 80 60 80 60 80

Prime rib of beef

4 per frying griddle

3 4 5 8 10162032

250 °C

% H

10’

Pitch - mm 60 80 60 80 60 80 60 80

Oven backed fish filets

120 g.

6 per frying griddle 6 4 10 8 20164032

75 °C

% H 10

9’

Pitch - mm 60 80 60 80 60 80 60 80

Fish kebab

approximately

1,5 kg per frying griddle 6 4 10 8 20164032

230 °C 230 °C

% H 2% H

7’ 3’

Pitch - mm 60 80 60 80 60 80 60 80

Whole fish

approximately 280-320 g.

6 per frying griddle 6 4 10 8 20164032

230 °C

68 °C

% H

Pitch - mm 60 80 60 80 60 80 60 80

Mixed grilled vegetables

frying griddle

6 4 10 8 20164032

230 °C 220 °C

% H 1% H

7’ 2’

Automatic pre-heating

% H Humidity level

*Number of racks, pans, or griddles per cooking cycle

Grill

Food item

air-o-convect Cooking air-o-convect

accessories

GN 1/1 trays*

6102040

Pitch - mm 60 80 60 80 60 80 60 80

Roast beef

3 - 4,5 kg piece

2 per rack 1134581016

200 °C 75/80 °C

52 °C

% H 4% H

15’

Pitch - mm 60 80 60 80 60 80 60 80

Pork roast

3 - 4,5 kg piece

2 per rack 1134581016

175 °C 150 °C

75 °C

% H 5% H 1

20’

Pitch - mm 60 80 60 80 60 80 60 80

Roasted chicken

1,2 kg piece

8 per rack 3 4 5 8 10162032

230 °C 200 °C

85 °C

% H 10 % H

15’

Pitch - mm 60 80 60 80 60 80 60 80

Rice-pilaf

1.5 litre hot stock

for 1 kg rice

65 mm pan

3 4 5 8 10162032

180 °C

% H 2

17’/18’

Pitch - mm 60 80 60 80 60 80 60 80

Pork loin

2,5 - 3 kg per rack

3 4 5 8 10162032

170 °C 130 °C

66 °C

% H 5% H 1

15’

Pitch - mm 60 80 60 80 60 80 60 80

Kebab (chicken, beef, lamb):

cook time depends on

size of meat pieces

20 mm U-pan

6 4 10 8 20164032

210 °C 180 °C

% H 5% H 2

6’ 10’

Pitch - mm 60 80 60 60 60 80 60 80

Pork filet wrapped in lard

6 pieces per rack

2 2 5 41082016

175 °C 110 °C

62 °C

% H 8% H

5’

Pitch - mm 60 80 60 80 60 80 60 80

Shin of veal

pan

2 2 5 41082016

110 °C 160 °C

% H 10 % H 3

15’ 1,15’

Convect cooking

Automatic pre-heating

% H Humidity level

*Number of racks, pans, or griddles per cooking cycle

7electrolux user guide

Food item

air-o-convect Cooking air-o-convect

accessories

GN 1/1 trays*

6102040

Pitch - mm 60 80 60 80 60 80 60 80

Leg of pork

12 - 14 kg

2 pieces per pan 2 2 5 41082016

180 °C 120 °C

67 °C

% H 8% H 2

30’

Pitch - mm 60 80 60 80 60 80 60 80

Oven packed turkey

6 pieces per pan

1 kg each 2 2 5 41082016

170 °C 130 °C

66 °C

% H 8% H 1

15’

Pitch - mm 60 80 60 80 60 80 60 80

Seabass in salt

about 400 g.

4 pieces per pan 6 4 5 5 20164032

180 °C 180 °C

% H 7% H

3’ 12’

Pitch - mm 60 80 60 80 60 80 60 80

Roasted potatoes

40 mm U-pan

6 4 10 8 20164032

175 °C 175 °C

% H 2% H

25’ 15’

Automatic pre-heating

% H Humidity level

*Number of racks, pans, or griddles per cooking cycle

Bakery

Food item

air-o-convect Cooking air-o-convect

accessories

GN 1/1 trays*

6102040

Pitch - mm 60 80 60 80 60 80 60 80

Croissants

proved ready to bake

10 per sheet

20 mm U-pan or

baking sheet

6 4 10 8 20164032

155/160 °C

% H

20’

Pitch - mm 60 80 60 80 60 80 60 80

Focaccia (flat bread)

500 g per U-pan

6-7

200 °C 170 °C

% H % H

4’ 16’

Pitch - mm 60 80 60 80 60 80 60 80

Flacked pastry biscuits

U-pan

3 4 5 8 10162032

170/175 °C

% H

12’/13’

Pitch - mm 60 80 60 80 60 80 60 80

Par baked baguettes

and small rolls

baguette tray 6-7

230 °C 170 °C

% H % H

2’ 12’

Pitch - mm 60 80 60 80 60 80 60 80

Sponge cake

U-pan

6 4 10 8 20164032

160 °C 160 °C

hold hold

% H % H

15’ 10’/15’

Pitch - mm 60 80 60 80 60 80 60 80

Choux pastry puffs

24-30 per sheet

20 mm U-pan

or baking sheet

3 4 5 8 10 16 20 32

165 °C

hold

% H

18’/20’

Pitch - mm 60 80 60 80 60 80 60 80

Short pastry pie with jam

24-30 portions per pan

65 mm U-pan 3 4 5 8 10 16 20 32

165/170 °C

hold

% H

33’/35’

Pitch - mm 60 80 60 80 60 80 60 80

Apple strudel

2 strudels per U-pan

6 4 10 8 20164032

170/180 °C

% H

20’/25’

Automatic pre-heating

% H Humidity level

*Number of racks, pans, or griddles per cooking cycle

9electrolux user guide

Gratin

Food item

air-o-convect Cooking air-o-convect

accessories

GN 1/1 trays*

6102040

Pitch - mm 60 80 60 80 60 80 60 80

Lasagne with meat sauce

5 kg per 65 mm U-pan

3 4 5 8 10162032

170 °C 155 °C

% H 1% H

30’ 10’/12’

Pitch - mm 60 80 60 80 60 80 60 80

Gnocchi semolina

40 mm U-pan

3 4 5 8 10162032

170 °C 160 °C

% H 2% H

15’ 7’

Pitch - mm 60 80 60 80 60 80 60 80

Stuffed crêpes

18 pieces per U-pan

3 4 5 8 10162032

160/170 °C

% H

18’/20’

Pitch - mm 60 80 60 80 60 80 60 80

Fennel gratin

U-pan

6 4 10 8 20164032

190 °C

% H

12’/15’

Pitch - mm 60 80 60 80 60 80 60 80

Filet of gilthead au gratin

U-pan

6 4 10 8 20164032

230 °C

% H

7’/8’

Automatic pre-heating

% H Humidity level

*Number of racks, pans, or griddles per cooking cycle

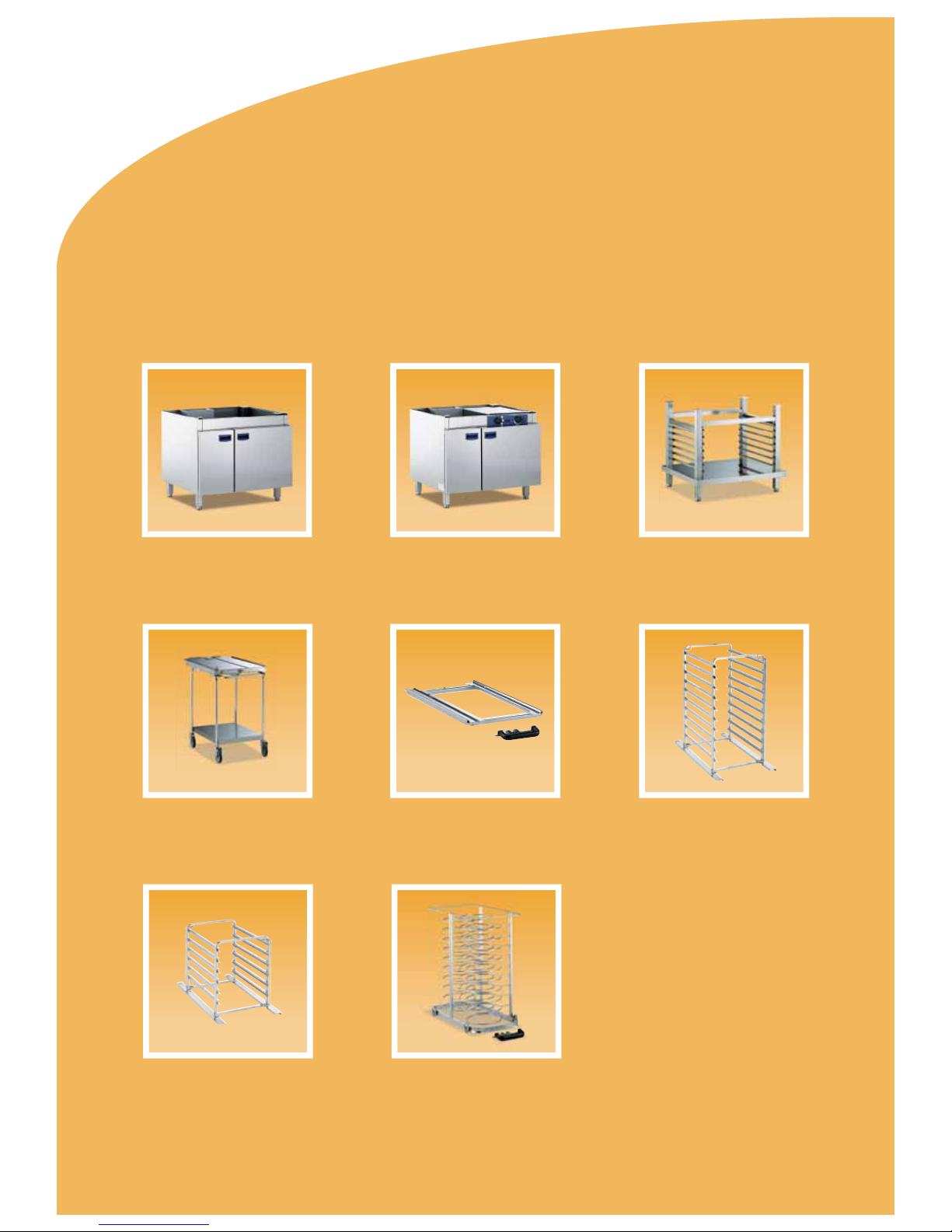

Selection of accessories

Tray rack with wheels for 6

GN ovens, 63 mm or 80 mm

pitch

Tray rack with wheels for 10

GN 1/1 or 10 GN 2/1 ovens,

65 mm or 80 mm pitch

Cupboard base for 6 and 10

GN 1/1 ovens

Rack for 29 plates for 10 GN

1/1 ovens

Hot cupboard base with

humidifier for 6 and 10

GN 1/1 ovens

Trolley for roll-in rack for 10

GN 2/1 ovens

Standard open base with

tray support for 6 and 10

GN 1/1 ovens

Slide in rack with handle for

6 and 10 GN 1/1 ovens

10 electrolux user guide
