welcome to the world of Electrolux electrolux 3

You’ve chosen a first class product from Electrolux, which

hopefully will provide you with lots of pleasure in the future.

Electrolux ambition is to offer a wide variety of quality products that

would make your life even more comfortable. You can look at some

examples on the cover in this manual. But now it’s time to study

this manual and start using and enjoying the benefits from your

new machine. We promise that it’ll make your life a little easier.

Good luck!

Welcome to the world of Electrolux

156997950en prov.qxp 1/22/2007 12:31 PM Page 3

Safety information 5

Product description 7

Control panel 8

First use 11

Daily use 15

Washing programmes 24

Care and cleaning 25

Something not working 27

Technical data 30

Hints for test institutes 32

Installation 33

Environment concerns 36

Guarantee/Customer Service 37

Contents

The following symbols are used in this manual:

Important information concerning your personal safety and information on

how to avoid damaging the appliance.

General information and tips

Environmental information

4electrolux contents

156997950en prov.qxp 1/22/2007 12:31 PM Page 4

safety information electrolux 5

In the interest of your safety and to

ensure the correct use, before

installing and first using the

appliance, read this user manual

carefully, including its hints and

warnings. To avoid unnecessary

mistakes and accidents, it is

important to ensure that all people

using the appliance are thoroughly

familiar with its operation and

safety features. Save these

instructions and make sure that

they remain with the appliance if it

is moved or sold, so that everyone

using it through its life will be

properly informed on appliance use

and safety.

Correct use

●This dishwasher is only intended

for washing household utensils

suitable for machine washing.

●Do not put any solvents in the

dishwasher. This could cause an

explosion.

●Knives and other items with sharp

points must be loaded in the

cutlery basket with their points

down or placed in a horizontal

position in the upper basket.

●Only use products (detergent, salt

and rinse aid) suitable for

dishwashers.

●Avoid opening the door whilst the

appliance is in operation, hot

steam may escape.

●Do not take any dishes out of the

dishwasher before the end of the

dishwashing cycle.

Safety information

●After use, isolate the appliance

from the power supply and turn off

the water supply.

●This product should be serviced

only by an authorised service

engineer, and only genuine spare

parts should be used.

General safety

●Dishwasher detergents can cause

chemical burns to eyes, mouth and

throat. Could endanger life!

Comply with the safety instructions

of the dishwasher detergent

manufacturer.

●The water in your dishwasher is

not for drinking. Detergent residues

may still be present in your

machine.

●Ensure that the door of the

dishwasher is always closed when

it is not being loaded or unloaded.

In this way you will avoid anybody

tripping over the open door and

hurting themselves.

●Do not sit or stand on the open

door.

Child safety

●This appliance is designed to be

operated by adults. Don’t allow

children to use the dishwasher

unsupervised.

●Keep all packaging well away from

children. There is risk of

suffocation.

●Keep all detergents in a safe place

out of children’s reach.

●Keep children well away from the

dishwasher when the door is open.

156997950en prov.qxp 1/22/2007 12:31 PM Page 5

6electrolux safety information

Installation

●Check your dishwasher for any

transport damage. Never connect

a damaged machine. If your

dishwasher is damaged contact

your supplier.

●All packaging must be removed

before use.

●Any electrical and plumbing work

required to install this appliance

must be carried out by a qualified

and competent person.

●For safety reasons it is dangerous

to alter the specifications or

attempt to modify this product in

any way.

●Never use the dishwasher if the

electrical supply cable and water

hoses are damaged; or if the

control panel, work top or plinth

area are damaged such that the

inside of the appliance is freely

accessible. Contact your local

Service Force centre, in order to

avoid hazard.

●All sides of the dishwasher must

never be drilled to prevent damage

to hydraulic and electric

components.

For electrical and water connection

carefully follow the instructions

given in specific paragraphs.

156997950en prov.qxp 1/22/2007 12:31 PM Page 6

product description electrolux 7

Product description

Upper basket

Water hardness dial

Salt container

Detergent dispenser

Rinse aid dispenser

Rating plate

Filters

Lower spray arm

Upper spray arm

156997950en prov.qxp 1/22/2007 12:31 PM Page 7

8electrolux control panel

Control panel

On/Off button

Delay start button

Programme selection / cancel

button

Indicator lights

End of programme Illuminates when a washing programme has

ended. It also has added functions of visual

signalling as:

- the setting of the water softener,

- activation/deactivation of the audible signals,

- intervention of an alarm due to the

malfunction of the machine.

Salt Illuminates when the special salt has run out.

Rinse aid Illuminates when the rinse aid has run out.

156997950en prov.qxp 1/22/2007 12:31 PM Page 8

control panel electrolux 9

The salt indicator light on the

control panel can remain

illuminated for 2-6 hours after the

salt has been replenished,

assuming the dishwasher remains

switched on. If you are using salts

that take longer to dissolve then

this can take longer. The function

of the machine is not affected.

Setting mode

The appliance is in setting mode

when all programme indicator light are

off and end of programme indicator

light is flashing.

Always remember that when:

- setting the water softener,

- activating/deactivating the audible

signals,

the appliance MUST be in setting

mode.

If a programme indicator light is

illuminated and end of programme

indicator light is illuminated with fixed

light, the last performed or selected

programme still set.

In this case, to return to setting mode,

the programme has to be cancelled.

1. Press and hold the programme

selection/cancel button until the

light of the set programme turns

off and the end of programme

indicator light is flashing.

2. Release the programme

selection/cancel button.

Factory setting: audible signals

activated.

It is possible to deactivate the audible

signals, using the programme

selection/cancel button.

Audible signals

Audible signals have been introduced

to help indicate which operations the

dishwasher is performing:

-end of programme

-intervention of an alarm due to

malfunction

Deactivation/activation of the

audible signals

1. Press the On/Off button. The

dishwasher must be in setting

mode.

2. Press and hold the programme

selection/cancel button until

programme light 1 flashes and

programme light 2 illuminates with

a fixed light.

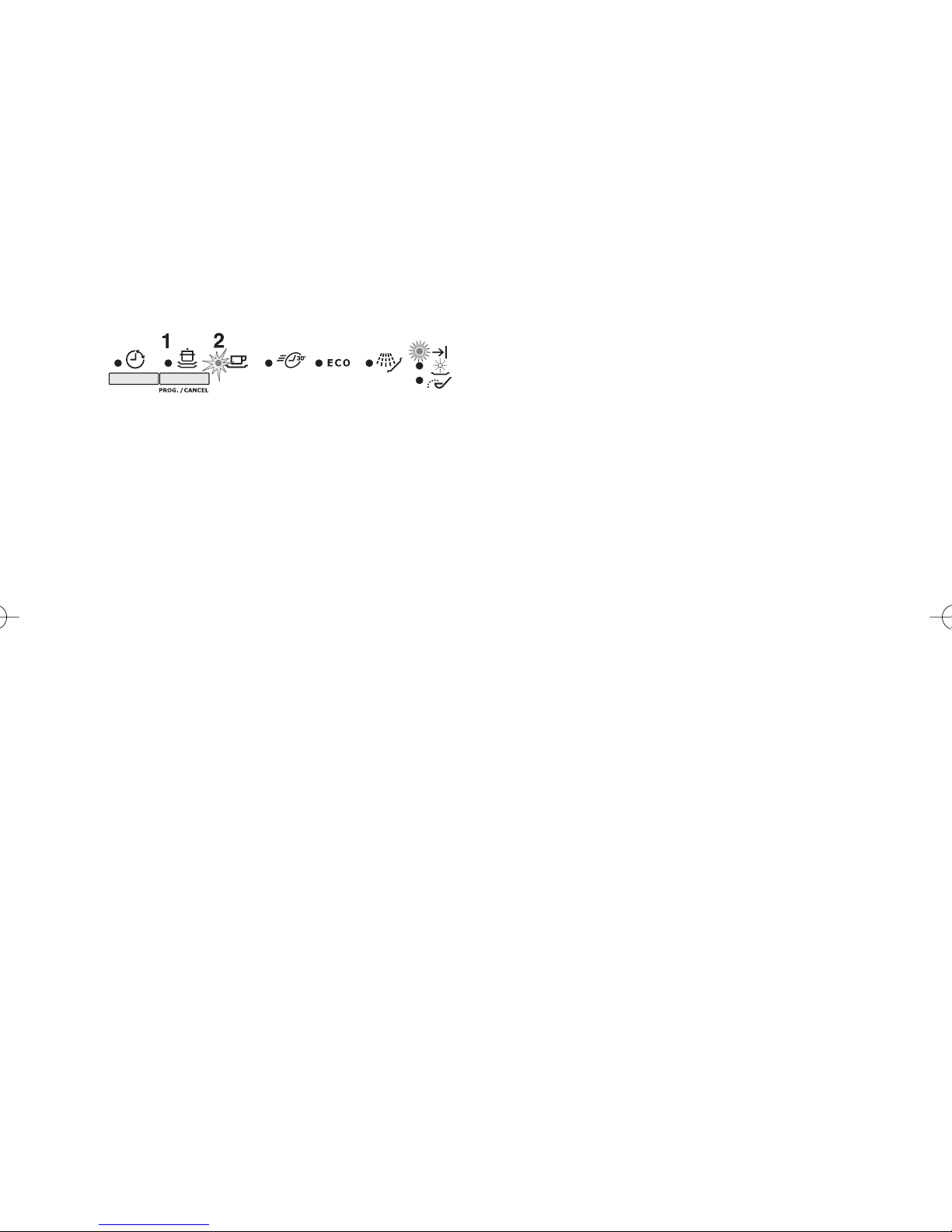

3. Press programme

selection/cancel button again,

programme light 1 illuminates with

a fixed light and programme light 2

starts flashing.

156997950en prov.qxp 1/22/2007 12:31 PM Page 9

10 electrolux control pane

4. Wait until:

- programme light 1 turns off,

- programme light 2 goes on

flashing

- the end of programme indicator

light illuminates with a fixed light,

indicating that the audible signals

are activated.

5. To deactivate the audible signals,

press the programme

selection/cancel button again: the

end of programme indicator light

turns off indicating that the audible

signals are deactivated.

6. To memorise the operation, switch

off the dishwasher.

To activate again the audible signals

simply follow the above operations

until the end of programme indicator

light illuminates.
