Affinity Dryer

Service

Exhaust Requirements

Exhaust Requirements

Exhaust Requirements

•Use only 4 inch (10.2 cm) diameter (minimum) rigid or flexible metal duct and approved vent

hood which has a swing-out damper(s) that open when the dryer is in operation.

•Do not use plastic flexible duct to exhaust the dryer.

•The dryer exhaust system MUST be exhausted to the outside of the dwelling!

•Do not allow combustible materials (for example: clothing, draperies/curtains, paper) to

come in contact with exhaust system. The dryer MUST NOT be exhausted into a chimney, a

wall, a ceiling, or any concealed space of a building which can accumulate lint, resulting in a

fire hazard.

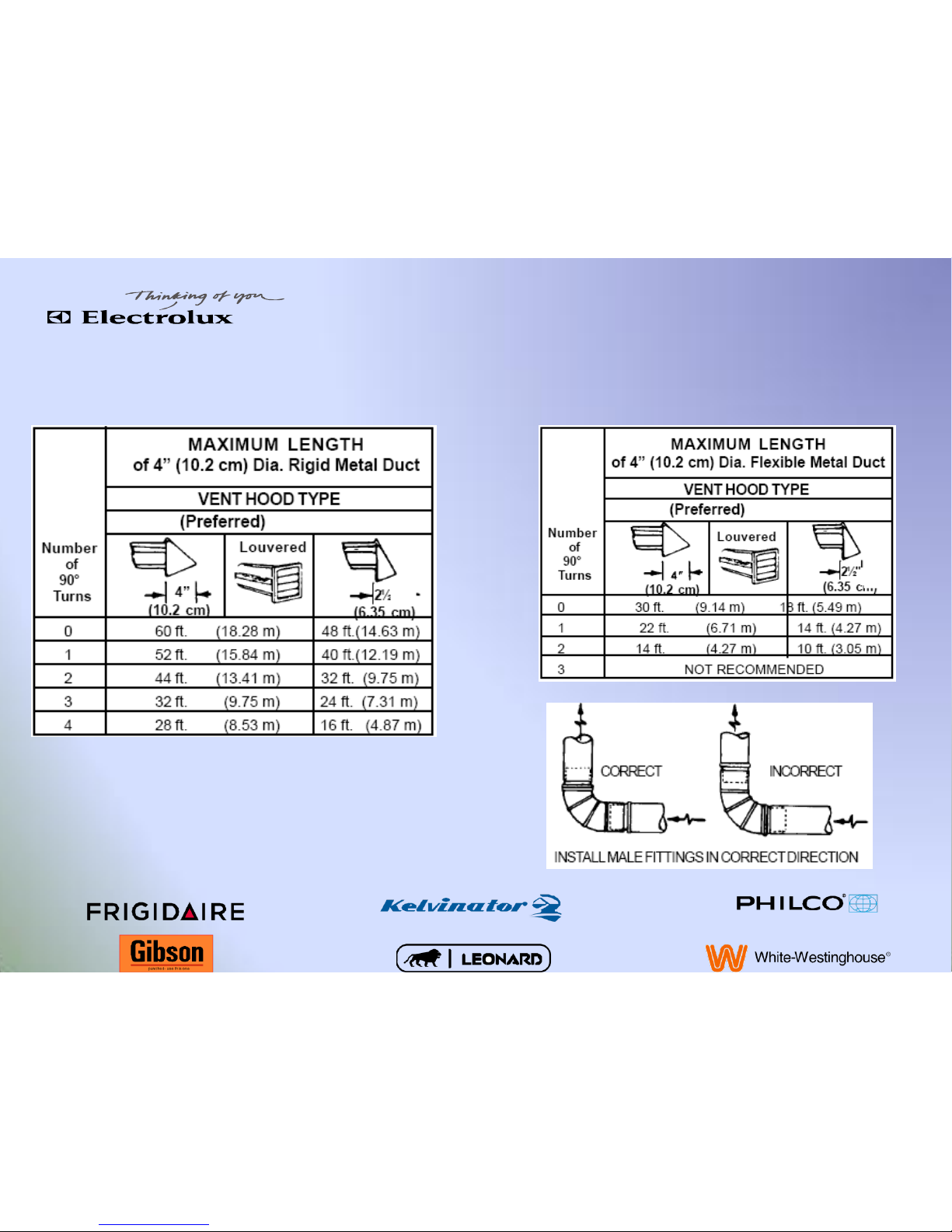

•Do not exceed the length of duct pipe or number of elbows allowed in the "MAXIMUM

LENGTH" charts

•Do not screen the exhaust ends of the vent system, nor use any screws or rivets to

assemble the exhaust system.

•Explosion hazard. Do not install the dryer where gasoline or other flammables are kept

or stored

Exhaust Requirements

Exhaust Requirements

INSTALLATION IN RECESS OR CLOSET

1. A dryer installed in a bedroom, bathroom, recess or closet, MUST be exhausted outdoors.

2. No other fuel burning appliance shall be installed in the same closet as the Gas dryer.

3. Your dryer needs the space around it for proper ventilation.

DO NOT INSTALL YOUR DRYER IN A CLOSET WITH A SOLID DOOR.

4. A minimum of 120 square inches (774.2 square cm) of opening, equally divided at the top and

bottom of the door, is required. Air openings are required to be unobstructed when a door is

installed. A louvered door with equivalent air openings for the full length of the door is acceptable.

MINIMUM INSTALLATION CLEARANCES (Inches)

SIDES REAR TOP FRONT

Alcove 0 (0 cm) 0 (0 cm) 15 (38.1 cm)

Closet 0 (0 cm) 0 (0 cm) 15 (38.1 cm) 1 (2.54 cm)

Closet door ventilation required: 2 louvered openings each

60 square inches (387 square centimeters) —3 inches

(7.6 cm) from bottom and top of door.

NOTE: Under counter and stack models - 0 inches (0 cm) for sides, rear, and top.

THIS DRYER MUST BE EXHAUSTED OUTDOORS

Exhaust Requirements

Exhaust Kit, P/N 131456800

Right Side or Floor Venting

Teardown and Component Operation

Main Top

Remove the two screws on the

rear of the main top.

Slide back
