Electrolux 66320 K-MN Manuale utente

66320 K-MN

User manual Ceramic glass hob

Dear Customer

Thank you for choosing one of our high-quality products.

With this appliance you will experience the perfect combination of functional

design and cutting edge technology.

Convince yourself that our appliances are engineered to deliver the best per-

formance and control - indeed we are setting the highest standards of excel-

lence.

In addition to this you find environmental and energy saving aspects as an inte-

gral part of our products.

To ensure optimal and regular performance of your appliance please read this

instruction manual carefully. It will enable you to navigate all processes perfect-

ly and most efficiently.

To refer to this manual any time you need to, we recommend you to keep it in a

safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

ng sym

s are use

n t

s user

ormat

on:

Warning! This must be read! Important advice for the safety of persons and

information on avoiding damage to the appliance

3General information and advice

2Information on environmental protection

zDangerous voltage

3Contents

Contents

Operating Instructions 4

Safety instructions 4

Description of the Appliance 6

Cooking surface layout 6

Control panel layout 6

Touch Control sensor fields 7

Displays 8

Residual heat indicator 8

Operating the appliance 9

Switching the appliance on and off 9

Setting the heat setting 9

Deactivating pan recognition 9

Switching outside rings on and off manually 10

Using the automatic warm-up function 11

Using the child safety device 12

Using the timer 13

Automatic switch off 16

Tips on Cooking and Frying 17

Cookware 17

Energy saving 17

Examples of cooking applications 18

Cleaning and Care 19

What to do if … 20

Disposal 22

Installation Instructions 23

Safety instructions 23

Assembly 24

Rating Plates 27

Guarantee/Customer Service 28

Service 31

Operating Instructions4

Operating Instructions

1Safety instructions

Please comply with these instructions. If you do not, any damage resulting is not

covered by the warranty.

Correct use

•This appliance is not intended for use by children or other persons whose

physical, sensory or mental capabilities or lack of experience and knowledge

prevents them from using the appliance safely without supervision or instruc-

tion by a responsible person to ensure that they can use the appliance safely.

•Do not leave the appliance unattended during operation.

•This appliance should be used only for normal domestic cooking and frying of

food.

•The appliance must not be used as a work surface or as a storage surface.

•Additions or modifications to the appliance are not permitted.

•Do not place or store flammable liquids, highly inflammable materials or fusi-

ble objects (e.g. plastic film, plastic, aluminium) on or near the appliance.

Children’s safety

•Small children must be kept away from the appliance.

•Only let bigger children work on the appliance under supervision.

•To avoid small children and pets unintentionally switching the appliance on,

we recommend activation of the child safety device.

General safety

•The appliance may only be installed and connected by trained, registered

service engineers.

•Built-in appliances may only be used after they have built in to suitable built-

in units and work surfaces that meet standards.

•In the event of faults with the appliance or damage to the glass ceramic

(cracks, scratches or splits), the appliance must be switched off and discon-

nected from the electrical supply, to prevent the possibility of an electric

shock.

•Repairs to the appliance must only be carried out by trained registered service

engineers.

5Safety instructions

Safety during use

•Overheated fats and oils can ignite very quickly. Warning! Fire hazard!

•There is the risk of burns from the appliance if used carelessly.

•Remove stickers and film from the glass ceramic.

•Cables from electrical appliances must not touch the hot surface of the appli-

ance or hot cookware.

•Switch the cooking zones off after each use.

Safety when cleaning

•For cleaning, the appliance must be switched off and cooled down.

•For safety reasons, the cleaning of the appliance with steam jet or high-pres-

sure cleaning equipment is not permitted.

How to avoid damage to the appliance

•The glass ceramic can be damaged by objects falling onto it.

•The edge of the glass ceramic can be damaged by being knocked by the cook-

ware.

•Cookware made of cast iron, cast aluminium or with damaged bottoms can

scratch the glass ceramic if pushed across the surface.

•Objects that melt and things that boil over can burn onto the glass ceramic

and should be removed straightaway.

•To avoid damaging cookware and glass ceramics, do not allow saucepans or

frying pans to boil dry.

•Do not use the cooking zones with empty cookware or without cookware.

Description of the Appliance6

Description of the Appliance

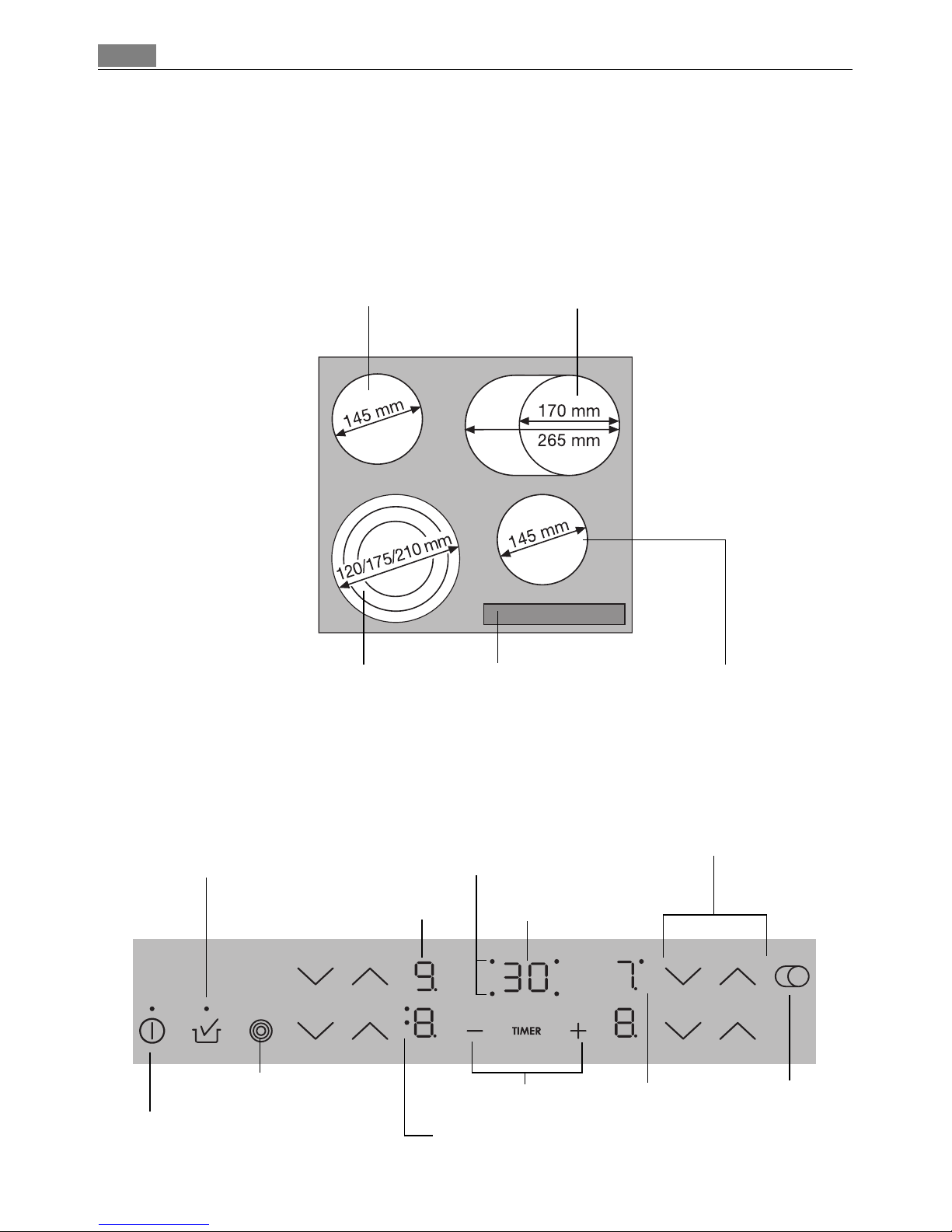

Cooking surface layout

Control panel layout

Triple cooking zone

800/1600/2300W

Multi-purpose zone

1500/2400W

Single cooking zone

1200W

Control panel Single cooking zone

1200W

On/Off

with power indicator

Timer display

Cooking zone indicators

Timer function

pan recognition pilot light Heat setting selection

Timer

Display

Outside ring

On/Off

Triple ring pilot light

Outside/middle ring

On/Off Multi-purpose

zone pilot light

7Description of the Appliance

Touch Control sensor fields

The appliance is operated using Touch Control sensor fields. Functions are con-

trolled by touching sensor fields and confirmed by displays and acoustic signals.

Touch the sensor fields from above, without covering other sensor fields.

3 If the control panel is covered up by things, an acoustic signal sounds until the

objects are removed.

Sensor field Function

On / Off To switch the appliance on and off

Increase settings To increase heat settings

Reduce settings To reduce heat settings

Timer Timer selection

Increase settings To increase Timer time

Reduce settings To reduce Timer time

Pan recognition To switch off pan recognition

Triple ring switch To switch outer rings

on and off

Multi-purpose zone switch To switch the outside ring on and off

Description of the Appliance8

Displays

Residual heat indicator

1Warning! Risk of burns from residual heat. After being switched off, the cook-

ing zones need some time to cool down. Look at the residual heat indicator .

3Residual heat can be used for melting and keeping food warm.

Display Description

Cooking zone is switched off

Keep warm setting Keep warm setting is set

- Heat settings Heat setting is set

- Heating setting plus

decimal point

Intermediate heat setting is set

Automatic warm up func-

tion

Automatic warm-up function is acti-

vated

Fault Malfunction has occurred

Pan detection Cookware is unsuitable

Residual heat Cooking zone is still hot

Child safety device Lock/child safety device is engaged

Automatic switch off Switch off is active.

9Operating the appliance

Operating the appliance

Switching the appliance on and off

3After switching on, within approx. 10 seconds a heat setting or a function must

be set, otherwise the appliance automatically switches itself off.

Setting the heat setting

3The keep warm setting lies between and . It is used to keep food warm.

Deactivating pan recognition

Using sensors under the cooking field the appliance recognises the what the

cookware is made of and the size of the bottom of the pots and pans. If the pots

and pans are big enough, the outer rings of multi-ring zones and multi-purpose

zones automatically switch on.

3Pan recognition is always active after the appliance is switched on.

3Pan recognition is deactivated for this use of the appliance, until the appliance

is next switched off again.

Control panel Display Pilot light

Switch on Touch for 2 seconds / lights up

Switch off Touch for 1 second / none goes out

Control panel Indicator

To increase Touch to

To decrease Touch to

To switch off Touch and at the same time

Pan recognition Pilot light

To switch off Touch for 1 second goes out

Operating the appliance10

Switching outside rings on and off manually

By switching the outside rings on or off, the heating surfaces can be manually

matched to the size of the cookware.

3Pan recognition must be switched off.

3Before an outside ring can be switched on, the corresponding inside ring must

be switched on.

Triple cooking zone Sensor panel Power indicator

To switch on middle ring Touch for 1-2 seconds.One power indicator is lit.

To switch on outside ring Touch for 1-2 seconds.Two power indicators are lit.

To switch off outside ring Touch for 1-2 seconds.Second power indicator goes

out.

To switch off middle ring Touch for 1-2 seconds.First power indicator goes out.

Roasting zone Sensor panel Power indicator

To switch on outside ring Touch for 1-2 seconds is lit

To switch off outside ring Touch for 1-2 seconds goes out
