Electrolux 5553SD Guida all'installazione

185813 Rev. 1 11.25.02 BY

ILLUSTRATED PARTS BREAKDOWN

ELECTROLUX

5.5 HORSEPOWER

21" MULTI-CUT LAWN MOWER

MODEL NO. 5553SD (PM5553HW3B)

964 77 04-00

ROTARY LAWN MOWER - - MODEL NUMBER 5553SD (PM5553HW3B) PRODUCT NUMBER 964 77 04-00

KEY PART

NO. NO. DESCRIPTION

1 532 17 80-67 Upper Handle

2 532 15 36-05 Lower Handle

3 532 17 02-87 Control Bar

4 532 13 08-61 Engine Zone Control Cable

5 532 13 19-59 Handle Bolt

6 532 17 01-46 Handle Knob

7 532 05 17-93 Hairpin Cotter

8 532 06 64-26 Wire Tie

9 532 18 04-79 Rear Door Kit (Incl. Key #16 & 17)

10 532 12 84-15 Pop Rivet

11 532 18 25-38 Support Bracket LH

12 532 18 25-39 Support Bracket RH

13 817 06 04-10 Screw 14-20 x 5/8

14 532 18 25-43 Handle Bracket Assembly (Left)

15 532 18 25-45 Handle Bracket Assembly (Right)

16 532 18 00-71 Spring LH

17 532 18 00-72 Spring RH

18 532 13 20-04 Keps Locknut 1/4-20

19 532 17 95-85 Rope Guide

20 532 17 92-05 Foot Guard, C.E.

21 532 05 45-83 Screw, Tapping 1/4-20 x 1/2

22 532 08 45-96 Engine Pulley

23 532 08 76-77 Hi-Pro Key #505

24 - - - Engine, Honda, Model No. GCV160

(order parts from engine manufacturer)

25 532 15 04-06 Hex Head Thread Rolling Srew 3/8-16 x 1-1/8

26 532 08 39-23 Hex Flange Nut

27 532 18 17-85 Wheel

28 532 16 08-28 Shoulder Bolt 5/16-18 x .33

29 532 05 71-43 Wave Washer

KEY PART

NO. NO. DESCRIPTION

30 532 18 25-41 Axle Arm Assembly RR

31 532 17 54-78 Selector Knob

32 532 18 25-37 Selector Spring

33 532 06 31-24 Nut 5/16-18

34 532 18 25-42 Axle Arm Assembly LR

35 532 18 06-24 Hubcap

36 532 18 41-93 Bolt

37 532 15 00-78 Thread Cutting Screw w/Sems 5/16-18 x 3/4

38 819 11 22-06 Washer

43 532 17 50-83 Bottom Belt Cover

44 532 18 21-66 Lawn Mower Housing (Incl. Key #10, 11, 12& 45)

45 532 14 54-94 Danger Deal

46 532 18 00-69 Blade Adapter

47 532 16 58-33 Blade 21"

48 532 85 10-74 Hardened Washer

49 532 85 02-63 Helical Washer 3/8-24 x 1-3/8 Gr. 8

50 532 85 10-84 Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8

83 532 17 50-66 Mulch Door

84 532 17 57-35 Hinge Bracket Assembly

85 532 17 52-85 Spring

86 532 17 56-50 Rod, Hinge

87 532 06 36-01 Nut

88 532 17 50-71 Clipping Deﬂector

89 532 18 21-59 Throttle Control

90 532 14 49-29 Screw

- - 532 18 21-34 Decal, Self-Propelled, Internal (not shown)

- - 532 18 17-92 Operator’s Manual, Euro

- - 532 18 17-93 Operator’s Manual, Scan

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

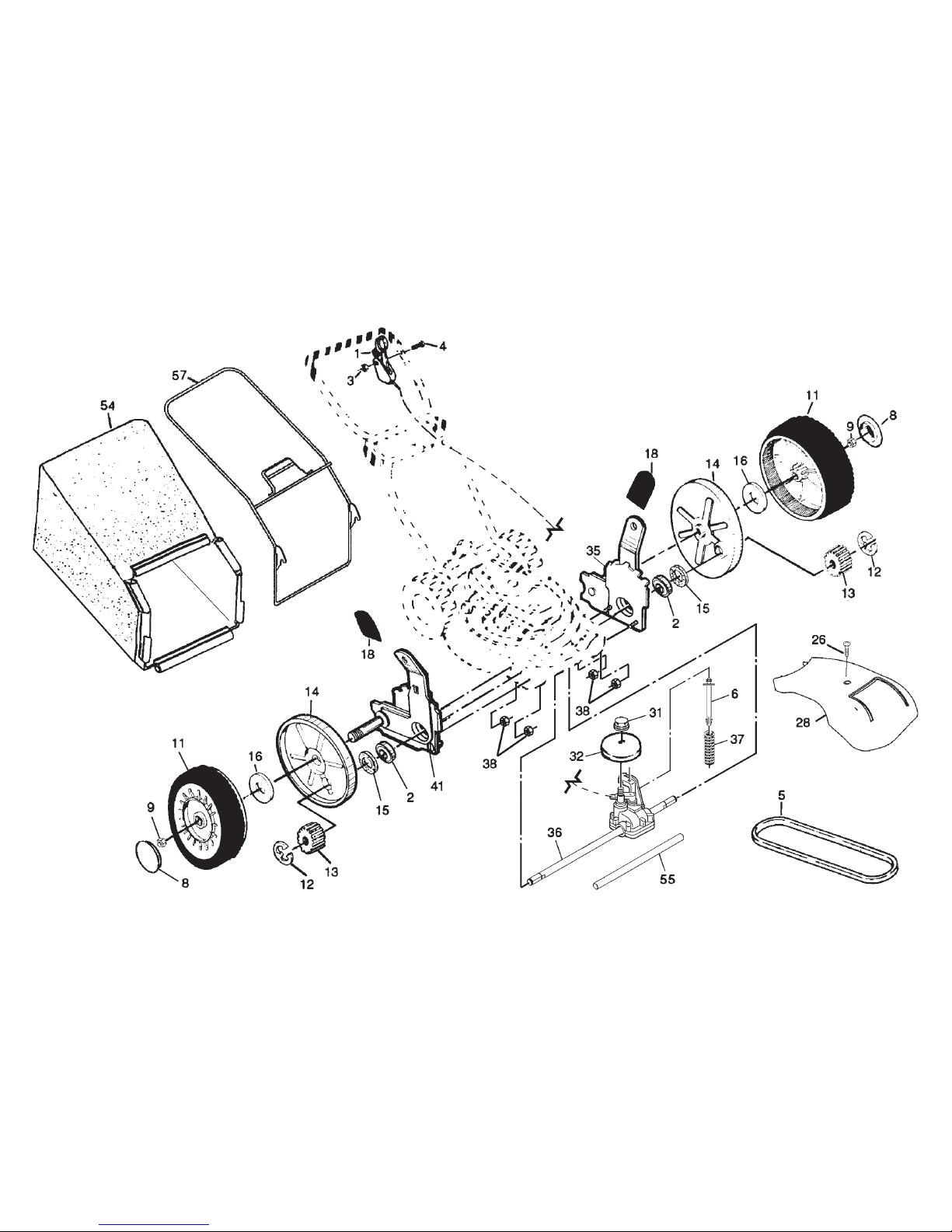

ROTARY LAWN MOWER - - MODEL NUMBER 5553SD (PM5553HW3B) PRODUCT NUMBER 964 77 04-00

KEY PART

NO. NO. DESCRIPTION

1 532 18 45-87 Control Cable Assembly

2 532 16 73-87 Bearing, Wheel Adjuster

3 532 75 11-52 Locknut #10-24

4 532 15 87-55 Hex Washer Head Screw 1/4-20 x 2.12

5 532 17 54-36 V-Belt

6 532 15 04-95 Spring Retainer

8 532 16 43-78 Hubcap

9 532 14 52-12 Locknut

11 532 18 07-67 Wheel & Tire Assembly

12 812 00 00-58 E-Ring

13 532 13 70-54 Pinion

14 532 18 05-04 Dust Cover

16 532 06 77-25 Washer 1/2 x 1-1/2 x .134

18 532 17 01-43 Selector Knob

26 532 17 52-62 Pan Head Tapping Screw #10-24 x 2-3/4

KEY PART

NO. NO. DESCRIPTION

28 532 18 03-29 Drive Cover

31 532 13 20-10 Hex Flange Nut

32 532 13 70-52 Drive Pulley

35 532 15 15-21 Kit, Wheel Adjuster, LH

(Includes Knob and Bearing)

36 532 18 01-84 Gear Case Assembly

37 532 13 70-90 Spring

38 532 06 36-01 Locknut 1/4-20

41 532 15 15-20 Kit, Wheel Adjuster, RH

(Includes Knob and Bearing)

54 532 18 40-12 Grassbag Assembly

55 532 17 57-39 Driveshaft Cover

57 532 18 39-93 Frame

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

ROTARY LAWN MOWER - - MODEL NUMBER PM5553HW3B (5553SD)

PRODUCT NUMBER 964 77 04-00

GEARCASE ASSEMBLY - PART NUMBER 532 18 01-84

KEY PART

NO. NO. DESCRIPTION

1 532 18 34-97 Case, Lower

2 532 18 34-98 Case, Upper

3 532 18 34-99 Gear, 27 Teeth

4 532 18 35-00 Lever, Clutch

5 532 18 35-01 Spring, Return

6 532 18 35-02 Shaft, Input

7 532 18 35-03 Dog, Movable

8 532 18 35-04 Dog, Fixed

9 532 18 35-05 Wire, Formed

10 532 18 35-06 Bearing, Ball

11 532 18 35-07 Fork, Shift

12 532 18 35-08 Seal, Output Shaft

13 532 18 35-09 Washer

14 532 18 35-10 Seal, Case

15 532 18 35-11 Bushing

16 532 18 35-12 Shaft, Output

17 532 18 35-13 Screw

18 532 18 35-14 Seal, Input Shaft

- - 532 18 34-04 Kit, Gearcase Replacement (Includes Instructions)

NOTE: Use Dow Corning #709 to reseal Gear Case Halves.

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm
