Electrolux E30SO75FP Manuale utente

Product No. E30SO75FPSA

Market North America

Color stainless steel

Volts 240

Watts 1000

Wiring Diagram 5995553749

Owner's Guide TINSEB470MRR0

Installation Instructions

TINSEB424MRR0

E30SO75FPS cover.eps E30SO75FPSA-CAB-OVEN-1.eps E30S075FPS cdm.eps

E30SO75FPSA_Wiring-1.eps E30SO75FPSA_Wiring-3.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995553749

09/10/15

(EN/SERVICE/KC)

099

BUILT-IN MICROWAVE

Model No.

E30SO75FP

Publication No: 5995553749 E30SO75FPSA

10/09 2

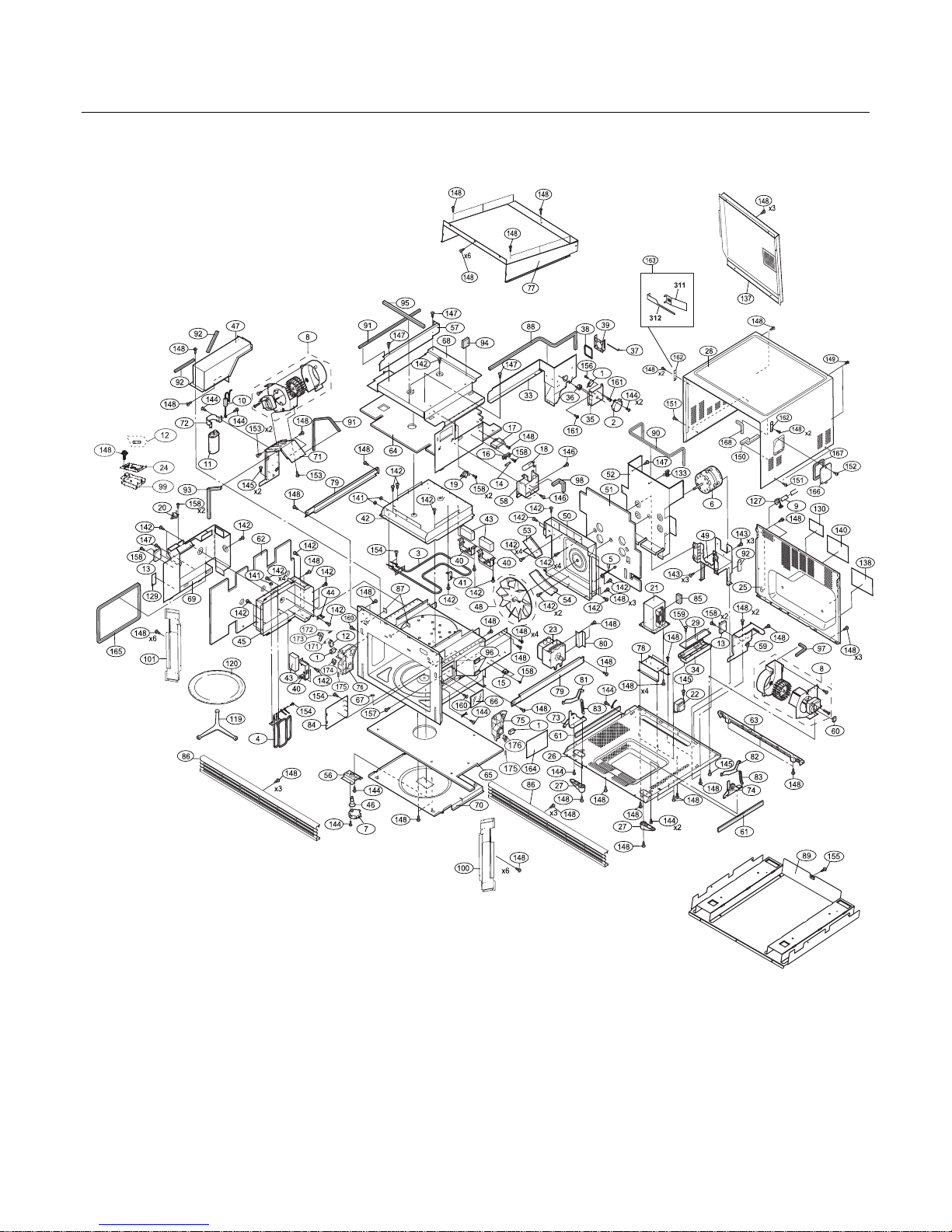

OVEN,CABINET

E30SO75FPSA-CAB-OVEN-1

E30SO75FPSA Publication No: 5995553749

# Functional Parts 3 10/09

* Non-Illustrated Parts

OVEN,CABINET

POS. NO PART NO. DESCRIPTION

1 # 5304440026 Switch, interlock, door sensor

2 # 5304451387 Motor, damper

3 # 5304451388 Element, heating, top

4 # 5304451389 Element, heating, side

5 # 5304451390 Thermistor

6 # 5304459004 Motor, convection fan

7 # 5304451392 Motor, turntable

8 # 5304451393 Motor, exhaust fan

9 # 5304451394 Power Cord, electric

10 # 5304451395 Rectifier, high voltage

11 # 5304451396 Capacitor, high voltage

12 # 5304451397 Switch/Fuse Assy, monitor

13 # 5304451398 Relay, solid state

14 # 5304451399 Fuse, F10A

15 # 5304440780 Fuse, cavity temp, 20 Amp, 250 V

16 # 5304451400 Holder, fuse F10A

17 # 5304451401 Capacitor, fan motor

18 5304451402 Lamp, oven light

19 # 5304451403 Thermal Cutout, top heater

20 # 5304451404 Thermal Cutout, side heater

21 # 5304451405 Transformer, power

22 # 5304451406 Transformer, low voltage

23 # 5304458933 Magnetron

24 # 5304451407 Filter, noise

25 5304451408 Panel, cabinet back

26 5304451409 Base, cabinet bottom

27 5304451410 Foot, cabinet support

28 5304451411 Cabinet, outer casing

29 # 5304451412 Power Unit, PWB

33 5304451437 Duct, damper

34 5304451438 Angle, power board mt.

35 5304451439 Angle, motor mount

36 5304451440 Cam, damper

37 5304451441 Shaft, damper

38 5304451442 Cushion, damper

39 5304451443 Damper

40 5304451444 Angle, catalyst mount

41 5304451445 Angle, heater mount, A

42 5304451446 Duct, heater, upper

43 5304451447 Catalyst, air/odor filter

44 5304451448 Angle, heater mount, B

45 5304451449 Duct, heater, left

46 5304451450 Coupler, turntable/motor

47 5304451451 Duct, exhaust

48 # 5304451452 Blade, convection fan

49 5304451453 Angle, fan motor mount

50 5304451454 Duct, convection fan

51 5304451455 Insulation, thermal, back panel

52 5304451456 Cover, thermal, back panel

53 5304451457 Plate, divider, A

54 5304451458 Plate, divider, B

Publication No: 5995553749 E30SO75FPSA

10/09 4

OVEN,CABINET

E30SO75FPSA-CAB-OVEN-1

E30SO75FPSA Publication No: 5995553749

# Functional Parts 5 10/09

* Non-Illustrated Parts

OVEN,CABINET

POS. NO PART NO. DESCRIPTION

56 5304451459 Bracket, turntable mount

57 5304451460 Separator, left

58 5304451461 Angle, lamp mount

59 5304451462 Separator, magnetron

60 5304451463 Cushion, blower motor, right

61 5304451464 Cushion, bottom plate

62 5304451465 Insulation, thermal, heater duct

63 5304451466 Separator, rear

64 5304451467 Insulation, thermal, upper

65 5304451468 Insulation, thermal, bottom

66 5304451469 Lens, lamp glass

67 5304451470 Packing, silicon

68 5304451471 Cover, thermal, upper

69 5304451472 Cover, thermal, left

70 5304451473 Cover, thermal, bottom

71 5304451474 Angle, fan motor mount

72 5304451475 Holder, capacitor clamp

73 5304451476 Hinge, oven door, left

74 5304451477 Hinge, oven door, right

75 5304466752 Latch Hook, right

76 5304466753 Latch Hook, left

77 5304451480 Duct, top

78 5304451481 Angle, transformer mt.

79 5304451482 Support, chassis, (2)

80 5304451483 Guide, magnetron

81 5304451484 Cam, door, left

82 5304451485 Cam, door, right

83 5304451486 Spring, door

84 5304451487 Cover, waveguide

85 5304451488 Cushion, pwr transformer

86 5304451489 Grille, exhaust vent, (2)

87 5304451490 Cushion, front panel, rear

88 5304451491 Cushion, damper duct

89 5304458934 Duct, bottom

90 5304451493 Cushion, back cover

91 5304451494 Cushion, angle/separator

92 5304451495 Cover, edge, (3)

93 5304451496 Cushion, motor mt. angle

94 5304451497 Cushion, upper cover, pad

95 5304451498 Cushion, upper cover, strip

96 5304451499 Cushion, cavity, right side

97 5304451500 Cushion, magnetron

98 5304451501 Cushion, lamp mt. angle

99 5304451502 Angle, noise unit mt.

100 5304451503 Trim, right side

101 5304451504 Trim, left side

119 5304451522 Support, turntable

120 5304451523 Tray, turntable

127 5304451527 Bushing, power cord

Publication No: 5995553749 E30SO75FPSA

10/09 6

OVEN,CABIN

E30SO75FPSA-CAB-OVEN-1

E30SO75FPSA Publication No: 5995553749

# Functional Parts 7 10/09

* Non-Illustrated Parts

OVEN,CABINET

POS. NO PART NO. DESCRIPTION

129 5304440334 Label, Caution-monitor

130 5304440333 Label, Caution-DHHS

133 5304451531 Clamp, power cord, back cover

137 5304458940 Duct, back

138 5304451533 Label, NHW caution

140 5304451535 Label, height caution

141 5304451547 Nut, element, 4 mm x 3.2 mm, (4)

142 5304451548 Screw, 4 mm x 8 mm

143 5304451549 Screw, 4 mm x 6 mm

144 5304451550 Screw, 4 mm x 8 mm

145 5304450253 Screw, 4 mm x 8 mm

146 5304451551 Screw, 4 mm x 8 mm

147 5304451552 Screw, 4 mm x 8 mm, white

148 5304451553 Screw, 4 mm x 12 mm

149 5304440873 Screw, Torx, tamper proof

150 5304451569 Cushion, side louver

151 5304451554 Screw, special

152 5304451570 Screw

153 5304451555 Screw, 4 mm x 8 mm

154 5304451556 Screw, special

155 5304451557 Screw, 4 mm x 12 mm

156 5304451558 Screw, special

157 5304451517 Screw, 4 mm x 8 mm

158 5304451560 Screw, 3 mm x 10 mm

159 5303319641 Screw

160 5304451561 Screw, 4 mm x 8 mm

161 5303319634 Screw, 4mm x 8mm

162 5304451562 Bracket, oven retainer, anti-tip

163 5304451563 Anti-tip Kit, w/brackets, tools, screws

164 5304451564 Wiring Diagram, schematic, label

165 5304451565 Cushion, thermal cover, left

166 5304451566 Cover, lamp

167 5304451567 Cushion, lamp cover

168 5304451568 Cushion

171 5304472816 Spring, torsion

172 5304472814 Spring, top

173 5304472815 Lever, switch, left, A

174 5304472820 Lever, switch, left, B

175 5304472819 Spring, bottom

176 5304472818 Lever, switch, right, B

311 318246000 Bracket, cabinet, anti-tip

311* 5303211311 Screw, 8-18 x 0.500

311* 5304438005 Screw, 6 x 1, black

312 318246702 Tool, oven release, RH key

312 318246703 Tool, oven release, LH key

Publication No: 5995553749 E30SO75FPSA

10/09 8

CONTROL PANEL,DOOR,MISC.

E30SO75FPSA Publication No: 5995553749

# Functional Parts 9 10/09

* Non-Illustrated Parts

CONTROL PANEL,DOOR,MISC.

POS. NO PART NO. DESCRIPTION

30 # 5304451413 Control Board, CPU

31 # 5304456394 Touch Control

32 5304451415 Screw

102 5304458935 Door, assembly

103 5304458936 Handle, door

104 5304451507 Screw

105 5304451508 Frame, inner door, choke cover

106 5304458937 Adapter, door handle, left side

107 5304458938 Adapter, door handle, right side

108 5304451511 Latch Head, right side

109 5304451512 Latch Head, left side

110 5304451513 Spring, handle

111 5304451514 Lever, handle

112 5304451515 Spring, latch, right side

113 5304451516 Spring, latch, left side

114 5304451517 Screw, 4 mm x 8 mm

115 5304458939 Screw, 4 mm x 20 mm

116 5304451519 Pin, handle

117 5304451520 Rack, high

118 5304451521 Rack, low

121 5304451524 Plate, splash guard

125# 5304451525 Wiring Harness, main

126# 5304451526 Wiring Harness, thermistor

128 5304451528 Clip, wire harness, plastic, L

131 5304440346 Label, User Caution

132 5304451530 Insulator, terminal

134 5304451529 Clip, wire harness, plastic, LL

139 5304451534 Label, User Caution, French

169 5304465264 Pan, pizza

170 5304461261 Rack, bacon

Publication No: 5995553749 E30SO75FPSA

10/09 10

WIRING DIAGRAM

NOTES:

1. Circuits / Wire Colors subject to change without notice.

LV TRANSFORMER

T7 T4

A3 T2

RY2

RY1

RY5

RY4

RY3

RY6

RECTIFIER

SOLID-STATE RELAY

INTERLOCK RELAY

PRIMARY

SECONDARY

INTERLOCK

SWITCH

FAN MOTOR

UNIT

CONTROL

MONITORSWITCH

1.0 F

CAPACITOR

AC 2300V MAGNETRON

RED

BLK

DAMPER

SWITCH

DOOR

SENSING

JET MOTOR

TURNTABLE MOTOR

N.O.

TTM

THERMISTOR

SOLID-STATE RELAY

SIDE HEATER

TOP HEATER

COM.

DAMPER MOTOR

SIDE HEATER

CUT-OUT

THERMAL

CUT-OUT

TOP HEATER

THERMAL

MG.

FUSE

TEMP.

OVEN LAMP

F10A

WITH 150°C THERMOSTAT

TRANSFORMER

POWER

IN PRIMARY WINDING

GND

240V 60Hz

RED

GRY

RED

BLK

RED

BRN

BLK

RED

BRN BLK

RED

BLK

ORG

BRN

ORG

BRN

RED

BLK

ORG

BLK

ORG

BLK

ORG

RED

ORG

ORG ORG

BLK

RED

GRY

WHT

GRY

BLK

GRY

WHT

GRY

WHT

GRY

WHT

GRY

WHT

GRY

WHT

RED

BLU

GRY WHT

WHT

GRY

N.O. COM.

GRY

BLK

GRN

BLK

ORG

BLU

BLK

RED

BLK

BLU

RED

GRN

BLK

BRN GRN WHT

GRN

WHT

ORG

RED

FUSE12.5A

NOTES:

1. Circuits / Wire Colors subject to change without notice.

LVTRANSFORMER

T7 T4

A3 T2

A1 D9

RY2

RY1

RY5

RY4

RY3

RY6

RECTIFIER

SOLID-STATE RELAY

INTERLOCK RELAY

PRIMARY

SECONDARY

INTERLOCK

SWITCH

FAN MOTOR

UNIT

CONTROL

MONITOR SWITCH

1.0 F

CAPACITOR

AC 2300V MAGNETRON

RED

BLK

DAMPER

SWITCH

DOOR

SENSING

JET MOTOR

TURNTABLE MOTOR

N.O.

TTM

THERMISTOR

SOLID-STATERELAY

SIDE HEATER

TOP HEATER

COM.

DAMPER MOTOR

SIDEHEATER

CUT-OUT

THERMAL

CUT-OUT

TOP HEATER

THERMAL

MG.

FUSE

TEMP.

OVENLAMP

F10A

WITH 150°C THERMOSTAT

TRANSFORMER

POWER

IN PRIMARY WINDING

GND

240V 60Hz

RED

GRY

RED

BLK

RED

BRN

BLK

RED

BRN BLK

RED

BLK

ORG

BRN

ORG

BRN

RED

BLK

ORG

BLK

ORG

BLK

ORG

RED

ORG

ORG ORG

BLK

RED

GRY

WHT

GRY

BLK

GRY

WHT

GRY

WHT

GRY

WHT

GRY

WHT

GRY

WHT

RED

BLU

GRY WHT

WHT

GRY

N.O. COM.

GRY

BLK

GRN

BLK

ORG

BLU

BLK

RED

BLK

BLU

RED

GRN

BLK

BRN GRN WHT

GRN

WHT

ORG

RED

FUSE12.5A

E30SO75FPSA-WIRING-1

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Electrolux Forno a microonde

Electrolux

Electrolux EMS20405X Manuale utente

Electrolux

Electrolux EI24MO45IB Manuale utente

Electrolux

Electrolux ZKD 4050 B Manuale utente

Electrolux

Electrolux EME2350 Manuale utente

Electrolux

Electrolux EMS26215 Manuale utente

Electrolux

Electrolux EMSB25XC Manuale di istruzioni

Electrolux

Electrolux EMS26254O Manuale utente

Electrolux

Electrolux EMS30400OX Manuale utente

Electrolux

Electrolux E30MH65GPS - Icon - Microwave Manuale utente

Electrolux

Electrolux E30MH65GPS - Icon - Microwave Foglio di istruzioni

Electrolux

Electrolux EW30MC65JB Manuale utente

Electrolux

Electrolux EMS2085X Manuale utente

Electrolux

Electrolux EI30MO45GS - 30" Microwave Manuale utente

Electrolux

Electrolux EMB2527BA Manuale utente

Electrolux

Electrolux EI24MO45I B Guida utente

Electrolux

Electrolux EVY7800AAV Manuale utente

Electrolux

Electrolux EMM20000OW Manuale utente

Electrolux

Electrolux EMS2540X Manuale utente

Electrolux

Electrolux Frigidaire GMOS1266AF Manuale del proprietario

Electrolux

Electrolux EI30BM60MS Manuale utente

Electrolux

Electrolux EI24MO45IB - 2.0 cu. Ft. Microwave Istruzioni per l'installazione

Electrolux

Electrolux EI30BM55HBC Manuale utente

Electrolux

Electrolux EMS26204OK Manuale utente

Electrolux

Electrolux E30MO65GSSB Manuale utente

Manuali Forno a microonde popolari di altre marche

Daewoo

Daewoo KOG-574R0S Manuale utente

LG MH7040SS Manuale utente

Sharp

Sharp R-895(AL)M Manuale utente

Dometic

Dometic DOTRM13W Manuale utente

Sanyo

Sanyo EM-X680 Manuale utente

Sharp

Sharp R-393M Manuale utente

KitchenAid

KitchenAid KMCX4510 Istruzioni per l'installazione

Smeg

Smeg S45MCX1 Manuale utente

Russell Hobbs

Russell Hobbs RHM2044 Manuale utente

Sunbeam

Sunbeam SMW759 Manuale utente

Gallet

Gallet FMOE230S Manuale utente

Bosch

Bosch CEG732X.1B Manuale utente

Dometic

Dometic Roadmate 230 Manuale utente

Samsung

Samsung SJ0396W Manuale utente

Sanyo

Sanyo EM-P494WS Manuale utente

Sharp

Sharp R-240 Manuale utente

Daewoo

Daewoo KOC-984T2S13 Manuale utente

Impecca

Impecca CM07M2 Manuale utente
