Electrolux 30166673P70S1 Manuale utente

E36DF76GPS1.eps CE36DF76GPS1.eps BRE36DF76GPS1.eps BE36DF76GPS1.eps

ME36DF76GPS1.eps DE36DF76GPS1.eps 318271962.eps

Product No. E36DF76GPS1

30166673P70S1

Series 36" dual fuel

Color stainless

Market North America

Wiring Diagram 318271962

Owner's Guide 318203954

Installation Instructions 318201773

Service Data Sheet 318204802

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995499257

07/09/11

(EN/SERVICE/ECL)

377

36-INCH FREE

STANDING DUAL FUEL

RANGE

Model No.

E36DF76G

Publication No: 5995499257 E36DF76GPS1

09/07 2

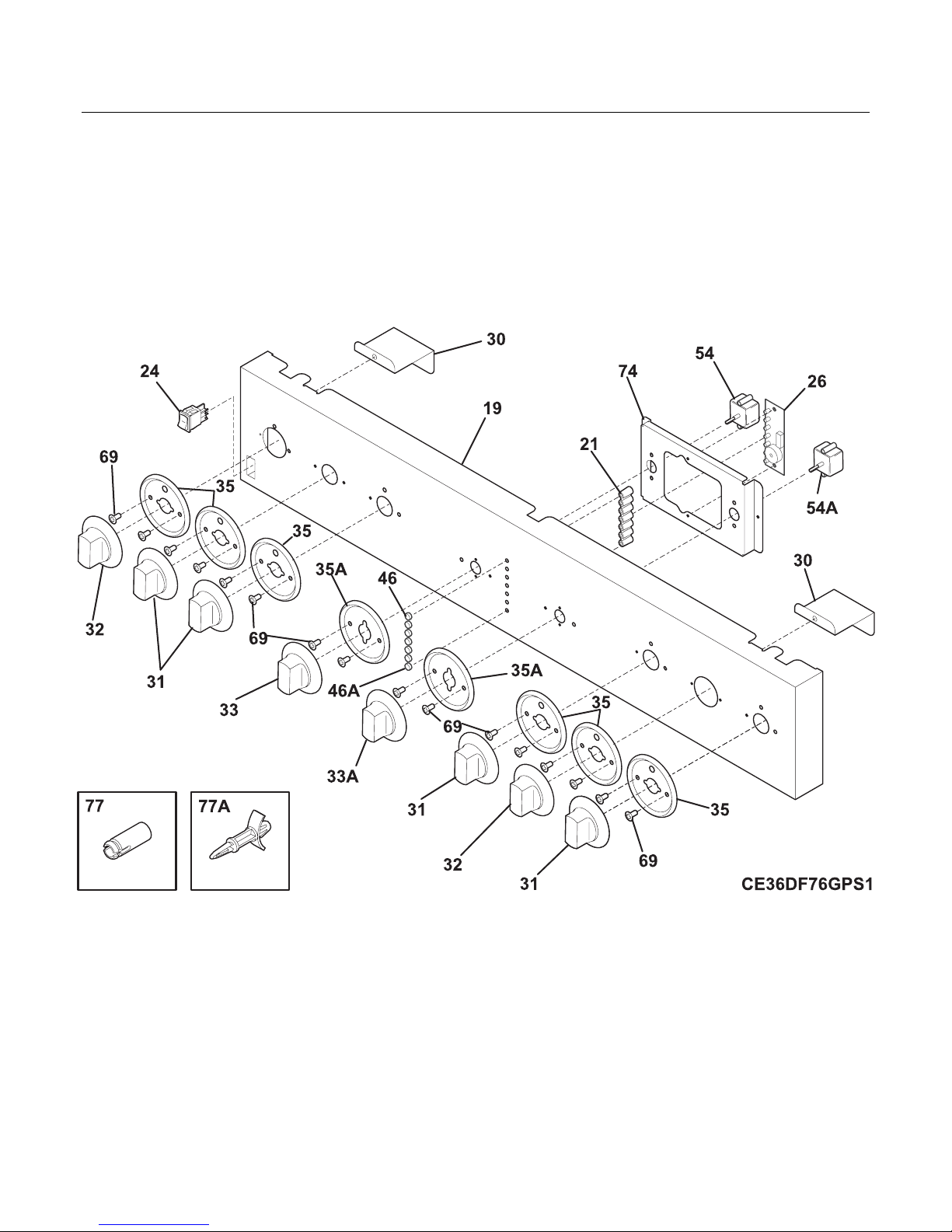

BACKGUARD

E36DF76GPS1 Publication No: 5995499257

# Functional Parts 3 09/07

* Non-Illustrated Parts

BACKGUARD

POS. NO PART NO. DESCRIPTION

19 318285732 Panel, control, stainless

21 318389500 Retainer, lens

24 # 5308015487 Switch, oven light, rocker

26 # 5304452799 Board, indicator light, (2), LED

30 318377000 Support, control panel, (2)

31 318242225 Knob, control, (4)

32 318242226 Knob, control, dual, (2)

33 318242230 Knob, selector

33A 318242231 Knob, control, oven

35 318251911 Skirt, (6)

35A 318251912 Skirt, (2)

46 318044501 Lens, indicator light, blue, (5)

46A 318228310 Lens, indicator light, (2)

54 # 5304452797 Control, oven selector

54A# 5304452798 Control, oven temp.

69 5303300265 Screw, 8-18 X 1/2, (2)

74 318383901 Bracket, controls

77 316247900 Spacer, power board, (3)

77A 316114100 Spacer, (4)

* # 318370352 Wriring Harness, timer, to relay board

* # 318370353 Wriring Harness, relay board, to display

* 318163602 Cleaner, stainless steel

Publication No: 5995499257 E36DF76GPS1

09/07 4

BURNER

E36DF76GPS1 Publication No: 5995499257

# Functional Parts 5 09/07

* Non-Illustrated Parts

BURNER

POS. NO PART NO. DESCRIPTION

1 # 318357805 Manifold, (2)

1A 318305453 Tube, manifold, interconnect

1B 318305454 Tube, manifold, interconnect

2 # 316520700 Valve, burner, 5K

2A # 316412510 Valve, top burner, 18K, dual port

2B # 316520703 Valve, burner, 14K

2C # 316520701 Valve, burner, 9.5K

3 # 318232638 Wiring Harness, w/igntr switch

3* 5303311306 Screw, 8-18 x 0.375, (8)

10 # 316510800 Burner, sealed, 5K

10A# 316525400 Burner, sealed, dual, 18K

10B# 316511200 Burner, sealed, 14K

10C# 316511000 Burner, sealed, 9.5K

11 # 316524800 Ignitor/orifice assy., top burner, 5K, w/holder

11A# 316525100 Ignitor/orifice assy., top burner, 18K, w/holder

11B# 316525000 Ignitor/orifice assy., top burner, 14K, w/holder

11C# 316524900 Ignitor/orifice assy., top burner, 9.5K, w/holder

12 # 318366711 Tube, burner, RH rear, 5K

12A# 318366721 Tube, 18K burner, RH front

12B# 318366720 Tube, 18K burner, RH front

12C# 318366722 Tube, 18K burner, LH front

12D# 318366726 Tube, 9.5K burner, center

12E# 318366724 Tube, 14K burner, LH rear

12F# 318366725 Tube, 14K burner, center front

12G# 318366723 Tube, 18K burner, LH front

13 # 318357811 Manifold, regulator

14 # 318122705 Regulator, pressure

15 318376110 Bracket, regulator

26 318363800 Bracket, channel mtg, (2)

26A 318363900 Bracket, channel mtg.

37 316518100 Screw, ignitor assy mt, 6-32 x .62

44 316523504 Orifice, top burner, 5K

44A 316523508 Orifice, top burner, 18K

44B 316523506 Orifice, top burner, 14K

44C 316523500 Orifice, top burner, 9.5K

72 316215600 Screw, valve mtg., 1/4 - 20

77 318355511 Bracket, channel mtg.

* # 318243102 Harness, burner wiring

* 318186914 LP Conversion Kit

* 5303211311 Screw, 8 x 0.500

Publication No: 5995499257 E36DF76GPS1

09/07 6

BODY

E36DF76GPS1 Publication No: 5995499257

# Functional Parts 7 09/07

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 318259251 Back, main

1A 318260051 Panel, rear box, upper

2 318258955 Shield, insulation, upper

3 318352750 Panel, side, stainless, LH

3A 318352751 Panel, side, stainless, RH

4 318364102 Liner, oven bottom

5 318175506 Screw, leveling

5A 318368850 Bracket, leveling leg, (4)

5B 318352450 Cover, leveling leg, (4)

6 318240151 Shelf, oven, fixed

6A 318365800 Rack, broiler pan

6B 318240251 Shelf, oven, (3), extendable

7 318297351 Box, bake element

8 318359550 Panel, service

8A 318313605 Bracket, bake element

9 318138801 Pan, broiler

10 318126401 Insert, broiler pan

11 318240054 Glide & Support assy, ovenshelves, RH

11A 318240055 Glide& Support assy, oven shelves, LH

12 316445501 Switch, oven light, door frame

13 318603908 Bracket, ladder mtg., (4)

13* 5304463708 Nut, bracket mtg, (12)

13* 318391100 Screw, glide mtg, (2)

14 318903401 Switch, rack sensing

15 318241002 Lamp, oven, (2), halogen

18 # 316405800 Latch Assembly, oven door

20 318389400 Plate, retainer

21 318389000 Seal, ring

28 318369310 Bracket, side panel, (2)

29 318147411 Bumper, (2)

37 # 316217002 Probe, oven temp

41 318366601 Spacer, front frame

58A 318362117 Insulation, top & sides

58B 318362116 Insulation, rear

58C 318294913 Insullation, bake element

59 318072577 Duct, oven vent

62 5303935061 Terminal Block Kit

62* 5303212739 Plate-ground strap

62* 5303323139 Screw, 10-24 x 0.906

62* 5303323144 Nut, 10-32

66 # 318255851 Element, broil, 4000W

67 # 318254905 Element, bake, 3000W

70 318302752 Shield, insulation, right

70A 318302753 Shield, insulation, left

71 318260050 Panel, rear box, lower

72 318259150 Shield, insulation, sides, (2)

76 318364902 Front, oven

77 316247900 Spacer, power board, (3)

77A 316114100 Spacer, (4)

80 318364800 Plate, oven mtg

81 318373700 Bracket, oven, (2)

Publication No: 5995499257 E36DF76GPS1

09/07 8

BODY

E36DF76GPS1 Publication No: 5995499257

# Functional Parts 9 09/07

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

81* 5304449778 Screw, bracket mtg., 8 x 1/2", (2)

82 318258751 Shield, insulation, lower

83 318364202 Liner, oven top

84 318364304 Liner, oven side, RH

84A 318364314 Liner, oven side, LH

85 318364408 Liner, oven back

86 318241406 Receptacle, hinge, (2)

87A 318111806 Plate, cord set mtg

87B 318111812 Plate, cord set mtg

88 318376500 Rod, latch

89 # 316464300 Motor-latch

89* 318370325 Wriring Harness, latch

* 5303311333 Screw, 8-32 x 3/8

90 318355050 Trim, bottom, stainless

90* 5304463705 Screw, btm trim, 8-18 X 1/2, (4)

91 318376301 Bracket, reinforcement

97 316455705 Board, power, relay

107 318906601 Cover, fan

108# 318073018 Motor, blower

* 318165800 Spacer

* 08016432 Screw, truss head, 8-18 x 0.375

108A 318251300 Bracket, fan support

109 316136400 Blade, fan

111 316136600 Nut, fan retainer

125# 316415800 Motor, fan

127 318357002 Adapter, vent tube

131 318272950 Box, vent

132 318347800 Chimney

161# 318255505 Element, convection, 2500 W

166 318352550 Bracket, leveling leg, (2), reinforcement

170 318335703 Anti-tip & accessories

219# 318004902 Switch, thermal

263 316136500 Washer, flat

264 318257753 Trim, oven, black, front

272 318249402 Tube, protector

* # 318370365 Wriring Harness, main

* 318235300 Connector assy., w/3 lugs, & instructions

* 5303211311 Screw, 8 x 0.500

* 5303300265 Screw, 8-18 X 1/2, (2)

* 5303311306 Screw, 8-18 x 0.375, (8)

* 5304415832 Screw, 8-18 x 0.406

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995499257 E36DF76GPS1

09/07 10

TOP
