Electrolux E24RD75H Manuale utente

Product No. E24RD75HSS0

Series Icon Designer

Color stainless

Volts 115

Wiring Diagram 241963001

Owner's Guide 242000100

Market North America

Energy Guide 241935546

Service Data Sheet 242007200

U05L00005.eps U05DIDAAB0.eps U05BIABBB0.eps U05CRADAD0.eps

W241963001.eps S241963001.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995529624

08/11/26

(EN/SERVICE/KHB)

390

REFRIGERATED

DRAWERS

Model No.

E24RD75H

Publication No: 5995529624 E24RD75HSS0

11/08 2

DRAWERS

U05DIDAAB0

21D

21C

21D

E24RD75HSS0 Publication No: 5995529624

# Functional Parts 3 11/08

* Non-Illustrated Parts

DRAWERS

POS. NO PART NO. DESCRIPTION

1 7241958901 Gasket-drawer

11 7241965802 Drawer-top

14 7241967001 Plug-button, black

15 7241966802 Drawer-Bottom

18 7241962801 Handle-door, stainless steel

21 7218362501 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)

21C 7241918201 Screw, #8-32 x 3/8, flat head

21D 7241998201 Screw-handle mtg

23 7241897405 Board-control, temp control

26 7215503206 Screw-#10-16 HILO PHIL PAN HD

28 7241997902 Cover-top drawer

30 7241981201 Front-drawer, top drawer

31 7241981202 Front-drawer, bottom drawer

32 7241998004 Cover-Bottom Drawer

45 7240383411 Screw, truss hd quad, #10-16 x .500, silver mist

51 7241959501 Rail-shelf, full access, left

52 7241959502 Rail-shelf, full access

53 7241965701 Lid-condiment tray

54 7241964401 Plate-condiment tray

55 7241965602 Tray-condiment

56 7241965502 Tray-condiment, complete assemb

78 7241997401 Basket-sliding, UC

* 7218515401 Clip

* 7241962901 Seal, drawer

Publication No: 5995529624 E24RD75HSS0

11/08 4

CABINET

21A

79 49

U05BIABBB0

210

21C

E24RD75HSS0 Publication No: 5995529624

# Functional Parts 5 11/08

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

15 # 7241904201 Light Assembly, LED, (4)

21A 7241906101 Screw-#10 x 3/4 TEK

21C 7218252201 Screw, #8 truss hd, 10-32CA x 0.500

26 7241904301 Screw, LED lighting

43 7241911501 Leveling Leg, screw

49 7218362501 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)

72 7241908403 Grille/Kickplate, stainless

79 7241960401 Mullion, black

81 75304455650 Screw, hex washer head, 8-15A x 0.625, low profile

89 7241898002 Cover-access

210 7241903801 Bracket-anti tip

* 7218515401 Clip

Publication No: 5995529624 E24RD75HSS0

11/08 6

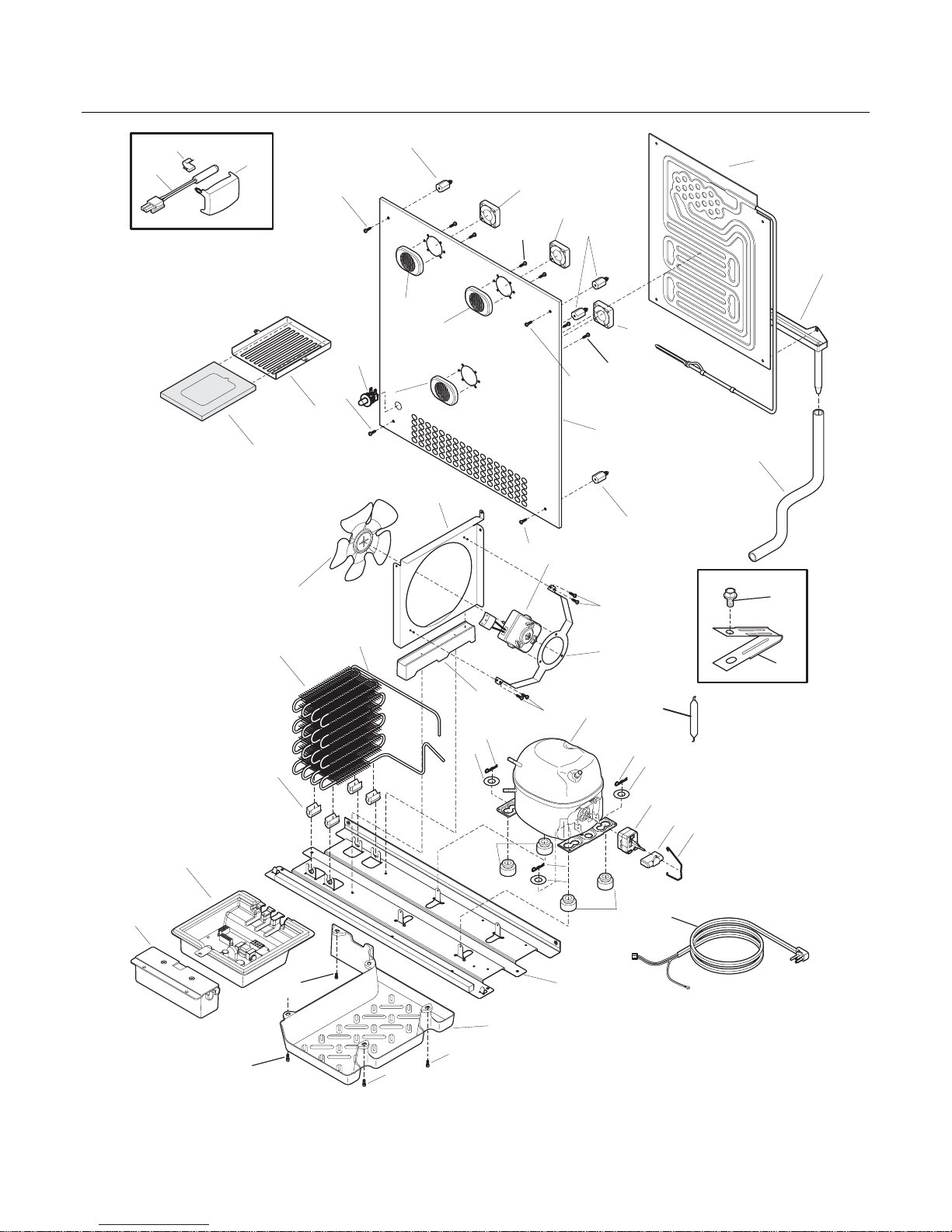

SYSTEM

U05CRADAD0

59A

59B

55 32

E24RD75HSS0 Publication No: 5995529624

# Functional Parts 7 11/08

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 7241931201 Condenser

3 7241890001 Spacer-evap

3 7241890002 Spacer-evap

3* 7241931901 Washer, nylon

4 7218944002 Drier-filter, R134a System

6 # 7241516901 Cord-service

6* 7241932601 Bushing-service cord

6* 7241932701 Retainer, wire

6* 7241961201 Harness-wiring

6* 7241961701 Harness-wiring, machine compt

6* # 7241900201 Harness-evaporator

6* # 7241900701 Harness-intermediate, UC, LED lighting

6* # 7241961801 Harness-Evap Light Switch

7 7241960301 Cover-fan

10 7241960101 Cover-evap coil

10* 7241984501 Seal-coil cover

13 # 7241981801 Motor-evap fan

14 # 7241911704 Switch-light/lamp

15 # 7241891801 Evaporator, w/heat exchangr

17 7241889801 Trough-drain

22 7241888101 Base-compressor

22* 7218252201 Screw, #8 truss hd, 10-32CA x 0.500

23 7218513300 Grommet-compr mtg, (4)

24 7241812301 Washer-compr mtg

25 7216056401 Clip-compressor mtg

26 7241889901 Pan-defrost drain

29 # 75303918366 Compressor, w/electricals

30 # 7241707717 Starter-PTC

32 7216649200 Clip, controller

34 7240405201 Grommet, rubber, black, cond tube/wire

41 7240433204 Screw, hex washer head, 8-18 x 5/16

44 75304456288 Clamp-wiring harness, strain relief, galv steel

45 7241906101 Screw-#10 x 3/4 TEK

50 7241511116 Board-main power

50* 7241532401 Channel

55 7218909913 Capacitor, run, 220 VAC, 15 microfarad

58 7240433203 Screw, hex washer head, 8-18 x 3/8

59 7241889701 Shroud, cond fan motor

59* 7240359403 Screw-fan shroud, (2)

59* 7240396801 Clamp, tube/wiring, nylon, black/natural

59A 7241889601 Bracket-cond motor

59B 7241896401 Support, cond shroud

60 7241584301 Motor-condenser fan

61 7241639501 Blade-condenser fan

81 7240555004 Screw-#8-32 X 3/8 BLACK

84 7241931401 Tube-drain, lower

85 7241898101 Tube-hot loop

92 7241512902 Cover-sensor, black

93 7240597203 Sensor

94 7241904001 Housing-filter, air

95 7241754001 Filter-air

96 # 7241900001 Board-LED power

96*# 7241900401 Harness-LED driver

97 7241519401 Clip, sensor

* 7218515401 Clip

* 7240542601 Clip-wiring harness

* 7241853201 Screw, #8-18 x 1/2

* 7241919901 Clamp, cable

Publication No: 5995529624 E24RD75HSS0

11/08 8

WIRING SCHEMATIC

E24RD75HSS0 Publication No: 5995529624

# Functional Parts 9 11/08

* Non-Illustrated Parts

WIRING DIAGRAM
