Finding information

Please read and save this Tabmeof contents

Thank you for choosing Electrolux, our new

premium brand in home appliances. This Use &

Care Guide is part of our commitment to customer

satisfaction and product quality throughout the

service life of your new appliance.

Keep a record for quick

Purchase date

Electrolux model number

Electrolux serial number

Finding Information ...................................................... 2

Safety ............................................................................. 3

Installation ..................................................................... 5

Removing The Doors .................................................... 8

Installing Door Handles ............................................. 10

Connecting The Water Supply ................................... 11

Feature Overview ........................................................ 13

Controls ....................................................................... 14

Storage Features ........................................................ 19

Automatic Ice & Water Maker/Dispenser .................. 27

Changing The Filter .................................................... 30

Storing Food & Saving Energy .................................. 32

Normal Operating Sounds & Sights ......................... 33

Care & Cleaning .......................................................... 34

Warranty ...................................................................... 37

Before You Call ............................................................ 38

Questions?

For toll-free telephone support in the U.S. and

Canada: 1-877-4ELECTROLUX (1-877-435-3287)

For online support and product information visit

http ://www.elect roluxappliances.com

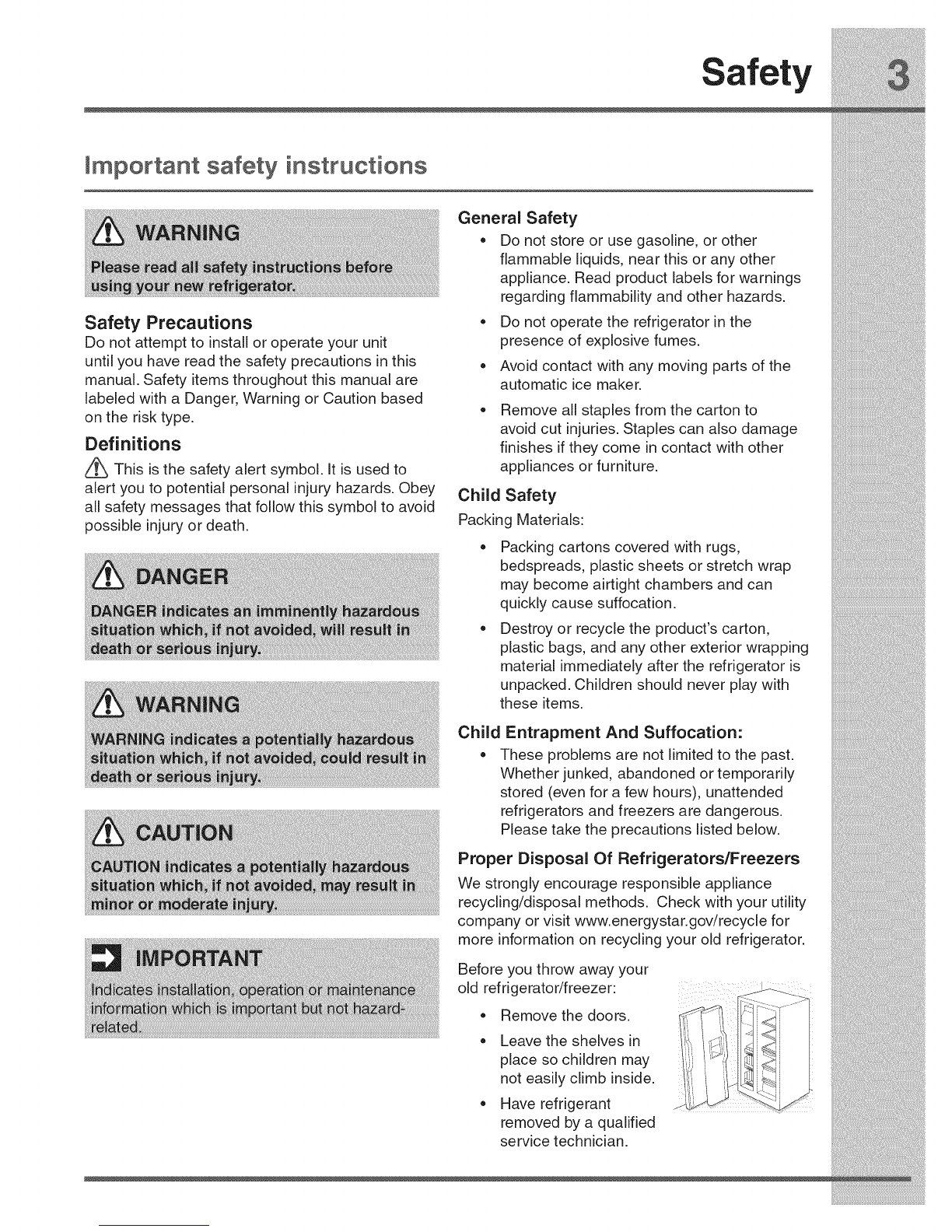

Safety

Important safety instructions

Safety Precautions

Do not attempt to install or operate your unit

until you have read the safety precautions in this

manual. Safety items throughout this manual are

labeled with a Danger, Warning or Caution based

on the risk type.

Definitions

This is the safety alert symbol. It is used to

alert you to potential personal injury hazards. Obey

all safety messages that follow this symbol to avoid

possible injury or death.

General Safety

= Do not store or use gasoline, or other

flammable liquids, near this or any other

appliance. Read product labels for warnings

regarding flammability and other hazards.

= Do not operate the refrigerator in the

presence of explosive fumes.

= Avoid contact with any moving parts of the

automatic ice maker.

Remove all staples from the carton to

avoid cut injuries. Staples can also damage

finishes if they come in contact with other

appliances or furniture.

Child Safety

Packing Materials:

Packing cartons covered with rugs,

bedspreads, plastic sheets or stretch wrap

may become airtight chambers and can

quickly cause suffocation.

Destroy or recycle the product's carton,

plastic bags, and any other exterior wrapping

material immediately after the refrigerator is

unpacked. Children should never play with

these items.

Child Entrapment And Suffocation:

These problems are not limited to the past.

Whether junked, abandoned or temporarily

stored (even for a few hours), unattended

refrigerators and freezers are dangerous.

Please take the precautions listed below.

Proper Disposal Of Refrigerators/Freezers

We strongly encourage responsible appliance

recycling/disposal methods. Check with your utility

company or visit www.energystar.gov/recycle for

more information on recycling your old refrigerator.

Before you throw away your

old refrigerator/freezer:

Remove the doors.

Leave the shelves in

place so children may

not easily climb inside.

Have refrigerant

removed by a qualified

service technician.

Safety

Emectricaminformation

=The refrigerator must be plugged into

its own dedicated 115 Volt, 60 Hz., AC-

only electric outlet. The power cord of the

appliance is equipped with a three-prong

grounding plug for your protection against

electrical shock hazards. It must be plugged

directly into a properly grounded three-

prong receptacle. The receptacle must be

installed in accordance with local codes and

ordinances. Consult a qualified electrician.

Do not use an extension cord or adapter

plug.

= If the power cord is damaged, it should

be replaced by the manufacturer, service

technician or a qualified person to prevent

any risk.

• Never unplug the refrigerator by pulling on

the power cord. Always grip the plug firmly,

and pull straight out from the receptacle to

prevent damaging the power cord.

• Unplug the refrigerator before cleaning

and before replacing a LED light to avoid

electrical shock.

Performance may be affected if the voltage

varies by 10% or more. Operating the

refrigerator with insufficient power can

damage the compressor. Such damage is not

covered under your warranty.

• Do not plug

the unit into an

outlet controlled

by a wall switch

or pull cord to

prevent the

refrigerator from

being turned off

accidentally.

• Avoid connecting

refrigerator to a

Grounding type

wall receutacle

//_ not, under

fDO orb,pao.,,e

l_ ,_g .... ding prong. J

3P°Nnr _°grdoWnitc_ d plug

Ground Fault Interrupter (GFI) circuit.

Instal ion

This Use & Care Guide provides general operating

instructions for your model. Use the refrigerator

only as instructed in this Use & Care Guide. Before

starting the refrigerator, follow these important

first steps.

Location

• Choose a place that is near a grounded

electrical outlet. Do Not use an extension

cord or an adapter plug.

if possible, place the refrigerator out of

direct sunlight and away from the range,

dishwasher or other heat sources.

The refrigerator must be installed on a floor

that is level and strong enough to support a

fully loaded refrigerator.

Consider water supply availability for models

equipped with an automatic ice maker.

Installation

Installation clearances

Toe Grille Installation and Removal

To install toe grille

1 Open both doors. Slide left and right sides of

toe grille over lower hinges of refrigerator.

2 While pushing toe grille firmly against cabinet,

fasten bottom clips of toe grille to cabinet.

3 Fasten top clips to cabinet.

4 Close the doors. Fasten right and left side of

clips into groove of bottom hinge by pulling

outwards on the edge.

Allow the following clearances for ease

of installation, proper air circulation, and

plumbing and electrical connections:

Sides & Top ¾ inch

Back 1 inch

5Ensure the triangle flap is resting on top of

the door hinge.

To remove toe grille

1 With both doors closed, unfasten right and left

side clips of toe grille from bottom hinge groove.

2 Open both doors. Press firmly on top of toe

grille until top of toe grille pops off.

3Pull toe grille outward towards your body and

off of lower hinges. I

_ Removing Toe Gd

Instal ion

Door opening

Your refrigerator should be positioned to allow easy

access to a counter when removing food. For best

use of drawers and freezer baskets, the refrigerator

should be in a position where both the refrigerator

and freezer doors can be fully opened.

Guidelines for final positioning of your

refrigerator:

= All four corners of the cabinet must rest firmly

on the floor.

The cabinet should be level at the front and

rear.

The sides should tilt 1Ainch (6 mm) from front

to back (to ensure that doors close and seal

properly).

Doors should align with each other and be

level.

All of these conditions can be met by

raising or lowering the adjustable front

rollers.

To level the cabinet using the front rollers:

1 Open both doors and remove the toe grille

(see "Toe Grille Installation and Removal"

in the "installation" section).

2 Close the doors and use a flat-blade

screwdriver or ¾ inch socket wrench to raise

or lower the front rollers.

3 Ensure both doors are bind-free with their

seals touching the cabinet on all four sides.

Raise

NOTE: Level the unit with the adjustable rollers

before leveling the doors.

To level the doors using the adjustable lower

hinge (some models):

1 Before leveling either door, remove set screw

that locks door height into position. (The

door cannot be adjusted without set screw

removed).

2 If the refrigerator door is lower than the

freezer door, raise the refrigerator door by

turning the adjustment screw clockwise using

a 7/16inch wrench. (See illustration.)

3 If the freezer door is lower than the

refrigerator door, raise the freezer door by

turning the adjustment screw clockwise using

a 7/16inch wrench. (See illustration.)

RAISE RAISE

DOOR DOOR

4 After leveling, verify door stop contacts lower

hinge and top of door does not contact upper

hinge through full movement of door (from

fully closed to fully open).

5 Reinstall set screw, locking the door height.

a n d 3_/12'6'"HWere_( ch Open Door

somemode

II "SetScrew

:Hinge

6 Replace the toe grille by fitting it into place

(see "Toe Grille Installation and Removal" in

the "Installation" section).

Instal ion

Installing Shelves

Your refrigerator was shipped with the shelf hanger

and shelf locking clip installed in their shipping

position. Below are the instructions to install the

shelves in your desired locations.

1 Detach clip from the back of hanger by

pushing down on the top of the clip and

pulling the clip towards you.

2Lift the hanger directly upwards and then

towards you to remove it from the ladder.

Reinsert clips by positioning prongs on either

side of the hanger hook and pushing down

on the top of the clip until it fits into the slot.

While holding shelf at a 45-degree angle with

the gray handle facing you, push the shelf

directing into the back of the hanger.

Gently set the shelf onto the hanger once the

back is secured by the hanger.

3 Place top hooks of the hanger into the

desired slot, and lower straight down until

lower hooks rest on the ladder.

Removing The Doors

Getting through narrow spaces

If your refrigerator wi[[ not fit through an entrance area, you can reduce its size by removing the doors.

Check first by measuring the entrance.

Required Tools

You will need the following tools:

Top Hinge Top Hinge TOOLS Necessary:

Cover Front Cover Rear

Screw _ _ Screw

Top Screw _ Phillips'" Head_ _%gwe B_tt__

AND

3/8" Fixed

Wrench

To prepare for removing the doors:

1 Make sure the electrical power cord is unplugged from the wall outlet.

2 Open both doors and remove the toe grille (as explained in the

Installation Instructions that came with your appliance).

3 Remove any food from the door shelves.

4 Close the doors.

To remove the refrigerator top hinge cover:

1 Remove the three screws from each cover over the top door hinges.

2 Lift hinge cover straight up and off.

To remove the refrigerator door:

1 Trace lightly around the door's top hinge with a pencil. This makes

reinstallation easier.

2 Remove the two screws from the top hinge. Lift the door off of the

bottom hinge and set it aside.

3 Remove the two bottom hinge screws and hinge if necessary.

Adjustable Hinge

(some models) Non-Adjusting Hinge

(some models)

Rear Front

Cover Screw Cover Screws ToP Hinge

_p Hinge

Toreinstall the refrigerator door, reverse the above steps.

Removing The Doors

To remove the freezer top hinge cover:

1 Remove the two screws from each cover

over the top door hinges.

2 Lift hinge cover straight up and off.

To remove the freezer door:

Front Rear

Cover Screws

"_. Cover Screw

TopHinge _\_

Hinge

ooo,e

Detach the multi-wire cable connector

located above the top hinge. Grasp both

sides of the connector firmly and pull apart.

3 Detach the water tube from the connector

located below the freezer door. The

connector releases when you press and hold

its outer sleeve inward. With the sleeve held

in this position, the tube can be removed.

Adjustable Hinge (some models)

2Trace lightly around the hinge with a pencil.

This makes reinstallation easier.

Non-Adjusting Hinge (some models)

4 Remove the screws from the top hinge and

pull the multi-wire cable through it. Liftthe

door off of the bottom hinge.

5 Remove the two bottom hinge screws and

hinge if necessary.

6 Lay the door on its side to avoid damage to

the water tube extending from the bottom

hinge.

To reinstall the freezer door, reverse the above

steps.

Once both doors are in place, ensure they are

aligned with each other and level (Please see "To

level the doors using the lower hinge" for models

with adjustable lower hinges or "To level the

cabinet using the front rollers" for models with the

non-adjustable lower hinges in the "Installation"

section.), then replace the top hinge cover.

Instal ng Door andles

Door Handle Mounting Instructions

1 Remove handles from carton and any other protective

packaging.

2 Position freezer handle end caps over upper and

lower pre-insta[[ed shoulder bolts (A) that are

fastened into door, ensuring the holes for the set

screws are facing towards the refrigerator door.

3 While homing handle firmly against door, fasten upper

and lower Allen set screws (B) with supplied

Allen wrench.

I Ensure Handle Set Screws

are Facing Each Other

with Doors Closed,

Repeat steps 2 and 3 to install refrigerator handle.

Ensure the holes for the set screws are facing towards the freezer door.

Freezer Upper End Cap Refrigerator Upper End Cap

Freezer Lower End Cap Refrigerator Lower End Cap

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Electrolux Frigorifero

Electrolux

Electrolux ENG2913AOW Manuale utente

Electrolux

Electrolux LNT7MD32X2 Manuale utente

Electrolux

Electrolux ER 3121 D Guida rapida

Electrolux

Electrolux IK2805SZR Manuale utente

Electrolux

Electrolux ER 3825 B Manuale utente

Electrolux

Electrolux 241567601 Manuale utente

Electrolux

Electrolux ENN2803COW Manuale utente

Electrolux

Electrolux ERE38202W Manuale utente

Electrolux

Electrolux ENN2859AOW Manuale utente

Electrolux

Electrolux ER 8496B Manuale utente

Electrolux

Electrolux E23CS78HP - Icon 22.6 cu. Ft. Refrigerator Manuale utente

Electrolux

Electrolux TK14014 Manuale utente

Electrolux

Electrolux ER8126/1B Manuale utente

Electrolux

Electrolux JRU 44601 Manuale utente

Electrolux

Electrolux DF80 Manuale utente

Electrolux

Electrolux ICON Manuale utente

Electrolux

Electrolux EQE6879A Manuale utente

Electrolux

Electrolux ER 3110B Manuale utente

Electrolux

Electrolux PWE9038-M Manuale utente

Electrolux

Electrolux Side-By-Side Refrigerator Manuale utente

Electrolux

Electrolux E30EW75GPS - Icon 30" Professional Series Single Electric Wall... Foglio di istruzioni

Electrolux

Electrolux E32AF75FP Manuale utente

Electrolux

Electrolux EI23CS65KS Istruzioni per l'installazione

Electrolux

Electrolux EI27BS26J W Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente

Teledyne

Teledyne 6712FR and Istruzioni operative
