Electrolux HD-Line
590 lt refrig. counters - upstand
The Electrolux range of refrigerated counters combines the convenience of worktop space with cold storage
located below. This range of counters is constructed in 304 AISI stainless steel to meet the highest hygiene
standards. The range is comprised of three sizes of counters with built-in or remote compressor units, in
various door or drawer configurations and in refrigerator or freezer versions. The models detailed on this sheet
are refrigerated counters with four sections and operate over the temperature range of –2°C to +10°C.
726574
EASY TO INSTALL
• Mounted on legs with height
adjustment.
• Built-in compressor to suit
operating conditions.
• Suitable for use in ambient
temperatures of up to 43°C.
EASY TO CLEAN
• Constructed in 304 AISI
stainless steel to meet the highest
hygiene standards.
• Rounded internal corners for
ease of cleaning.
• Mounted on stainless steel legs
to provide 150 mm clearance for
easy floor cleaning.
EASY TO USE
• Adjustable temperature range
from –2°C to +10°C to suit meat,
fish and dairy storage
requirements.
• Anti-tilt runners accept GN1/1
containers.
• Combination of doors and
drawers to suit varying needs, with
the possibility to change the
configuration on site.
• Electronic microprocessor
control with external digital
temperature display.
• Forced air circulation for rapid
cooling and an even temperature
distribution.
• Worktop in 304 AISI stainless
steel 50 mm in thickness.
• Integrated rear upstand.
EASY TO MAINTAIN
• Access to all components from
the front.
EASY ON THE ENVIRONMENT
• CFC and HCFC free (ecological
refrigerant type: R134a, - gas in
foam: cyclopenthane).
• 60 mm insulation thickness for
energy saving.
• Developed and produced in ISO
9001 and ISO 14001 certified
factory.
• All models comply with the
standards required by the main
international approval bodies and
are H marked.
Electrolux HD-Line
590 lt refrig. counters - upstand
Internet: http://www.electrolux.com/foodservice
HBAB0802010-05-28Subject to change without notice
PRINTER FOR HACCP BASIC VERSION REFRIG. 881457 881457 881457 881457
PLASTIC CONTAINER GN 1/1 H=65 MM 881038 881038 881038 881038
PLASTIC CONTAINER GN 1/1 H=150 MM 881040 881040 881040 881040
PLASTIC CONTAINER GN 1/1 H=100 MM 811451 811451 811451 811451
LOCK FOR REFRIGERATED COUNTERS 881499 881499 881499 881499
KIT INTEGRATED HACCP-DIG. REFR. (IR33) 880205 880205 880205
KIT HACCP EKIS 922166 922166 922166 922166
KIT 3 DRAWERS 1/3+RACK-HD REF.COUNTERS 881515 881515 881515 881515
KIT 2 DRAWERS 1/2+RACK-HD REF.COUNTERS 881514 881514 881514 881514
KIT 1 DOOR FOR REFRIGER.COUNTER 881517 881517 881517 881517
KIT 1 BOTTLER+1 DRAWER FOR REFR.COUNTER 881516 881516 881516 881516
2 WHEELS FOR REFRIGERATORS/REFRIG.TABLES 880539 880539 880539 880539
1/1 GN GREY "RILSAN" GRID 881435 881435 881435 881435
ACCESSORIES
1/1 GN GREY "RILSAN" GRID 4 3 3 2
INCLUDED ACCESSORIES
Net weight - kg. 187 195 187 187
installed-electric 0.38 0.38 0.38 0.38
Power - kW
at evaporation temperature - °C -10 -10 -10 -10
Refrigerant power
Refrigeration power - W 378 378 378 378
Refrigerant quantity - g. 290 290 290 290
Refrigerant type R134a R134a R134a R134a
N° defrost in 24 hrs. 3/15' 3/15' 3/15' 3/15'
Compressor power - HP 1/4 1/4 1/4 1/4
N° and type of grids (included) 4, GN 1/1 3, GN 1/1 3, GN 1/1 2, GN 1/1
Door hinges 2 Left+2 Right 2 Left+1 Right Left Left
N° of drawers 2 3x1/3 6x1/3
Min/Max internal humidity - % 80/95 80/95 80/95 80/95
Top material 304 AISI 304 AISI 304 AISI 304 AISI
Worktop type Stainless Steel with
Splashback
Stainless Steel with
Splashback
Stainless Steel with
Splashback
Stainless Steel with
Splashback

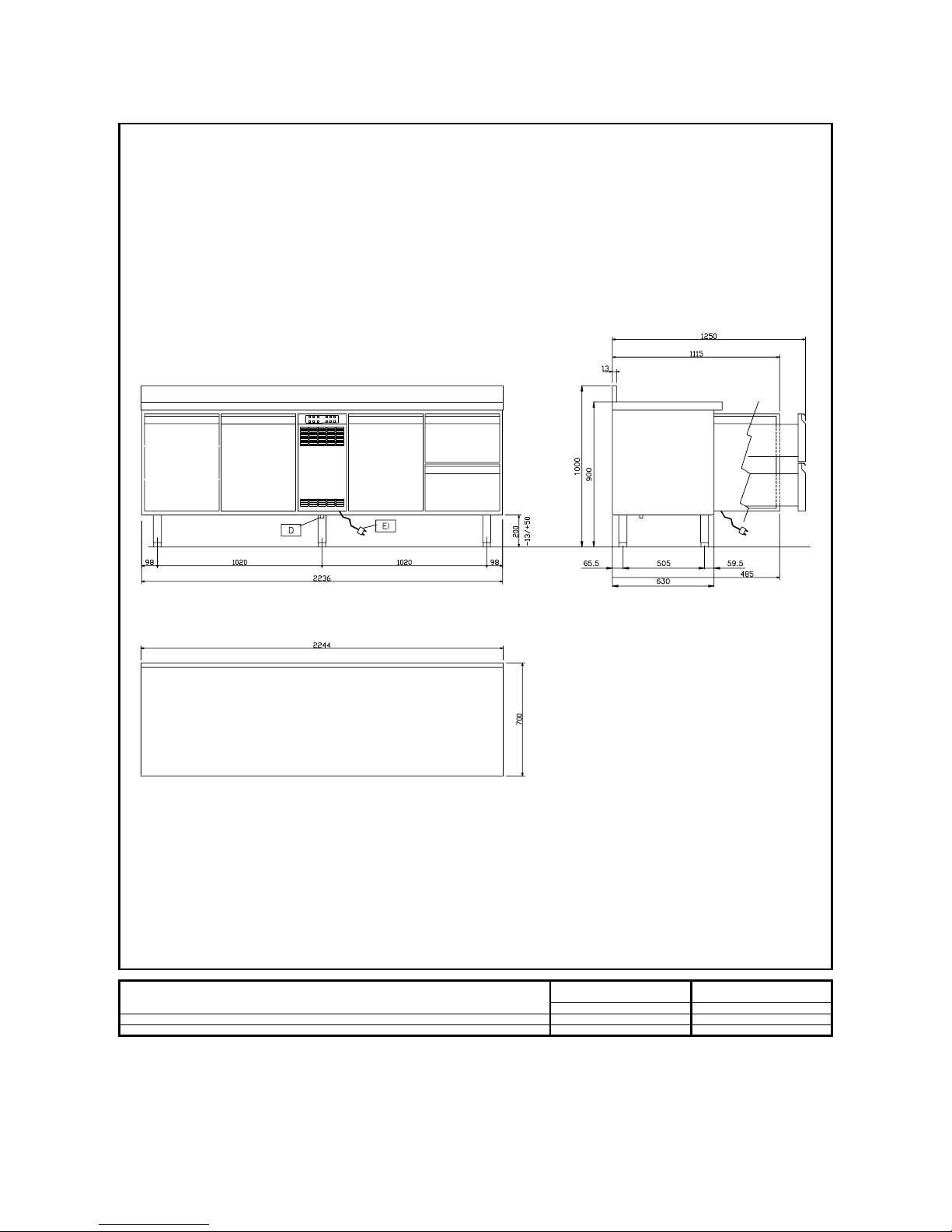

height 950 950 950 950
depth/with open doors 700, 1110 700, 1110 700, 1110 700, 1110
width 2244 2244 2244 2244
External dimensions - mm
Cooling unit Built-In Built-In Built-In Built-In
Gross capacity (D.I.N. 8952) - l. 590 590 590 590
Operating mode Ventilated Ventilated Ventilated Ventilated
Operating temperature - min/max °C -2/10 -2/10 -2/10 -2/10
TECHNICAL DATA
RCDR4M40U
726573
RCDR4M32U
726574
RCDR4M33U
727084
RCDR4M26U
727086
Electrolux HD-Line
590 lt refrig. counters - upstand
Internet: http://www.electrolux.com/foodservice
HBAB0802010-05-28Subject to change without notice
EI - Electrical connection 230 V, 1N, 50 230 V, 1N, 50
D - Water drain 16mm 16mm
LEGEND
RCDR4M40U
726573
RCDR4M32U
726574
726573, 726574
