Electrolux ICON Designer E23CS78H Manuale utente

Product No. E23CS78HSS2

Series counter depth

Color stainless/nkl

Volts 115

Wiring Diagram 241638600

Owner's Guide 241540105

Market North America

Energy Guide 241868034

Service Data Sheet 241639000

E23CS75DSS0.eps N58FFDEEA0.eps N58RFDCHA0.eps N58BECDAA1.eps

N58SDDKEI10.eps N58TBBAAB5.eps N58CACBAA3.eps N58XECAAA1.eps

N58YDAAAC5.eps N58I115TServo.eps W241638600.eps S241638600.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995522447

08/08/26

(EN/SERVICE/KHB)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

E23CS78H

Publication No: 5995522447 E23CS78HSS2

08/08 2

FREEZER DOOR

22C

22A

21A

13A

N58FFDEEA0

E23CS78HSS2 Publication No: 5995522447

# Functional Parts 3 08/08

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 # 7241510202 Gasket-frzr door, white, magnetic

4B 7241808218 Bin-door, frzr-upper

5 7241545006 Bin-tilt out, tilt-out

11 7241837126 Door-frzr, stainless, complete assy

13A 7240581906 Door Stop, black, frzr

18 7241531401 Handle-door, stainless steel, with set screw

21A 7240598402 Screw, 10-32 x 1/2

22A 7240328204 Bearing-hinge(frz), black, closer

22C 7240328404 Bearing-hinge, black, upper

68 7241525101 Chute-ice

79 7218755402 Screw-set, 10-32 x 0.375

80 7241531502 Screw-shoulder, #10 AB, handle mounting

* 7240552102 Harness-wiring, door

* 7241806601 Connector-water, straight

* 75303918256 Dispenser heater kit

Publication No: 5995522447 E23CS78HSS2

08/08 4

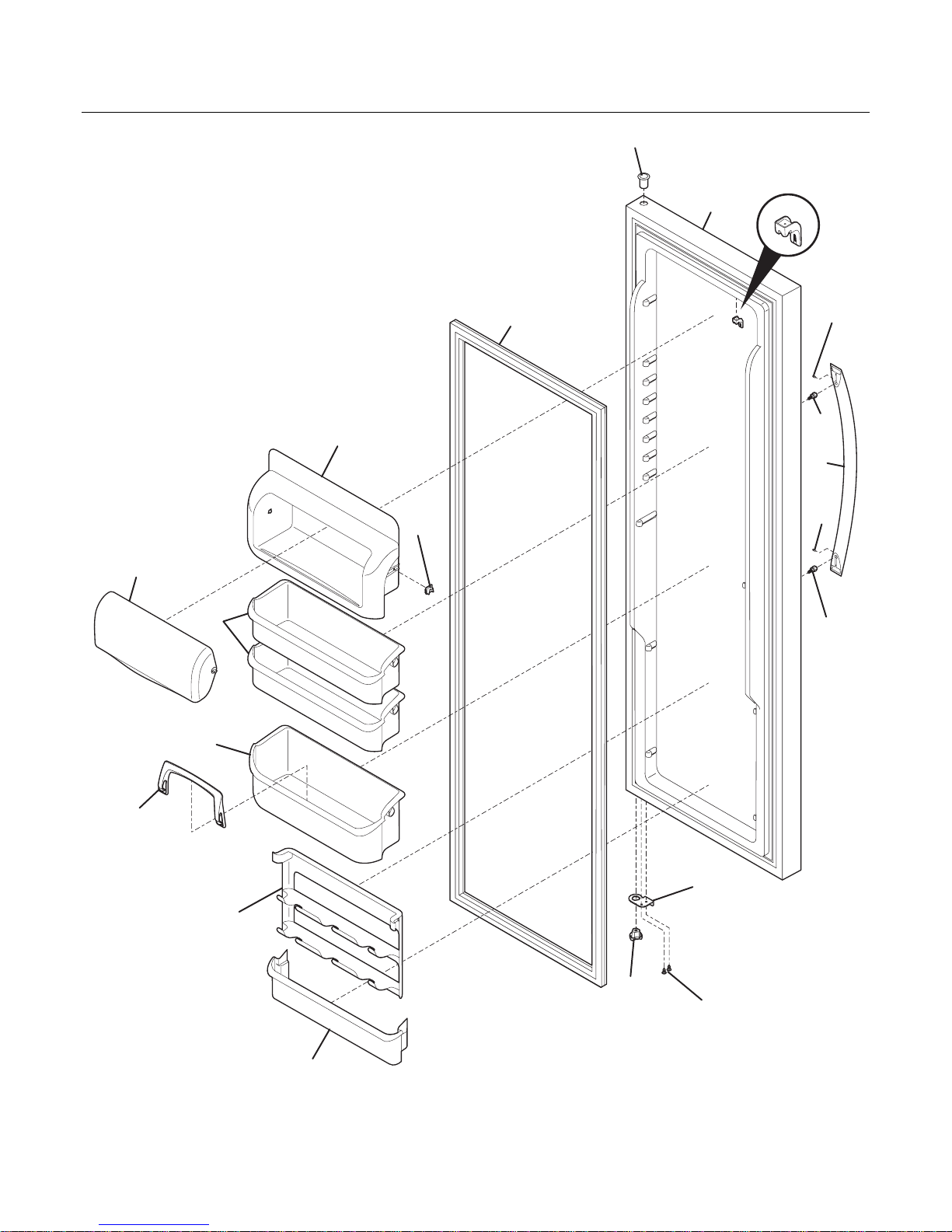

REFRIGERATOR DOOR

N58RFDCHA0

49A

27A

22B

21A

E23CS78HSS2 Publication No: 5995522447

# Functional Parts 5 08/08

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 # 7241510201 Gasket-refr door, white, magnetic

5 7241516102 Rack-can

6 7241515901 Lug-dairy compartment

7 7241515601 Door-dairy

13 7240581905 Door Stop, black, ref

15 7241837220 Door-refr, stainless, complete assy

18 7241531401 Handle-door, stainless steel, with set screw

21A 7240598402 Screw, 10-32 x 1/2

22 7240328203 Bearing-hinge, black, closer

22B 7240328404 Bearing-hinge, black, upper

27A 7240396102 Retainer, tall bottle

48 7241808209 Bin-door, pseudo, bottom

49 7241808215 Bin-door, 2-liter

49A 7241808212 Bin-door, gallon

50 7241508401 Cover-magnet

50* 75304455650 Screw, hex washer head, 8-15A x 0.625, low profile

70 7241515801 Compartment-dairy, removable

79 7218755402 Screw-set, 10-32 x 0.375

80 7241531502 Screw-shoulder, #10 AB, handle mounting

Publication No: 5995522447 E23CS78HSS2

08/08 6

CABINET

100

30A

21C

10A

N58BECDAA1

14A

E23CS78HSS2 Publication No: 5995522447

# Functional Parts 7 08/08

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 7241509804 Cover-air duct

10A 7241719712 Cover-evap coil, lower

11 7241529301 Plug-hole, factory test

14A 7241547901 Switch-light/lamp, frzr door

21C 7218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 7240457701 Plate-door closer

23 7240402702 Screw-#10-32 x 1/4 flat hd

28 7240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 7241603703 Bracket-lower hinge, ref

30A 7241603704 Bracket-lower hinge

37 7240337612 Trim-cabinet corner, nickeloid, (2)

38 7240327207 Bracket-upper hinge

40 7241551304 Cover-upper hinge, nickeloid

41 7241550801 Grommet-shelf mtg, 1.40" long

41* 7241550701 Grommet-shelf mtg, .96" long

42 7240578902 Screw, hex head, 1/4-20 x 5/8

43 7240335006 Roller Assy, front, (2)

45 7241500303 Screw, hex washer head, 8-18AB x 0.500

47 7241513001 Channel-shelf mtg, side, (2)

50 7241511112 Board-main power

50* 7241524802 Seal, housing

50* 7241532501 Clip-harness

54 7241532401 Channel

58 7241548003 Screw, 10-32 x 3/8

66 7241513602 Damper-meat keeper

72 7241554708 Grille/Kickplate

73 7241926601 Screw, truss head

81 75304455650 Screw, hex washer head, 8-15A x 0.625, low profile

82 75304418225 Roller, compressor base, rear, (2)

83 75304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 7241733902 Cover-access, w/label

90 7218249808 Seal-coil cover

92 7241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 7240423701 Support, crisper cover, front, (4)

100* 7240350802 Support, crisper cover, rear, (4)

* 7241591701 Louver

Publication No: 5995522447 E23CS78HSS2

08/08 8

SHELVES

140

126

122

121

120

109

108

107A

107

101

100

52B

52A

51B

51A

49B

49A

47B

47A

27A

26A

51D

52D

52C

51D

51C

25B

25A

N58SDDKEI10

11A

143

E23CS78HSS2 Publication No: 5995522447

# Functional Parts 9 08/08

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

2 7241539502 Trim-basket

2A 7241539501 Trim-basket

11 7240443357 Shelf-freezer, glass, lower

11A 7240443358 Shelf-freezer, glass, upper

15 7241552801 Light Bulb

16 7241622802 Socket-light

16* 7241510802 Harness-wiring, control box

16* 7241513101 Harness-wiring

21 75304455658 Screw, hx wshr hd sems, 8-15A x 0.625

24 7241753102 Shelf-"Spill-Safe", cantilever, sliding

25 7241565002 Cover-crisper pan, upper

25A 7241564301 Cover-crisper pan, lower

25B 7241565701 Cover-meat pan

26 7240351049 Pan-crisper, upper

26* 7241595202 Clip-slide, pan-crisper

26A 7241638201 Control-humidity

26A* 7241638101 Frame-humidity control

27 7240351225 Pan-crisper, lower

27A 7240362201 Control-humidity

39 7240367604 Trim-shelf, front

41 7241637601 Baffle-air

47 7240350649 Insert-pan cover, glass

47A 7240350603 Insert-pan cover, glass

47B 7240443356 Insert-pan cover, glass

49 7241541802 Basket-sliding

49A 7241541902 Basket-sliding, upper, half

49B 7241541702 Basket-sliding, mid

51 7241514501 Hanger-basket, RH

51A 7241514701 Hanger-shelf glass, RH

51B 7240579803 Hanger-basket, RH

51C 7240579807 Hanger-basket, RH

51D 7240579808 Hanger-basket, RH

52 7241514601 Hanger-basket, LH

52A 7241514801 Hanger-shelf glass, LH

52B 7240579804 Hanger-basket, LH

52C 7240579805 Hanger-basket, LH

52D 7240579806 Hanger-basket, LH

60 7218362501 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)

62 7240599706 Pan-meat

81 75304455650 Screw, hex washer head, 8-15A x 0.625, low profile

97 7241532005 Water Tank

100 7240326304 Cover-water tank

101 7218493101 Screw, hex washer head, 8-18AB x 1-3/4

107 7241513402 Shield-light, meat pan

107A 7241521802 Shield-light, frzr

108 7241513301 Cover-wiring, meat pan light

109 7241513202 Base-crisper light socket

120 7241691701 Shelf-ice cream

121 7241504701 Rail-ice cream shelf, LH

122 7241504702 Rail-ice cream shelf, RH

126 7241674401 Channel, auger mtg, LH

126 7241674402 Channel, auger mtg, RH

140 7240430505 Channel, wtr tube cover

143 7240423305 Divider-crisper pan

* 7241868034 Energy Guide

Publication No: 5995522447 E23CS78HSS2

08/08 10

CONTROLS

201

199

198

151

155

154

206

149

139

138

137

116

115

205

N58TBBAAB5

75A
