Electrolux HD-Line

Refrigerators 650 lt digital

The Electrolux HD- Line offers one of the most comprehensive choices of refrigerated storage cabinets

available. Manufactured internally and externally in 304 AISI stainless steel, operating over refrigeration or

freezer temperature ranges, with solid or glass doors, and in a choice of either 650 litres or 1400 litres capacity.

The 6 refrigerator models detailed on this leaflet have a capacity of 650 litres.

728402 728408

EASY TO INSTALL

• Mounted on adjustable stainless

steel feet, with castors as an

option.

• Choice of doors to suit varying

kitchen requirements.

• Refrigerator models have

operating temperatures that can

be adjusted from -2 ° C to +10 °C

to suit both meat and dairy

storage requirements.

• Suitable for ambient

temperatures of up to +43 °C in

case of full door or up to +32 °C in

case of glass door.

EASY TO CLEAN

• Forced air circulation for rapid

cool down and even temperature

uniformity.

• Constructed from the highest

quality AISI 304 stainless steel

with radiused corners to the

interior base, which is pressed

from a single sheet.

• Sides and back are formed from

a single sheet of stainless steel to

avoid dirt traps.

• Evaporator unit is inset into the

top of the refrigerated chamber to

provide an obstruction free interior.

• Refrigerators are fitted with

defrost outlet pipe.

EASY TO USE

• Accommodates GN 2/1

containers or shelves on anti-tilt

runners.

• External digital temperature

display.

• Interior light and lockable door.

• Refrigerator with automatic

defrost.

EASY TO MAINTAIN

• Heavy-duty construction that

avoids use of any plastic parts.

• Single refrigeration unit

(compressor, condenser and

evaporator) that can be removed

in a single piece from either the

top or back.

• Evaporator cover is easily

removable for maintenance.

EASY ON THE ENVIRONMENT

• 20% energy consumption

reduction compared to previous

models.

• Cabinet fitted with up to 75 mm

thickness of cyclopentane

insulation for best insulating

performance with 100%

environmental protection.

• Refrigerant type: R134a.

Electrolux HD-Line

Refrigerators 650 lt digital

Internet: http://www.electrolux.com/foodservice

HAB0102010-05-21

PRINTER HACCP BASIC

VERS-REF.DIGIT.CONTR

881457 881457 881457 881457 881457 881457 881457

PERFORATED SHELF GN 2/1 881042 881042 881042 881042 881042 881042 881042

GN 1/1 PLASTIC CONTAINER+FALSE

BOTTOM

880705 880705 880705 880705 880705 880705 880705

2/1 GN GREY "RILSAN" GRID 880720 880720 880720 880720 880720 880720 880720

1/1 GN RILSAN STEEL WIRE BASKET

H=150 MM

881043 881043 881043 881043 881043 881043 881043

ACCESSORIES

2/1 GN GREY "RILSAN" GRID 4 4 4 4 4 4 4

INCLUDED ACCESSORIES

Net weight - kg. 121 122 113 140 115 147 138

installed-electric 0.38 0.38 0.43 0.38 0.43 0.4 0.41

Power - kW

at evaporation temperature - °C -10 -10 -10 -10 -10 -10 -10

Refrigerant power

Refrigeration power - W 398 398 451 398 398 378

Refrigerant quantity - g. 240 240 240 240 240

Refrigerant type R134a R134a R134a R134a R134a R134a R134a

N° defrost in 24 hrs. 4/20' 4/20' 4/20' 4/20' 4/20' 4/20' 4/20'

Compressor power - HP 1/3 1/3 1/3 1/3

N° and type of grids (included) 4, GN 2/1 4, GN 2/1 4, GN 2/1 4, GN 2/1 4, GN 2/1 4, GN 2/1 4, GN 2/1

Door hinges Right Side Left Side Right Side Right Side 2 Right Right Side Right Side

N° and type of door 1 1 1 2x1/2, Full 2x1/2, Full 1, Glass 1

Min/Max internal humidity - % 75/90, 75/90 75/90, 75/90 75/90, 75/90 75/90, 75/90 75/90, 75/90 65/85, 65/85 75/90, 75/90

height 2050 2050 2050 2050 2050 2050 2050

depth/with open doors 795, 1463 795, 1463 795, 1463 795, 1463 795, 1463 795, 1474 795, 1463

width 750 750 750 750 750 750 750

External dimensions - mm

Control type Digital Digital Digital Digital Digital Digital Digital

Cooling unit Built-In Built-In Remote Built-In Remote Built-In Built-In

Gross capacity (D.I.N. 8952) - l. 650 650 650 650 650 650 650

panels 304 AISI 304 AISI 304 AISI 304 AISI 304 AISI 304 AISI 304 AISI

External material

Operating mode Ventilated Ventilated Ventilated Ventilated Ventilated Ventilated Ventilated

Operating temperature - min/max °C -2/10 -2/10 -2/10 -2/10 -2/10 0/10 -2/10

TECHNICAL DATA

RH06RD1F

728402

RH06RD1FL

728404

RH06RD1FR

728405

RH06RD2F

728406

RH06RD2FR

728407

RH06RD1G

728408

RH06RD1F6

728442

Electrolux HD-Line

Refrigerators 650 lt digital

Internet: http://www.electrolux.com/foodservice

HAB0102010-05-21

EI - Electrical connection 230 V, 1N, 50

D - Water drain 1/2"

LEGEND

RH06RD1F

728402

Electrolux HD-Line

Refrigerators 650 lt digital

Internet: http://www.electrolux.com/foodservice

HAB0102010-05-21

RI - Remote refrigeration connection ●

EI - Electrical connection 230 V, 1N, 50 230 V, 1N, 50

ED - Remote electrical connection ●

D - Water drain 1/2" 1/2"

LEGEND

RH06RD2F

728406

RH06RD2FR

728407

728406, 728407

Electrolux HD-Line

Refrigerators 650 lt digital

Internet: http://www.electrolux.com/foodservice

HAB0102010-05-21

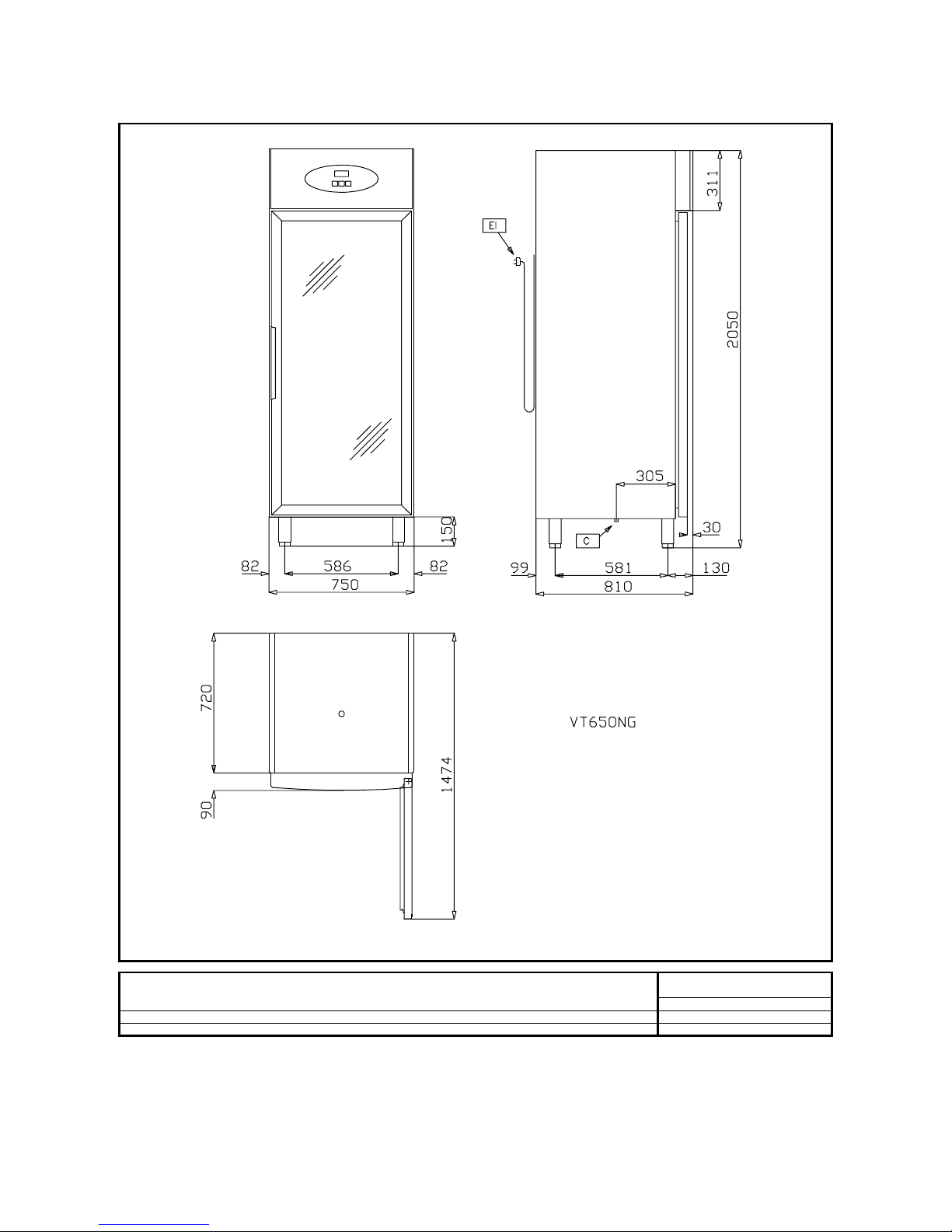

EI - Electrical connection 230 V, 1N, 50

D - Water drain 1/2"

LEGEND

RH06RD1G

728408

Electrolux HD-Line

Refrigerators 650 lt digital

Internet: http://www.electrolux.com/foodservice

HAB0102010-05-21

EI - Electrical connection 220 V, 1N, 60

D - Water drain 1/2"

LEGEND

RH06RD1F6

728442
