INSTRUCTION MANUAL

2 Doors Direct Cool Refrigerator

2MK-6-P101-156-00-0 Printed : 18 Jan. 2008

Please read this manual before operating your refrigerator.

It contains valuable information to help you maximize the use of the refrigerator

and to obtain total satisfaction for years.

Thank you for choosing refrigerator.

WRM2000_A-R

WRM2800_A-R

WRM3500_A-R

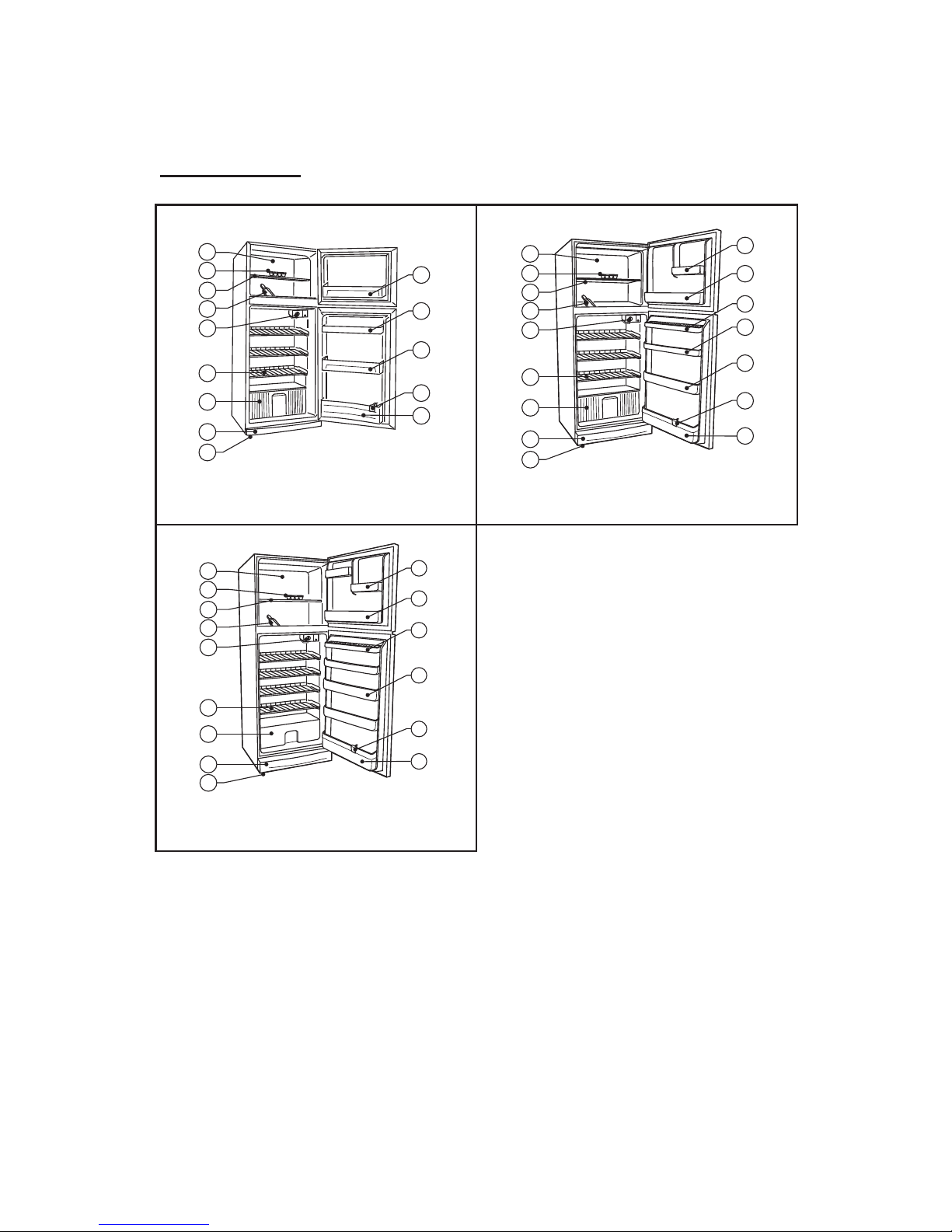

FEATURES

WRM2000_A-R

11.

12.

Evaporation Tray

Bottle Guard

Bottle Locker

Canned Food Rack

Egg Rack13.

14.

Scraper

Temperature Control

Shelf

Crisper

Adjustable Legs

10.

Freezer Shelf

Freezer Compartment

Ice Cube Tray

Utility Rack

WRM2800_A-R

WRM3500_A-R

30 cm.

10 cm.

15 cm.

1. Install the unit on a strong and level surface.

Leveling can be obtained by using the adjusting

screws on the bottom of the unit. For proper

performance the front of the refrigerator “Cabinet”

should be slightly higher than the back.

2. Allow at least 30 cm. space above the unit, 15 and

10 cm. at the back and sides to allow air ventilation.

3. Place the unit away form direct sunlight or heat

from stoves.

5. Provide the unit with its own electrical outlet

(230V, 60 Hz, single phase AC). Never plug your

refrigerator simultaneously with other appliances.

Never use multipurpose adapter.

6. Attach the ground wire (Green/yellow color wire

located at the lower left portion at the back of the

refrigerator) to any metal pipe or to a cover

screw of the wall receptacle or to a rod buried at

least 2.4 meters. in the ground.

4. Place the unit away from sinks and water faucets.

INSTALLATION

Making a test run

cloth, the interior with a damp cloth.

Clean the Refrigerator thoroughly. Wipe the external surface with a soft dry

Keep the door open and plug the power cord into its own electrical outlet.

Turn the thermostat dial to “7”. Close the door and allow the unit to operate

lf the test run is not satisfactory, check your power supply (blown fuse).

Contact your appliance dealer or appliance authorized Service Center if the

source of trouble cannot be traced.

The interior lamp should lit.

for 15-20 minutes. The evaporator should then show some traces of frost.

The compressor will run smoothly with just a soft humming sound.

Making Ice Cubes

Fill the ice cube tray 3/4-full with cold water and

When the ice-cubes are ready they can easily be

place it on the bottom of the freezer compartment.

removed by simply twisting the both ends of the

ice cube tray.

OPERATION

You can control the inside temperature by turning the thermostat dial.

Turn the button to the left for warmer temperature.

Turn the button to the right for colder temperature.

Temperature Control

1. Refrigerated air goes down at the rear of the fresh food compartment and rises

up at the front. Then, store the foodstuffs such as fish and meats which require

quick refrigeration to the rear of the compartment.

2. Leave spaces among foodstuffs to help air circulation.

10 cm. at the back and sides to allow air ventilation.

3. Foodstuffs which are easily dried should be well wrapped with waxed paper,

aluminum foil or plastic film.

OPERATION

Food Storage

4. Wrap fish and smoked meats in moisture-vapour-proof material to prevent

transfer for odours.

5. pre-cool hot foods, wrap them with plastic film or put them in the airtight

receptacle.

6. Wipe the water on the surface of the bottles before storing them.

7. Be sure not to store bottles such as beer, cokes, etc. in the freezer

8. Do not put vegetables which are liable to freezer at the rear part

9. If planning to keep fresh fish and meats for a long period, wrap them

receptacle.

compartment.

of the shelves.

Whiledefrosting

DRAINCAP

DRAINBULB

HOWTODEFROST

Freezer compartment

The freezer compartment should be kept free of the frost for good freezing

effects and economical operation at low power consumption. Frost should

not be allowed to grow thicker than 5 mm. (0.2 inches).

Scrape frost off the freezer compartment walls with the scraper supplied

with your refrigerator. This can be done without stopping operation.

Refrigerator compartment

The cooling (evaporator) unit in the refrigerator compartment is automatically

defrosted whenever the compressor motor stops running. No manual control

is required. Frost may grow thick temporarily if the room temperature is high

or the door is opened frequently. Under normal condition, however, it will

disappear after a period of operation.

After a long period operation, frost in the freezer compartment may

become too hard to be removed with a scraper. If it does, set the

temperature control dial to “0” or “OFF” leave the freezer compartment

door open for several minutes, and wipe the freezer compartment wall

clean of frost with a hot towel. After that, wipe the walls dry and reset

the control dial.

1. While defrosting, pull the DRAIN CAP

out from the DRAIN BULB as illustrated.

The DRAIN CAP is inside the freezer

compartment.

When defrosting is completed, fit the

DRAIN CAP back to the place.

Defrosting (Only Model WRM3500_A-R)

Before cleaning the refrigerator, you should always unplug it from the outlet and

remove all food.

and dirt. Never use acids, thinner, gasoline, acetone nor benzene in cleaning and

Clean the external surfaces of the unit using only a damp cloth to wipe away dust

3. Wash internal accessories using a mild detergent solution and dry it with a soft towel.

4. To remove odors from your unit, combine skin of a lemon and warm. Wipe thoroughly

on affected surface and dry with a soft cloth. Do not use cologne, air freshener or

any other perfume.

Clean inside of the refrigerator once a month. It is best to clean the freezer

compartment every time when it is defrosted.

Wipe the control box with a soft cloth. Never wash it with water because this

will cause an accident.

7. Replace door gasket when it shows signs of fatigue or wear. (Please contact

service centers for servicing.)

8. Prevent the external finish from being scratched and dented.

9. When transfering or relocating the unit, avoid lifting it front side downward.

Never lift the unit upside down. Lifting the unit upside down will displace the

refrigerator with a blanket to prevent scratches.

CLEANING

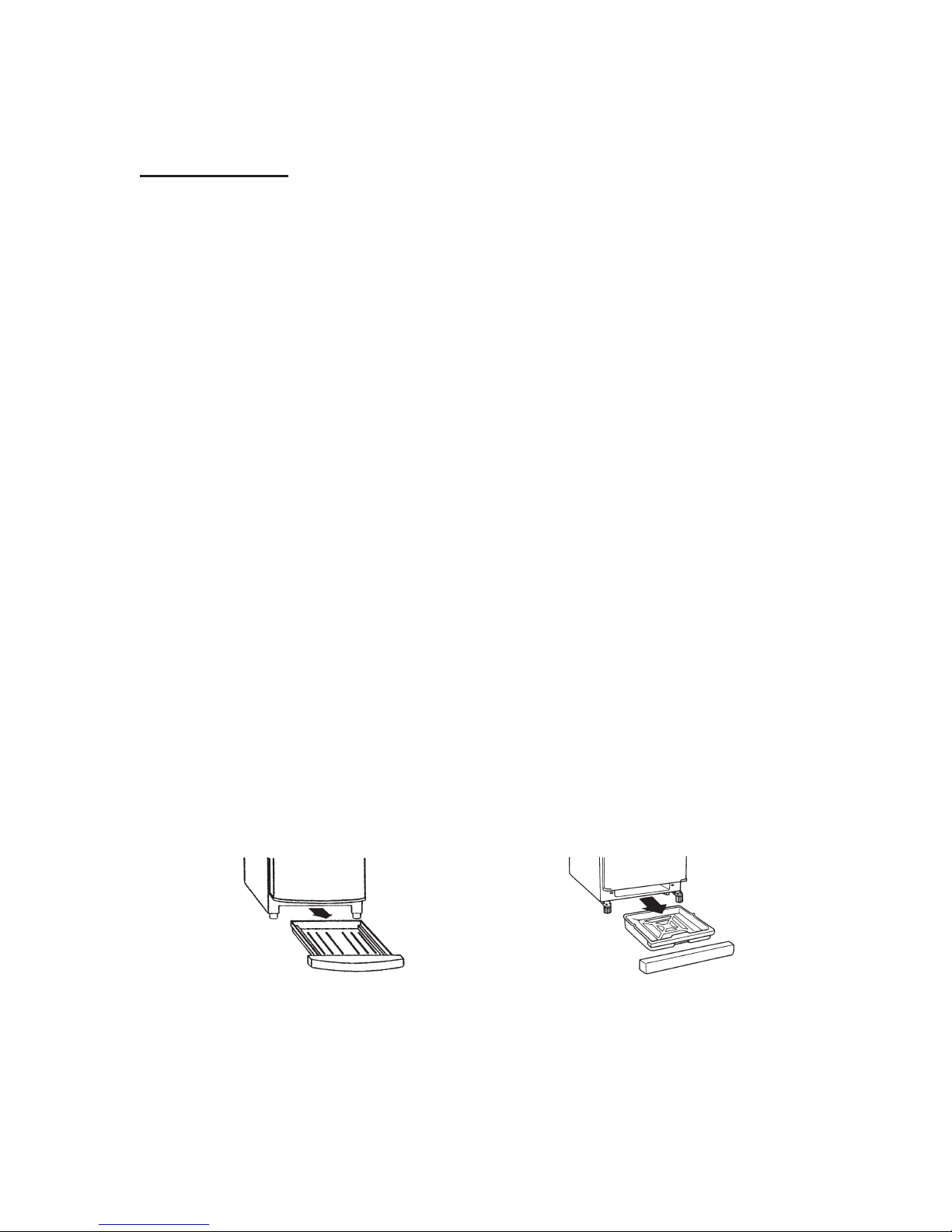

Cleaning the evaporation tray

Since dust accumulated on the evaporation tray will decrease the evaporation

efficiency, remove the tray to clean.

removing stains.

compressor oil and cause malfunction. Also, protect the exterior of the

WRM2800_A-R

WRM3500_A-R

WRM2000_A-R

PROCEDURE :

Change the bulb with 240V, 15W characteristic.

Replace lamp and turn it clockwise.

Take the lamp off by turning it counter-clockwise.

Disconnect the plug of the refrigerator from the outlet.

Caution: To prevent any breakage do not over tighten the lamp to socket.

It is highly recommended to have the service agent or qualified

person to do the lamp replacement.

If the illuminating does not work properly. In case of the replacement bulb is

needed, it had better be replaced by its service agent or similarly qualified person

in order to avoid hazard.

CLEANINGANDMAINTENANCE

Removable parts may be rinsed with water.

Don’t forget to clean the door gasket especially the bottom gasket is liable

to dirty.

Wipe the door with a dry cloth when water splasher or it rusts.

Occasionally remove dust and other particles which may collect at the back of

the refrigerator and the condenser under the cabinet to keep heat radiating

efficiency high. For safety, unplug the refrigerator before cleaning.

Your refrigerator does not require any special maintenance. To clean the inside,

use a soft cloth with water, mild soap suds, or some mild detergent.

Wash ice cube tray, evaporation tray and shelves in a mild detergent solution

and dry with a soft towel. Stains on the outside can also be removed with a soft

cloth and some mild detergent.

LAMPREPLACEMENT

CAUTION

1. 8.

10.

11.

12.

Do not use inflammable sprays such

as lacquer and paint near the

refrigerator, because there is a

Do not operate the refrigerator in the

presence of explosive gas to avoid a

fire or an explosion by ignition of the

electric contact of the refrigerator.

3. Be careful no to splash water on the

back of the refrigerator the insulation

of electric parts will be impaired by

5. If the unit is turned off or unplugged,

you must allow at least seven minutes

before restarting or replugging the unit.

Do not use acids, chemical thinner,

gasoline or benzine for cleaning any

part of the refrigerator. Boiling water

and benzine are especially harmful for

plastic parts.

4. Do not touch the sides and back of

the refrigerator cabinet and the

mechanical parts at the back of the

refrigerator, because their temperature

If the illuminating lamp does not work

properly. The replacement of lamp is

able to do by disconnect the power

supply, detach the shield light cover

then remove the lamp from the lamp

socket, replace the lamp and

reassembly the lamp.

If the supply cord is damaged, it must

be replaced by the manufacturer or its

service agent or a similarly qualified

person in order to avoid a hazard.

Keep ventilation openings, in the

appliance enclosure or in the built-in

structure, clear of obstruction.

Do not use mechanical devices or other

means to accelerate the defrosting

process.

Do not use electrical appliances inside

the food storage compartments of the

appliance, unless they are of the type

recommended by the manufacturer.

Do not damage the refrigerant circuit.

13. This fridge is Cyclopentane insulation,

should be kept away from heat or flame

when it isn’t properly used.

Be ensure this refrigerator is disposed

off correctly, you will help prevent

potential negative consequences of

environment and human health, which

could otherwise be caused by

inappropriate waste handling of this

product. For more detail, please contact

waste disposal service.

danger of igniting.

is high.

your local city office or your household

water.

motor operates for long

periods ...

moisture collects

inside ...

Normal when refrigerator is first delivered to

your home - usually requires 24 hours to

completely cool down.

Large amounts of food placed in refrigerator

to be cooled or frozen.

Hot weather - frequent door openings.

Too frequent or too long door openings.

Door left open.

In humid weather, air carries moisture into

Temperature control is set too cold.

refrigerator when door is opened.

You put warm food in the refrigerator.

Before you call for service please check the table below. Your problems could be

easily rectified. If you still need service, please contact the store where you

purchased or the nearest service center.

not operating ...

warmer than usual ...

unusual sounds ...

Check if ...

When

Power supply cord is unplugged.

Too frequent or too long door openings.

Check the temperature control dial setting.

Large amounts of food placed in refrigerator.

You put warm food in the refrigerator.

The floor is weak or uneven.

Make sure the back of the refrigerator does

not touch the wall.

Temperature control in “0” position.

If home fuse blown or circuit breaker off ?

TROUBLESHOOTING

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Electrolux Frigorifero

Electrolux

Electrolux ERN29550 Manuale utente

Electrolux

Electrolux KRB3AE12S Manuale utente

Electrolux

Electrolux ERN1401FOW Manuale utente

Electrolux

Electrolux REFRIGERATION Manuale utente

Electrolux

Electrolux Benefit Counters 726147 Manuale utente

Electrolux

Electrolux RF750 Guida rapida

Electrolux

Electrolux TR5030 Linea Manuale utente

Electrolux

Electrolux EI28BS56I Series Manuale utente

Electrolux

Electrolux ERT14002W8 Manuale utente

Electrolux

Electrolux B Series Manuale utente

Electrolux

Electrolux ERT14001W8 Manuale utente

Electrolux

Electrolux LXB1AE13W0 Manuale utente

Electrolux

Electrolux ENF2751AOW Manuale utente

Electrolux

Electrolux CR16N067S Manuale utente

Electrolux

Electrolux Frigidaire GRFG2353AF Manuale del proprietario

Electrolux

Electrolux E23BC78IPS - 22.6 cu.ft Manuale utente

Electrolux

Electrolux E32AR75FPS - 16.5 cu. Ft. Refrigerator Guida utente

Electrolux

Electrolux EBE4500B-G Manuale utente

Electrolux

Electrolux ERB 3225 X Manuale utente

Electrolux

Electrolux ERES3500 Manuale utente

Electrolux

Electrolux ERG3313AOW Manuale utente

Electrolux

Electrolux U21312 Manuale utente

Electrolux

Electrolux ETB2502H Manuale utente

Electrolux

Electrolux ER 1530 T Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente

Teledyne

Teledyne 6712FR and Istruzioni operative
