ELEKTRA ELR30 WiFi
Electronic, 4-event Temperature Controller Elektra
ELR30 WiFi with LCD display, with remote control via
WiFi or Bluetooth from an application. Designed to
control heating systems, in particular underoor heat-
ing. Three congurable temperature measurement
variants: room sensor, oor sensor, and room and oor
(limiting) sensor. Large LCD display for direct access to
heating system parameters and easy-to-use Tuya Smart
application for good communication with the user.
Model Max. Load Control Method
ELR30 WiFi 16A
Temperature measurement by one of two
sensors or temperature measurement and
limitation by both sensors
3
Characteristics
• Remote control via WiFi and Tuya Smart appli-
cation, possibility to control many thermostats
in one app or control device (devices) from many
applications (controller sharing with another user)
• Large, high contrast LCD display
• Low energy consumption in standby mode
• 4-event programming
• Favourite temperature function activated with
one key press
• Quick temperature setting and switching to man-
ual mode
• Open Window – detection of sudden temperature
drop
• Temperature and hysteresis calibration option
• Automatic WiFi/Bluetooth connection choice
4
Specications
Supply Voltage: 230 V AC, 50/60Hz
Low energy consumption in Standby Mode:
< 1.5 W
Connection: up to 2 × 1.5 mm² wires or 1 × 2.5
mm² wire per one terminal
Temperature control range: 5 ÷ 90°C
Limiting Floor Sensor setting range: 16 ÷ 60°C
Ambient Temperature range: -10 ÷ 55°C
Ingress protection: IP20
Current
Event in
Automatic
Mode
Automatic
Mode
Advanced
Settings
5

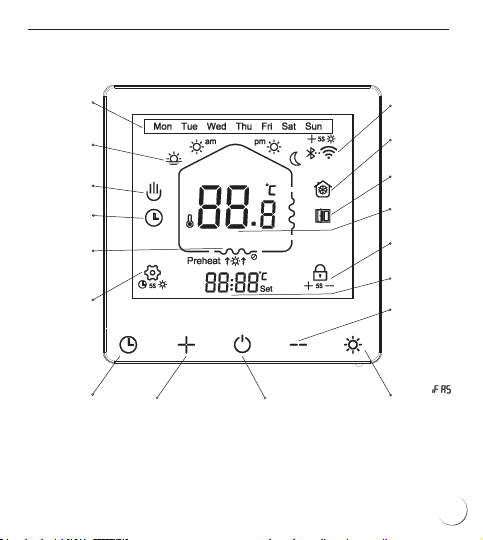

Display and User Settings
Wireless
Connection
Frost
Protection
Mode
Weekday
Current
Event in
Automatic
Mode Open Window
function active
Display
Lock
Short press
– enables
the Favourite
Temperature
Mode ( ).
Long press
(5 sec.) –
enables
programming
in the
Automatic
Mode
Value
decrease
Current
Temperature
Temperature
/Time
Power ON/OFF, Mode/Function
Exit with status/setting saving
Value
increase
Manual Mode
Automatic
Mode
Quick
Preheating
function
Advanced
Settings
Short press
– enables the
Manual/Auto-
matic Mode
Long press (5
sec.) – switch-
es to Time or
Weekday Set-
tings/toggles
the Advanced
Settings
modes
6
1. Short press – enables the Heating Mode until
the Favourite Temperature ( ) is reached. Long
press – switches to the Automatic Mode Settings
modication.
2. Increases the temperature or other menu-de-
pendent values.
3. Turns the device on or off. Exits the menu
with the conrmation of set values.
4. Decreases the temperature or other
menu-dependent values.
5. Short press – toggles between the Automatic
and Manual Mode. Long press – enters the Time
and Weekday Setting Mode; in a menu switches
to the next item.
6. + Long simultaneous press – switches to
the device and application Pairing Mode (con-
7
nection icons blink); when successfully nished
wireless connection icons are displayed.
7. + Long press – activates/deactivates the
display Child Lock.
8. + Long press – Advanced Settings as
below.
A short press of the key or in the Automatic
Mode enables the Temporary Mode of the control-
ler until the set temperature is reached.
8
Advanced Settings
These settings should be entered by autho-
rised installers. The settings are usually entered
during the first startup. When the controller is
switched on, press and hold the and keys
simultaneously. Press the key to toggle between
menus. Press the key to enter the controller oper-
ating mode.
No.
Symbol Function Change using or key
1Temperature
Calibration
Setting temperature measure-
ment values from -9.5 to 10°C
2Sensor Mode
selection
IN: room sensor (factory set-
ting), OUT: oor sensor,
ALL: room sensor and oor
limitation sensor
3
Controlled
temperature upper
limit setting
10 ÷ 90°C
4
Controlled tempe-
rature lower limit
setting
5 ÷ 90°C
9
5Hysteresis 0.5 ÷ 10°C
6
Controller reaction
to power supply
restore following
emergency
shutdown
ON: controller switched on
after power supply restore
OFF: controller status as before
power outage
7Floor temperature
limitation setting 16 ÷ 60°C
8
Frost Protection
function setting
when the
controller is OFF
Function off or operation in the
range of 5 ÷ 10°C
9
Event-programmed
days choice wor-
king + weekend
5, 6 or 7 days
10 Relay Mode choice
00: NO; 01: NO*;
02: NC, without supply too;
03: NC** open without supply
11
Open Window
Detection (sudden
temperature drop)
ON: The controller restores the
last program
OFF: The controller remains
switched off
* NO – normally open, closed without supply.
** NC – normally closed, open without supply.
10
12
Time since last
Open Window de-
tection
function activation
setting
2 ÷ 30 min
13
Open Window
detection function
sensitivity setting
2 ÷ 4°C
14
Open Window
detection function
operation time
setting
10 ÷ 60 min
15 Quick Preheating
function ON: enabled; OFF: disabled
16 Sensor Type choice 3380 (10k) / 3950 (5k)
17 Favourite Tempera-
ture setting 10 ÷ 35°C
18 Restore factory
settings
Press and hold the key for
5 sec.
