Eli DirX ED-100 Manuale utente

BKLT9407-00-EE-IG 1/06 79407-117

www.elihearing.com

Hearing Instrument

Compatible Wireless

Mobile Phone Solution

ELI DirX ED-100

Ear Level Instrument

The ELI DirX ED-100 product is

in compliance with the essential

requirements and other relevant

provisions of Directives 1999/5/

EC and 93/42/EEC.

User Manual

Manufactured by:

Starkey Laboratories

P.O. Box 9457, Minneapolis, MN 55344

Authorized European Representative:

Wm. F. Austin House, Bramhall Technology Park

Pepper Road, Hazel Grove, Stockport SK7 5BX

United Kingdom

For current product and

warranty information, please visit:

www.elihearing.com

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received,

including interference that may cause undesired

operation.

Caution: Changes or modications not expressly ap-

proved by the party responsible for compliance could

void the user’s authority to operate this device.

Introduction .............................2

Contents of the ELI DirX package ...........3

Main features ............................4

Operation

Charging the battery......................5

Attaching the ELI DirX Module to

your hearing instrument ...................6-7

Mobile phone positioning ..................8

Turning ELI DirX Module on and off...........9

Pairing and connecting to the mobile phone.....10-11

Placing a call............................12

Answering a call . . . . . . . . . . . . . . . . . . . . . . . . . 13

Hanging up a call ........................14

Adjusting volume.........................15

Additional protection ......................16

ELI DirX battery .........................17-19

Optional accessories ......................20-23

Specications ............................24

Table of contents

Introduction

ELI DirXTM (Ear-Level Instrument) brings excellent

delity and hands-free operation of Bluetooth®-

compatible, digital mobile phones to users of

behind-the-ear hearing instruments.The ELI DirX

module has a directional microphone to help reduce

background noise when the wearer’s voice is using

the mobile phone in a noisy place.

The combination of ELI DirX and your modern

hearing instrument will give you unmatched

performance with any Bluetooth-compatible, digital

mobile phone.

Any mobile phone used with ELI DirX must be

Bluetooth-compatible or have a Bluetooth adapter.

The phone or adapter must support the Bluetooth-

standard headset prole or hands-free prole.

Please read this manual before using your ELI

DirX Ear-Level Instrument.

• ELI DirX Module

• Charge Cradle

• AC Outlet Adapters for

USA, EU, UK and Australia

• AC/DC Power Converter

• User’s Manual

• Quick Start Guide

• Clear Protective Sleeve

Content of ELI DirX Package

Actual Size

Microphone

Master Control

LED

Three-pin

Connector

1. Master Control

• Turns ELI DirX on and off

• Pairs ELI DirX with mobile phone or

other devices

• Answers incoming calls

• Hangs up completed calls

• Rejects calls

2. LED ashes to indicate status.

3. Three-pin connector plugs into Europlug

Direct Audio Input (DAI) boot on hearing

instrument or Adapted Neck Loop.

4. Microphone picks up voice of wearer to

send to digital mobile phone.

Main features

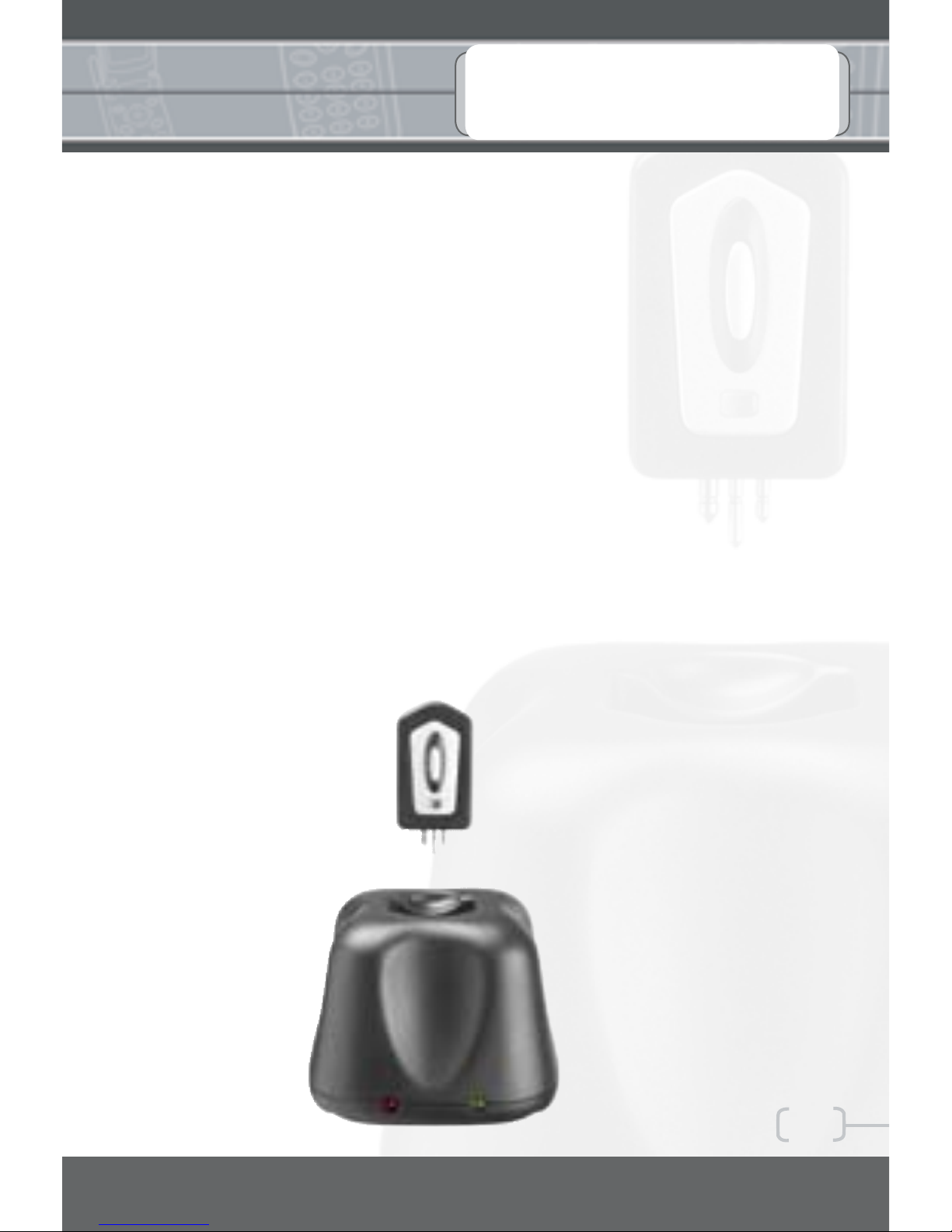

Before using the ELI DirX Module, you must

charge its battery. Connect the Charge Cradle to

a wall socket using the appropriate AC Adapter

and AC/DC Power Converter. Insert the ELI DirX

Module into the cradle. A red LED on the Charge

Cradle will light up while the module is charging,

and a green LED will light up when it is fully

charged.

Fully charging the ELI DirX Module takes about

1.5 hours.

More information about recharging is found on

page 18.

Operation

Charging the battery

The ELI DirX Module attaches to the Europlug

standard Direct Audio Input (DAI) boot of any DAI-

equipped behind-the-ear (BTE) hearing instrument.

1. Connect a Europlug standard DAI boot to your

hearing instrument (the boot is not part of the

ELI DirX package and can be obtained from your

hearing professional).

2. Insert the three-pin connector of the ELI DirX

Module into the socket on the DAI boot. Be sure

that the pins align properly, with the large pin in

the large hole. Do not force the pins into the

socket.

3. If necessary, rotate the ELI DirX Module so

that the Master Control is facing outward.The

connector rotates 270 degrees to t to either a

right or left hearing instrument. Do not force it to

turn beyond its stops.

Operation

Attaching ELI DirX to hearing instrument

DAI Boot

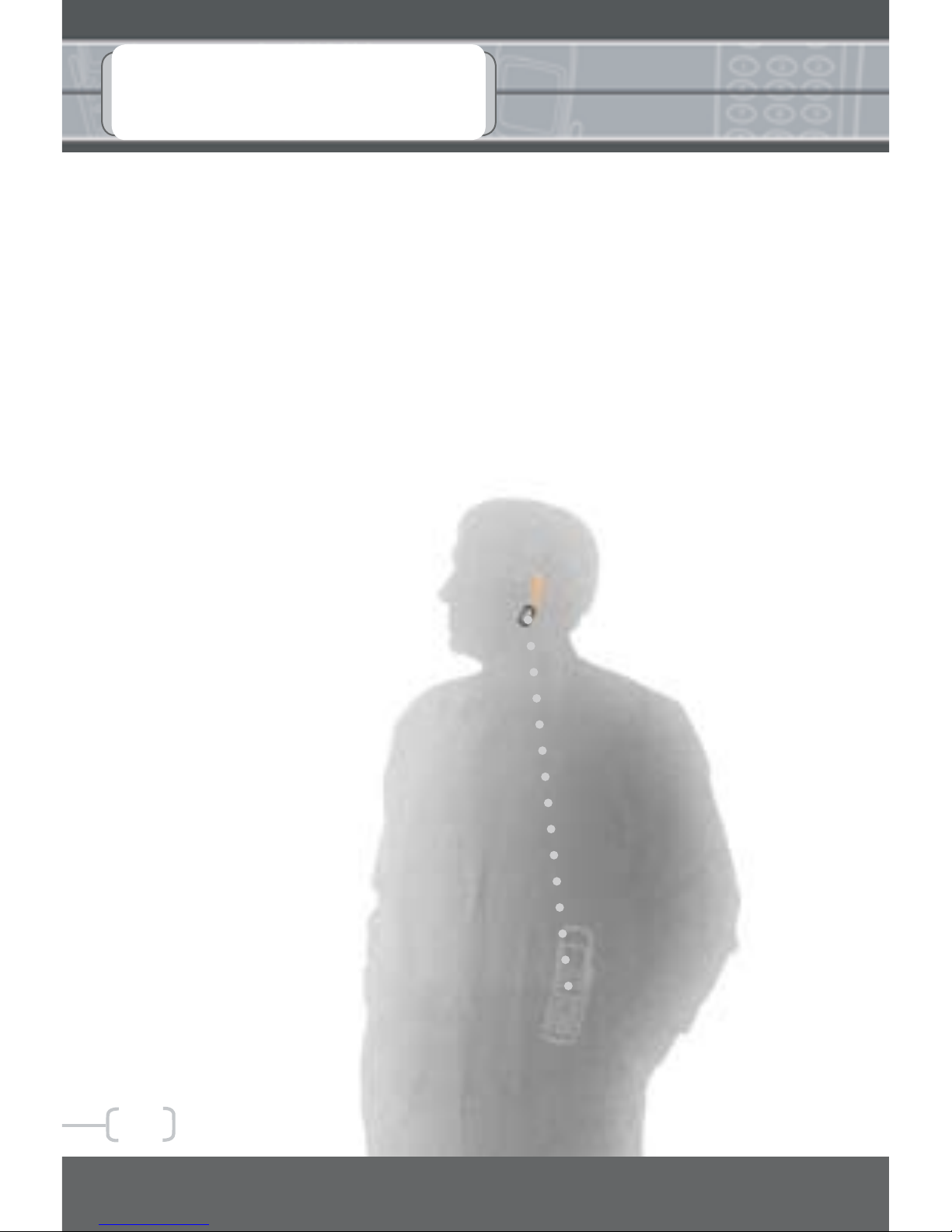

For optimal performance, mobile phones should

be carried on the same side of your body as the

ELI DirX Module.

Operation

Mobile phone positioning
