Advanced Bionics Slim HP Standard Manuale utente

Slim HP Standard Magnets

Slim HP 3D Magnets

CI-7524, CI-7525

instructions for use

English, Français, Español

SYMBOLS TABLE

Labeling symbols and their meanings

Date of Manufacture

Manufacturer

Model number

LOT number

Unique Device Identiﬁer

Suitable temperature range for transport

and storage

See Instructions for Use

Fragile

Suitable relative humidity range for transport

and storage

Caution (refer to “Cautions & Warnings”

section for further information)

MR Unsafe

XXXX-XX-XX

Limitations and Contraindications

There are no known limitations or contraindications for

theSlim HP Magnets.

Precautions, Cautions, and Warnings

• This device should be used only by the individual for

whom it is prescribed.

• CHOKING HAZARD: Contains small parts that pose

a hazard of inhalation, choking, or ingestion. If any

parts are swallowed or inhaled, consult a physician or

hospital immediately.

• Do not leave children unattended with or allow children

to play with the Slim HP or Slim HP Magnets.

• Do not allow children to place the Slim HP or Slim HP

Magnets in the mouth or nose.

• The large Slim HP Color Cap is for use by recipients

older than 3 years of age, as this color cap and

the Slim HP magnet may become displaced upon

dropping.

• Use the lowest strength magnet required to ensure

sucient magnetic attraction of the headpiece.

• If the magnetic attraction of the headpiece is

insucient, the user should contact their cochlear

implant professional.

• If the headpiece magnet is too strong, pressure sores

may develop at the headpiece site. If this happens,

orif you experience any discomfort, irritation, pressure,

or redness in this area, contact your cochlear implant

professional.

• The magnetic ﬁeld created by the headpiece magnet

may alter the programming of magnetic shunts. Users

of magnetic shunts should consider o-the-shelf

retention methods.

• Store spare magnets safely and away from cards that

may have a magnetic strip (e.g. credit cards) and from

other spare magnets or headpieces.

• In the event that you experience any issues with

your product, please contact your cochlear implant

professional or the manufacturer. Do not attempt

to service or modify the Slim HP. Doing so may

compromise system performance and will void the

manufacturer’s warranty. Products should be serviced

only at Advanced Bionics and damaged products

should be returned to Advanced Bionics.

Undesireable Side Effects

Undesirable side eects of your Slim HP Magnet may

include skin irritation and discomfort from pressure on the

ear or head.

Product Description

The Slim HP Magnet is a removable magnet that is available

in two dierent types.

• Standard Magnets

»Black in color

»Compatible with CII, HiRes 90k, HiRes 90k

Advantage, and HiRes Ultra implants

• 3D Magnets

»Blue in color

»Compatible with HiRes Ultra 3D implants

»3D marking on top of magnet with arrow to help

orient the magnet in the general upward direction

within the headpiece

Each magnet type is available in seven dierent strengths

to ensure retention between the cochlear implant and the

headpiece. The strength is marked on the bottom of the

magnet, with 1 being the weakest magnet and 7 being the

strongest magnet.

Bottom of Slim

HP Standard

Magnet

Top of Slim

HP Standard

Magnet

Top of Slim HP

3D Magnet

Bottom of Slim

HP 3D Magnet

The Slim HP Color Cap snaps in place on top of the

headpiece securely covering the magnet well and the

microphone. There are two sizes of Slim HP Color Caps:

Standard and Large.

• The Standard Color Cap is for use with the smallest

Slim HP Magnets: Standard Magnet sizes 1 through

5 and 3D Magnet sizes 1 through 4.

• The Large Color Cap is for use with the largest Slim

HP Magnets: Standard Magnet sizes 6 and 7 and 3D

Magnet sizes 5, 6, and 7.

If there is a plus sign following the magnet strength on

the bottom of the magnet, the Large Color Cap should

be used.

Slim HP Color

Cap

The Slim HP Color Cap Removal Tool aids in the removal

of the Slim HP Color Cap from the headpiece.

Intended Use

The Slim HP Magnets are intended to be used with the

Slim HP, Slim HP Mic, Slim HP AquaMic™ microphone,

and Slim HP Standard. The Slim HP Magnets are intended

to secure the headpiece to the user’s head.

The intended users of the Slim HP magnets are users of

the Slim HP products. The intended use environments

of the Slim HP magnets are healthcare and daily living

environments.

Compatibility

The Slim HP Magnets are compatible with the Slim HP,

Slim HP Mic, Slim HP AquaMic, and Slim HP Standard.

Operating Instructions

Magnets

It is important for the headpiece to have the correct

magnet strength and orientation to avoid discomfort or

retention issues. If deemed appropriate, the headpiece

magnet may be adjusted with a stronger or weaker

magnet, or dierent magnet orientation. If needed,

o-the-shelf solutions may be used to improve retention.

Magnet Strength

The seven dierent strengths of the Slim HP Magnets oer

dierent retention strength options.

Adjusting Magnet Strength

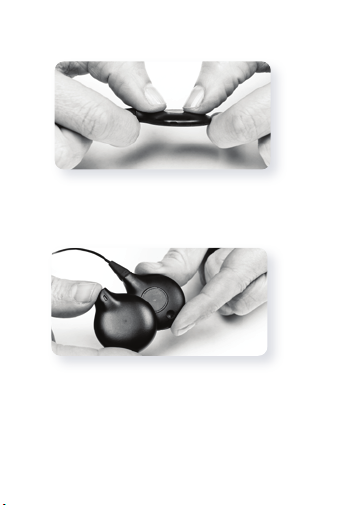

Remove the Slim HP Color Cap using the Slim HP Color

Cap Removal Tool.

Remove the magnet from the magnet well by pushing the

magnet up from the underside of the Slim HP.

Replace the magnet as needed using the minimum

magnet strength required to maintain retention. When

inserting the magnet, align the triangle on the side of the

magnet with a notch in the magnet well of the Slim HP.

For Slim HP 3D Magnets, orient the arrow on the magnet

ina general upward direction when inserting the magnet.

Press the magnet down so that the underside of the

magnet is ﬂush with the underside of the Slim HP.

Attach the Slim HP Color Cap by aligning it over the Slim

HP and snapping it into place.
