Advanced Bionics CI-7405 Manuale utente
029-M528-89 Rev A
© 2015 Advanced Bionics AG. All Rights Reserved.
POWER ADAPTER
CI-7455-100
Instructions for Use
POWER ADAPTER CABLES
CI-7405
instructions for use
2013
Manufactured by:
Advanced Bionics LLC
California, U.S.A.
+1 661 362 1400
AdvancedBionics.com
Advanced Bionics AG
Laubisrütistrasse 28
8712 Stäfa, Switzerland
+41 58 928 78 00
029-M528-89
English, Français, Deutsch, , Italiano
1
Labeling symbols and their meanings:
European Community Mark of
Conformity. Authorized to affix CE Marking
in 2013
Model
number Date of
manufacture
Serial
Number Manufacturer
Type of
Protection: B Store at temperatures
between -20˚C (-4˚F)
and +55˚C (131˚F)
Fragile Do not get wet
Lot Number See Instructions
for Use
Suitable for atmospheric range between
70kPa and106kPa, which is equivalent to
3000m above sea level to 380m below
sea level.
Suitable for exposure to relative humidity
between 0-95%
Dispose of in accordance with applicable
national and local regulations
0
95
2
Warnings and Cautions
• Do not use broken, frayed or cracked cables.
• Do not allow children to play with the cables
• Do not allow children to place cables in the mouth.
• Do not loop cables around the neck due to risk of
strangulation.
• To avoid an increased risk of strangulation, do not
connect the Power Adapter Cables in any
combination which would result in a total length
(end-to-end) longer than 81cm (32 inches).
Advanced Bionics Power Adapter Cables
The Power Adapter Cables connect the processor power
adapter to the power source for Advanced Bionics
Off-Ear Power Options (OEPO). In conjunction with a
processor power adapter, a Bilateral Power Adapter
(for bilateral recipients), and a PowerCel™ Adapter with
PowerCel Battery or AAA PowerPak Accessory, the
Power Adapter Cable is intended to be used to provide
operational power to the Auria™ Harmony™ processor
or Naída CI sound processor.
3

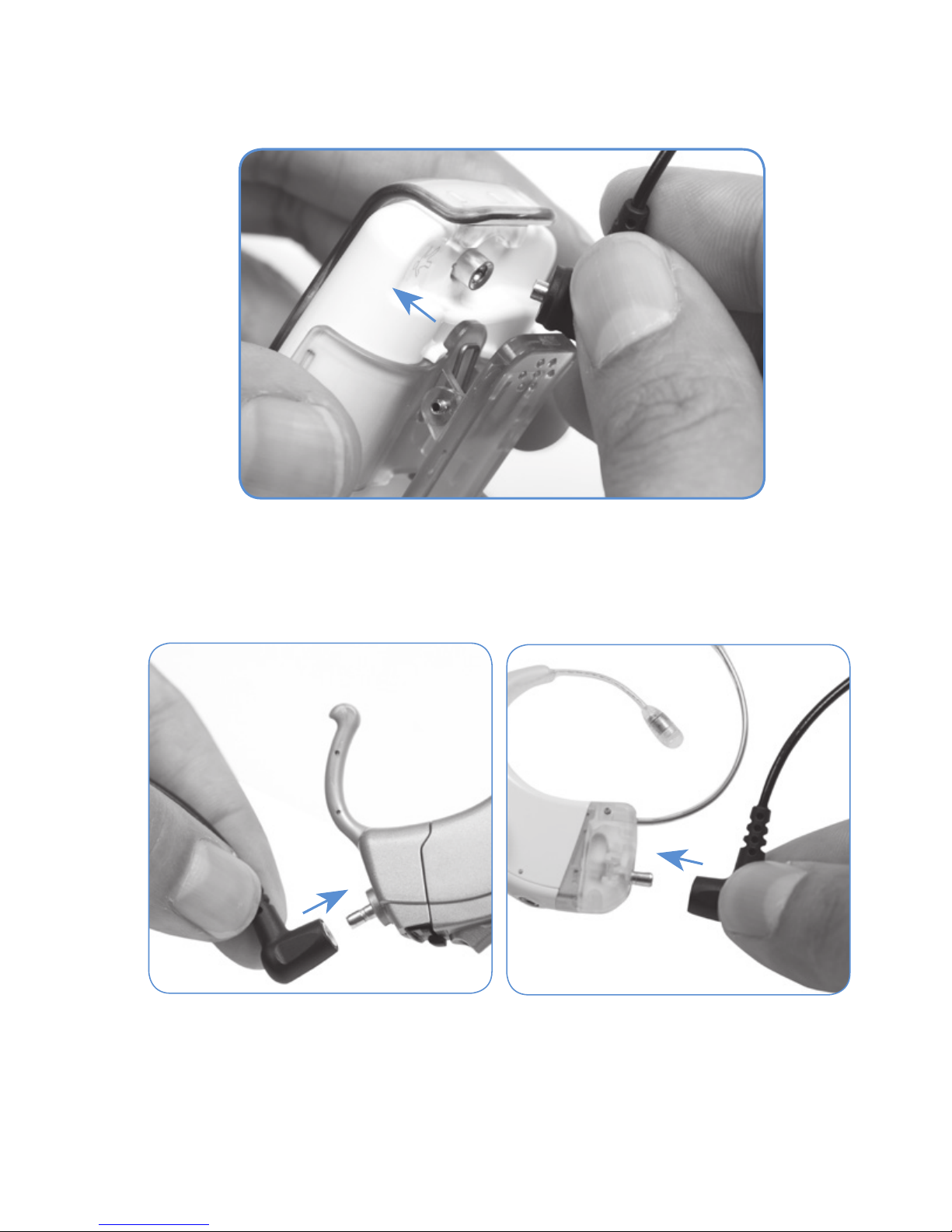

Cable Insertion to the AAA PowerPak Accessory
Cable Insertion to a Processor Power Adapter
Harmony
(BTE Power Adapter) Naida CI
(Naída CI Power Adapter)
4
Cable Insertion to the PowerCel Adapter
Cable Insertion to the Bilateral Power Adapter
NOTE: Do not attempt to service or modify the Naida
CI or its accessories. Doing so may compromise system
performance and will void the manufacturer’s warranty.
Products should be serviced only at Advanced Bionics.
5
Operating Conditions
Condition Range
Temperature 0°C - 45°C
Relative Humidity Up to 95%
Altitude 3000m above sea level and
380m below sea level
External Equipment and Accessories
The products listed below are compatible
Description Model Number
Naída CI
Q90 Sound
Processor* †
CI-5280-120, CI-5280-130, CI-5280-140,
CI-5280-150, CI-5280-160, CI-5280-170,
CI-5280-190, CI-5280-110, CI-5280-220,
CI-5280-230, CI-5280-240
Naída CI
Q70 Sound
Processor* †
CI-5245-110, CI-5245-120, CI-5245-130,
CI-5245-150, CI-5245-160, CI-5245-170,
CI-5245-140, CI-5245-190, CI-5245-220
Naida CI
Q30 Sound
Processor* †
CI-5260-120, CI-5260-140, CI-5260-150
Naída CI
Power
Adapter*
CI-7455-100
Auria™
Harmony™
Processor*
CI-5235-100, CI-5235-200, CI-5235-300
BTE Power
Adapter*CI-7404-100, CI-7404-200, CI-7404-300
6
AAA
PowerPak
Accessory*
CI-7403
Power
Adapter
Cable*
CI-7405-010, CI-7405-020, CI-7405-030,
CI-7405-040
Bilateral
Power
Adapter*
CI-7406
PowerCel
Adapter, EU/
Canada*
CI-7402
PowerCel
Adapter, US*CI-2000
*Applied part per IEC 60601-1
†Only available in markets where regulatory approval
has been received and the product has been made
commercially available. Contact Advanced Bionics for
more information.
NOTE: model number extensions denote variants related
to product color, size, and/or length.
7
Symboles d'étiquetage et leur signification :
Marquage de conformité de la Communauté
Européenne. Autorisé à apposer le marquage
CE en 2013
Numéro
de modèle Date de fabrication
Numéro
de série Fabricant
Type de
protection : B À stocker à une
température comprise
entre -20 ˚C (-4 ˚F)
et +55 ˚C (131 ˚F)
Fragile Éviter toute exposition
à l'eau
Numéro
de lot
Consulter les
instructions d'utilisation
Peut être utilisé à une pression atmosphérique
comprise entre 70 kPa et 106 kPa, soit entre
3000 m au-dessus du niveau de la mer et
380 m au-dessous du niveau de la mer.
Peut être utilisé à une humidité relative
comprise entre 0 et 95 %
Mettre au rebut selon les règlements
nationaux et locaux en vigueur
0
95
8
Avertissements et mises en garde
• Évitez d'utiliser des cordons cassés, effilochés ou fendus.
• Ne laissez pas les enfants jouer avec les cordons.
• Ne laissez pas les enfants mettre les cordons dans leur
bouche.
• N'enroulez pas les cordons autour du cou en raison du
risque d'étranglement.
• Pour éviter un risque accru d'étranglement, ne connec-
tez pas les cordons pour alimentation déportée de telle
façon que leur longueur finale (d'une extrémité à l'autre)
atteigne plus de 81 cm.
Cordons pour adaptateur d'alimentation
Advanced Bionics
Les cordons pour adaptateur d'alimentation relient
l'adaptateur d'alimentation du processeur à la source
d'alimentation des options d'alimentation déportée
Advanced Bionics (OEPO). En association avec un
adaptateur d'alimentation de processeur, un adaptateur
d'alimentation bilatéral (pour les utilisateurs bilatéraux) et
un adaptateur PowerCel™ muni d'une batterie PowerCel ou
d'un accessoire PowerPak AAA, le cordon pour adaptateur
d'alimentation est destiné à être utilisé pour alimenter les
processeurs de son Auria™ Harmony™ ou Naída CI.
9
Insertion du cordon dans l'accessoire PowerPak AAA
Insertion du cordon dans l'adaptateur d'alimentation
du processeur
Harmony (Sabot processeur
pour alimentation déportée
Harmony)
Naída CI
(Adaptateur d'alimentation
pour Naída CI)
