Eliminator Lighting EZ8 System Manuale utente

EZ8 System SPECIFICATIONS:

Model: EZ8 System

Supply Voltage: 120V 50Hz

Weight: 5 lbs./2.3kgs

Size: 11.75”L x 8.75”W x 6”H

Fuse: 1 Amp

Power Consumption: 30W

Working Position: Any Safe position

Duty Cycle: None

Warranty: 1 Year

CAUTION! Please read and understand these

instructions before installing or operating this

unit.

Operating Instructions:

The EZ8 System is an on/off power control center designed to eliminate messy cables. The EZ8

System features 8 on and off switches, 15 amps, and a 25 ft. cable. It’s ideal for switching lighting

and audio equipment on and off.

©Eliminator® Los Angeles, CA. - wwwEliminatorLighting.com

Caution! Never open unit when in use.

Always disconnect main power before

replacing the fuse. Remember to always

replace with the exact same type of fuse.

1 Year Limited Warranty: Eliminator Lighting warranty is valid from the date of purchase. Our

1 year limited warranty covers manufacturing defects only. Serial number, place of purchase with

dated valid receipt must be submitted at time of service. Eliminator Lighting warranty does not cover

items or parts prone to wear and tear: lamps, fuses, brushes and belts. Eliminator Lighting warranty

is only valid with-in the United States.

©Eliminator® Los Angeles, CA. - wwwEliminatorLighting.com

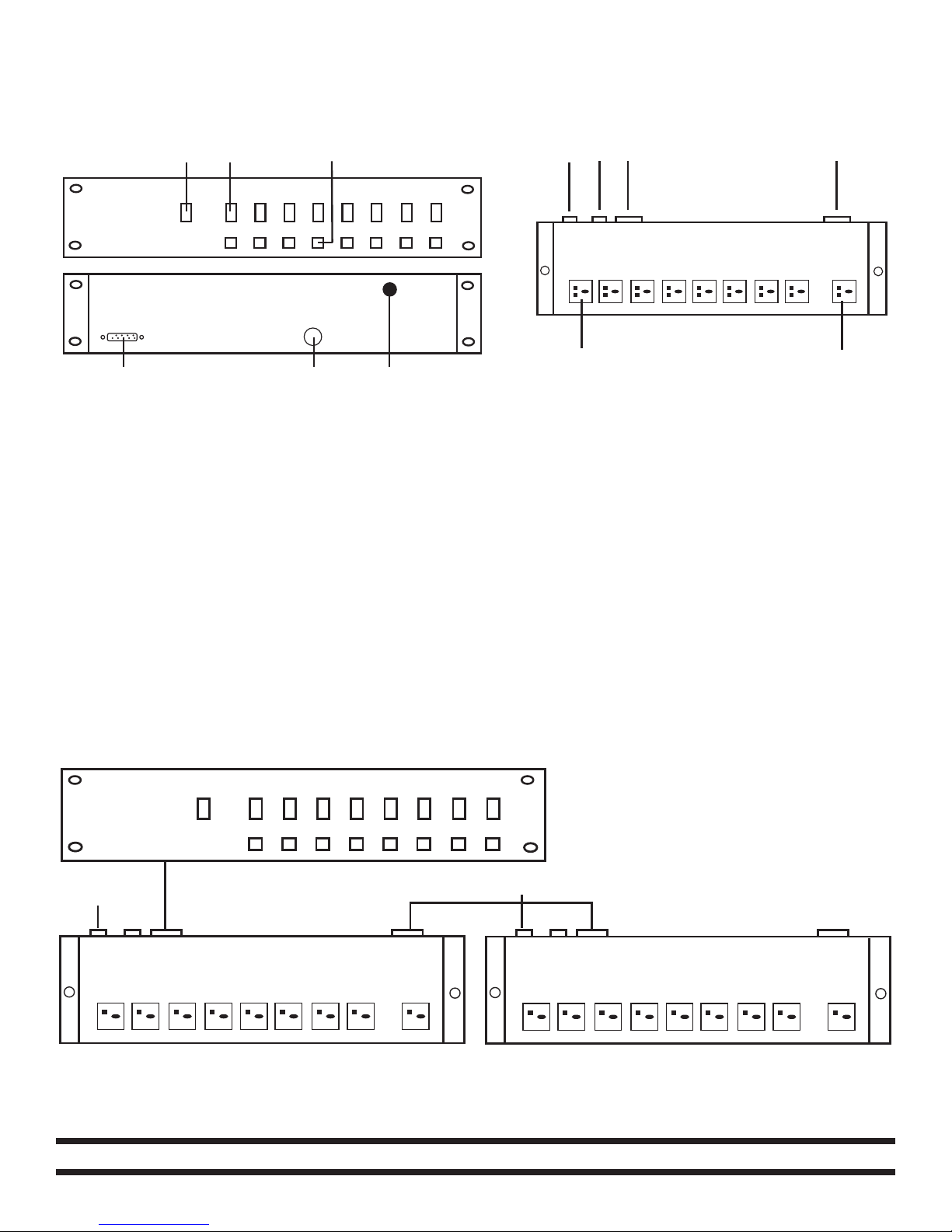

CONTROLS AND COMPONENTS:

1. MASTER ON/OFF SWITCH.

2. INDIVIDUAL CHANNEL SWITCHES.

3. FLASH ON BUTTON FOR EACH INDIVIDUAL CHANNEL.

4. 9 PIN LINE OUT CONNECTOR.

5. 12V POWER SUPPLY

6. FUSE

7. CHANNEL 1-8 110V SWITCHED SOCKETS.

8. UNSWITCHED 110V SOCKET FOR CONSTANT ON ITEM OR LINKING AC

TO ANOTHER RELAY PACK.

9. 9 PIN LINE OUTPUT FOR LINKING PACKS.

10. 9 PIN LINE INPUT FROM SC-8FC OR FROM ANOTHER SC- RP8.

11. 15 AMP CIRCUIT BREAKER.

12. A/C CORD AND PLUG.

1 2

465

7

312 11 10 9

8

Important Notice: Never attempt to run more than 2 power packs per a controller -

More than 2 power packs can cause damage to the controller and power packs!

A/C A/C

SAMPLE SET UP
