Elite Screens EzFrame Series Manuale utente

Rev.041014-JA www.elitescreens.com 1

ezFrame &

Sable Frame Series

Fixed&Frame&Projection&Screen&

User’s&Guide&

Hardware and Parts List

1. Frame Parts x 6 pcs (4 top/bottom horizontal frame pcs + 2 side vertical frame pcs)

2. Tension Rods x 6 pcs (4 top/bottom rods + 2 side rods)

3. Screen Material x 1 pc

4. Center joints x 2 pcs

5. Elbow Joints x 4 pcs

6. Wall brackets x 2 – 3 pcs (depending on model/size)

7. M5x50 wood screws x 6 pcs

8. Hollow wall anchor x 6 pcs

9. M5x15 screws x 16 pcs

10. Center Support Bar x 1 – 2 pcs (depending on model/size)

11. Support joiner x 2 – 4 pcs (depending on model/size)

12. Fix Plates x 60 – 180 pcs (depending on model/size)

Note: Please make sure all parts are included in your package before proceeding to assemble your Elite

Screens fixed frame projection screen.

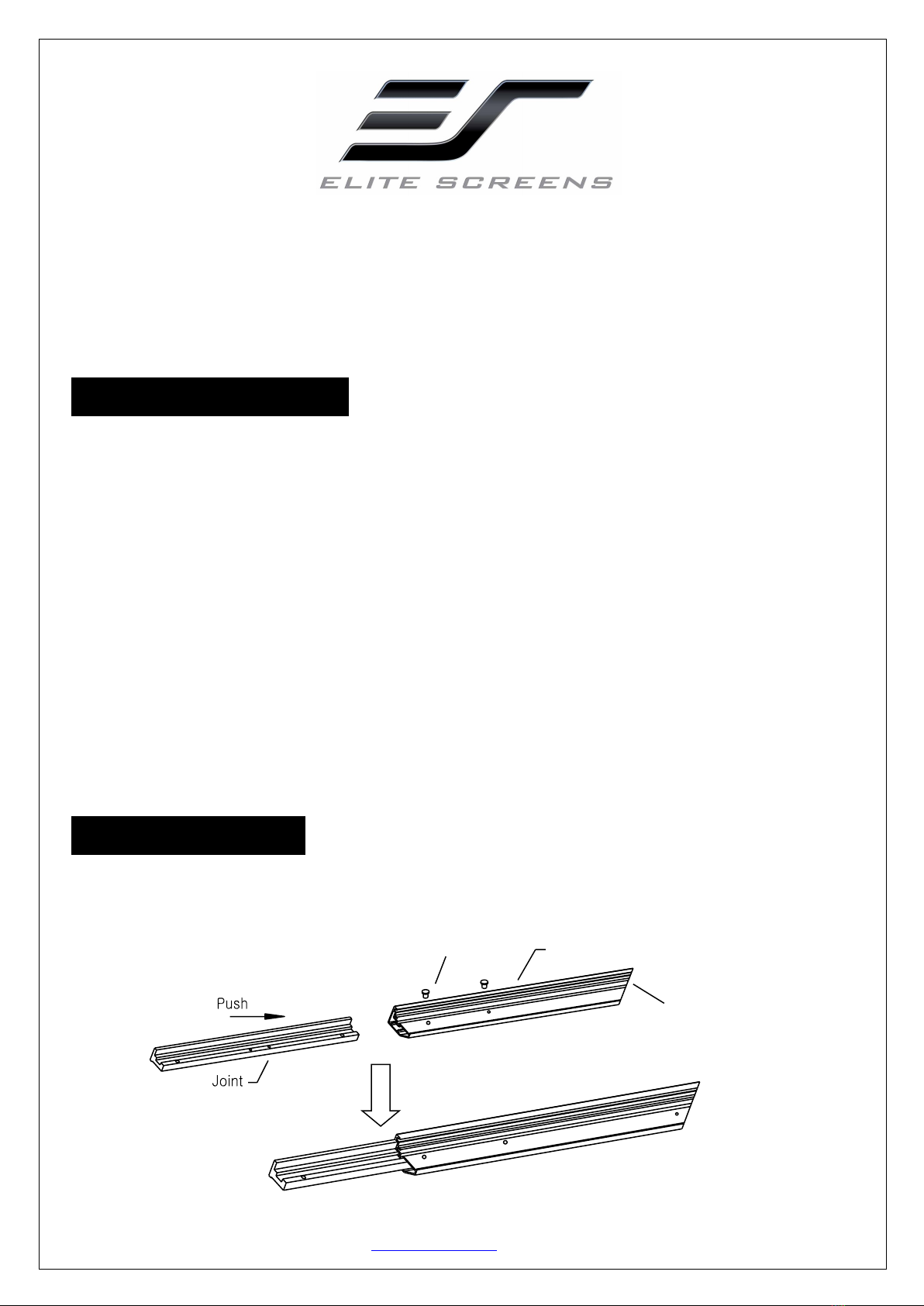

FRAME ASSEMBLY

1. Insert the center joint connector into to one of the 1/2 horizontal frames and fasten it with two M5x15 screws.

bevel connection

½Horizontal Frame

M5×15 screws

Rev.041014-JA www.elitescreens.com 2

Push

Short frame

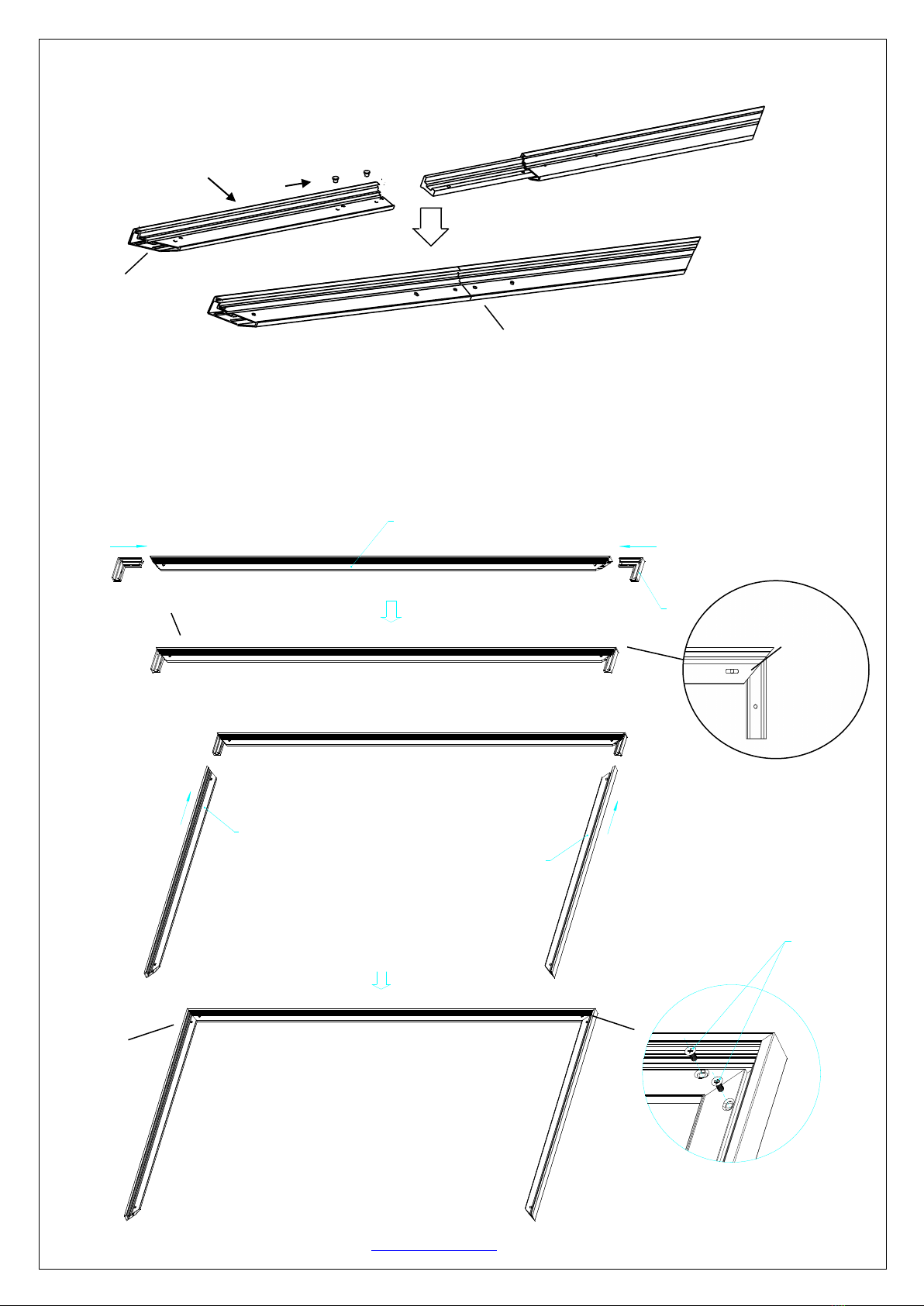

2. Insert the other 1/2 horizontal frame piece to the center joint connector and fasten it with two M5x15 screws.

Repeat steps 1 and 2 for assembling the second horizontal frame.

Note: a. 2 long frames should be assembled for a screen.

b. Do not tighten the screws completely until all frame pieces have been assembled correctly.

3. Insert both elbow joint connectors into the long horizontal frame and then fasten it with two M5x15 screws (see

Fig.1).Then insert the vertical short frames and fasten them with screws (fig.1.2)

bevel connection

½Long Frame

Push

Horizontal Long Frame

M5×15 screws

Screw

( fig.3)

(Fig.1.1)

Push Push

Joint

Long frame

( fig.1)

(Fig.1.2)

Rev.041014-JA www.elitescreens.com 3

Push

( fig.2)

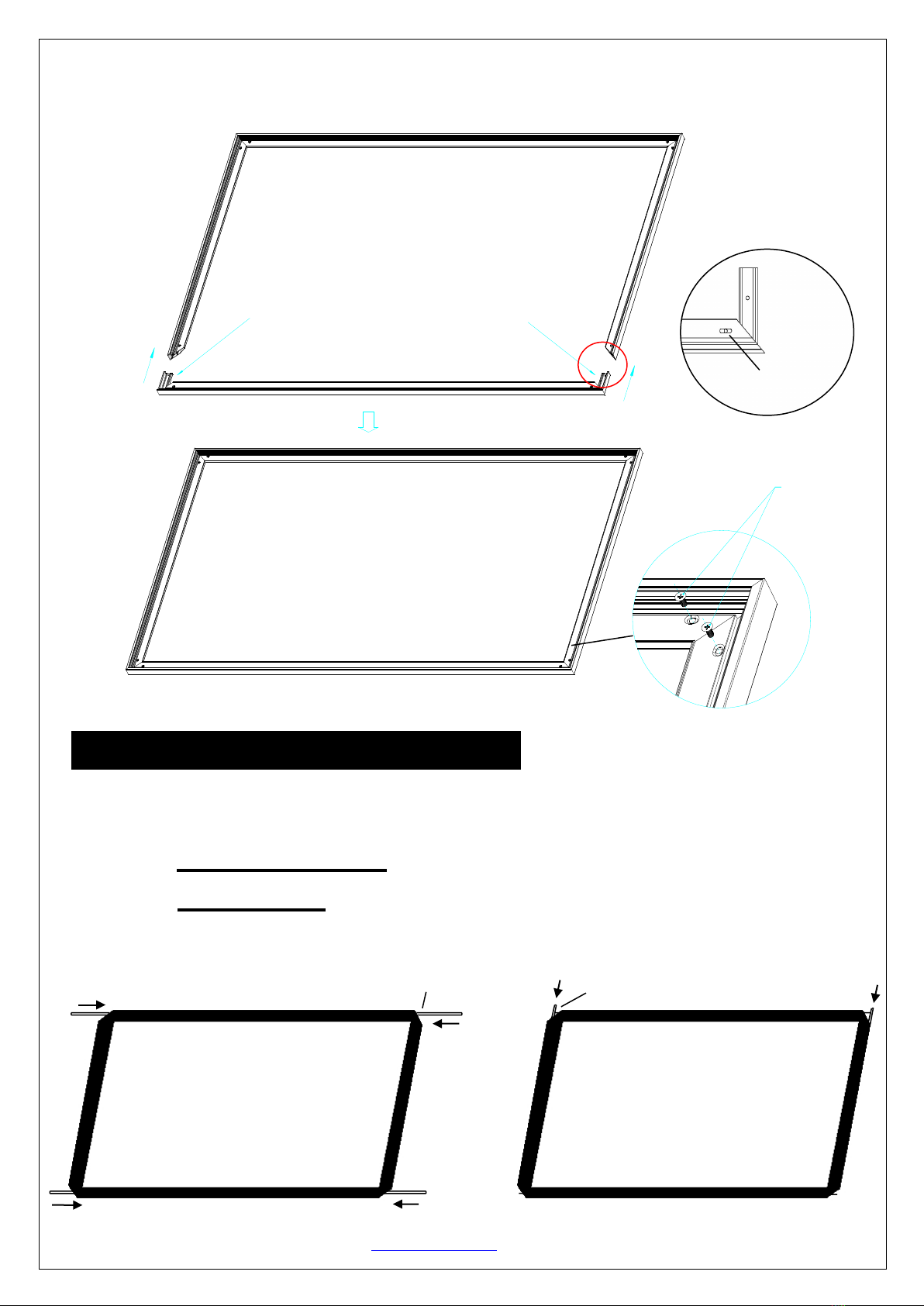

Insert the exposed ends of the joint connectors

into the short (vertical) frame and align the four

corners so that they meet at perfect right angles

Tension Rod (Horizontal) x 4

Tension Rod (Vertical) x 2

4. Join&all&four&frame&parts&together&following&the&steps&shown&below.&!"#$%&'&

(((()*+,-(./,0(122,345,67(85,12,(892/(2#395+10,*925:(+/,(+;*(,062(*<(+/,(5*0$(<=13,2%&

Attaching the screen material to the frame

1. Unroll the screen material and lay it down on a clean surface. Then insert the tension rods separately into the

edges of all four corners of the material (see fig.3)

M5×15 screws

(Fig. 3)

Screen Material

push

Tension&Rod&(Horizontal)&x&4&

push

Tension&Rod&(Vertical)&x&2&

Screw

( fig.3)

Rev.041014-JA www.elitescreens.com 4

2. Make sure that the material and frame are both lying face down on a clean, dry, and non-abrasive surface.

3. Center the material inside the frame.

Please note the material will be noticeably smaller than the frame, as the material must be stretched to create a

sufficient amount of tension for perfect material flatness.

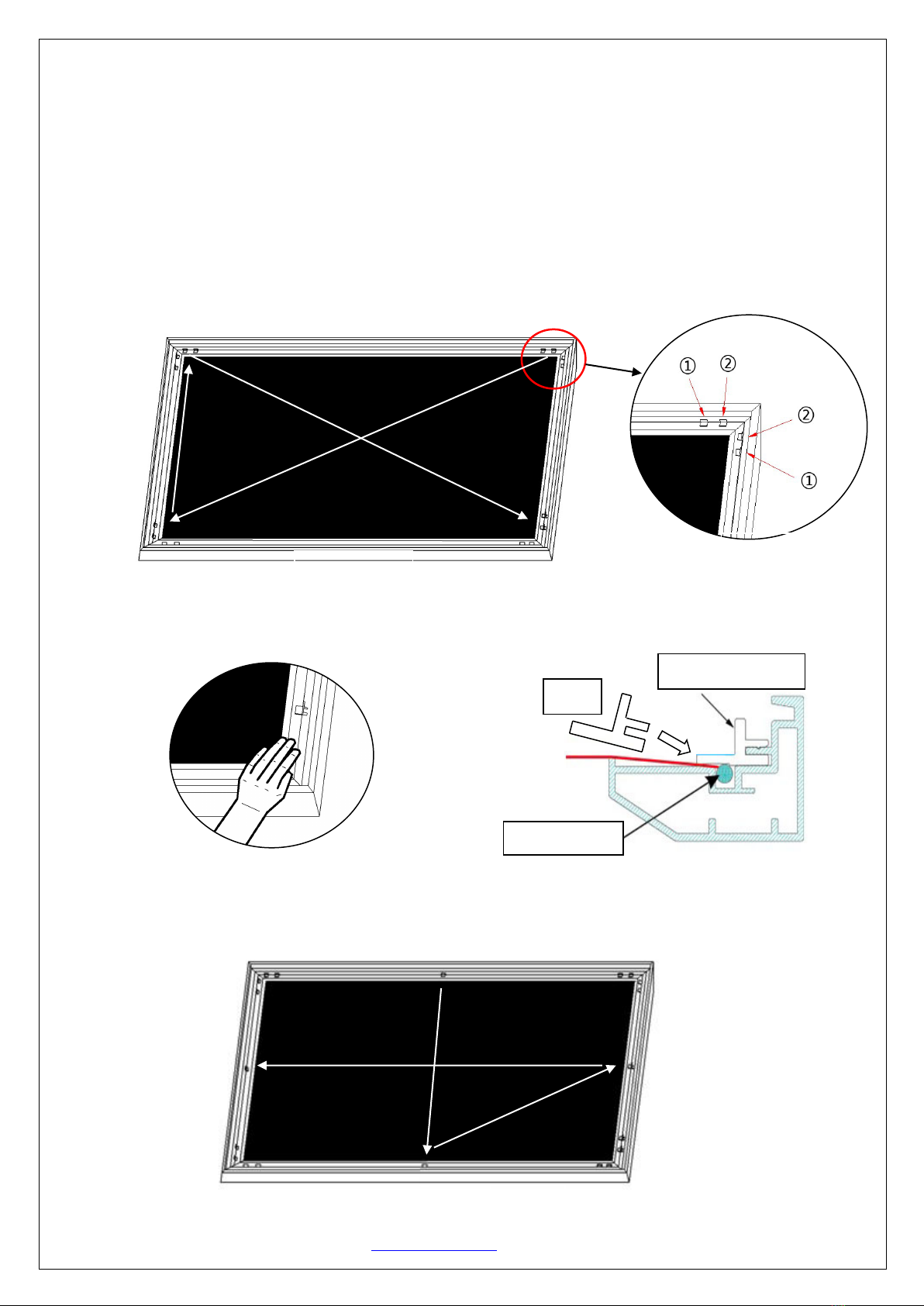

4. Attach the fix plates

(1) Begin by securing the four corners in the following order A→B→C→D(Fig.4)

(2) Insert the fix plates as shown on Fig. 5. Fix plate ①is approximately 10 cm away from the frame’s corner

and fix plate ②is approximately 5cm away.

(3) Stretch the material to the corner and insert the screen material’s edge into the groove of the frame. While one

hand holds the material in place, the other hand snaps in the push plate (Fig.6-Fig.7).

(4) Place a fix plate in the center of each side in the following order E→F→G→H. (Fig.8)

(Fig. 6)

(Fig. 4)

(Fig. 5)

(Fig.8)

Insert push plate in

Tension Rod

(Fig. 7)

Schematic Cross section of the Frame

Plate

Rev.041014-JA www.elitescreens.com 5

Black backing for AcousticPro models

This procedure only applies to AcousticPro models. Disregard this section if your Fixed Frame does not include an acoustically

transparent screen material. The purpose of the black backing material is to block out any light penetration that may reflect off

of anything mounted behind the screen, which can cause distortion to the projected image.

(

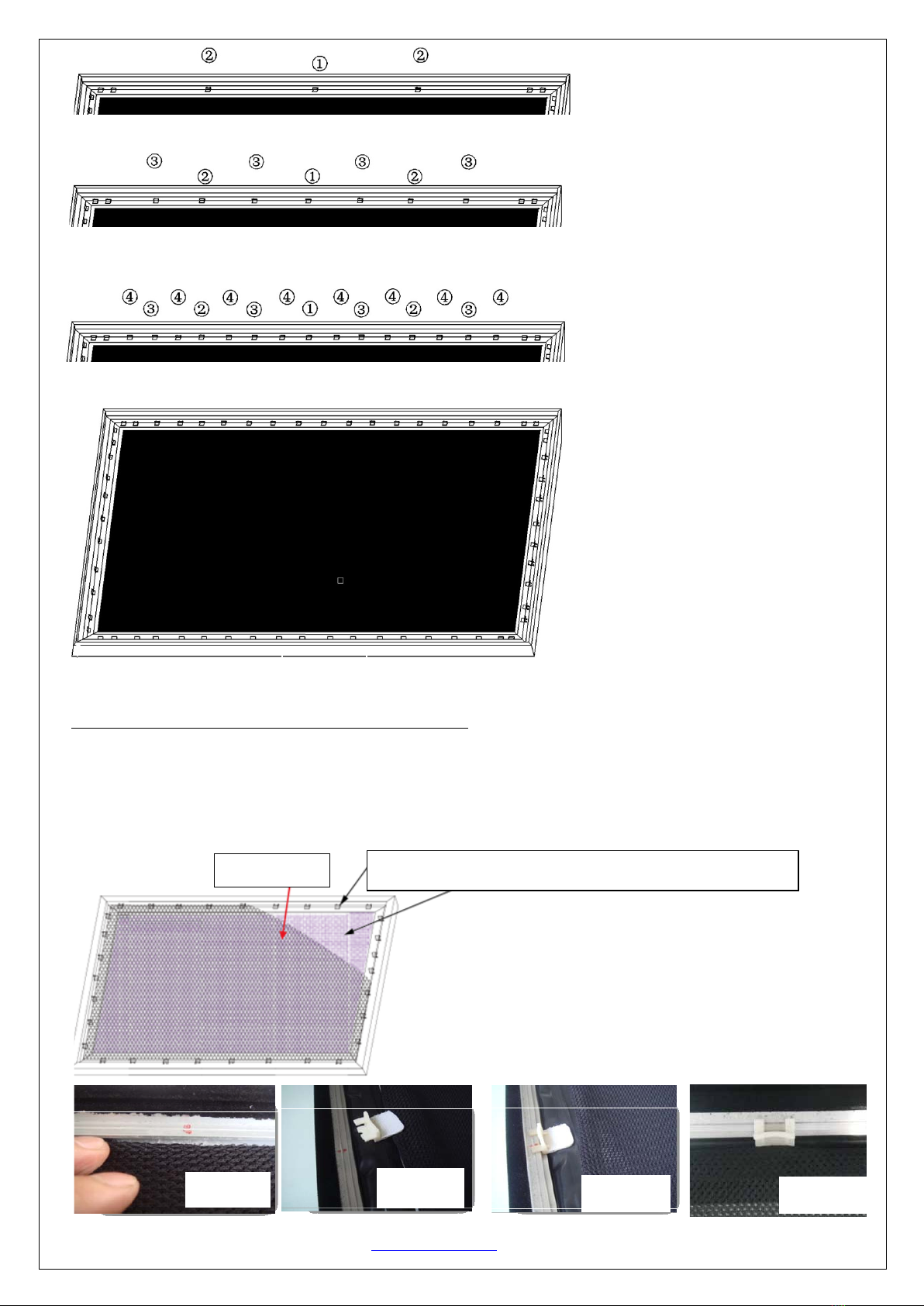

(5) Put the next set of fix plates ②in the

middle between fix plate ①# and the

corner. (Fig.9)

(6) Then put the next set of fix plates

③between ①and ②and the corner.

(Fig.10)

(7) Lastly, put the next set of fix

plates (4) as shown in Fig.11

(8) Repeat steps 5-7 to for the rest of

the sides to complete attaching the

screen material (Fig.12)

Interval markings reveal the best points for inserting the fix plates

(Fig. 13). The prongs on the fix plates insert to the lip on the back

of the frame creating a friction hold that will firmly keep the

material and black backing in place (Fig. 14-15). After the

material has been installed, the backing will lie over the back of

the white (Acoustic) material and then be held in place by the

Velcro on the fix plates (Fig 16).

(Fig. 13)

(Fig. 15)

(Fig. 14)

(Fig. 16)

(Fig.9)

(Fig.10)

(Fig.11)

(Fig.12)

The black backing is held in place by the Velcro that is on the fix plates.

Black backing

Fix plates secure the Acoustic material and the black backing behind it.

Rev.041014-JA www.elitescreens.com 6

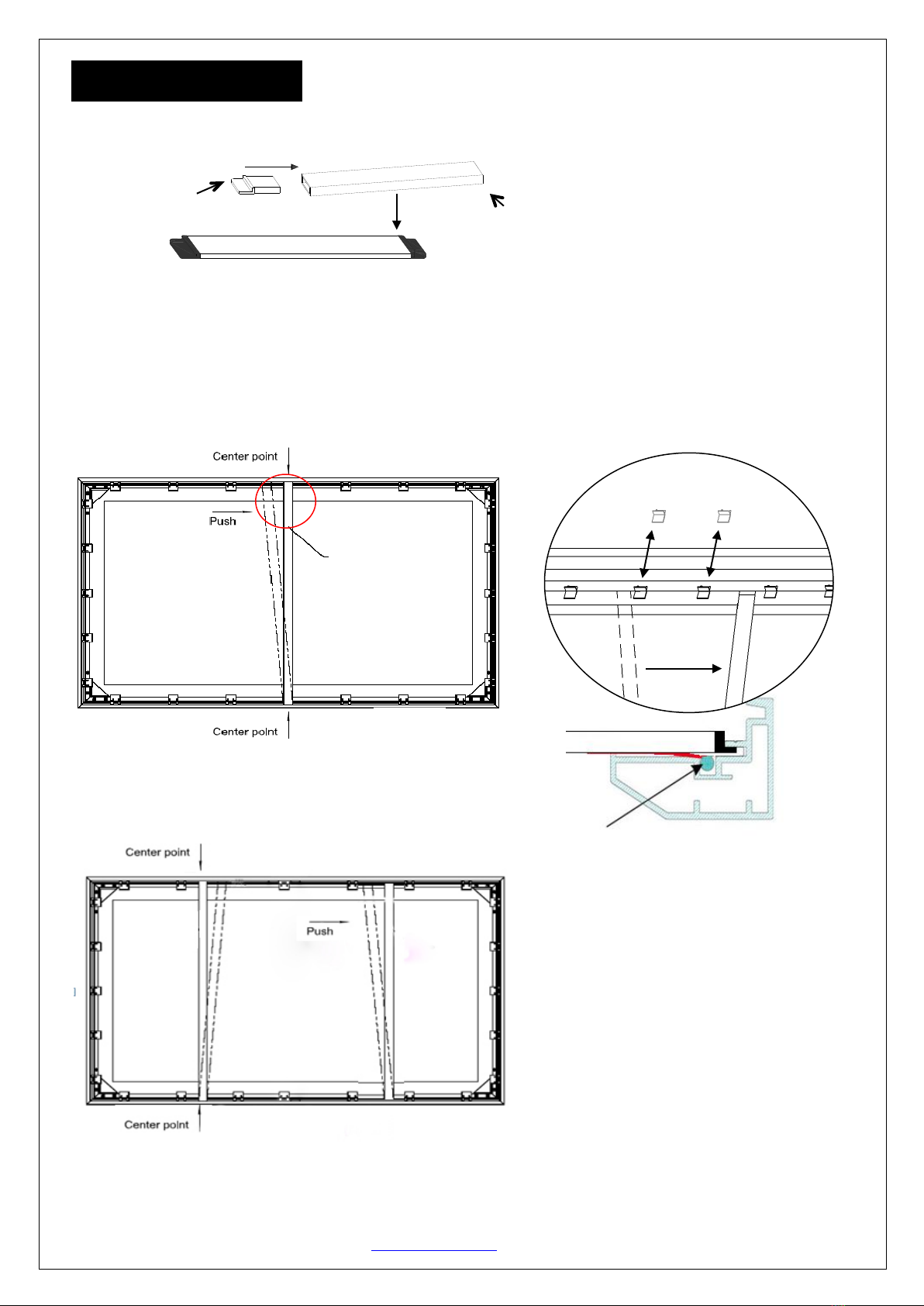

Center Support Bard

1. Insert the support joiner into each end of the center support bar to complete assembly.

support joiner

Center support bar

2. Insert the Center Support Bar into the upper top groove on the back of the frame (not the one where the fix

plate inserts) with the bottom end near the approximate center point of the frame and rotate it in at an angle so that

both ends of the bar are in alignment with the groove (see Fig. 17 and Fig. 18 below for details).

3. Slide the top end of the bar into the top center point of the frame to complete the center support bar installation.

This will provide added stability to your frame and added tension to the material.

Center&Support&Bar&

!"#$%(>?'(

push

Remove

Tension&Rod&

Center&Support&Bar&

Diagonal models 135” and below use 1x Center Support Bar

Diagonal models above 135” require 2 x Center Support Bars

!"#$%(>@'(

Rev.041014-JA www.elitescreens.com 7

(

A02+1551+#*0(

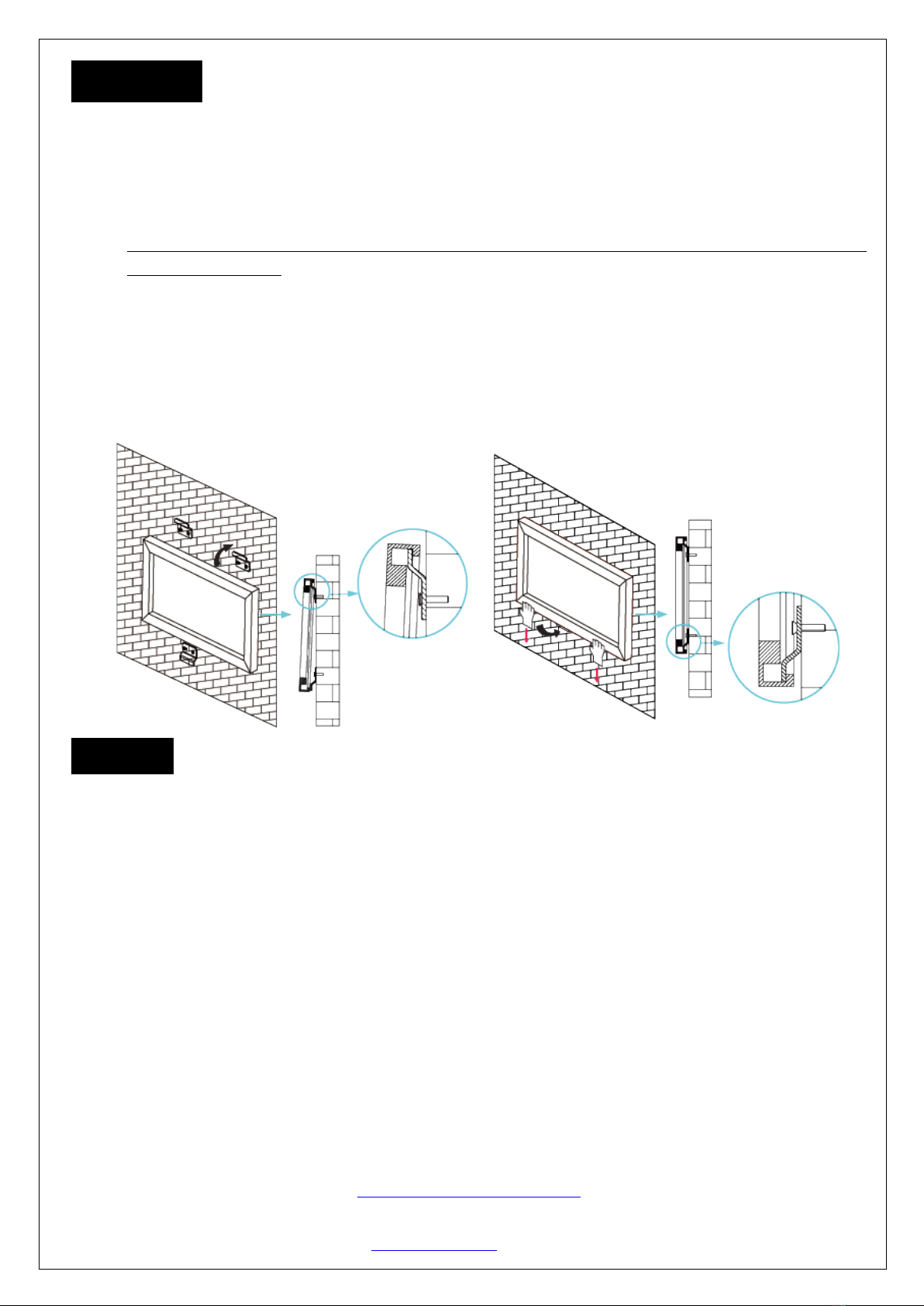

1. Locate your desired installation location with a stud finder (recommended) and mark the drill-hole area of

where the screen is to be installed.

2. Drill a hole with the proper bit size according to the wood screws included.

3. Line up the wall brackets with the drilled holes on the installation location and screw them in using a

Phillips screwdriver.

Note: Use 2 top wall brackets on diagonal sizes below 135”, and use 3 top wall brackets on diagonal

sizes 135” and above.

4. Position the fixed frame screen onto the top wall brackets as shown in (Fig. 19) and push down at the center

of the bottom frame to secure the installation.

5. The design of the wall brackets allows the frame to slide over them through its sides. This is an important

feature of the installation design as it allows your screen to be properly centered.

6. Using both hands finish the installation by pushing the lower portion of the fixed frame screen into the

lower bracket as shown in Fig 20.

CAUTION

Please follow these instructions carefully to ensure proper maintenance and safety of your Fixed Frame Screen

1.&When&hanging&the&screen&up,&please&make&sure&that&no&other&objects&such&as&power&switches,&outlets,&furniture,&

ladders,&windows,&etc.&occupy&the&space&designated&for&your&FixedOFrame&screen.&

2.&Regardless&if&the&screen&is&hung&on&or&installed&into&the&wall,&make&sure&that&the&proper&mounting&anchors&are&

used&and&that&the&weight&is&supported&appropriately&by&a&strong&and&structurally&sound&surface&just&as&any&large&

and&heavy&picture&frame&should.&(Please'consult'a'home'improvement'specialist'for'the'best'advice'on'installation)'

3.&Frame&parts&are&made&of&high&quality&velourOsurfaced&aluminum&and&should&be&handled&with&care.&

4.&When&not&in&use,&cover&over&the&screen&with&a&furniture&sheet&to&protect&it&from&dirt,&grime,&paint&or&any&other&

impurities.&

5.&When&cleaning,&use&a&damp&soft&cloth&with&warm&water&to&remove&any&marks&on&the&frame&or&screen&surface.& &

6.&Never&attempt&to&use&any&solutions,&chemicals&or&abrasive&cleaners&on&the&screen&surface.&

7.&In&order&to&avoid&damaging&the&screen,&avoid&touching&it&directly&with&your&fingers,&tools&or&any&other&sharp&or&

abrasive&objects.& &

8.&Spare&Parts&should&be&placed&out&of&reach&of&small&children&in&accordance&with&household&safety&guidelines.&

For&a&local&Elite&Screens&contact&or&Technical&Support,&please&visit&

www.elitescreens.com&

(Fig.&19)&

(Fig.20)&
