Elite Screens F100NWH Manuale utente

Portable Floor Pull-Up Screen

Elite ez Cinema Series

FOR MODELS: F60NWV / F72NWV / F84NWV / F100NWV /

F84NWH / F100NWH

USER’S GUIDE

MATTE WHITE

Rev. 1.0

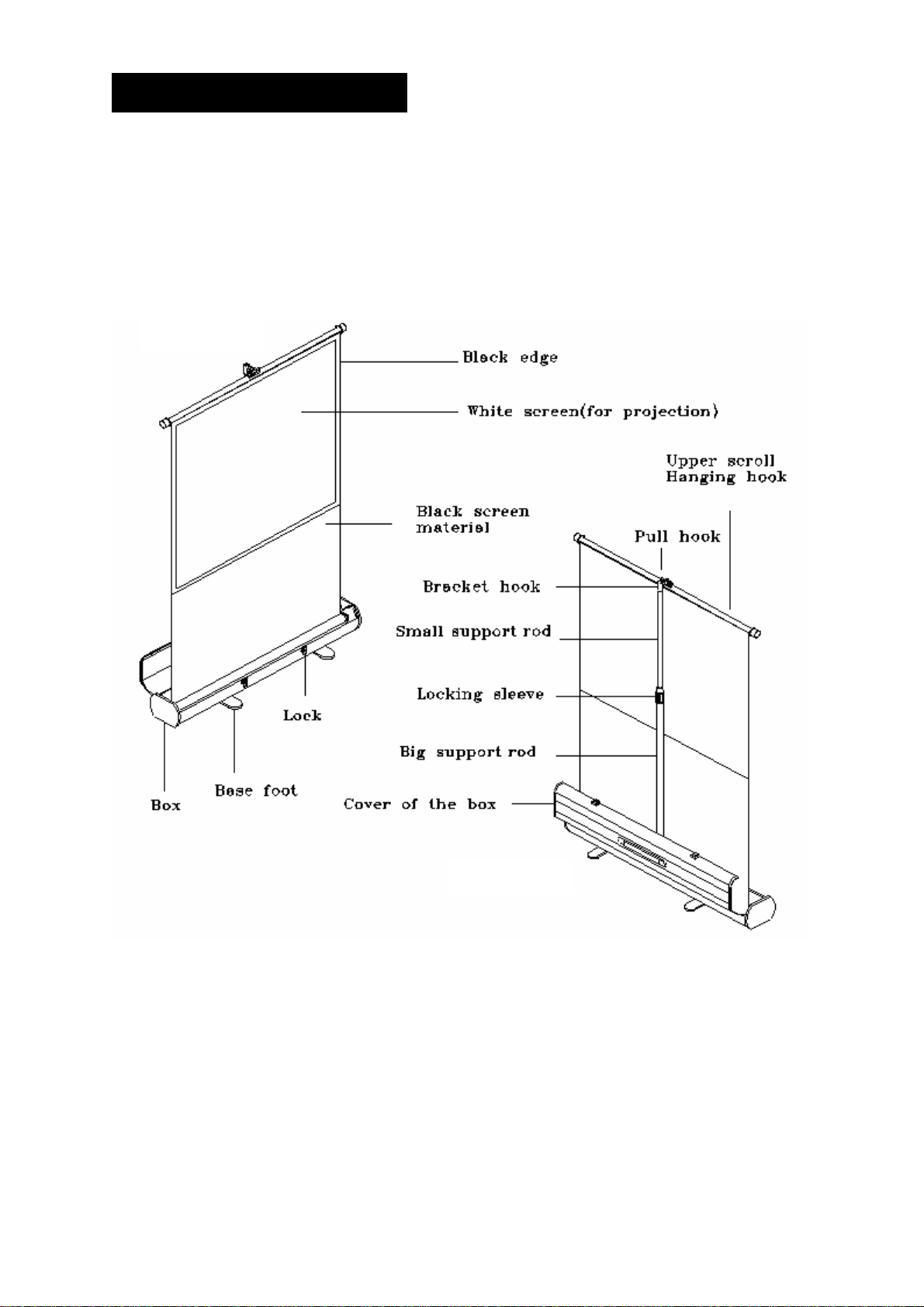

PARTS IDENTIFICATION:

Front

Back

Rev. 1.0

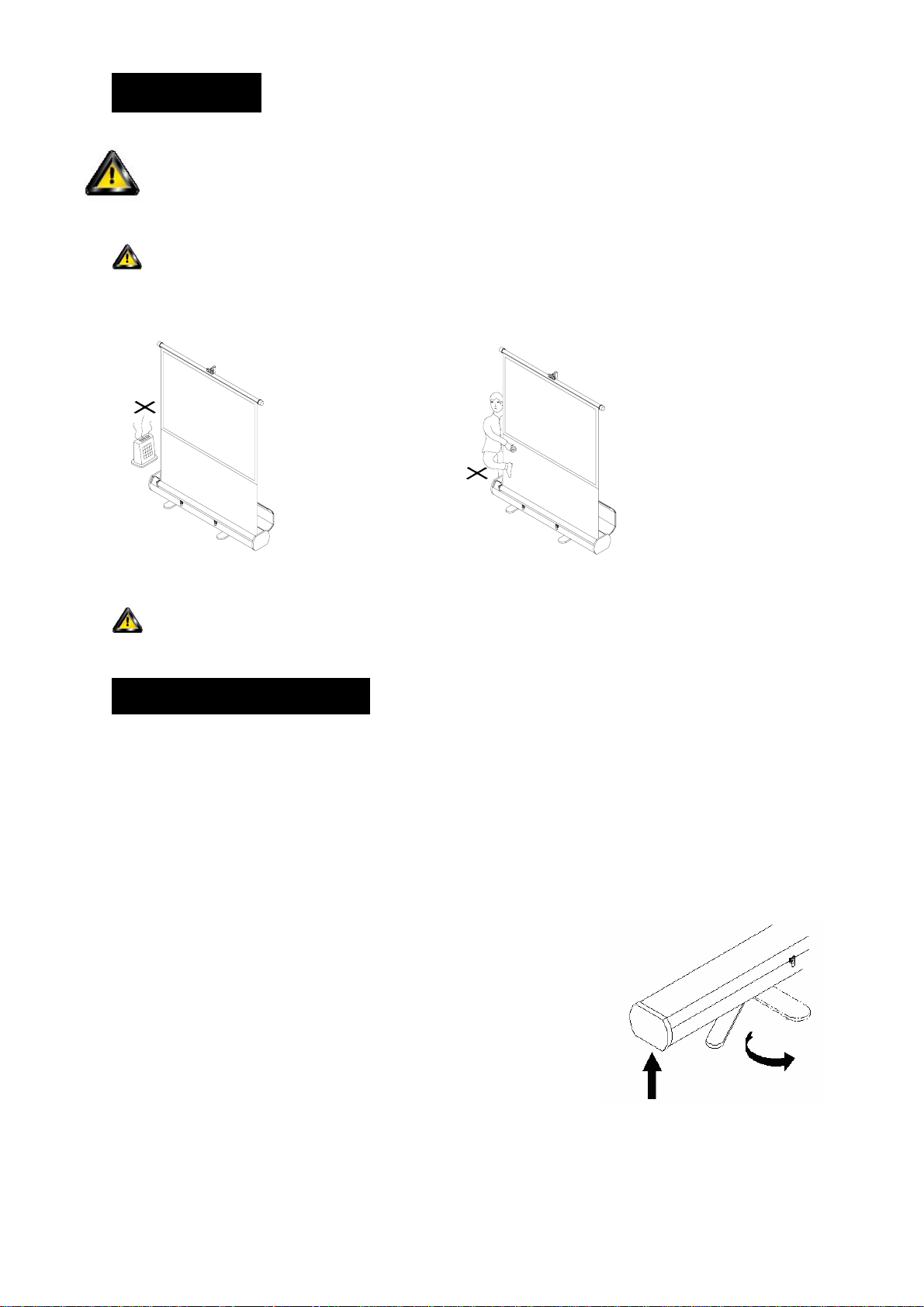

Precautions:

Warning! Screen damage can result from product mishandling if the enclosed

precautions are not followed.

In accordance with practicing home fire safety and to avoid screen damage, do not

place the screen near or beside a fireplace or high temperature appliances such as a gas

stove, BBQ or heater. (Fig. 1)

Fig.1 Fig.2

Place the screen beyond the reach of children. (Fig.2)

Operational Instructions:

Installation:

The EZ-Cinema screen is designed to be used as an easy to operate portable screen for a variety of

presentation environments. Its design enables it to be versatile for use in either classroom, conference

room, home or patio presentations. When packed, the unit carries with ease and opens up for projection

presentations within seconds. As a general rule, portable projector screens should be installed in an area

free from wind and heat or open flame sources such as a heater, BBQ grill or fireworks display.

Extend the base feet:

Locate the base feet on the bottom of the box cover at each end and

rotate the base foot until it forms a right angle between the footboard

and the cover box.

Rev. 1.0

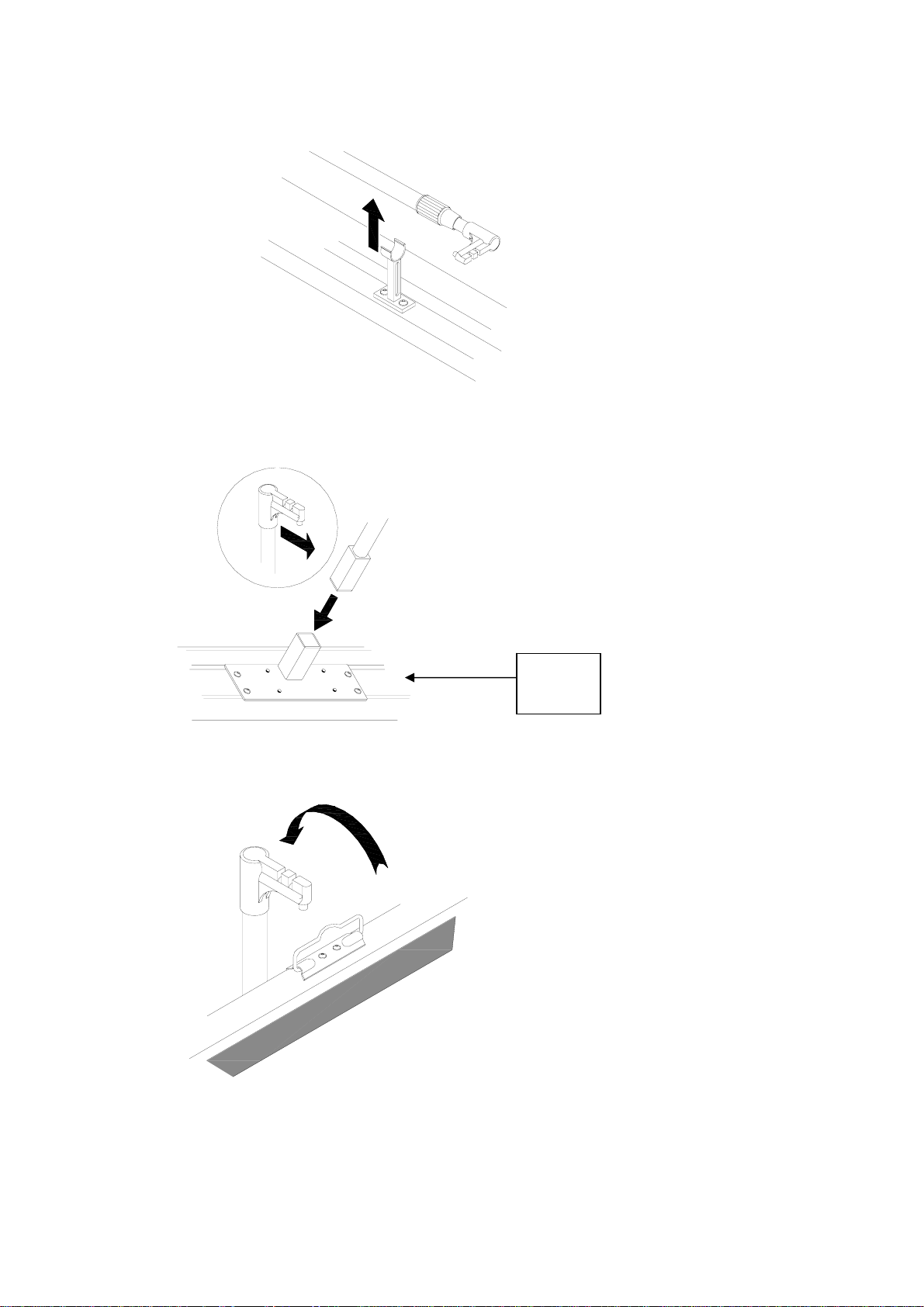

Open the box cover:

Unlatch the buckles on both ends of the box and open the box cover. Next, secure the box with one hand

while removing the support rod with your other hand.

Installing the support rod:

First, make sure that the hanging hook is pointing toward the front facing the same direction as the screen,

then insert the square end of the support rod into the support plate as shown below.

Support

Plate

Pull up the screen:

Hold the pull hook with one hand, pull the screen up gently and hang it on the bracket hook.

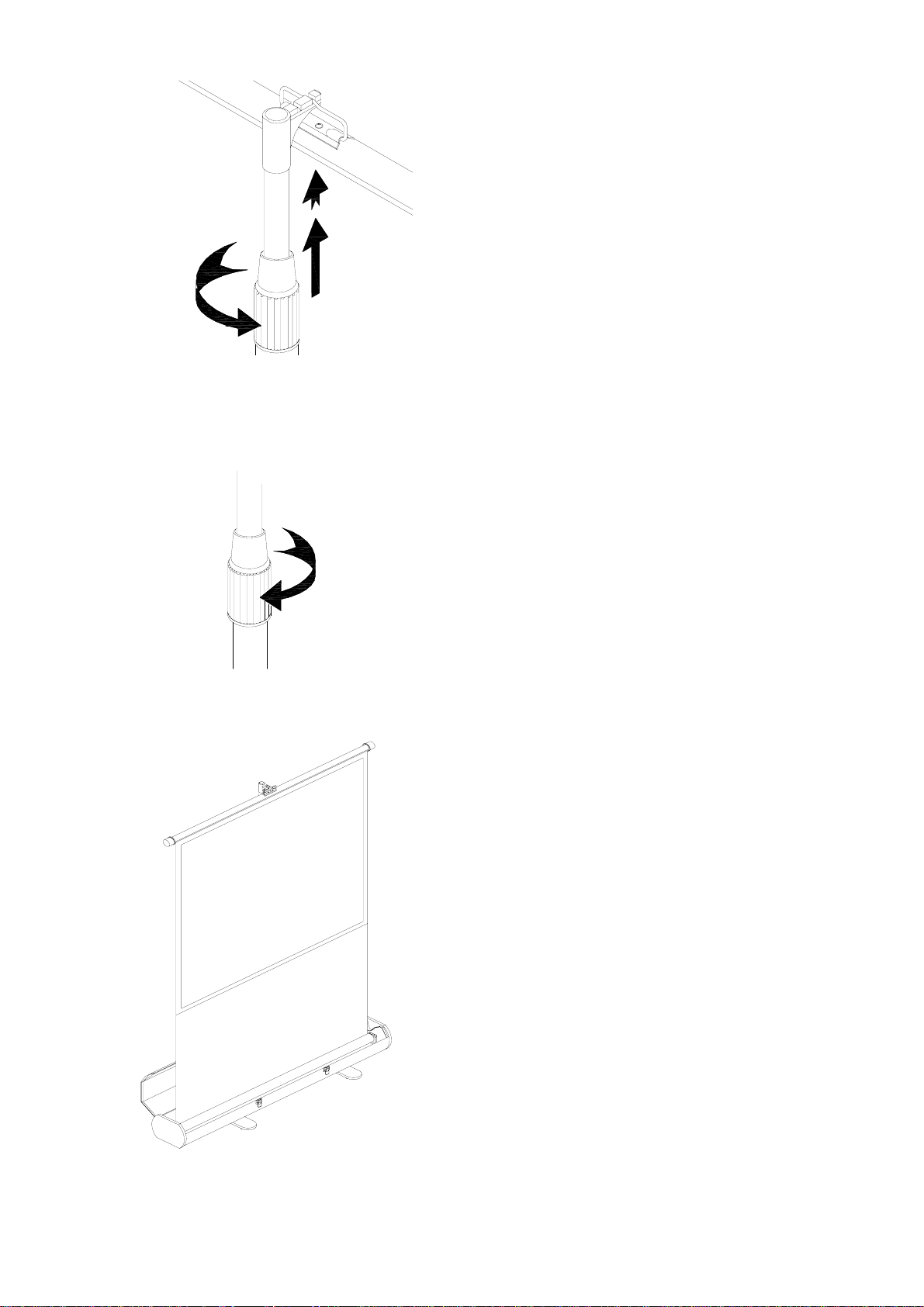

Vertical Adjustment:

First loosen the locking sleeve, and then hold the small support rod with the left hand so as to slowly raise

it upwards until the screen is fully stretched to the desired position.

Rev. 1.0

Adjusting the screen:

Hold the screen with the left hand when the screen has been stretched to the desired position, and then

rotate the locking sleeve clockwise with the right hand until the rod is properly locked into position.

Screen completely assembled

Rev. 1.0

Preparing screen for storage

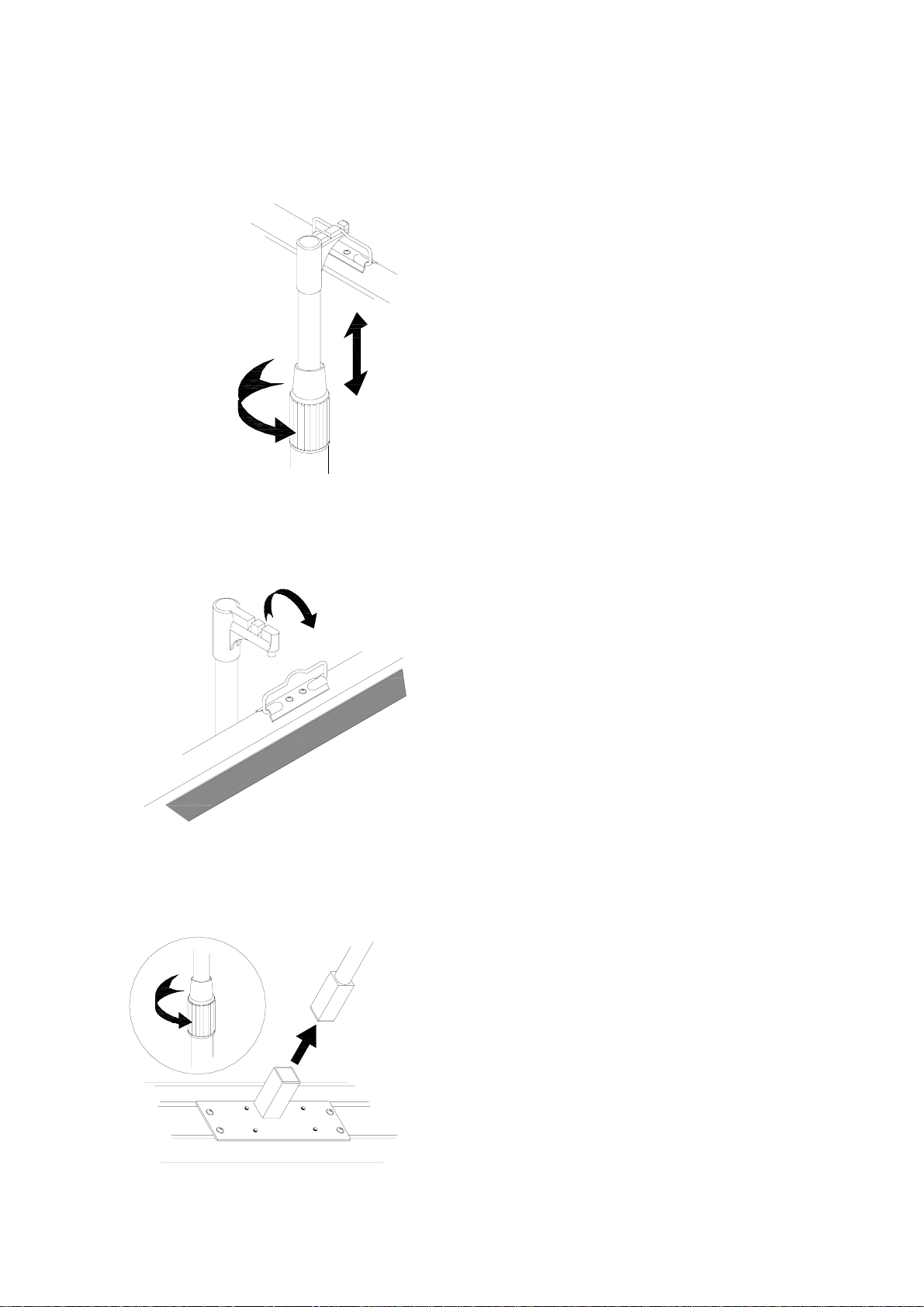

1. Pulling down the screen:

First, hold the telescoping support rod with the left hand and loosen the locking sleeve counter-clockwise

with the right hand. Then shorten the telescoping support rod slowly into the full retracted position and

tighten the locking sleeve to secure it in place.

2. Retract the screen:

Remove the pull hook from the support bracket by lifting it about 2 cm up and then hold on to the pull

hook and lower the screen gently into the box.

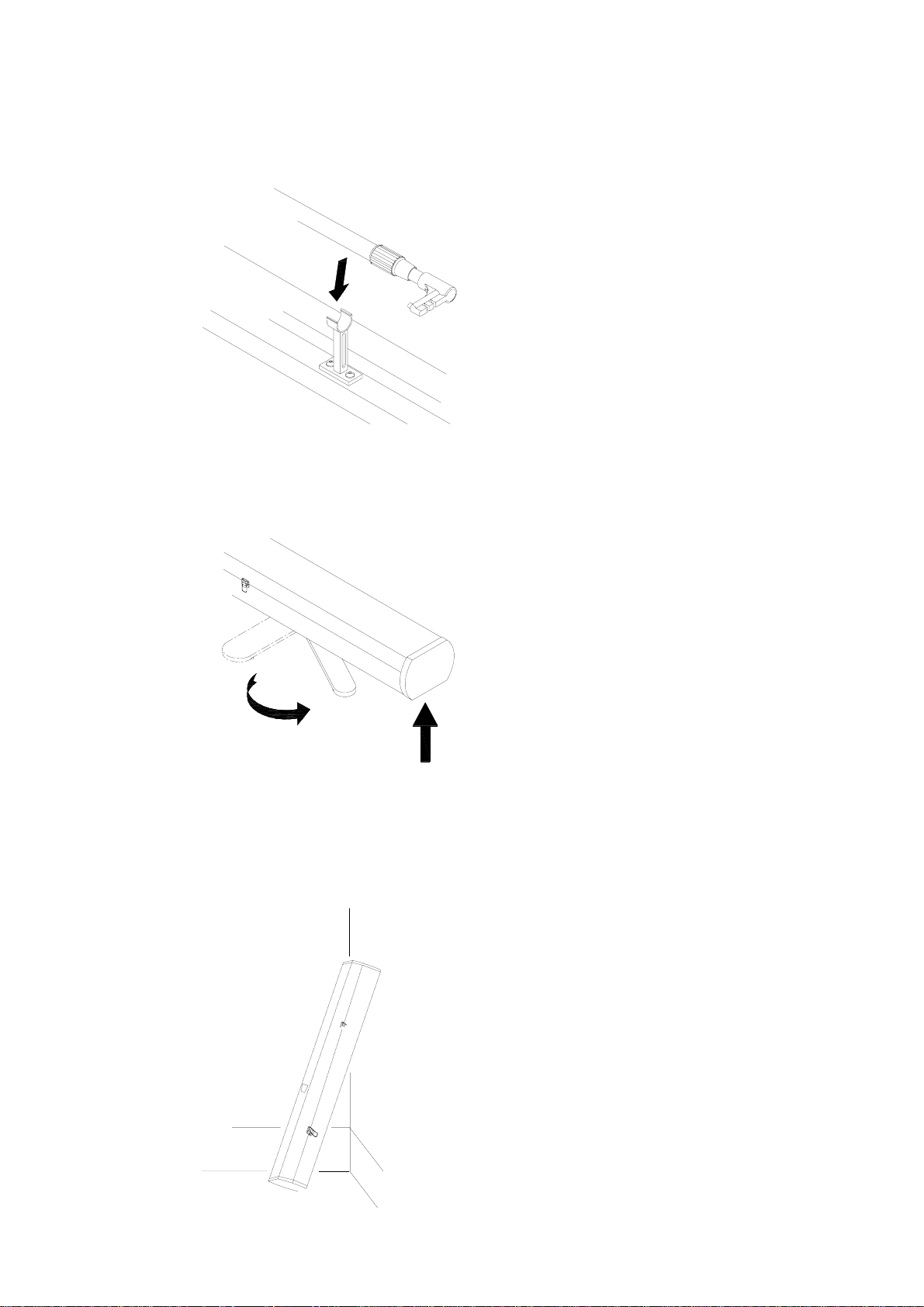

3. Pulling out the support rod:

After telescoping the small supporting rod to its shortest position and tightening the locking sleeve, take

out the supporting rod from the support plate.

Rev. 1.0

4. Storing the support rod:

Properly center the supporting rod in the middle to maintain the weight balance in the box when carrying.

5. Draw the base feet back:

Slightly lift each end of the box in turn rotating the two base feet underneath until they are back into

alignment with the box.

6. Storing the screen:

The recommended place for storage would be a corner of the room or in a closet, but the ultimate choice is

up to you.

Rev. 1.0

The following points should be noted to assure the sound performance of the screen

1. Never use your hand to touch the screen surface.

2. Never scrabble on the screen with anything.

3. Don't touch the screen with hard or sharp objects.

4. Please use a clean cotton cloth or soft dust brush to remove any dust particles on the screen.

5. The screen material may be cleaned

Warranty Policy - Manual, Tripod, Pull-up Floor, and Fixed Frame Screens

*Warranty policy applies to claims made in the United States of America. Warranty issues outside of

the US must go through their international distributor.

•Two (2) year warranty parts and labor from purchase date as follows (except for refurbished

units as specified below):

•Refurbished units carry a 90-day parts and labor warranty.

•Demo units or open box items are AS IS items and do not carry a warranty.

•Elite Screens will cover ground shipping charges on warranty claims made within 7 days of

receiving per our DOA (Defective On Arrival) policy

•Each party will be responsible for one way shipping during the regular warranty period if the

claim is made after the 7 day DOA period.

•An RMA (Return Merchandise Authorization) number must be issued in order to process a

replacement. Elite Screens will either replace or repair the defective unit with a brand new

replacement *(see exceptions below) after the defective unit is received and/or confirmed

defective. Once the product is received, Elite Screens will send out a new *unit to the customer by

ground service (subject to inventory availability).

•Missing Parts must be reported within the 7-days of receipt. If reported after 7 days, customer

will only be responsible for shipping and handling fees. If reported after 30 days of receipt, the

customer is responsible for cost of the parts and shipping & handling fees.

Please visit the link below for full warranty information

http://www.elitescreens.com/services.html

*A new or refurbished replacement will be sent out to the customer depending on the type of purchase (new or

refurbished) and is based on stock availability.

Rev. 1.0

TWO WAY TO REGISTER YOUR WARRANTY WITH ELITE SCREENS INC.

A. On Line (Faster and Easier) www.elitescreens.com/register.html

B. Fill out & Fax to (562) 483-8498,Attn: Customer Service Dept.

*Your Name: _______________________________________________________

Address: ____________________________________________________________

City/State/Zip ________________________________________________________

*Email Address: ______________________________________________________

*Phone: _____________________________________________________________

*Screen Model: _______________________________________________________

*Serial Number: _______________________________________________________

*Date of Purchase: _____________________________________________________

*Dealer / Reseller Purchased from (name of the reseller): _____________________

What is your Projector Model :____________________________________________

Application: ___ Home ___ Education ____ Corporation _____ Government

___ Others

How would you rate this screen? ___ Excellent ___ Good ___ Ok ___ Improvement needed

Comments:

Contact info:

If you have pictures of your screen you’d like to share with us,

please email your pictures to [email protected]

or call us at 877-511-1211

www.elitescreens.com

For any technical inquiries,

techsupport@elitescreens.com

Rev. 1.0

Portable Floor Pull-Up Screen

Elite ez Cinema Plus Series

FOR MODELS: F68XWS1 / F60XWV1 / F84XWV1 / F74XCH1 /

F84XCH1

USER’S GUIDE

Matte White

Rev 1.0
