Elite Screens Kestrel Series Manuale utente

Rev111010-ESC

www.elitescreens.com

How to replace a Kestrel Series circuit board

1. Raise the screen about 2 feet,

and then unplug the power cord.

VERY IMPORTANT: Use rope to

tie the screen from both ends

after raising it. When removing

the end cap, the screen will

spring open and can cause

serious injury and can

permanently damage the screen.

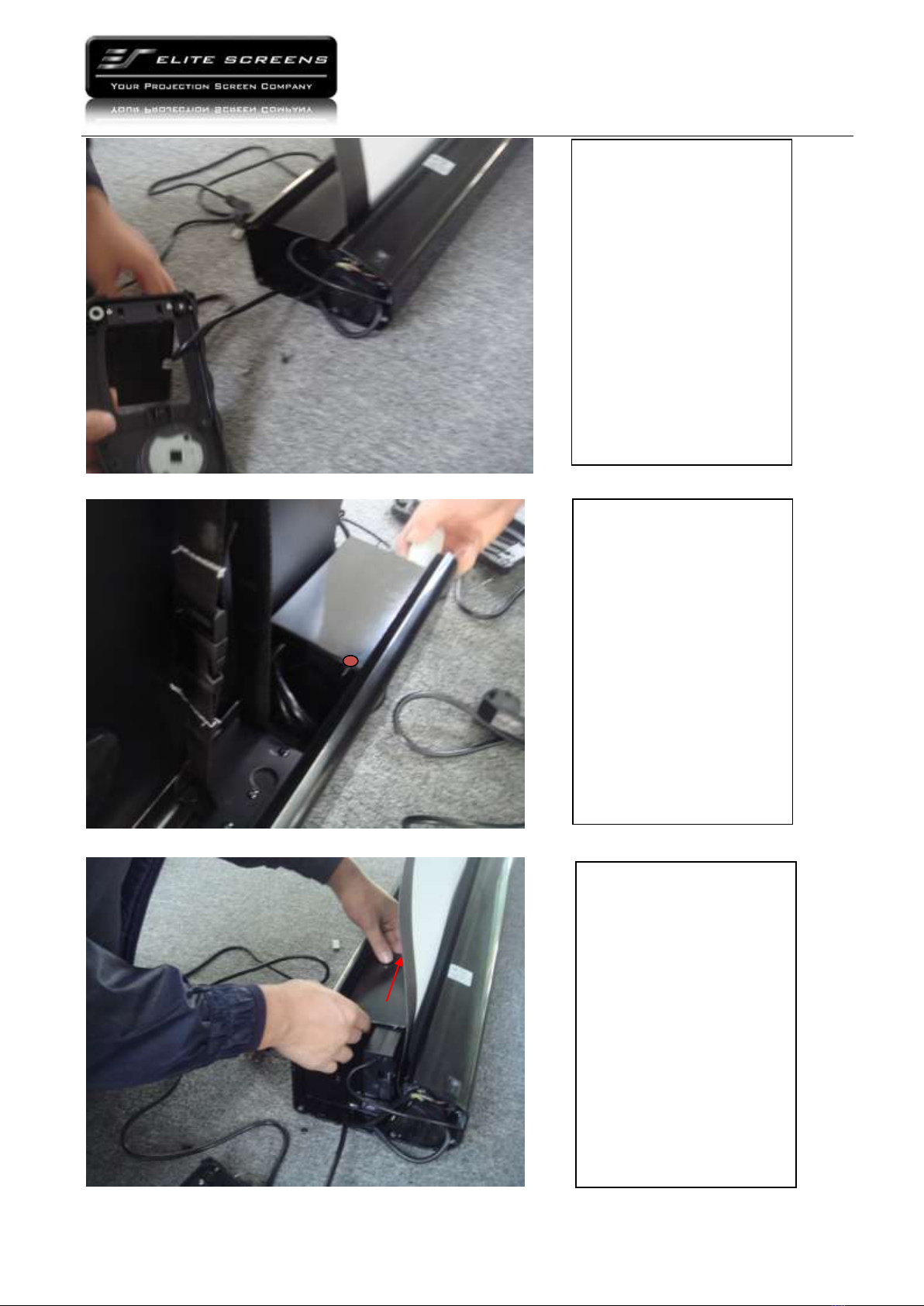

2. REMOVE the 6 screws as

shown on the picture marked

in red.

Rev111010-ESC

www.elitescreens.com

3. Carefully remove the end

cap cover to avoid pulling out

the motor.

5. Push the cover to the side

to remove it.

4. After removing the end cap

cover, you will notice a metal

box directly behind the

screen’s material. This metal

box houses the circuit board.

Loosen and remove the

screws that hold the cover of

this metal box.

Rev111010-ESC

www.elitescreens.com

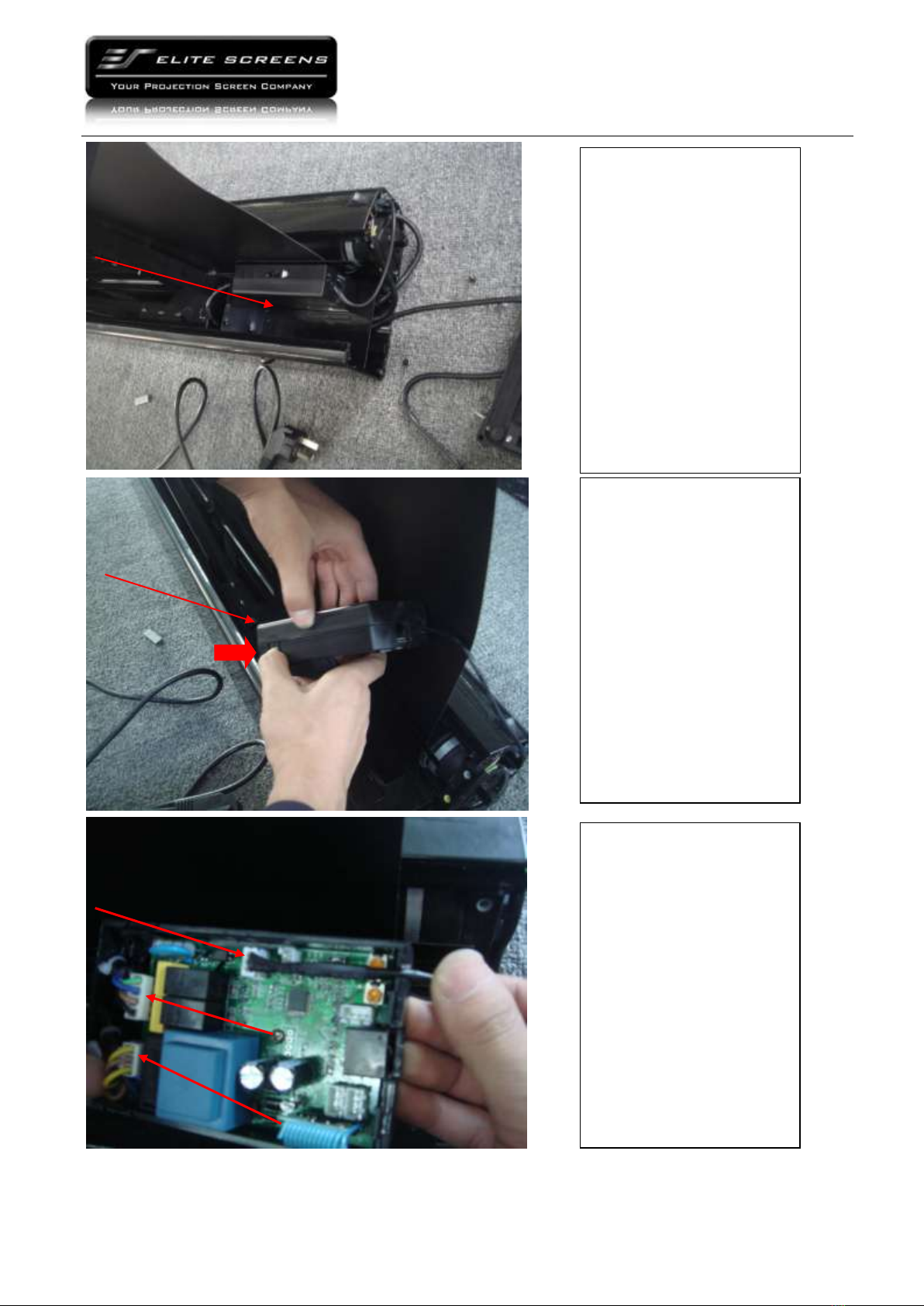

6. For easier access of the

circuit board housing, push

the power cord underneath

the screen so that it is out of

the way.

8. Detach indicated wires from

the circuit and remove the

small screws that hold it in

place. Then, remove the

circuit board. Do the reverse

of step 8 instructions to

replace the new circuit board.

7. To open the circuit board

box cover, push in on the tab

as shown in the picture and

pull the box open with both

hands simultaneously.

Rev111010-ESC

www.elitescreens.com

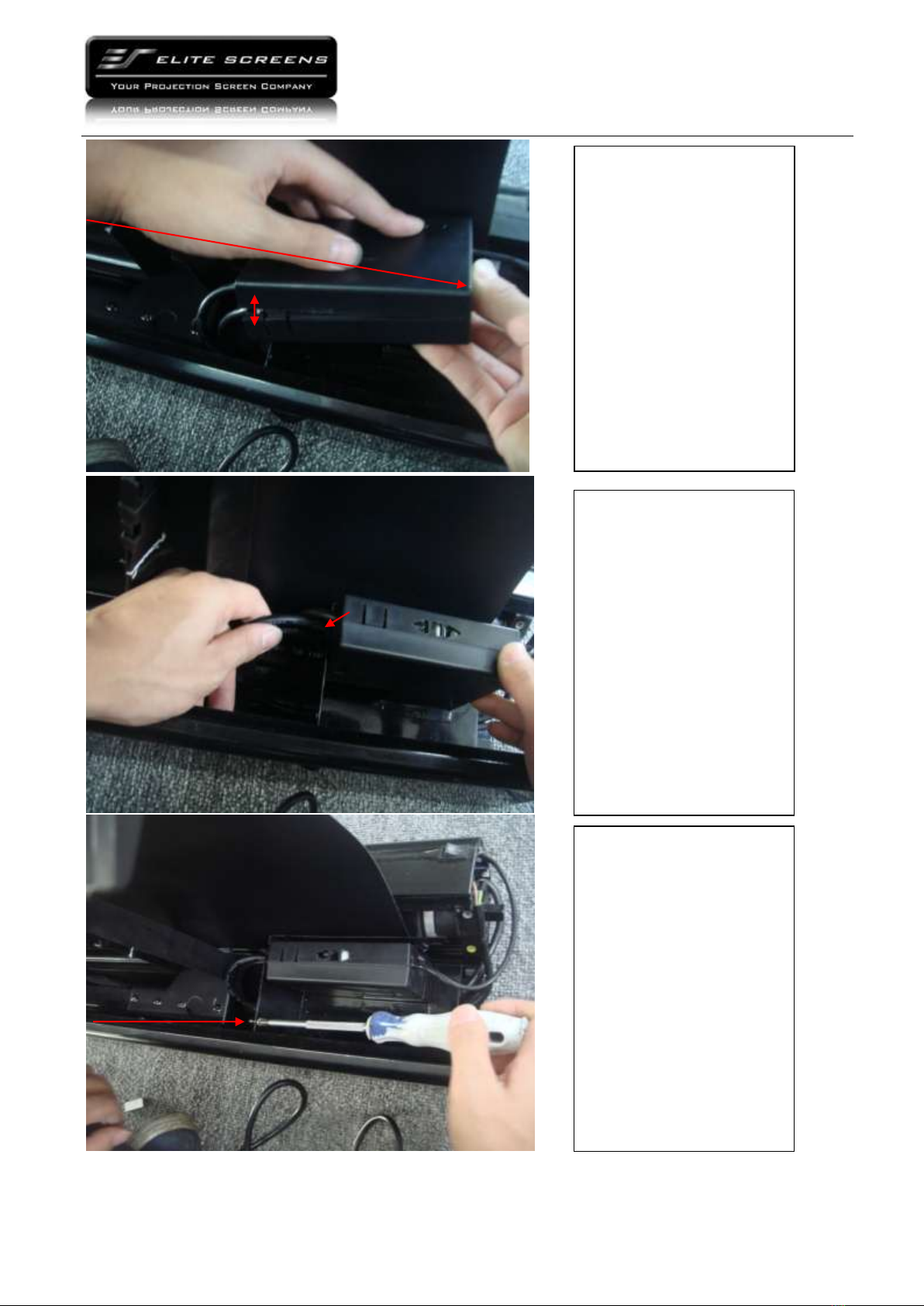

9. Put the circuit box cover

back in to place.

10. Place the circuit box back

in to place.

11. Use the included screw to

guide the metal cover back in

to place.

Rev111010-ESC

www.elitescreens.com

14. Be sure to turn the end

cap at a 45 degree radius

upwards when replacing it so

that the motor peg can insert

back into the cap to allow the

cap to seal back in to its place.

12. Put metal box cover back

in to place and tighten with

the screw and nut.

13. For easier access, place a

small platform (like a piece of

Styrofoam) under the screen

so that it is elevated about a

few inches. Check to be sure

that the limit switches are

facing the right direction as

shown in this picture and that

the wires are snugly put back

in to the screen’s casing so

that the end cap cover can be

easily replaced.

Rev111010-ESC

www.elitescreens.com

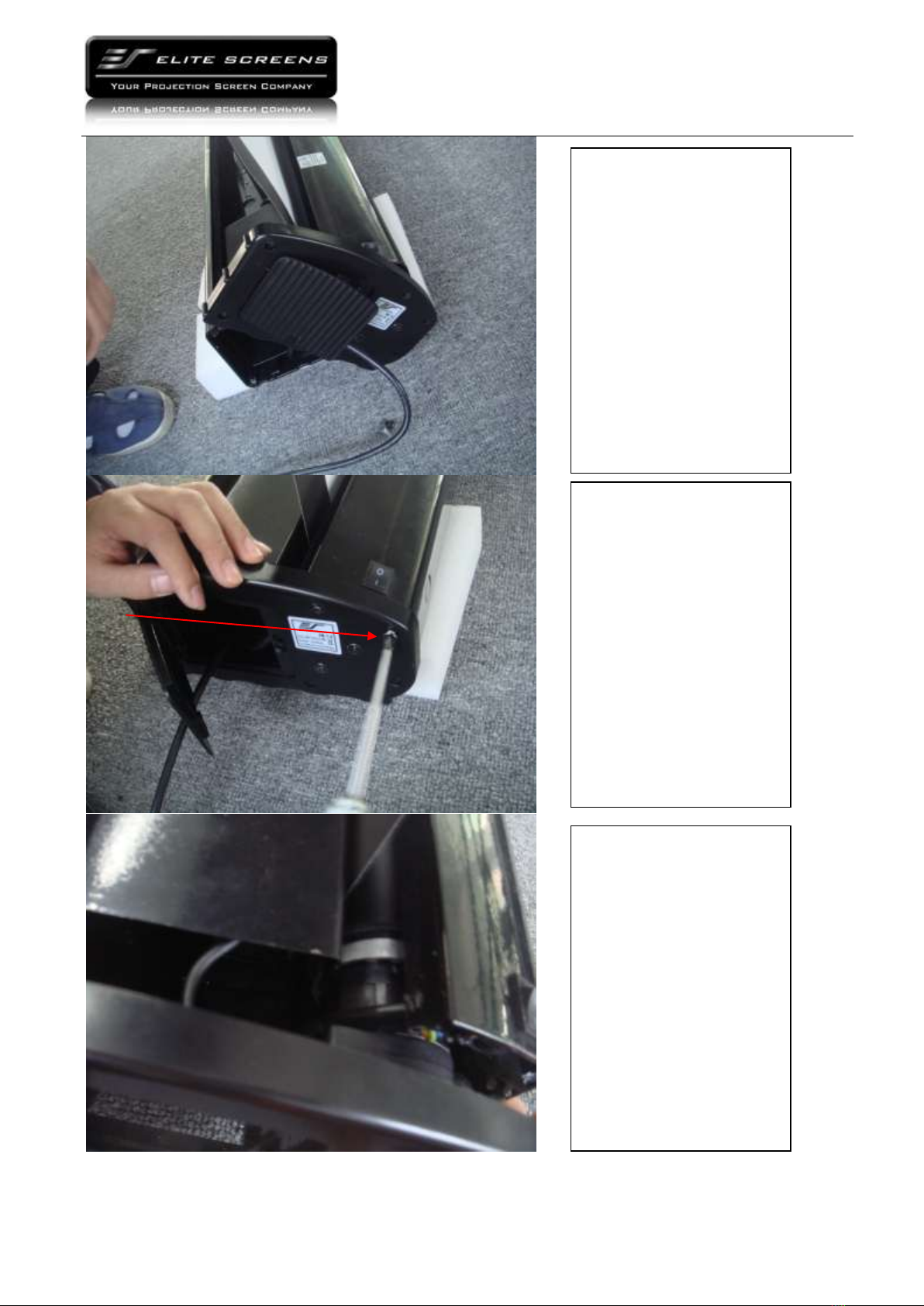

15. Fully extend the power

cord out of the casing before

completely sealing the end

cap back in to place.

16. Put the end cap back in to

place and tighten the end cap

with the provided screws as

shown in the picture.

17. Check for any loose wires

that may be sticking out of the

casing. The slit for the screen

should be clear for a smooth

deployment of the material.

Rev111010-ESC

www.elitescreens.com

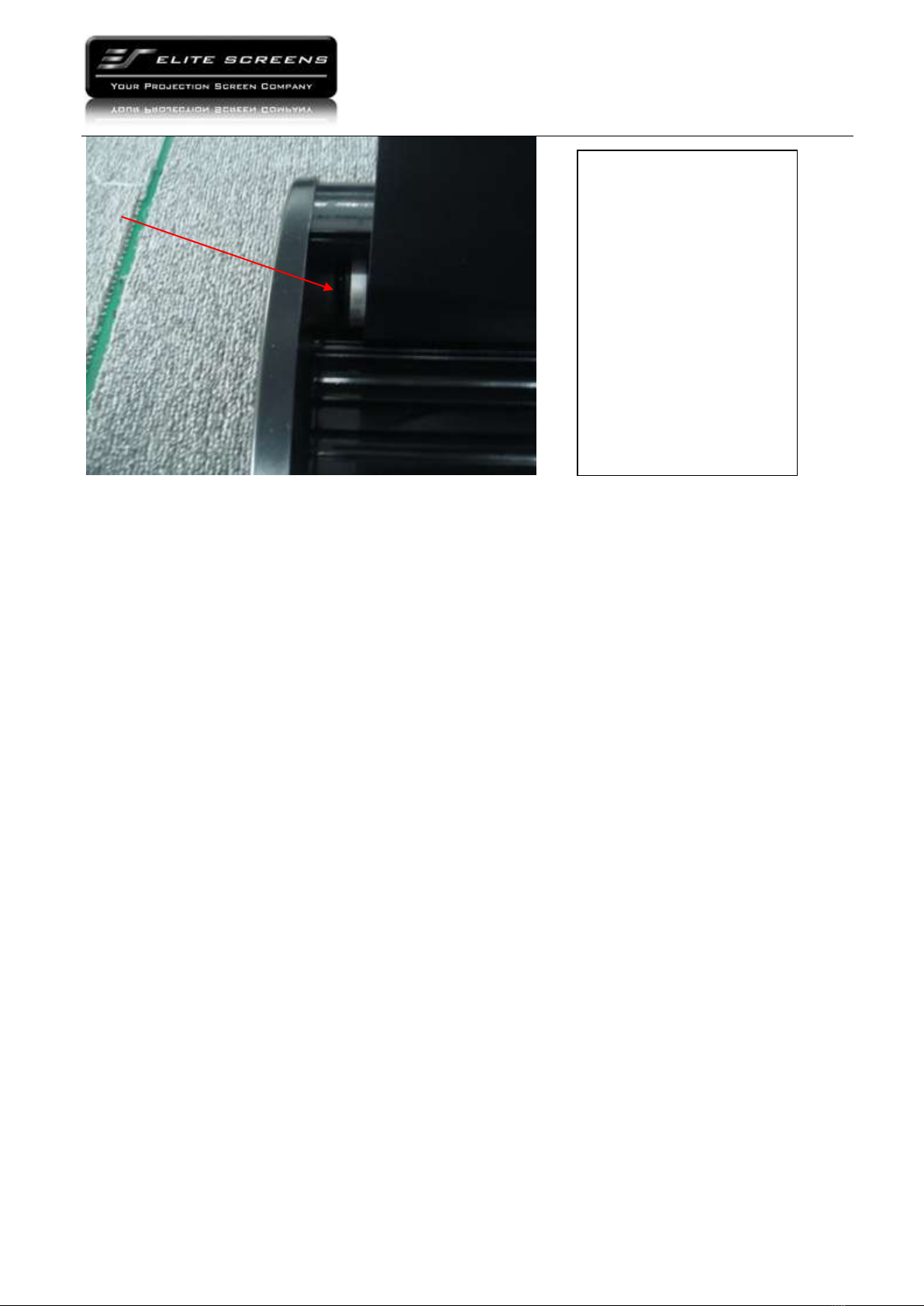

18. If in case the end cap does

not seal properly, check to be

sure that the limit switch cap

is fully inserted in to the

roller.
