Ez-Electric Screen

Elite Vmax Series

-TYPE C-

USER’S GUIDE

MATTE WHITE

Rev 1.2

IMPORTANT SAFETY INSTRUCTIONS

1. Position the power cord so it will not be tripped over, pulled, or near a hot area or

surface.

2. To avoid an electric shock, do not attempt to disassemble this appliance yourself.

Contact Elite’s Screens service dept. for help with repairing your screen.

3. Please disconnect the power supply when screen is not in use for a long time.

PRE-INSTALLATION

1. Carefully unpack the screen.

2. Always handle the screen in a leveled position on a clean surface.

3. Do not attempt to use the screen if there are obvious damages or broken parts to

avoid injury and/or an electric shock.

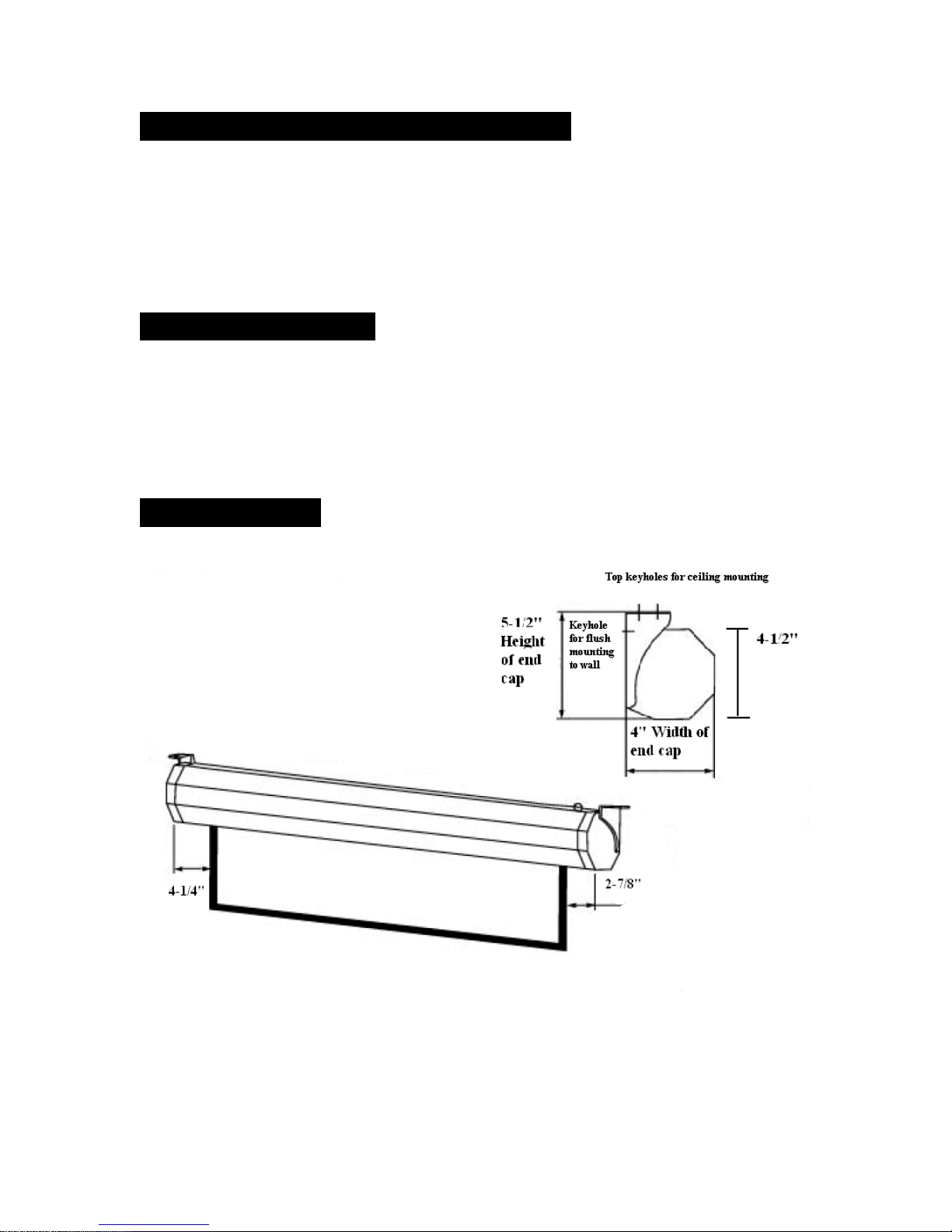

INSTALLATION

Rev 1.2

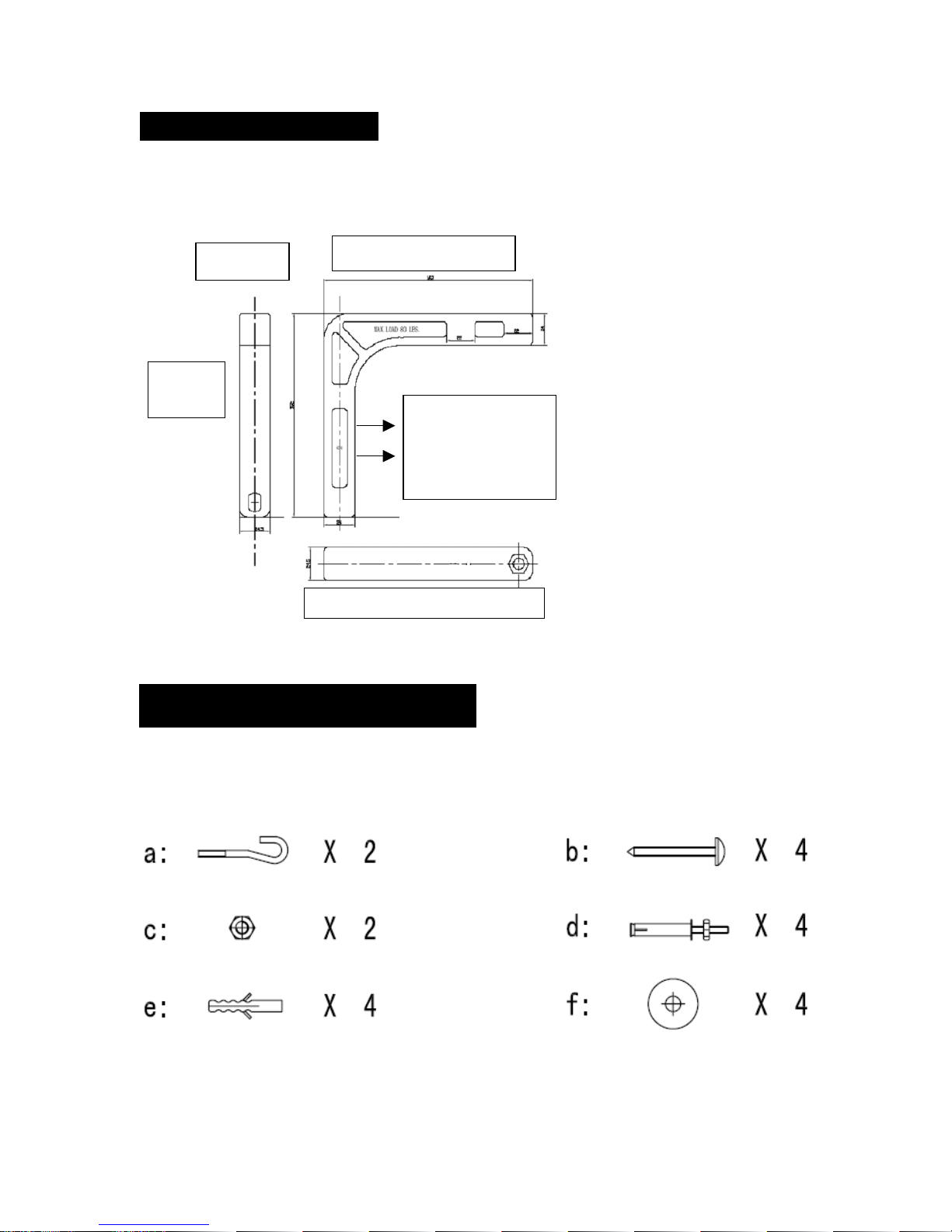

“L” Brackets diagram

Find the studs on

your wall or use

drywall anchors to

install L brackets to

the desired location.

Top of “L” bracket from top view

6-3/4”

Height

1” Width 6-3/4” Length

Accessories For “L” Bracket

Rev 1.2

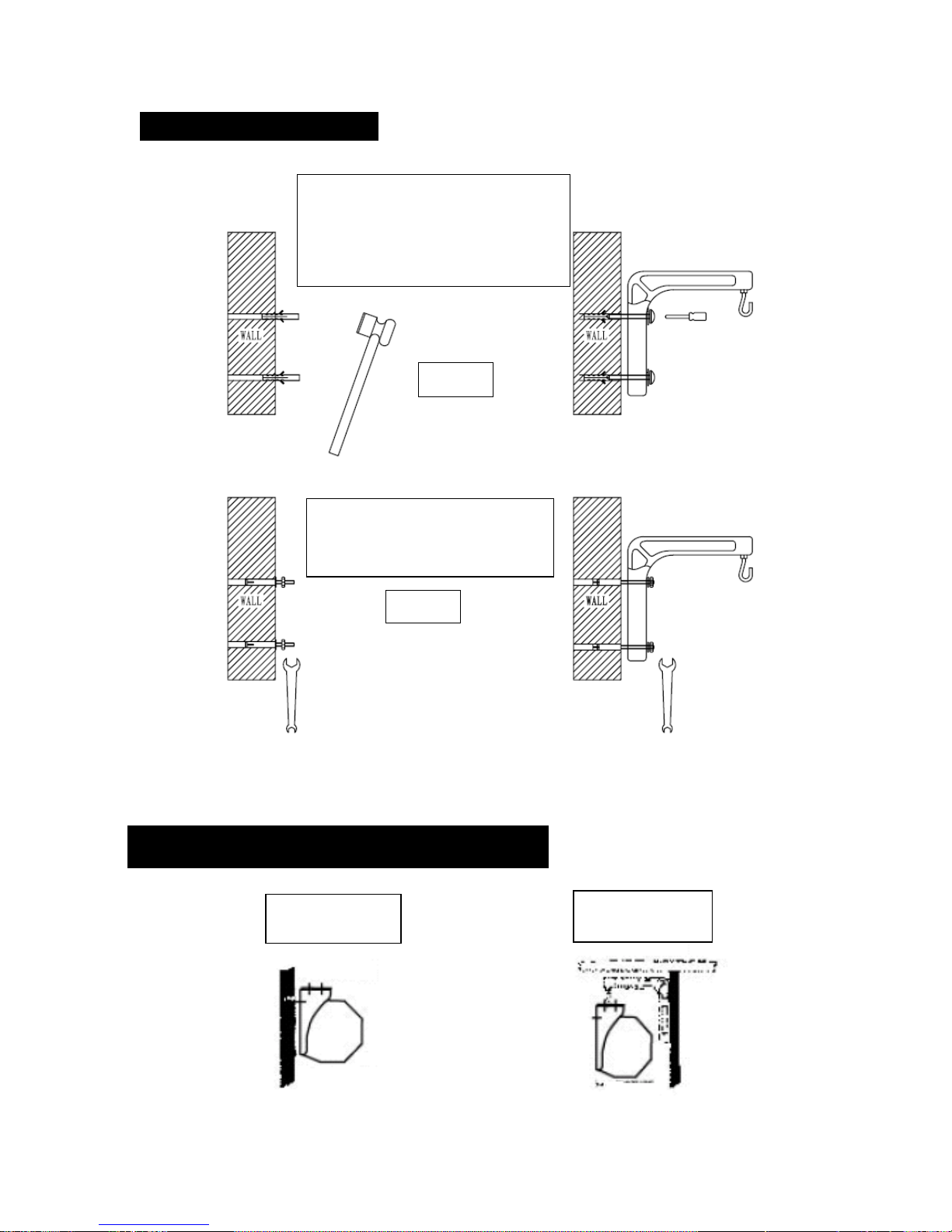

“L Brackets Installation

Wood/Dry Wall installation: Use “B”

wood screws provided for installation on

wood studs on wall. Or use “E” hollow wall

anchors provided in conjunction with the

wood screws for dry wall installation as

shown on Fig. 1

Fig. 1

Masonry/Cement wall installation:

Use “D” bolts provided for installing

your screen on a cement wall as shown

on Fig. 2.

. 2

Please note these are only examples and additional hardware may be required for your

particular installation.

EXAMPLES OF MOUNTING YOUR SCREEN

B. Wall mounted

using L brackets

A. Wall mounted

without L brackets

Rev 1.2

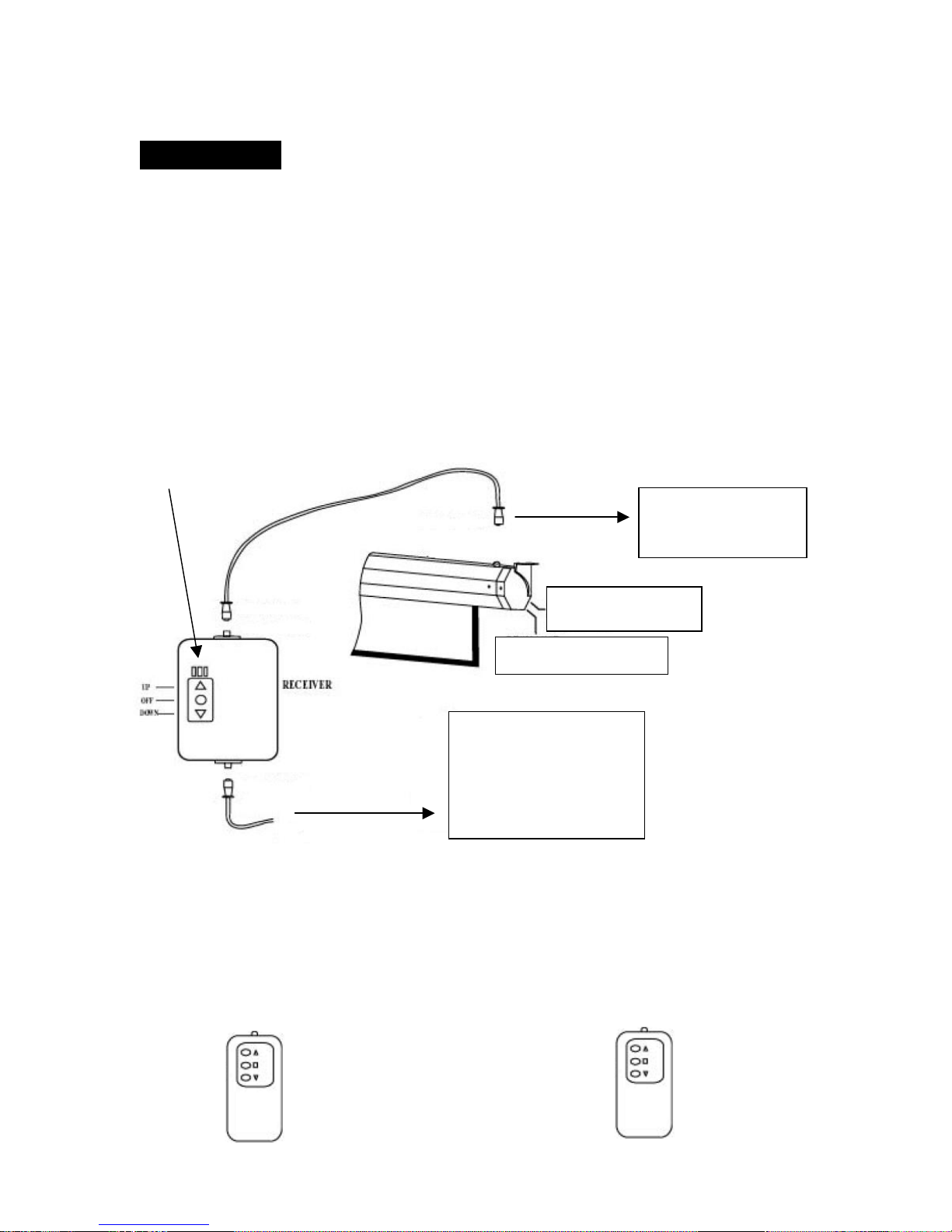

OPERATION

Remote Control System:

Line Switch: Manual 3-way wall switch for your new Elite Screen with wirelessIR and

RF remote.

1. This is the control box connection to your new Elite Screen. First insert the 3-prong

cable (Pins) to the bottom of the control box. Then connect the cord with the 4-prong

cable (Pins) into the top end of the control box. The other end of the 4-prong cable (Pins)

will need to go to the screen’s case. Please see example below.

This is the eye sensor for the IR remote

You will have to aim directly to it for

proper operation.

The 4-prong wire

connects to the control

box to the screen.

Up limit switch

Down limit switch

The 3-prong wire will

connect from the control

ox to the power cord. The

power cord is plugged into

a standard 110-volt power

outlet.

Note: Always press the “stop” button first, then press “up” or “down” as needed.

2. This is the IR remote (Infra Red) with a range of 3. This is the RF remote with a

25 to 30 Ft. range of 250 to 300 Ft.

(Infra Red) (Radio Frequency)

Note: The light on this remote does not turn on Note: The RF remote can be identified

when the buttons are depressed unlike the RF remote. by the letter on the back (ex. A).

Rev 1.2

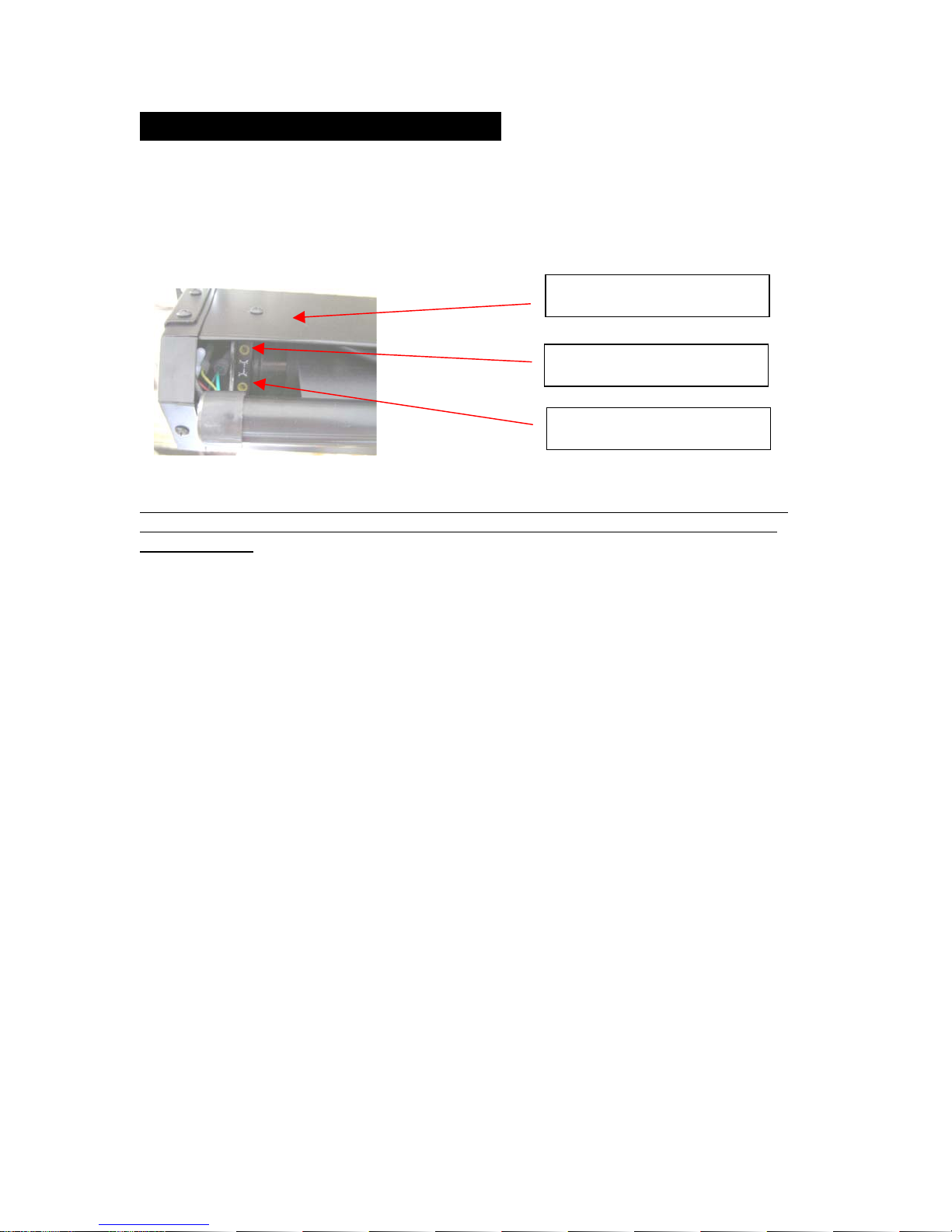

Vertical Limit Switch Adjustment

Caution:

Screen may be severely damaged if viewing surface is allowed to run too far UP/DOWN.

Back Of Screen

Up Vertical Position

Down Vertical Position

Your screen has been set to drop all the way down and to rise all the way up. However, in the

event that your screen does not please use the instructions below to adjust the drop/rise to the

desired position.

Note: You will require a 5/32” allen-wrench to perform the adjustments below

“UP” Vertical Position Adjustment

1. Insert the allen-wrench into the top keyhole, turning the allen-wrench clockwise will

allow the screen to retract to it’s original position.

Note to self: You will not notice a difference of this adjustment until you press the DOWN button

then up to see the differences.

2. Turning the allen wrench half a circle counterclockwise will cause the screen to stop further

out of the screen’s case.

“DOWN” Vertical Position Adjustment

1. Insert the allen-wrench into the bottom keyhole, turning the allen-wrench one full

circle counterclockwise to limit the black masking border level.

Note to self: Only if screen does not extend to desired position.

2. Turning the allen-wrench one full circle clockwise will allow the screen to drop down

the black masking border.

3. Turning the allen-wrench one full circle clockwise will allow the screen to drop down

the black masking border.

Rev 1.2

TROUBLESHOOTING

If the electric screen does not move, please check the following:

1. Check the power supply and fuse first. The screen will not move without power.

2. Make sure the power cord is plugged to the power outlet.

3. Check all cable connections to see any may be disconnected.

4. If the screen works well with the line switch but not with the remote control,

please make sure the remote controls have batteries or replace them with new

ones.

FAQ’s

1. Q: How is the Matte White screen material cleaned?

A: The Matte White screen material can be cleaned with mild soap and water.

2. Q: What type of batteries do the remote controls require?

A: The IR and RF remote controls use AAA alkaline batteries

3. Q: Can you manually pull down the screen?

A: Absolutely not, manually pulling down the screen will damage the electronic

motor rolling system.

4. Q: Can the electric screen be used in a 220-volt outlets?

A: No, the screen can only be used in 110-volt outlets.

5. Q: What is the gain on the matte white screen material?

A: The matte white material has a gain of 1.0.

Rev 1.2

Regardless of mounting method, screen should be securely

supported so that vibration or even abusive pulling on the viewing

surface will not cause case to work loose or fall. Installer must insure

that fasteners used are of adequate strength and suitable for the

mounting surface chosen.

Fill this in!!

For the convenience of service, record the following information in the space below.

The serial number can be located on the packaging box or on an end cap.

Screen Model:

Serial Number:

Date of Purchase:

Dealer / Reseller Purchased from:

www.elitescreens.com

[email protected]

NOTE:

Rev 1.2
