Aeon CineWhite® UHD-B Series

EDGE FREE® Matte White Fixed Frame Screen

USER’S GUIDE –M Type

____________________________________________________________________________________________

Product Description:

The Aeon Series is a fixed frame projection screen that uses Elite’s EDGE FREE® technology. The EDGE FREE®

design resembles a giant size flat panel TV display. The Aeon includes a bezel trim to further enhance the frame

appearance and absorb projector overshoot. An optional LED kit is available for backlighting.

The material included is our ISF Certified CineWhite® UHD-B which produces accurate colors in a light controlled

environment as the director intended.

In order for the CineWhite® UHD-B to maintain its projection qualities and optimum performance please refer to

the list below for proper maintenance and cleaning.

•Use a dry microfiber cloth to remove dust from the screen’s surface.

•When cleaning, use a damp microfiber cloth with warm water to remove any marks.

•Never rub or apply pressure when cleaning the surface.

•Never attempt to use any solutions, chemicals or abrasive cleaners on the screen surface.

•In order to avoid damaging the screen, avoid touching it directly with your fingers, pens/pencils or any other

sharp or abrasive objects.

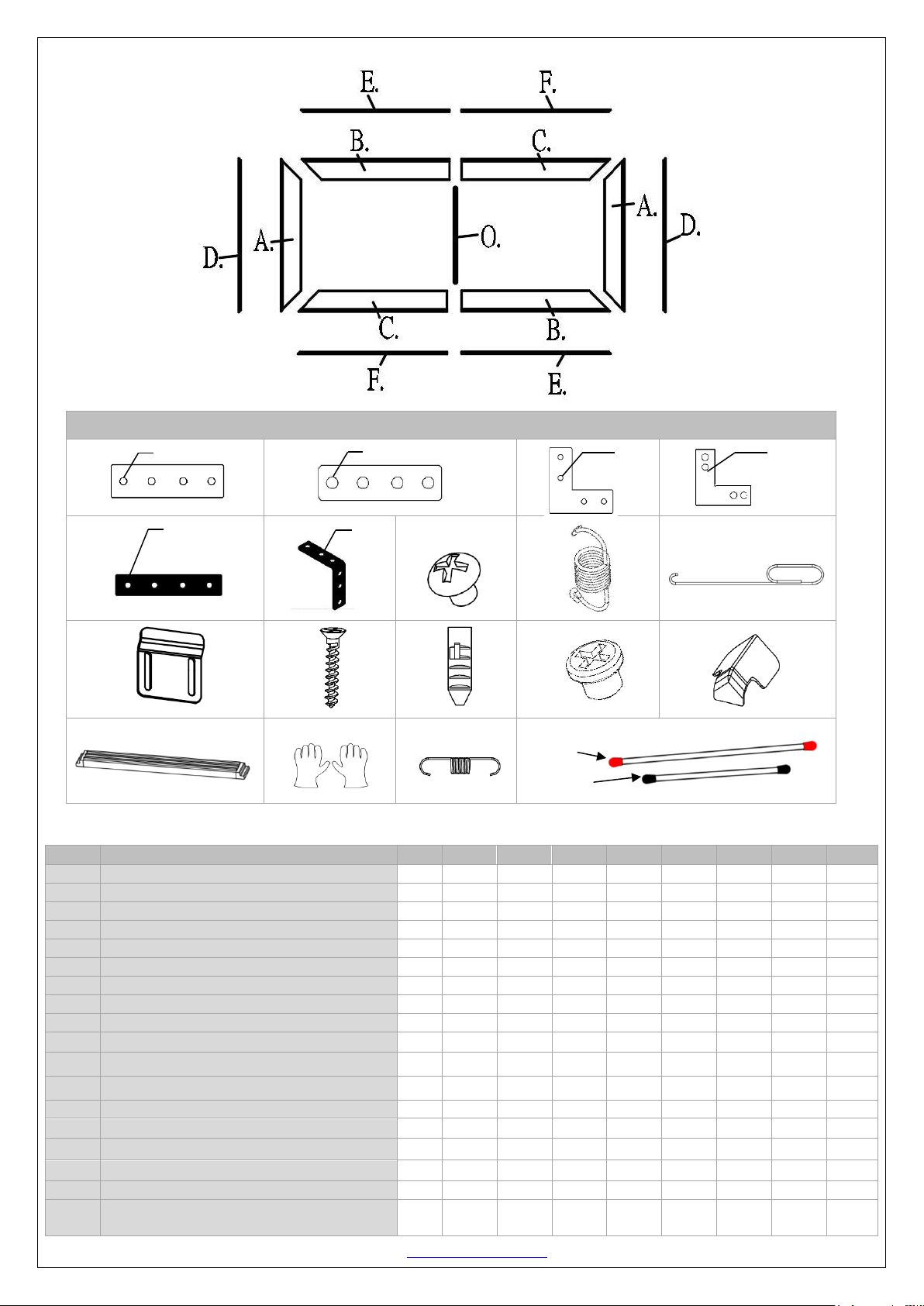

1. Frame and Edge Trim Parts List

Qty

item

2 pcs

Main Frame Parts

Qty

item

2 pcs

Edge Trim Parts

Part A.

vertical frame

Part D.

Part B.

½ horizontal frame

Part E.

Part C.

½ horizontal frame

Part F.

04202021JA SN 211M + www.elitescreens.com U-00197 2

2. Hardware Parts List

a. M4*4

b. D5*4

c. M4*4

d. D5*4

e. M4*4

f. M4*4

Item

Parts List

92’’

100’’

110’’

120’’

125’’

135’’

150’’

180’’

200’’

Center Joints- M4 (bottom position)

Center Joints-D5 (top position)

Elbow Joints M4 (bottom position)

Elbow Joints D5 (top position)

Side cover Center Joints- M4

Side cover Elbow Joints M4

M4x7 Screws

Spring

104

112

Spring Hook

wall brackets

Φ5x50 Wall Screws

Hollow Wall anchors

M4x4 Screws

Angle cover

Center Support Bar

White gloves

Spring

Φ3 mm Long Iron (sides) rod /

Short rod (top/bottom)

2/4

Red

Black

04202021JA SN 211M + www.elitescreens.com U-00197 3

Frame Assembly

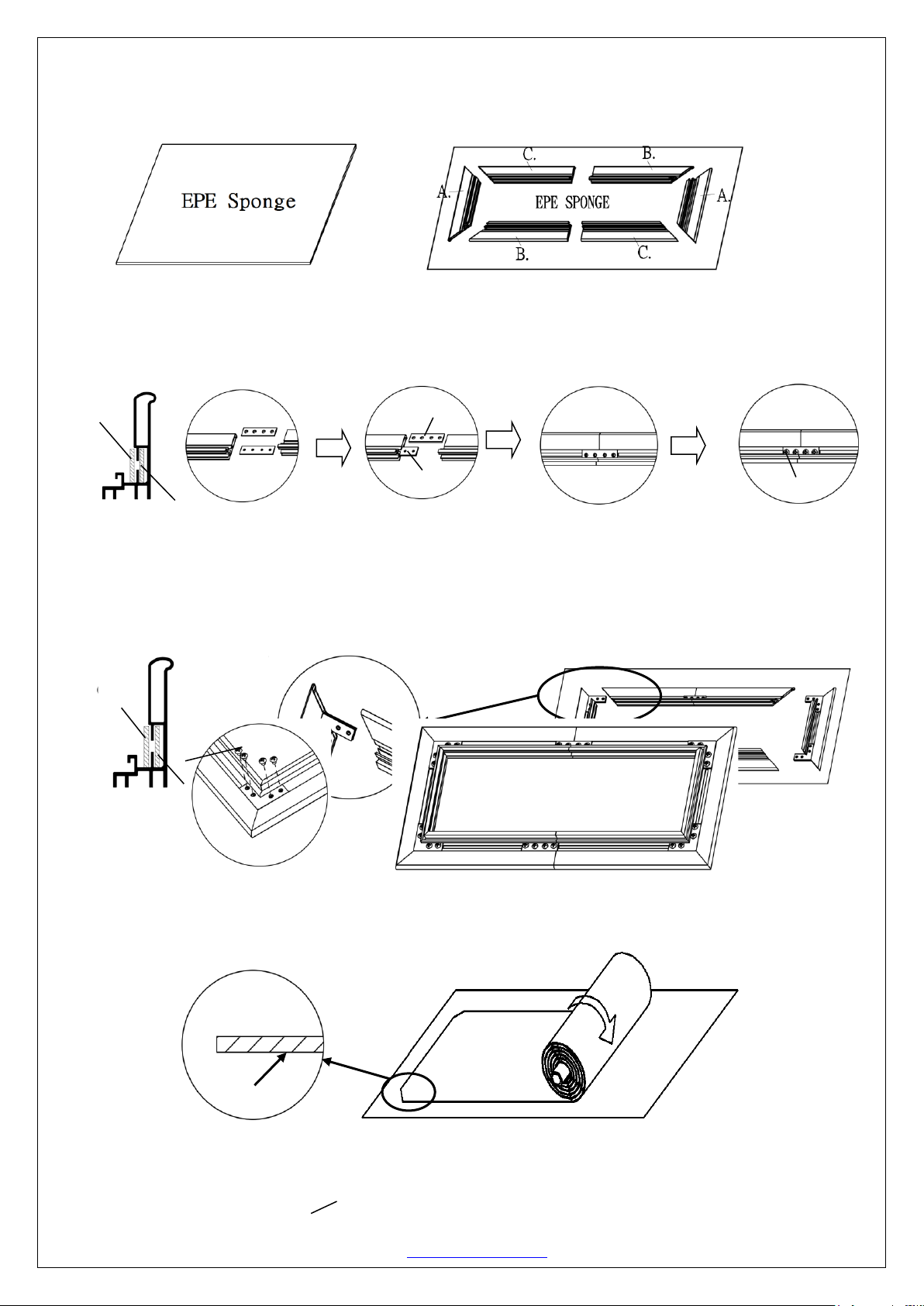

Step 1: Place the included soft padded EPE sponge sheet on a clean area where the screen will be assembled.

Step 2: Position the pieces of the frame on the EPE sponge in the arrangement shown below

Step 3: Insert center joint (a/b) connectors into one-half of the horizontal frame (B/C) and secure with the M4x7

screws (M) as shown in the illustration below.

Tip: The center joint (b) with the larger diameter holes should be on top.

Step 4: Connect the elbow joints (c/d) to the top and bottom sections of the vertical frame. Once inserted, connect

the vertical sections to the horizontal frame sections. Make sure all holes are in alignment and the frame pieces are

flush (no gaps). They should form perfect right angles.

Tip: The elbow joint (d) with the larger diameter holes should be on top.

Step 5: Secure the elbow joints by fastening them with M4x7 screws (

, 4 at each

corner.

Screen Material

Step 6: Put on the white gloves (p) and carefully unroll the screen material on a clean surface from the roller to the

other side as shown below. The back side of the screen material should be placed upwards.

Step 7: Insert the rods (r) through the sleeves according to their corresponding lengths on each edge of the screen

as shown below. The short rods (top/bottom) will overlap to secure a firm grasp in the middle areas.

2. Hardware Parts List

Back side

Front

Back Side

…

r. (Black tips)

04202021JA SN 211M + www.elitescreens.com U-00197 4

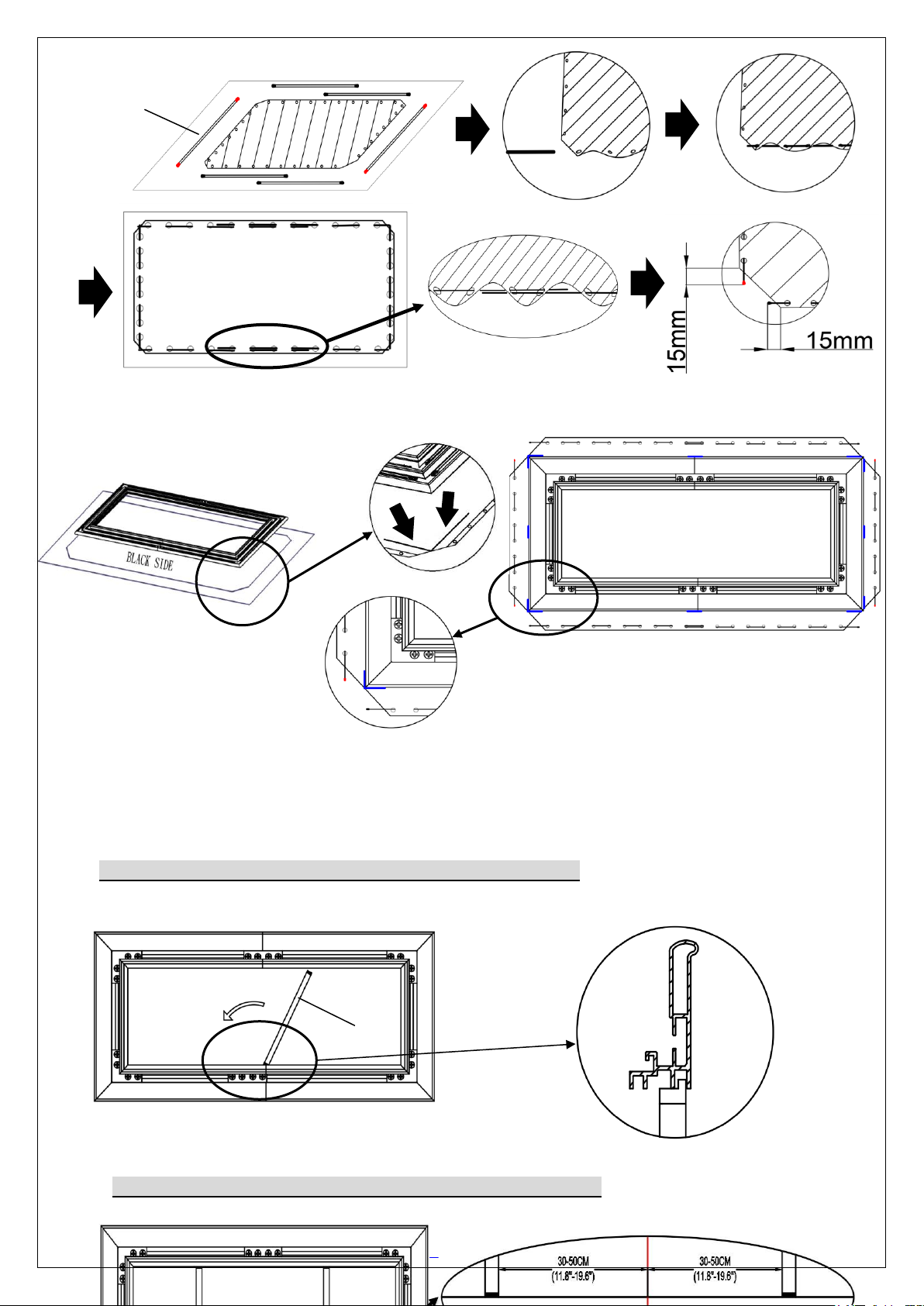

Step 8: Carefully and gently place the assembled frame on top of the screen material in the marked areas as shown

below. Make sure to not allow the angle edge of the frame to come in direct contact with the screen material to

avoid puncturing it.

Center Support Bar

Step 9: Insert the Center Support Bar (o)into the upper top groove on the back of the frame with the bottom end

near the approximate center point of the frame and rotate it in at an angle so that both ends of the bar are in alignment

with the groove.

*Make sure the frame corners are positioned

in the marked areas of the material.

Back Side

r. (Red tips)

Back Side

Back

Side

Back

Side

Diagonal Models above 150” require 2 x Center Support Bars

Diagonal Sizes of 150” and belowuse 1 x Center Support Bar

04202021JA SN 211M + www.elitescreens.com U-00197 5

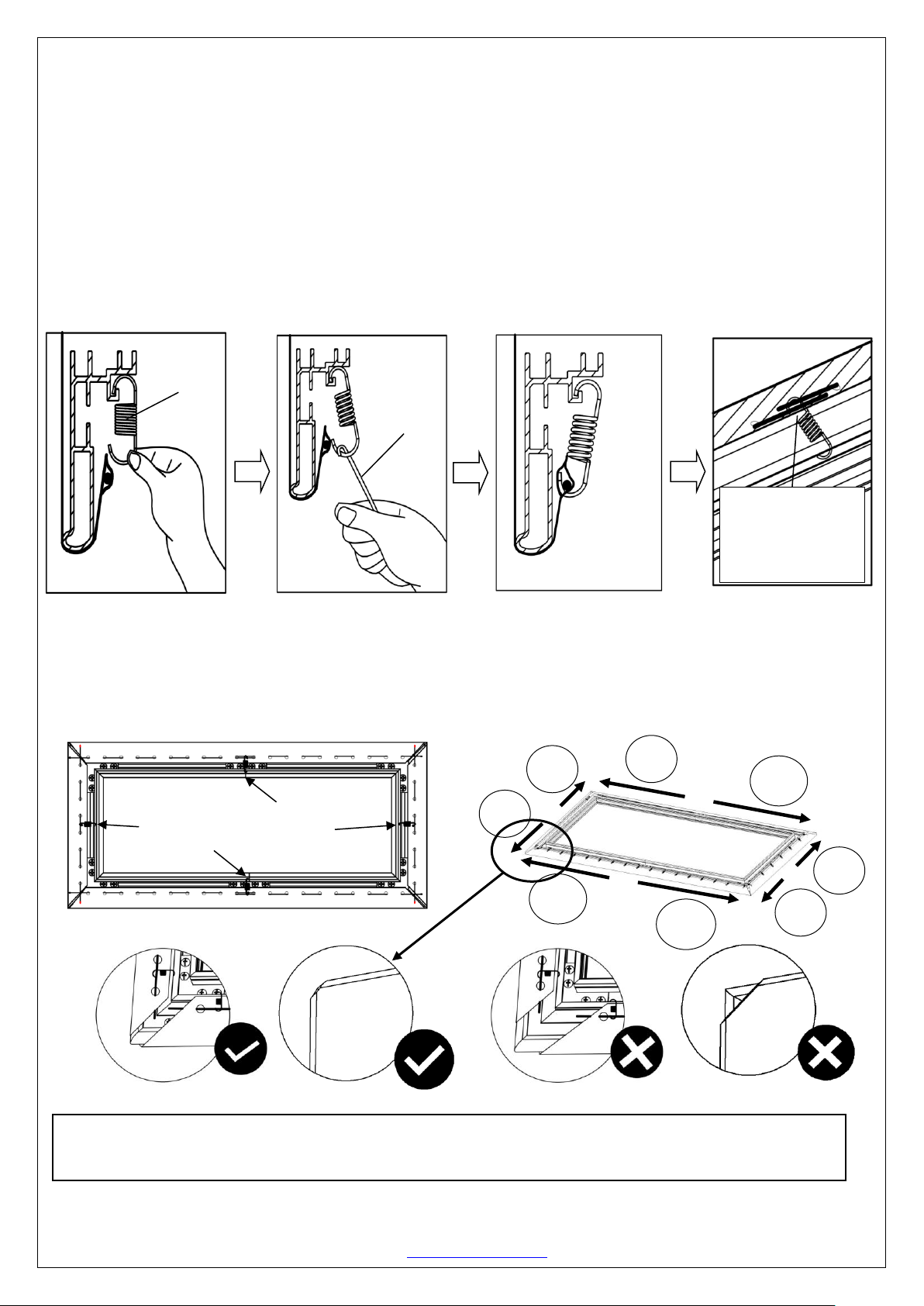

Step 10: Hook one end of the spring and secure inside the groove of the frame, use the spring hook (h) to attach

the spring to the hole located on the screen material’s outer edge in the following order.

Begin by first attaching the center points on both vertical (left/right) sides, steps 1-2. Then the center points on both

horizontal (top/bottom) sides, steps 3-4. Once all center points have been secured, make sure the screen material is

still within the marked areas before proceeding to attach the next springs.

Continue attaching the rest of the springs to the material in the following order in steps 5-12.

Note (after all springs have been attached):

To avoid ripples forming in the material it is imperative that all of the corners are properly wrapped around the

edges as illustrated in the check mark diagrams.

Spring must hook

both overlapping

short rods.

04202021JA SN 211M + www.elitescreens.com U-00197 6

Correct material installation –Corners of the screen material are properly wrapped around the corner edges of the

frame and material is evenly tensioned and flat, creating a nicely taut surface.

Incorrect material installation –The corners of the screen material are not properly wrapped along the edge of the

frame leaving the material with unbalanced tension and an uneven finish. To correct, detach springs from material at

the corner(s) where material does not lie flat along the edge of the frame, reposition the material so that it lies flat

and wraps along the edge of the frame, and reattach springs to the material.

Note: Please make note of the yellow label and spring in the center of the frame. This is an indicator to start the

screen material installation process from the middle area of the frame.

How to avoid getting ripples on the screen’s material surface

Solution: Pull and smooth out the material using your hand from the center to the corners, creating a nicely taut

surface as shown below.

Edge Trim Installation

ATTENTION: THE TOP EDGE TRIM PIECE WITH THE LOGO SHOULD BE INSTALLED ON THE TOP.

Step 11: Place the edge trim frame pieces over each end of the frame.

Connect edge trim frames (e/f) together using the M4 center joint (e) and secure with four of the M4x4 screws (m)

as show in Step 1. Repeat for other side.

Once both top and bottom edge trim frames have been connected, attach the vertical (left/right) sides edge trim

frames (d) using the elbow joints (f) and secure with four M4x4 screws (m) on all corners, Step 2.

04202021JA SN 211M + www.elitescreens.com U-00197 7

Step 12: Install the angle cover (n) on each corner of the frame using the M4x4 screws (m).

Note: The angle cover screws holes align with the screw holes on the elbow joint.

Step 13: Install the springs (q) in each middle area to further support the bezel trim edge frame.

Wall Installation

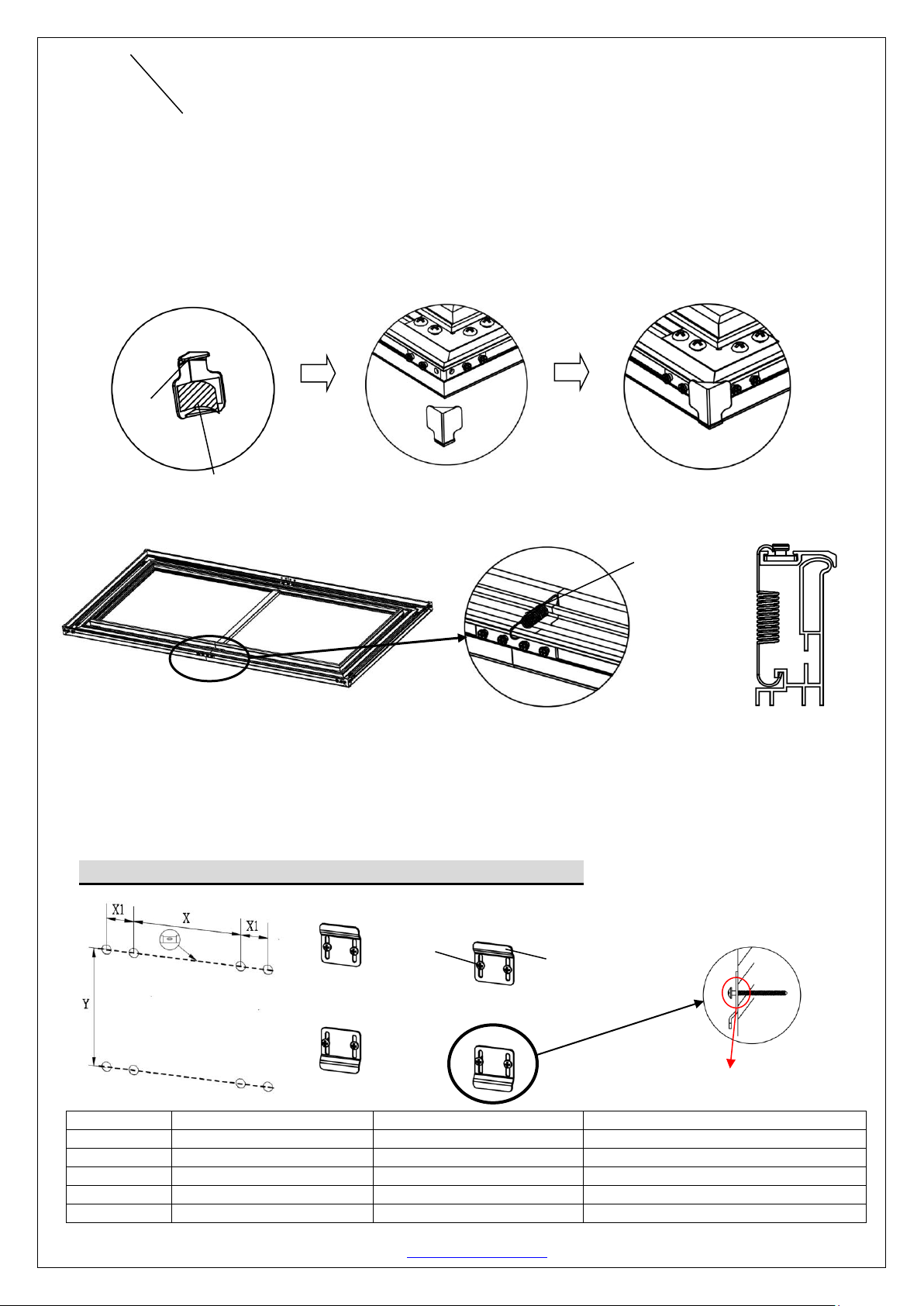

Step 14: Measure the overall length and height of the frame and drill holes for the top brackets. Line up the wall

brackets with the drilled holes on the installation location and screw them in using a Phillips screwdriver. If not

installing into a structural wood stud, use a hollow wall anchor then screw in the M5x50 wood screws with a

screwdriver. Make sure the brackets are leveled.

Model/Size

X = Wall bracket distance

X1 = Bracket hole distance

Y = Top/Bottom Wall Bracket Height

92’’

1100mm (43.30”)

30mm (1.18”)

980mm (38.58”)

100’’

1200mm (47.24”)

30mm (1.18”)

1080mm (42.52”)

110’’

1300mm (51.18”)

30mm (1.18”)

1210mm (47.64”)

120’’

1400mm (55.12”)

30mm (1.18”)

1330mm (52.36”)

125’’

1400mm (55.12”)

30mm (1.18”)

1400mm (55.12”)

Don’t lock the screw to the bottom.

Tear off the double-sided tape.

Diagonal Sizes of 150” and below use 4 x wall brackets

04202021JA SN 211M + www.elitescreens.com U-00197 8

Step 15: Position the fixed frame screen onto the top wall brackets as shown below and push down at the center of

the top of the frame to secure.

135’’

1500mm (59.06”)

30mm (1.18”)

1520mm (59.84”)

150’’

1600mm (62.99”)

30mm (1.18”)

1710mm (67.32”)

Model/Size

X = Wall bracket distance

X1 = Bracket hole distance

Y = Top/Bottom Wall Bracket Height

180’’

1000mm (39.37’’)

30mm (1.18”)

2080mm (81.88’’)

200’’

1100mm (43.30’’)

30mm (1.18”)

2330mm (91.73’’)

Don’t lock the screw to the bottom.

Diagonal Models above 150” require 6 x wall brackets

For Technical

Support or an Elite

Screens contact in

your area, visit

www.elitescreens.com
