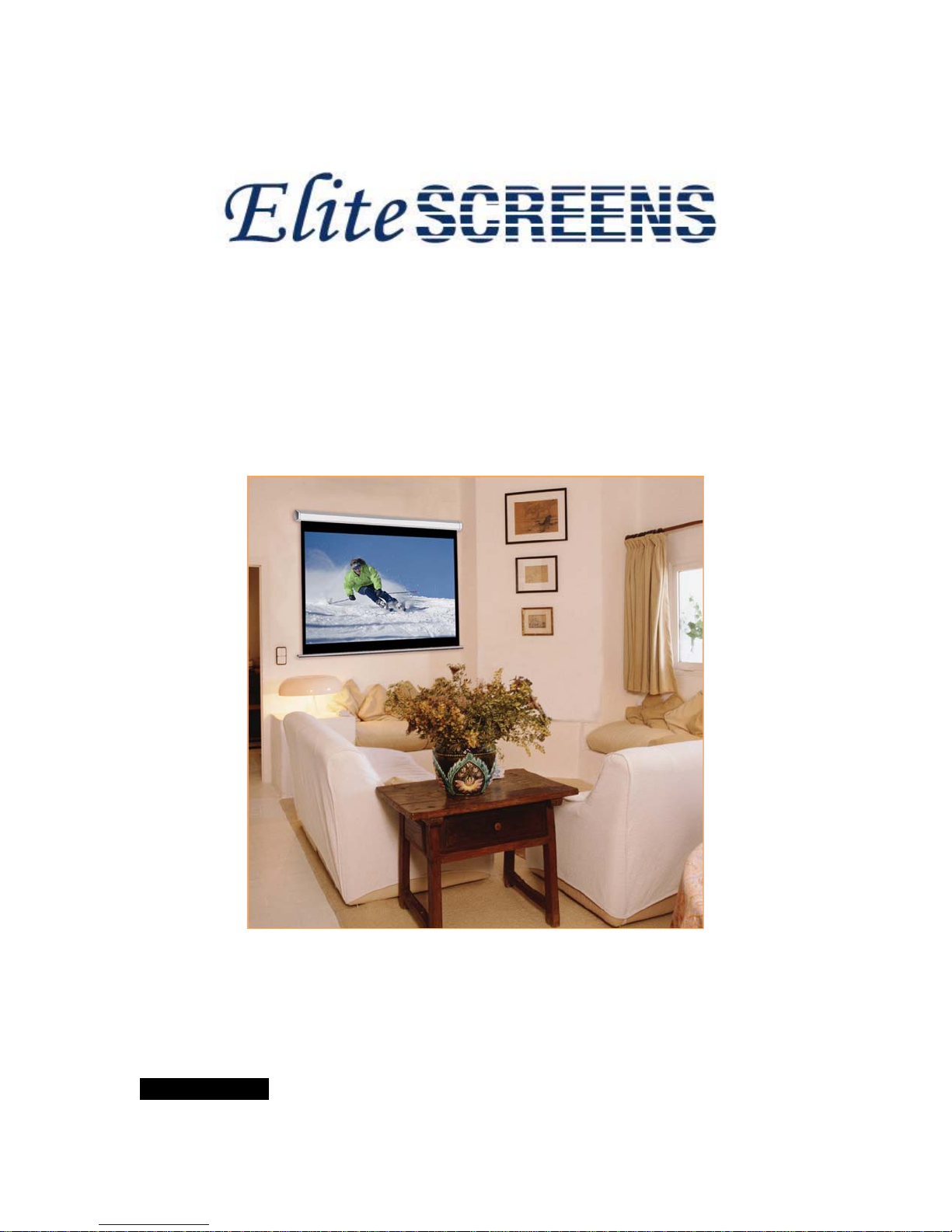

Manual Pull-Down Screen

Elite Manual Series

-TYPE C-

USER’S GUIDE

MATTE WHITE

Rev. 1.3

Pre-installation

1. Carefully unpack the screen

2. Always handle the screen in a leveled position on a clean surface.

Installation

Flush Wall Mounting

1. Using a tape measure, mark the keyholes that are located at the back of the

screen’s case end cap. 2. After marking the area and predrilled hole, insert the

screw and leave about 1/8” of an inch from the wall to mount the screen. Fig. 1

Fig. 1

Ceiling Mounting (additional hardware required)

Optional installation using a chain to hang the screen from the ceiling

Rev. 1.3

Loops

Fig. 2

2. You can also hang the screen on a ceiling by using a chain with s-hooks (not included)

and hang it by the two loops located on each end of the case as shown on Fig. 2.

“L” Bracket diagram

Find the studs on

your wall or use

drywall anchors to

install L brackets to

the desired location.

Top of “L” bracket from top view

6-3/4”

Height

1” Width 6-3/4” Length

Rev. 1.3

“L” Bracket accessories

“L” Brackets Installation

Wood/Dry Wall installation: Use “B”

wood screws provided for installation on

wood studs on wall. Or use “E” hollow wall

anchors provided in conjunction with the

wood screws for dry wall installation as

shown on Fig. 3.

Hang from your screen’s

loops located on the end

caps using the hooks

(A) provided with the L

bracket kit.

Fig. 3

Masonry/Cement wall installation:

Use “D” bolts provided for installing

your screen on a cement wall as shown

on Fig. 4.

Fig. 4 Hang from your screen’s

loops located on the end

caps using the hooks

(A) provided with the L

bracket kit.

Rev. 1.3

SCREEN OPERATION

Note: Always pull the screen down in a 90-degree vertical angle and do not allow the

screen to touch the screen case when the screen comes down to avoid damaging the

screen material.

1. Pull the screen down from the rope or from the handle only in a 90-degree angle.

Do not attempt to pull the screen down by the surface or touch the screen, as it

will damage the screen and void the warranty. Fig. 5

. 5

Note: An internal auto-lock mechanism system will cause the screen to stop and lock

on the position on intervals.

2. If you want to the screen to retract back, simply pull down the screen down more

than 2 inches and retract the screen back by quickly and smoothly releasing it up

gently. Fig. 6 (Always release in a 90-degree angle and do not let go until the

screen is entirely inside the case)

Fig. 6

Note: Improperly bringing the screen up/down will damage the screen material or

rolling system.

Maintenance

Clean matte white screen material with a soft cloth and mild soap with water.

When not in use, retract screen in it’s housing to keep the surface clean

Rev. 1.3

NOTE:

Regardless of mounting method, screen should be securely

supported so that vibration or even abusive pulling on the viewing

surface will not cause case to work loose or fall. Installer must insure

that fasteners used are of adequate strength and suitable for the

mounting surface chosen.

Fill this in!!

For the convenience of service, record the following information in the space below.

The serial number can be located on the packaging box or on an end cap.

Screen Model:

Serial Number:

Date of Purchase:

Dealer / Reseller Purchased from:

Tel: 562-483-8198

www.elitescreens.com

[email protected]

Rev. 1.3
