VMAX2 Series

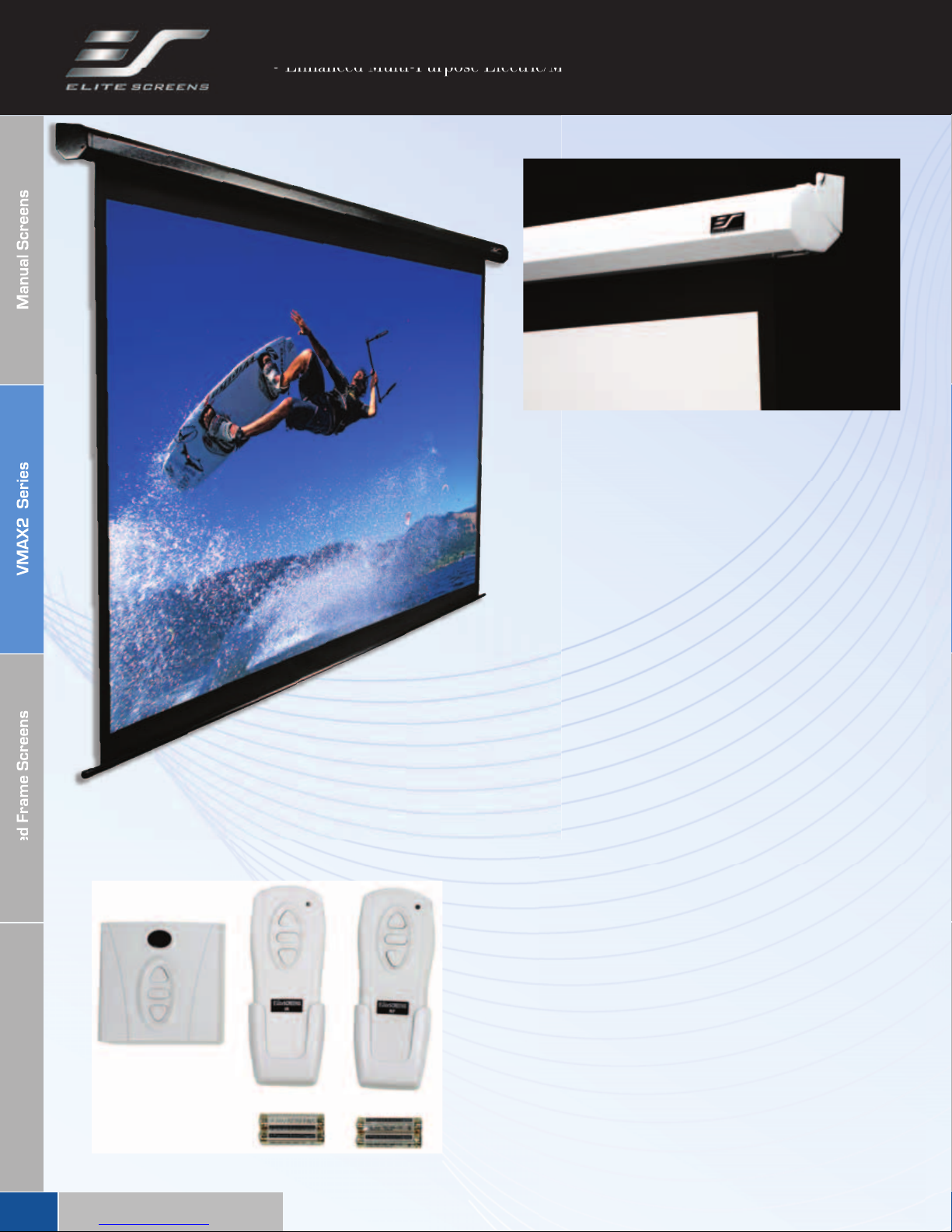

• Enhanced Multi-Purpose Electric/Motorized Screen

Graph

• The VMAX Screen Material is the most common

material for today’s New Projectors

¸MaxWhite™ 1.1 Gain matte white screen Material is

durable and easy to clean

¸SilverGrey 1.0 Gain Contrast Grey Material is ideal for

enhancing black levels with Low contrast projectors

¸AcousticPro™ Screen Material combines sound

transparency with picture quality

¸160° Wide Viewing Angle

¸In-Stock size from 84" (213cm)-400" (1016cm), 1:1,

4:3 & 16:9 Aspect Ratio

• Total Control

¸Includes Radio frequency (RF) remote to operate from

up to 100' away without the necessity of Line of Sight

(LOS) connection

¸Standard Infrared (IR) Remote control & 3-Way Wall

Box

¸Built-in 5-12 Volt Trigger enables Drop/Rise operation

to synchronize with the projector’s power cycle

¸Low Voltage Internal IR/RF Receiver

¸CAT5 cable with RJ45 Connector for easy extension

5-12V trigger/IR Receiver/3-way wall box

¸Optional Ceiling Trim Kit Wireless/RF Projector Trigger

• Installation

¸ Durable Casing for wall & ceiling installation

¸Install kit includes mounting screws and bubble level

¸Ships fully assembled with 3-prong power connection

ready to Plug & Play

¸Adjustable Vertical Limit Switch to regulate drop/rise

settings

• Quality and Reliability

¸Synchronized Motor allows silent operation with

extended operational longevity and Low Power

Consumption

¸2 Year Manufacturer’s Premium Warranty

001 www.elitescreens.com

Manual ScreensVMAX2 SeriesFixed Frame ScreensPortable Screens

024

www.elitescreens.com

Manual Screens VMAX2 Series Fixed Frame Screens Portable Screens

Internal Infrared (IR) and Radio Frequency (RF) Receivers provide total

control while maintaining the streamlined simplicity of this product.

For added durability and enhanced product apperance, the Elite

VMAX2 Series uses an all-steel casing construction including the end

caps.

The VMAX2 has various control options that work in conjunction with its

Low Voltage Controller (LVC). A 12V trigger port uses a standard RJ45

connection and synchronizes the screen’s drop and rise with your

projector’s power cycle. The wall box kit can be installed as an external

wall-mounted control or use the extended IR “Eye” receiver for

recessed ceiling installations.

Elite Screens MaxWhite™ screen material is easy to clean and

durable for daily use. It comes with a 1.1 gain projection

surface and 160˚ wide viewing angle, it is suitable for most

applications from commercial presentations to home cinema.

The material is black-backed to eliminate light penetration while

its textured projection surface helps to eliminate Moiré or “hot

spotting”.

AcousticPro™ Transparent Screen Material is durable for

daily use and easy to clean. It has a wide viewing angle

with 1.0 Gain, suitable for most presentations with an

In-Wall Speaker System.

AcousticPro’s mesh design is acoustically transparent to

combine sound clarity with clear color reproduction.

The VMAX2 Series comes with 2-30 inches of Top Black masking borders along with side and bottom masking to

enhance the format of your presentation to avoid projection overshoot.

The VMAX2 Series has pre-set but adjustable vertical limit switches for versatility in your drop/rise settings.

There are three ways to install the VMAX2 Electric Screen

1. Wall Mount (Flush directly to wall or with optional 6" L bracket)

2. Ceiling Hook (use with or without our optional 6" L bracket)

3. In-Ceiling installation with our Optional In-Ceiling Trim Kit (Please Ref. to Accessory List)

EliteScreens AcousticPro2

0.20

0.40

0.60

0.80

1.00

1.20

1.40

55-

-°

3- °

°52

°51-

-°

01 °

15°

°5

3°

04 °

4°

5°

55 °

60°

Gain

EliteScreens MaxWhite

0.2

0.4

0.6

0.8

1.0

1.2

1.4

-60°

-55°

-0°

-5°

-0°

-5°

-°

-15°

-0°

-°

20°

4°

60°

Gain

025 www.elitescreens.com

Manual ScreensVMAX2 SeriesFixed Frame ScreensPortable Screens

001

www.elitescreens.com

Manual Screens VMAX2 Series Fixed Frame Screens Portable Screens

VMAX2 Series

• Enhanced Multi-Purpose Electric/Motorized Screen

Optional 6", 12", 18" L brackets are available for extended

wall installations. Please contact your reseller or visit

shop.elitescreens.com for accessory parts.

Optional Elite ZR800D Universal Learning

Remote Control allows one control

regulation over your entertainment

system managing up to 8 devices simul-

taneously. Each unit has a simplified

programming option with learning function

to accompany 800 pre-programmed

TV/DVD/VCR codes.

Optional In-Ceiling Kit

001 www.elitescreens.com

Manual ScreensVMAX3 Plus SeriesFixed Frame ScreensPortable Screens

026

www.elitescreens.com

Manual Screens VMAX3 Plus Series Fixed Frame Screens Portable Screens

Plus2(3)-sized 180", 200" and

235" models in-stock for imme-

diate shipping with 1:1, 4:3 and

16:9 format options.

* Available in 2008 New VMAX

Plus3 Model

• In-Stock, Ship Next Day on Diag. 200" (508cm), 235" (597cm), 250" (635cm), 265" (673cm), 300"

(762cm), 350" (889cm) and 400"(1016cm) in 4:3 and 16:9 format

• RF (Radio Frequency) remote control for operation up to 200 feet (100m) away

• Two Low Voltage 3-Way Wall Boxes (In-Wall and On-Wall Switch)

• Standard Built-In IR/RF Receiver and 5-12V trigger

• Simple RJ45(Ethernet) Connector for long distance extend In-Wall IR Receiver (3-Way) Wall

Box/5-12V trigger)

• Easy replacement circuit board

• Simple Side-Slide Tubular Motor for maintenance

• 2 Year manufacturer’s Warranty
