Elite Screens Ceiling Trim Kit Manuale utente

www.elitescreens.com / info@elitescreens.com / 877-511-1211

Ceiling Trim Kit

www.elitescreens.com / info@elitescreens.com / 877-511-1211

Nomenclature for the Elite Screens Ceiling Trim Kit

*For your convenience, the components have been numbered in

correspondence with a brief description and detail picture.

④

⑥

⑧

⑦

②

③

①

⑤

www.elitescreens.com / info@elitescreens.com / 877-511-1211 ③

③ left installation

plank

① Suspension Bar- 4PCS

(39” /1000±80mm each)

⑧ assembly bolt/nut

-10PCS

⑦mounting screw

- 8PCS

⑥right installation

plank -1PC

⑤ right bracket -1PC

② left bracket - 1PC

④ceiling panel - 2PCS

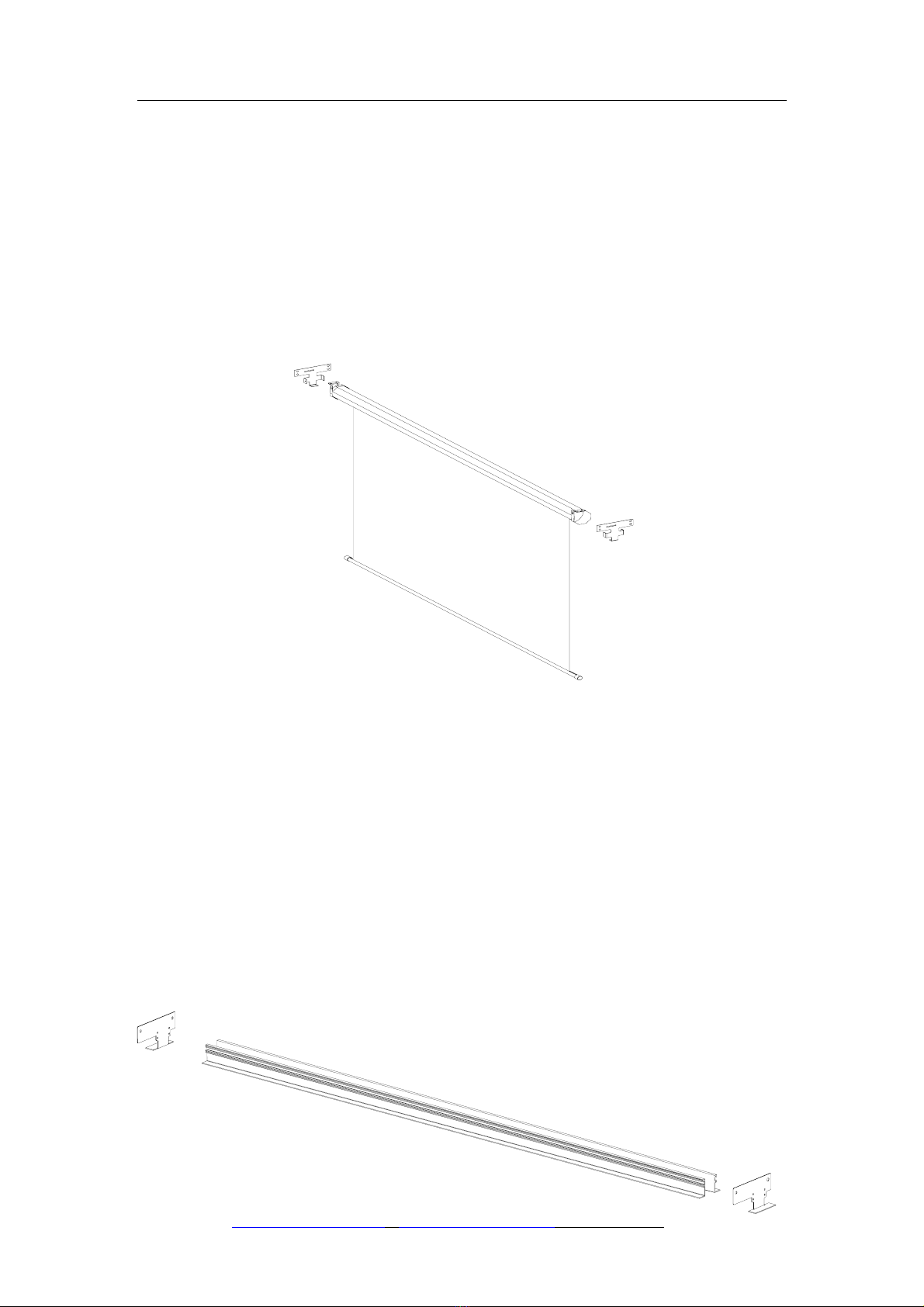

Step 1:

Set left and right brackets on the end caps of the screen

casing. The mounting (#8) screws assembly bolt/nut set

will pass through the assembly bar and attach to the

brackets.

Step 2:

Install the ceiling panel. Use (# 7) mounting screws to

attach the left and right installation planks. (*Note:

Left/Right is designated from the perspective of the viewer

looking at the projection surface)

www.elitescreens.com / info@elitescreens.com / 877-511-1211

www.elitescreens.com / info@elitescreens.com / 877-511-1211

Step 3:

Attach the (#4) suspension bar using (#8) Screws type. Overlap

hanging bar to determine various length you need in the ceiling.

⑤

www.elitescreens.com / info@elitescreens.com / 877-511-1211

Assembling dimension instruction:

Unit： INCH/ CM

www.elitescreens.com / info@elitescreens.com / 877-511-1211

Warranty Policy

*Valid in the US and Canada only

•Two (2) year warranty parts and labor from purchase date as follows (except for

refurbished units as specified below):

•Each party will be responsible for one way shipping during the warranty

return/exchange.

•DOA (Defective On Arrival): Must be reported within 7 business days of receipt.

An RMA (Return Merchandise Authorization) number must be issued in order to

process a replacement. Elite Screens will replace the DOA (Defective on Arrival)

unit with a brand new replacement *(see exceptions below) after the DOA unit is

received and/or confirmed defective. Once the product is received, Elite

Screens will send out a new *unit to the customer by ground service (subject to

inventory availability). Should a problem be reported after the 7-day grace

period, the item must be shipped to us for warranty repair.

•Missing Parts must be reported within the 7-day (DOA) grace period. If reported

after 7 days, customer will be only be responsible for shipping and handling

fees up to 30 days. If reported after 30 days of receipt, customer is responsible

for cost of the parts and shipping & handling fees.

zFor Sales Questions, please contact info@elitescreens.com

zFor any technical inquiries, Please contact techsupport@elitescreens.com

zFor warranty Claim, Please contact [email protected]

REGISTER YOUR WARRANTY WITH ELITE SCREENS INC.

www.elitescreens.com/register.html

If you have any installation pictures of Elite Screens, you’d like to share with us, please

email your pictures to [email protected]
