Elkron TC680-IP Manuale utente

IS1160-AA

Manuale di Installazione

Installation Manual

TC680-IP

IP Camera

17/32 TC680-IP

TABLE OF CONTENTS

CHAPTER 1. Minimal system requirement........................................................................................................................ 3

1.1 Computer hardware ................................................................................................................................................ 3

1.2 Software.................................................................................................................................................................. 3

1.3 Installation............................................................................................................................................................... 3

CHAPTER 2. Operation manual.......................................................................................................................................... 4

2.1 Installation method.............................................................................................................................................. 4

2.2 IE browser setting (only requires first time usage setting).................................................................................. 4

2.3 Network on-line.................................................................................................................................................... 5

2.4 Network control ................................................................................................................................................... 6

2.5 View Log.............................................................................................................................................................. 7

2.6 System Setting .................................................................................................................................................... 8

2.7 User Management............................................................................................................................................... 9

2.8 Network Setting................................................................................................................................................. 10

2.8.1 IP Assignment.................................................................................................................................................... 10

2.8.2 PPPoE................................................................................................................................................................ 11

2.9 DDNS ................................................................................................................................................................ 12

2.10 Motion Detect .................................................................................................................................................... 13

2.10.1 Motion Detection Setting........................................................................................................................ 13

2.10.2 Mail Setting............................................................................................................................................. 13

2.10.3 FTP Setting ............................................................................................................................................ 14

2.11 CCD Module...................................................................................................................................................... 15

2.12 Advance Setting ................................................................................................................................................ 15

2.13 Setting up a multiple IP camera web server...................................................................................................... 16

CHAPTER 3. FAQ............................................................................................................................................................... 17

18/32 TC680-IP

1. MINIMAL SYSTEM REQUIREMENT

1.1 Computer hardware

1. CPU: Intel Pentium or AMD, 800MHz or above

2. Microsoft Windows 98, ME, 2000 or XP

3. 128MB RAM or above

4. 5GB available hard drive space

5. 800x600 display monitor with 16 bit color

1.2 Software

1. Inside the CD there are two types. Cht represents the application program and manual in Chinese language.

Eng represents the application program and manual in English language.

2. Application program: IPInstallerCht.exe: Chinese user interface

3. IPInstallerEng.exe: English user interface

4. If Microsoft O.S is utilized, inside the computer it is necessary to have IE browser.Ver6.0.

5. If Linux O.S. is utilized, for the setting please refer to the setting of Linux.

1.3 Installation

As there are different network systems, therefore there are a few different installation methods that will be introduced

separately.

1. (Static IP) fixed IP

2. (Dynamic IP) dynamic IP

3. (PPPoE) dialing method

For various installation methods.

19/32 TC680-IP

2. OPERATION MANUAL

2.1 Installation method

Install the IPInstallerEng.exe first and the desk will provide IP scanning function.

If IPInstallerEng.exe is installed, omit the setting explanation in 2.3

IP position setting

Install the machine inside the LAN internal network or utilize cross-over interlaced network cable directly (in the

accessories pack) and one computer to conduct direct connection. This step is to set the IP position of the IP Cam.

Following this execute the IPInstallerEng.exe and the following diagram will appear:

The “Device lists” on the left will list out all IP Cam on LAN. When the equipment is pointed by the mouse, the right side

will show the parameters of various networks. Various parameters can be revised on it and by pressing the “Submit” on

the lower part, the revision is completed.

Attention: Please input correct network parameters. No space is allowed between characters.

Search Device: please search for all devices on the LAN once.

Exit: Exit

2.2 IE browser setting (only requires first time usage setting)

If this setting is already installed with IPInstallerEng.exe, the setting of this explanation can be exempted.

IEÆtoolÆInternet network optionÆsafetyÆself assigned level

The above three options are all based on reselect as the prompt.

As indicated in the diagram.

1. Tool

2. Internet option

3. Safety

4. Self assigned level

The above three are all set as prompt. During registration, please select yes

20/32 TC680-IP

2.3 Network on-line

After setting up the IP based on the above step, connect to the intended network or LAN. Execute IE directly on PC.

Directly input IP to conduct on-line as the following diagram:

Default User name admin password admin

The left side of the above diagram is the control panel and the right side is image display.

21/32 TC680-IP

2.4 Network control

The left area is the control panel of the network as indicated in the following diagram.

Divided into 5 types of control:

1. Image Adjust Quality: with 4 options – Best / High / Medium / Low.

Resolution: 3 kinds including VGA / CIF / QCIF.

Advances: Brightness/Contrast/Saturation/Hue/Sharpness.

2. Operation mode Continuous and Periodic:

Cyclical and user can select how many seconds interval and then send out image.

3. Image Capture Recording and Snapshot.

a. Push “Recording” key, the Panel will appear as the following diagram:

On the most upper part select “Select:

Save as JPEG will record as JPEG file with one by one image video recording.

Save as AVI will record as AVI file with one section image video recording.

JPEG and AVI can be set separately:

No limit no limitation on the size of file.

Number will limit how many frames in the file is the maximum number.

22/32 TC680-IP

Size will limit the maximum capacity of the file by how many Kbytes.

Time will limit the longest video recording of the file by how many seconds.

Frame rate how many frames will be recorded within one second.

Save interval how many frame intervals before conducting video recording again, 1

represents 1 frame.

Maximum Number of Frame Each File Maximum number of frames for each file.

Save Path Path of saved file.

Pre Name Name of the saved file.

“Start” at the most lower part will start the video recording. “Cancel”

b. Push “Snapshot” key, the Panel will appear the image, save as file.

4. Configuration View Log For detail description, please refer to “2.5 View Log”.

System for detail description, please refer to “2.6 System setting”

User for detail description, please refer to “2.7 User Management”

Network for detail description, please refer to “2.8 Network setting”

DDNS for detail description, please refer to “2.9 DDNS setting”

Motion Detect for detail description, please refer to “2.10 Motion Detect”

CCD Module for detail description, please refer to “2.11 CCD Module”

5. Delete a camera The IP camera support multi-view function, function for “Delete a camera” is use to

delete camera windows you no longer want to see. For detail description, please refer to

“2.13 Setting up a multiple IP camera web server”.

2.5 View Log

These records include IP that connects to the computer MAC address time

However, after the DVR power is turned off, these records will be removed.

23/32 TC680-IP

2.6 System Setting

There are total 4 subjects need to be set.

1. Server Information

Version Display the present version.

IP Camera Title the name seen at the network end in Chinese and English. Press “Change” on the lower part to

complete.

2. Camera’s time setting

Camera’s time Can select two kinds – “NTP” time setting or “Input new time”. After setting, press “Adjust” on the lower

part to complete.

3. Language Setting

Can select three kinds “English” / “Tradition Chinese” / “Simple Chinese”. After setting, press “Change” on the lower part

to complete.

4. Others

Reboot IP Camera: After pressing, the IP Camera will reboot the machine.

Firmware update: Program of network update on-line. Attach file name .bin

Attention: Please confirm the source of the firmware update, invalid file will cause the camera

malfunctioning.

24/32 TC680-IP

2.7 User Management

User authorization required Yes, set password. No, do not set password.

Administrator / Guest

Administrator

There is only one administrator account allowed to be created “Change Administrator Setting”

Admin Name, Password and confirm require being the same. Then press “Set/Change” to input.

System will need to reboot when once the administrator username is modified.

Guest

Add a user or change password, Admin Name, Password and confirm require being the same. Then press “Set/Change”

to input.

25/32 TC680-IP

Delete user: User name will list out names of all users. Very bottom side “admin” is the highest level user and cannot be

deleted. Others are general users. After it is being pointed, press “Delete” to delete.

User name list: List out names of all users.

Default User authorization required No

Username admin Password admin

2.8 Network Setting

For IP setting, there are two methods, one is IP Assignment and the other is PPPoE.

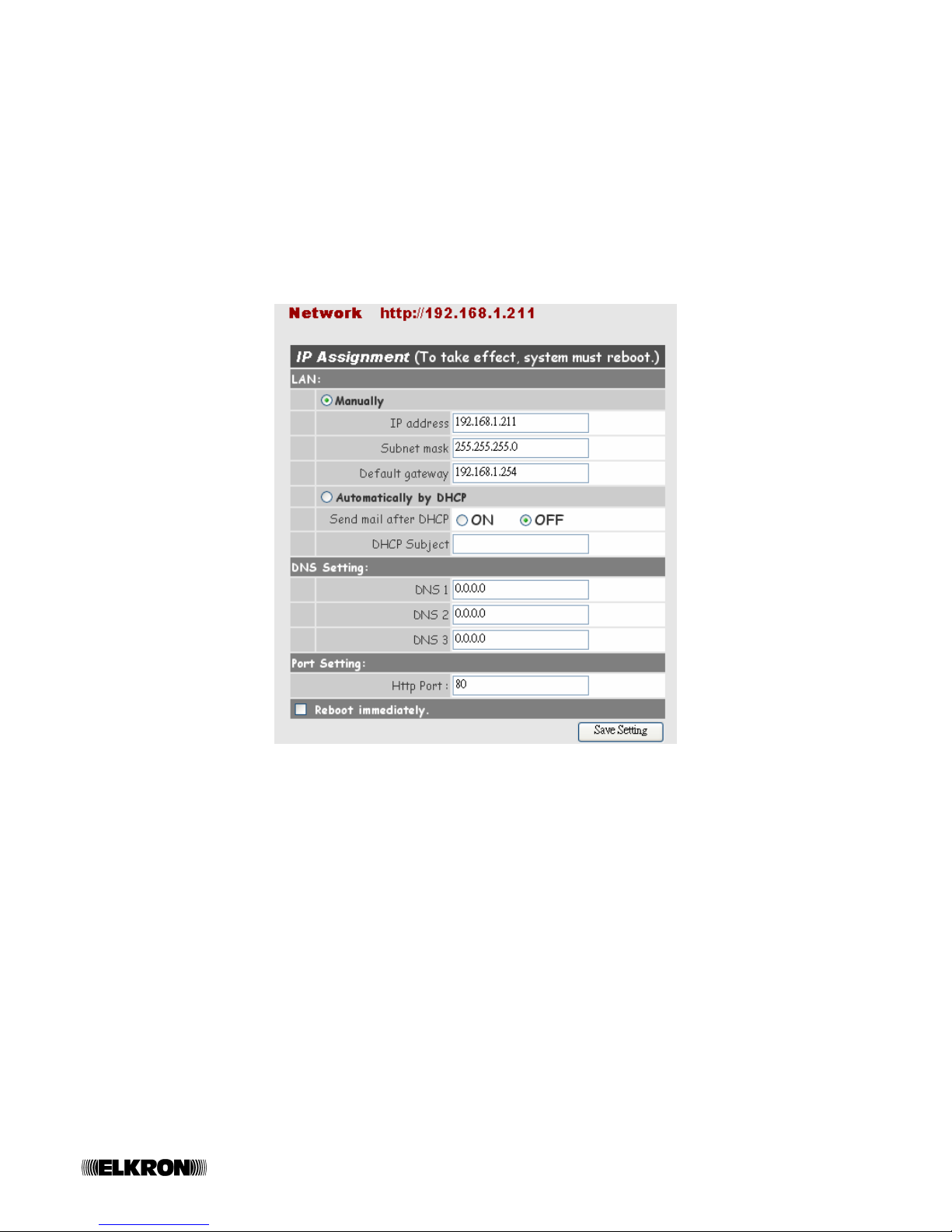

2.8.1. IP Assignment

Network setting: http://192.168.1.212

IP Assignment: Manually setting IP address / Subnet mask / Default gateway

Automatically by DHCP

Send mail after DHCP: Can select two kinds ON/OFF

DHCP Subject e-mail subject

DNS Setting: DNS1 / DNS2 / DNS3

Port Setting: setting http port

Reboot immediately: When the button is selected, system will reboot automatically. Actions will be done

in 60 seconds.

Then press “Save Setting” to input.
