VISUAL PRESENTER

ＭＯ-１

Quick Start Guide

Make sure you read the “IMPORTANT SAFEGUARDS” in the Instruction

Manual contained in the supplied CD-ROM before use.

CONTENTS

Let’s get ready....................................................................................................................3

①Necessary items ............................................................................................................3

②Setting Up......................................................................................................................4

③Connecting to a projector or a monitor ..........................................................................5

④Connecting to a PC........................................................................................................5

Let’s use...............................................................................................................................6

①Turn the power on/off.....................................................................................................6

②Operating.......................................................................................................................6

・Adjusting the size and focus............................................................................................6

・Adjusting the brightness ..................................................................................................7

・Operating panel...............................................................................................................7

Let’s get ready

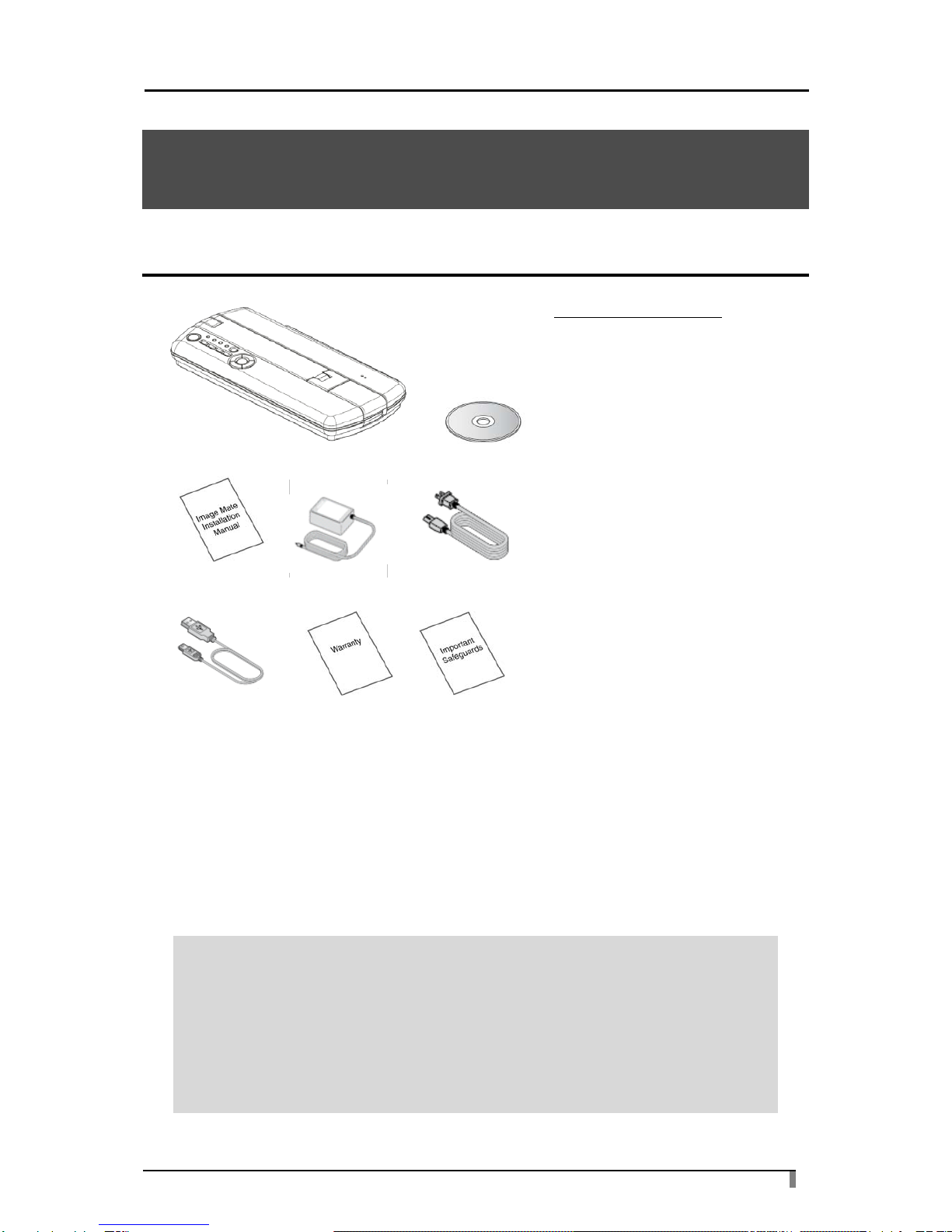

①Necessary items

⑧⑦⑥

⑤④③

Supplied items

①Mobile Document camera

②CD-ROM

(Image mate

/Instruction Manual

/Quick Start Guide)

③Imag Mate Instruction Manual

④AC adapter

⑤AC cord

⑥USB cable

⑦Warranty*

*forN.Americaonly

⑧Important Safeguards

Composition of the instruction manual

Quick Start Guide----------Contains information on the basic operation of this product.

Instruction Manual----------Contains information on the operation and functions of this

product.

Important Safeguards------Contains important notes for the handling of this product.

①

②

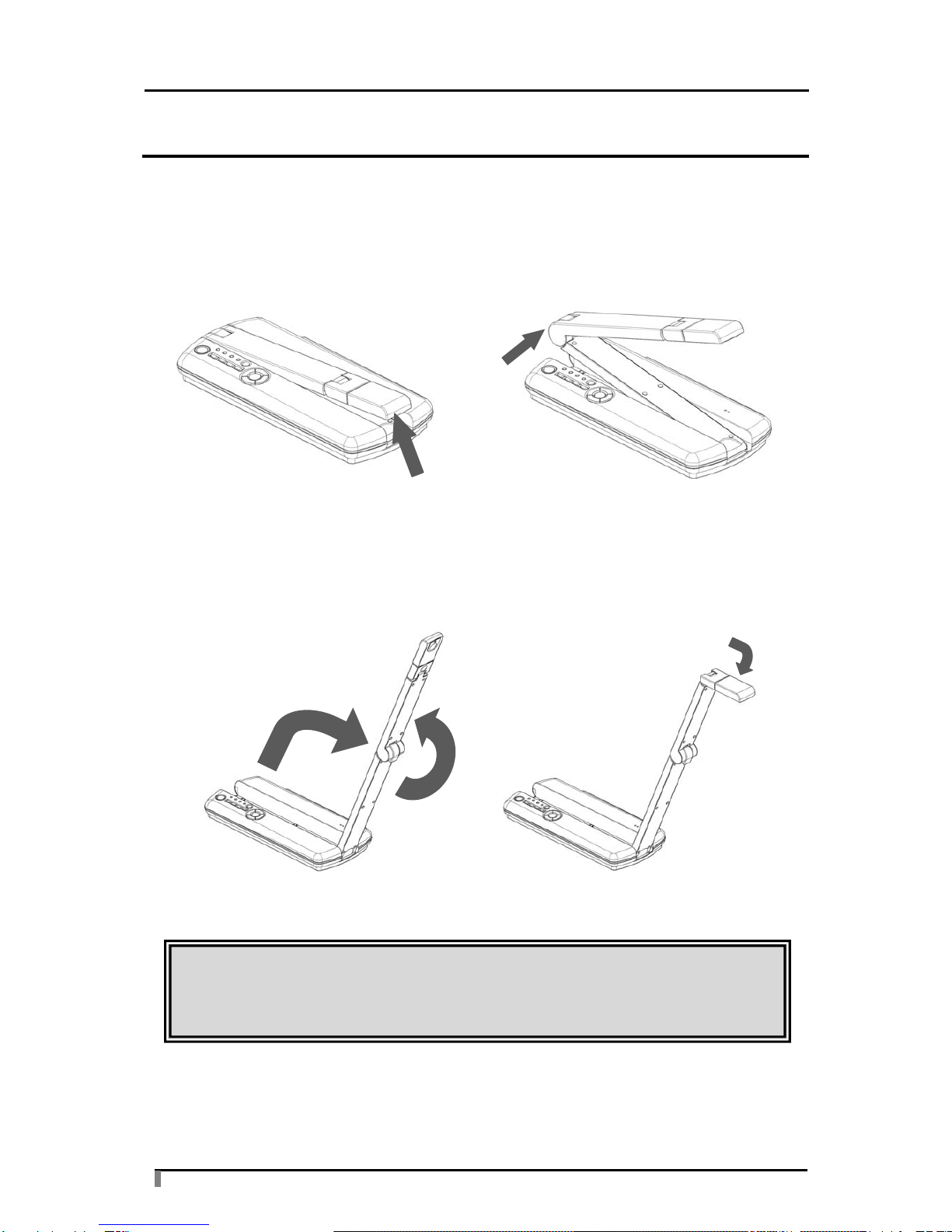

②Setting Up

① Hooking your finger to the position

indicated by an arrow in the

drawing, slightly lift up the arm.

②Lift up the other side of the arm.

③ Move the arm in the direction

indicated by an arrow.

③ Move the camera head so that

it is horizontal.

CAUTION

When moving the arm, pay attention not to pinch your finger.

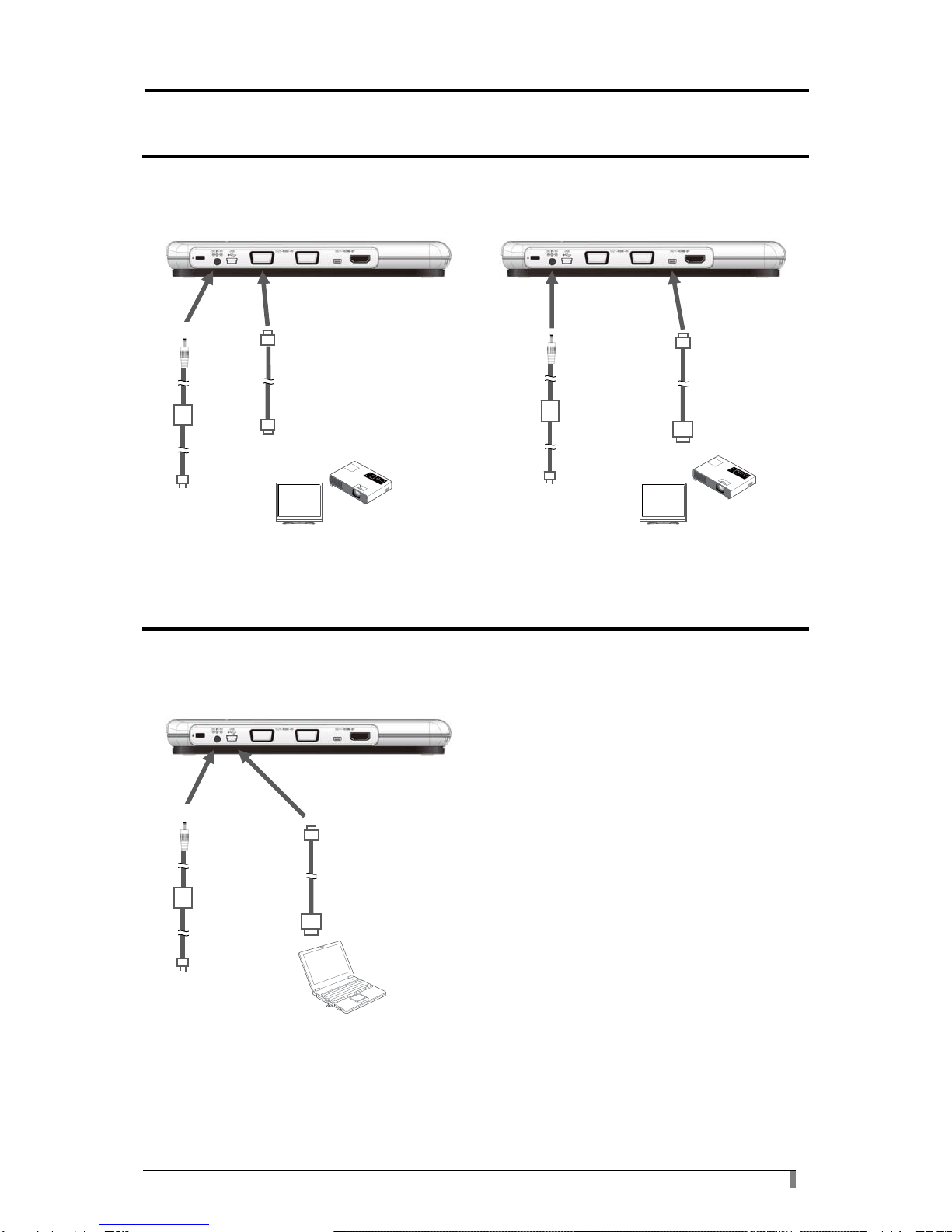

③Connecting to a projector or a monitor

④Connecting to a PC

RGB cable (Option) HDMI cable (Option)

To wall outlet

●Connecting with an RGB cable ●Connecting with an HDMI cable

To projector/monitor

●Connecting to the USB port

Micro HDMI(Type D)

To PC

Mini-B-Type connector

USB2.0 cable

AC Adapter

AC cord

connector

To projector/monitor

AC Adapter

To wall outlet

AC Adapter

AC cord

Let’s use

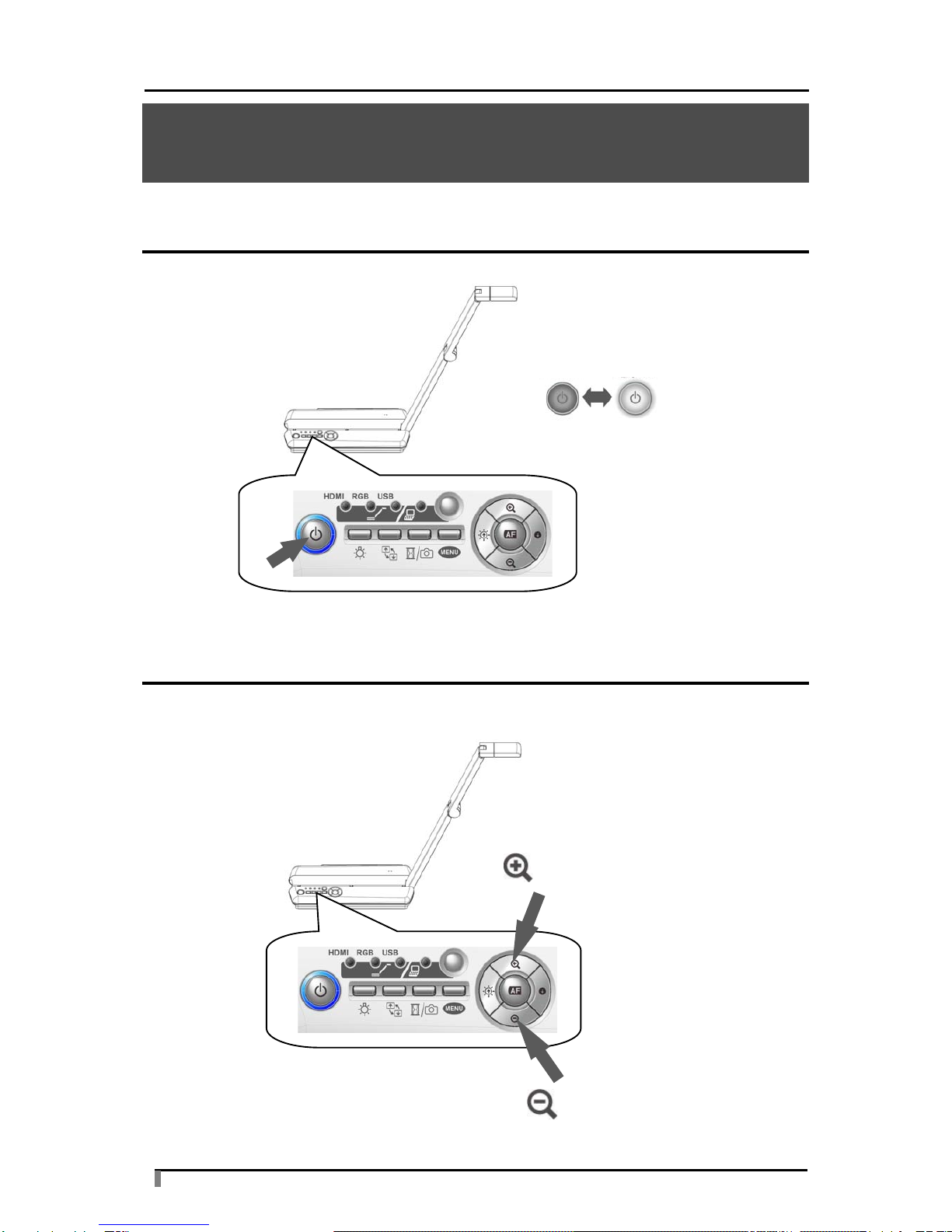

①Turn the power on/off

②Operation

・Adjusting the size and focus

ZOOM-IN（Larger）

ZOOM-OUT（Smaller）

Red Blue

Power

OFF

Power

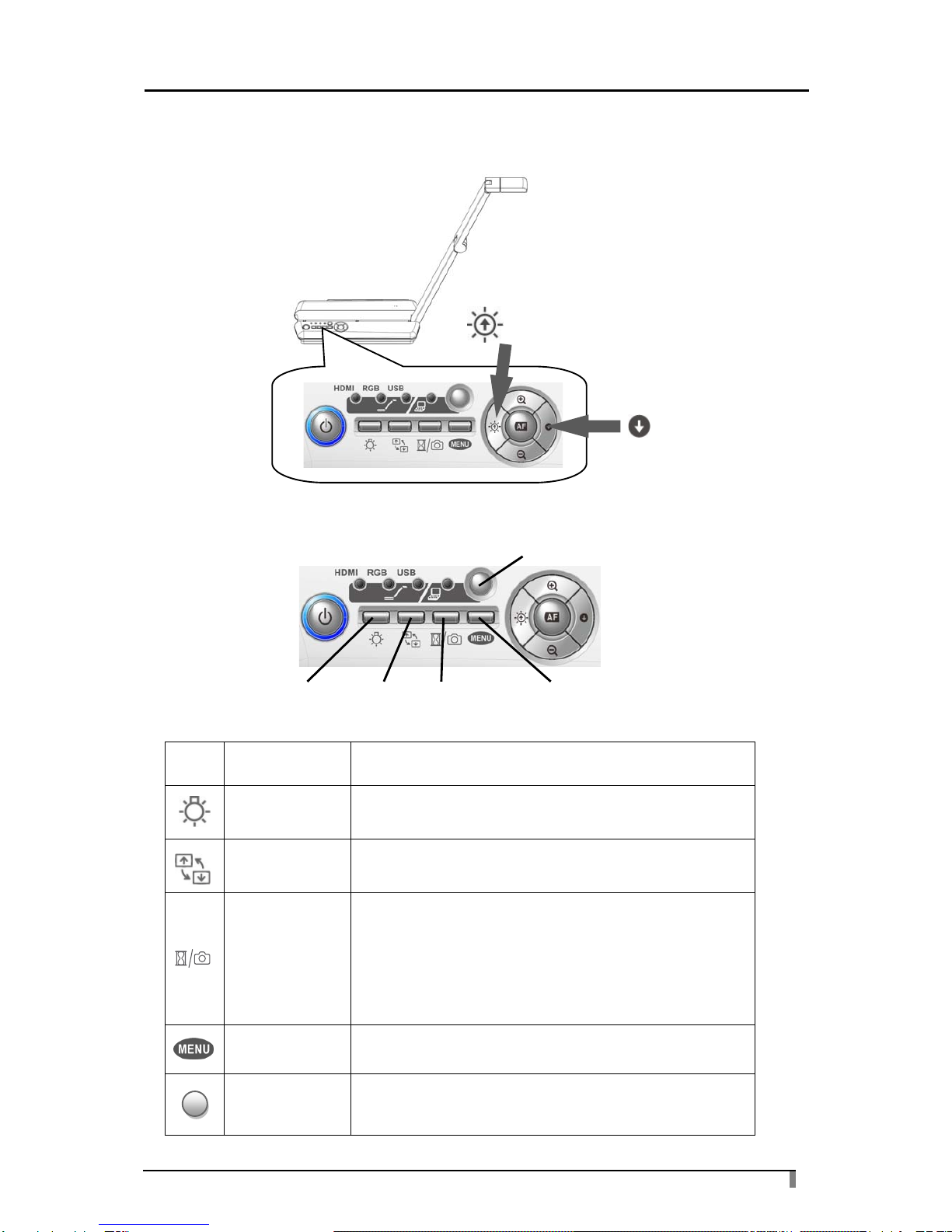

・Adjusting the brightness

・Operating panel

Mark Name Function

Lamp To turn the lamp ON/OFF

Image Rotation Camera Live image :Rotates by 180°

Camera Still image: Rotates counterclockwise by 90°.

Image Freeze

/Capture

To pause the camera image by pressing this button for a

short moment (less than 1 second). Press this button

again to restart.

To save a still image to the SD card by pressing this

button for long (more than 1 second).

Menu To show/hide the menu on the screen.

Image Selection To switch the output video.

Brighten

Darken

Lamp Image

Rotation

Image Freeze

ture Menu

Image Selection

6X1VHXAC5 R1-Xdx

WARNING

Unauthorized recording of copyrighted slide films, materials, photographs, etc. may

infringe on the rights of copyright owners and be contrary to copyright laws.

ELMO CO., LTD.

6-14, Meizen-cho, Mizuho-ku,

Nagoya, 467-8567, Japan

VELMO USA CORP.

Headquarters

1478 Old Country Road

Plainview, NY 11803-5034, U.S.A

Tel:(516) 501-1400 Fax:(516) 501-0429

E-mail: [email protected] Web:

http://www.elmousa.com

OVERSEAS SUBSIDIARY COMPANIES

West Coast Branch

Cypress Pointe Business Park

5676 Corporate Avenue

Cypress, CA 90630, U.S.A

Tel:(714) 828-8457 Fax:(714) 828-8429

ELMO Europe SAS

Immeuble Elysées la Défense,

7C, Place du Dôme,

92056 Paris la Défense, France

Tel: 33 (0) 1 73 02 67 06 Fax: 33 (0) 1 73 02 67 10
