Elo TouchSystems IDS 3 Series Manuale utente

Revision A

P/N E918683

www.elotouch.com

The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Afﬁliates (collectively “Elo”) makes no

representations or warranties with respect to the contents herein, and speciﬁcally disclaims any implied warranties of merchantability or ﬁtness for a

particular purpose. Elo reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation

of Elo to notify any person of such revisions or changes.

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer

language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior

written permission of Elo Touch Solutions, Inc.

Elo and the Elo logo are either trademarks or registered trademarks of Elo Touch Solutions, Inc..

North America

800-ELO-TOUCH

Tel +1 408 597 8000

Fax +1 408 597 8050

[email protected]

Europe

Tel +32 (0)16 70 45 00

Fax +32 (0)16 70 45 49

[email protected]

Asia-Paciﬁc

Tel +86 (21) 3329 1385

Fax +86 (21) 3329 1400

[email protected]

Latin America

Tel +52 55 2281-6958

EloSales.LAT[email protected]

Elo Touch Solutions Technical Support

Online self-help: www.elotouch.com/support

Quick Installation Guide

IDS 3 Series Display

DisplayPort

Touch USB

OSD Remote

Audio Out

Serial

HDMI 1

Optional

Expansion

Bay

HDMI 2

Go to www.elotouch.com/support to download user manual.

请访问 www.elotouch.com.cn 获取用戶手册请保留备用

Oktopus Whiteboard Software license card and download instructions are included in the accessory box.

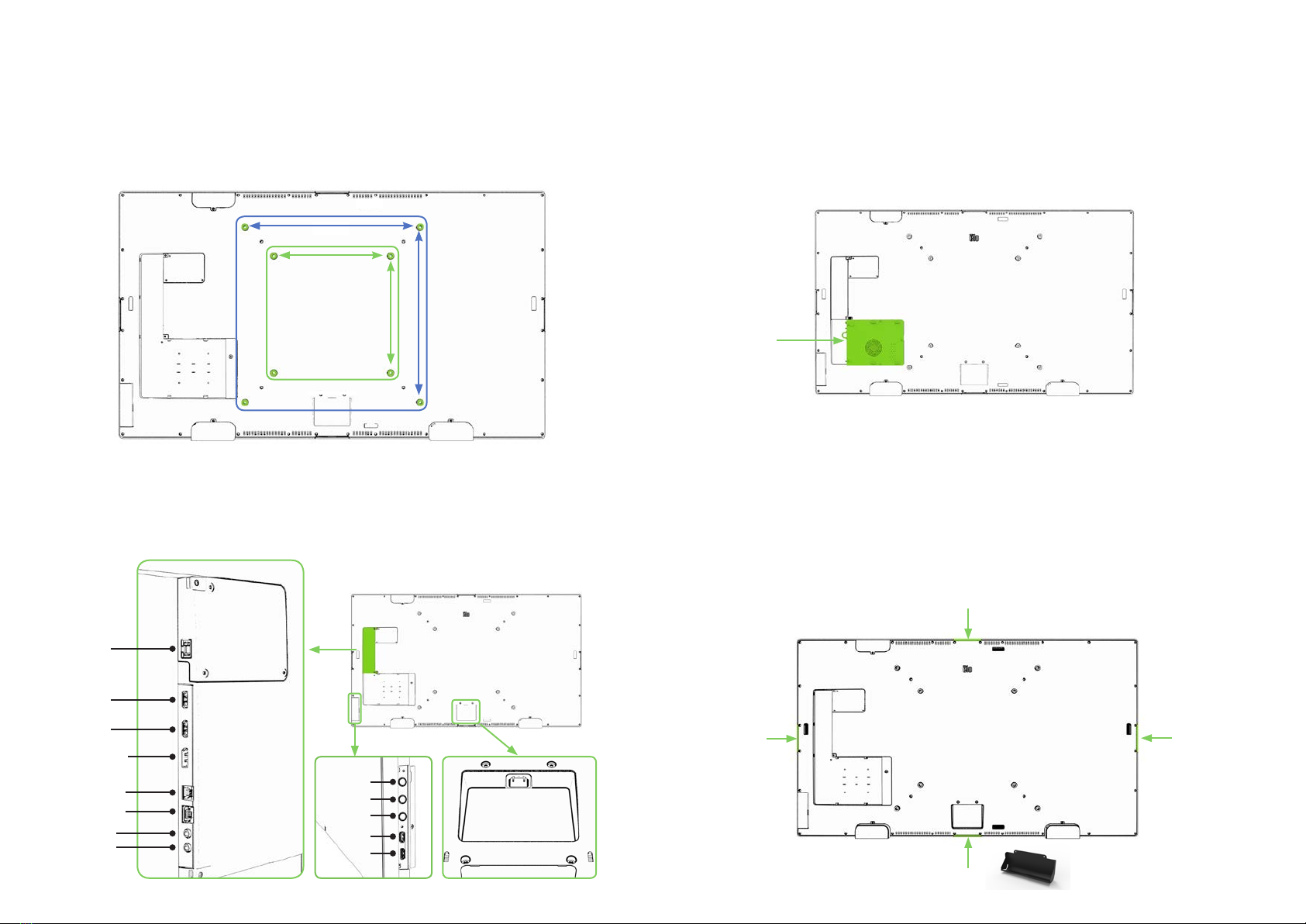

1. Mounting IDS Display (VESA Mount)

(Compatible Elo low-prole wallmount kit P/N E282876 available at www.elotouch.com)

3. Elo Computer Module Mounting (ECM sold separately)

(Remove cover to access docking connections)

4. Elo Edge Connect Peripheral Mounting

Each edge of the 6553L has a removable snap on cover for mounting Elo Edge Connect™ peripherals.

Included Peripherals: A stylus tray and two stylus are included with the IDS display. Install the tray in the lower

location using the two M3 screws included with tray in the accessory box.

Addtional peripherals sold separately:

Magnetic Stripe Reader P/N: E001002

2D Bar Code Scanner P/N: E926356

Fingerprint Reader P/N: E001001

400mm VESA = M6 screws, x4

2. Connections

600mm

400mm

600mm

100 - 240V AC

Power

OSD

Source

USB

HDMI 3

600mm VESA = M8 screws, x4

Stylus Tray

Conference Room Webcam P/N: E277819

NFC Reader P/N: E001004

Other Peripherals available at www.elotouch.com
