Elo TouchSystems E421137 Manuale utente

E421137 ELO-STA N D -SELF-SERVICE-15-22-COUNTERTOP4

ASSEMBLY INSTRUCTIONS, ELO SELF SERVICE STAND

Revision BQIG600184

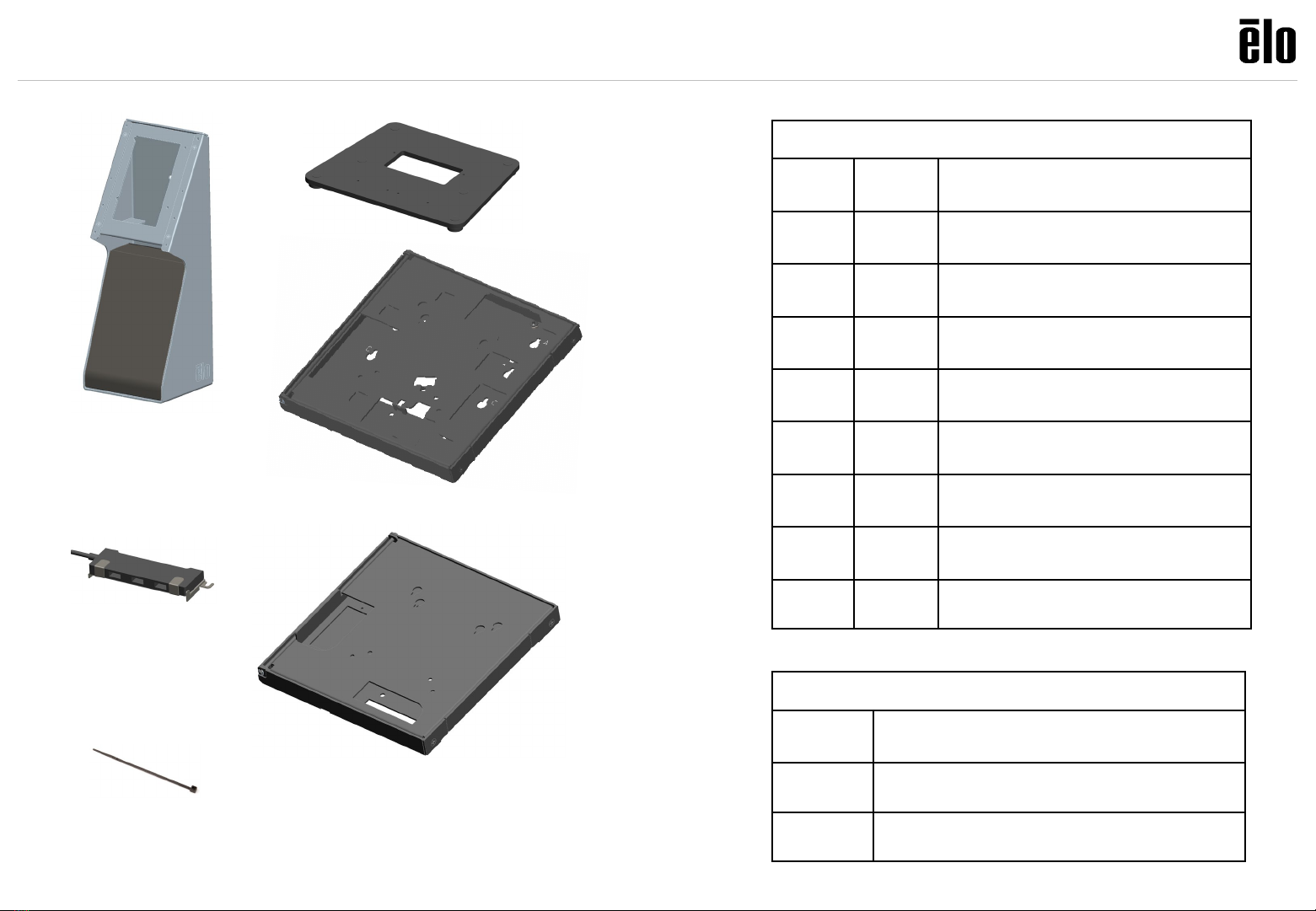

Contents for Kit: E421137, ELO-STAND-SELF-SERVICE-15-22-COUNTERTOP4

Hardware

Bag AQty.10 SCREW, M4X8, PAN-HEAD,

CROSS-RECESS

Bag BQty.4 SCREW, M4X8, FLAT-HEAD, CROSS-

RECESS

Bag CQty.3 SCREW, M3X8, PAN-HEAD,

CROSS-RECESS,

Bag DQty.4 SCREW, 3mm X8L,

THREAD-FORMING, PAN-HEAD

Bag LQty.4 SCREW, M4X6, PAN-HEAD,

CROSS-RECESS

Bag MQty.4 SCREW, M4X18, PAN-HEAD, CROSS-

RECESS

Bag NQty.4 SCREW, M4X12, PAN-HEAD, CROSS-

RECESS

Bag SQty.3 SCREW, M4X5, PAN-HEAD,

CROSS-RECESS

Bag UQty.1 DOUBLE-SIDED FOAM TAPE

Panel Hardware

Qty.2 SCREW, M6X14, PAN-HEAD, CROSS-

RECESS

Qty.2 BACKER BOARD SPACER

Qty.2 THUMB SCREW

Tie-wrap

Qty. 3

Head Assembly

Qty. 1

Countertop Base

Qty. 1

USB Hub

Qty. 1

Display Bracket,

Windows

Qty. 1

Display Bracket,

Android

Qty. 1

Remove and save (2) screws on rear of Head, pull out

printer tray.

Add (2) screws from bag “A”; leave

~3mm (1/8”) gap for Head.

Gap

•Align slots on bottom rear of Head with (2) screws on base and slide

on stand.

•Add (4) screws from bag “B”.

•Tighten (2) previous screws at rear.

Remove and save (2) screws, open cover of Display Bracket;

pivot out and fix prop.

Gap

Add (2) screws from bag “A”; leave ~3mm (1/8”) gap (for Display

Bracket).

Choose Android or Windows Display Bracket

For 15” or 22” monitor, use Android Display Bracket

Android Display Bracket shown above

•Assemble Display Bracket onto Head.

•Position “A” for 15”, 22” in landscape.

•Position “B” for 15” in portrait

•Position “C” for 22” in portrait

•Add (2) screws from bag “A” at bottom holes.

•Assemble USB Hub.

•Add (2) screws from bag “S”; leave ~3mm (1/8”)

gap for USB bracket to slide on; tighten screws.

For Android, skip to step 13

For Windows, skip to step 18

For Android Slate, skip to step 8

Add tie-wrap

Top Landscape

Add (2) screws from bag “L” to top 75mm VESA positions.

Leave ~3mm (1/8”) gap for mounting to display bracket.

Connect Slate Hub to Slate and attach cable cover before

proceeding.

•Route Slate Hub through display bracket and head.

•Mount Slate, add (2) screws from bag “L” to bottom 75mm VESA positions.

Add tie-wrap as shown.

•Tighten VESA screws to 12 in-lb (1.4 N-m).

Android Slate: Landscape

(For Portrait, skip to step 10)

Skip to step 12

Note: EMV Cradles are not compatible with

Android Slate in landscape orientation.

Add tie-wrap

Add (2) screws from bag “L” to top 75mm VESA positions.

Leave ~3mm (1/8”) gap for mounting to display bracket.

Attach Slate Hub and cable cover before mounting

displays on stand.

•Route Slate Hub through display bracket and head.

•Mount Slate, add (2) screws from bag “L” to bottom 75mm VESA positions.

Add tie-wrap as shown.

•Tighten VESA screws to 12 in-lb (1.4 N-m).

Android Slate: Portrait

If using an EMV Cradle, follow those instructions

before proceeding.

Top Portrait

Apply double-sided foam tape from bag “U” to back of Slate Hub and attach to back of head approximately

where shown. Route LAN cable through base. Connect LAN and power supply to Slate Hub.

Skip to step 25

Add tie-wrap

Top Landscape

Cable

direction

Add (2) screws from bag “L” to top 100mm VESA positions.

Leave ~3mm (1/8”) gap for mounting to display bracket.

Remove cable cover(s) before mounting displays on stand.

•Mount I-Series, add (2) screws from bag “L” to bottom 100mm VESA

positions.

•Route power, LAN cables through bottom of stand head. Route USB Hub

cable or other USB if used.

•Tighten VESA screws to 12 in-lb (1.4 N-m).

Android: Landscape

(For Portrait, skip to step 15)

Skip to step 28

If using an EMV Cradle, follow those instructions

before proceeding.

Top Portrait

Cable

direction

Add tie-wrap

Add (2) screws from bag “L” to top VESA positions. Leave

~3mm (1/8”) gap for mounting to display bracket.

Remove cable cover(s) before mounting displays on stand.

•Mount i-Series, add (2) screws from bag “L” to bottom VESA positions.

•Route power, LAN cables through bottom of stand head. Route USB Hub

cable or other USB if used.

Android: Portrait

Skip to step 25

If using an EMV Cradle, follow those instructions

before proceeding.
