Elo TouchSystems ET1598L Manuale utente

USER MANUAL

Elo Touch Solutions

ET1598L Frame Touchscreen

User Manual: ET1598L

UM60119 Rev A, page 1 of 23

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or

by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise without prior written permission of Elo Touch Solutions, Inc.

Disclaimer

The information in this document is subject to change without notice. Elo TouchSolutions, Inc. and its Affiliates (collectively “Elo”) makes no representations or warranties

with respect to the contents herein, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. Elo reserves the right to

revise this publication and to make changes from time to time in the content hereof without obligation of Elo to notify any person of such revisions or changes.

TrademarkAcknowledgments

Elo, Elo (logo), Elo Touch, Elo Touch Solutions, and IntelliTouch are trademarks of Elo and its Affiliates. Windows is a trademark

of Microsoft Corporation.

User Manual: ET1598L

UM60119 Rev A, page 2 of 23

Table of Contents

Section 1: Introduction ............................................................................................................................................................................................................................. 4

Section 2: Installation............................................................................................................................................................................................................................... 4

Section 3: Mounting ................................................................................................................................................................................................................................. 7

Section 4: Operation ................................................................................................................................................................................................................................ 9

Section 5: Technical Support.................................................................................................................................................................................................................. 14

Section 6: Safety & Maintenance........................................................................................................................................................................................................... 16

Section 7: Regulatory Information.......................................................................................................................................................................................................... 17

Section 8: Warranty Information............................................................................................................................................................................................................. 21

User Manual: ET1598L

UM60119 Rev A, page 3 of 23

Section 1: Introduction

Product Description

Your new touchscreen display combines Elo’s latest developments in touch technology and display design with the reliability for use in

high-traffic environment.

This touchscreen incorporates a 24-bit color, active matrix thin-film-transistor LCD panel to provide high quality display performance. The

ET1598L offers resolution of 1024x768. The LED backlight significantly reduces power consumption and eliminates mercury (compared to

CCFL-backlit panels). Other features that enhance this LCD monitor’s display performance are Plug & Play compatibility, remote on-screen

display (OSD) controls and flexible mounting options.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user manual to maximize the life ofyour

unit and prevent risks to user safety. See the Safety & Maintenance Section for more information.

This manual contains information that is important for the proper setup and maintenance of the unit. Before setting up and powering

on your new touchscreen, read through this manual, especially the Installation, Mounting, and Operation Sections.

User Manual: ET1598L

UM60119 Rev A, page 4 of 23

Section 2: Installation

Unpacking the Touchscreen Display

Open the carton and verify that the following items arepresent:

•

User Manuals CD

•

Japanese language regulatory informationpamphlet

•

Quick Install Guide

•

HDMI cable

•

EEI label

•

VGA cable

•

USB cable

•

Mounting brackets

•

OSD remote

User Manual: ET1598L

UM60119 Rev A, page 5 of 23

Connector Panel & Interfaces

Touchscreen Display Connections

Connect the HDMI/DP/VGA video cables between the monitor’s HDMI/DP/VGA input connectors and

your HDMI/DP/VGA video source. Tighten the video cable’s screws for best performance on VGA

connector.

Connect the USB touch cable between the monitor’s USB connector and your PC’s USB port or Connect the Serial touch cable between the monitor’s COM

(Serial) connector and your PC’s COM (Serial) port.

Connect a 12VDC power supply to the monitor’s input power jack.

The touchscreen display ships in an ON state, video should be displayed on your monitor already.

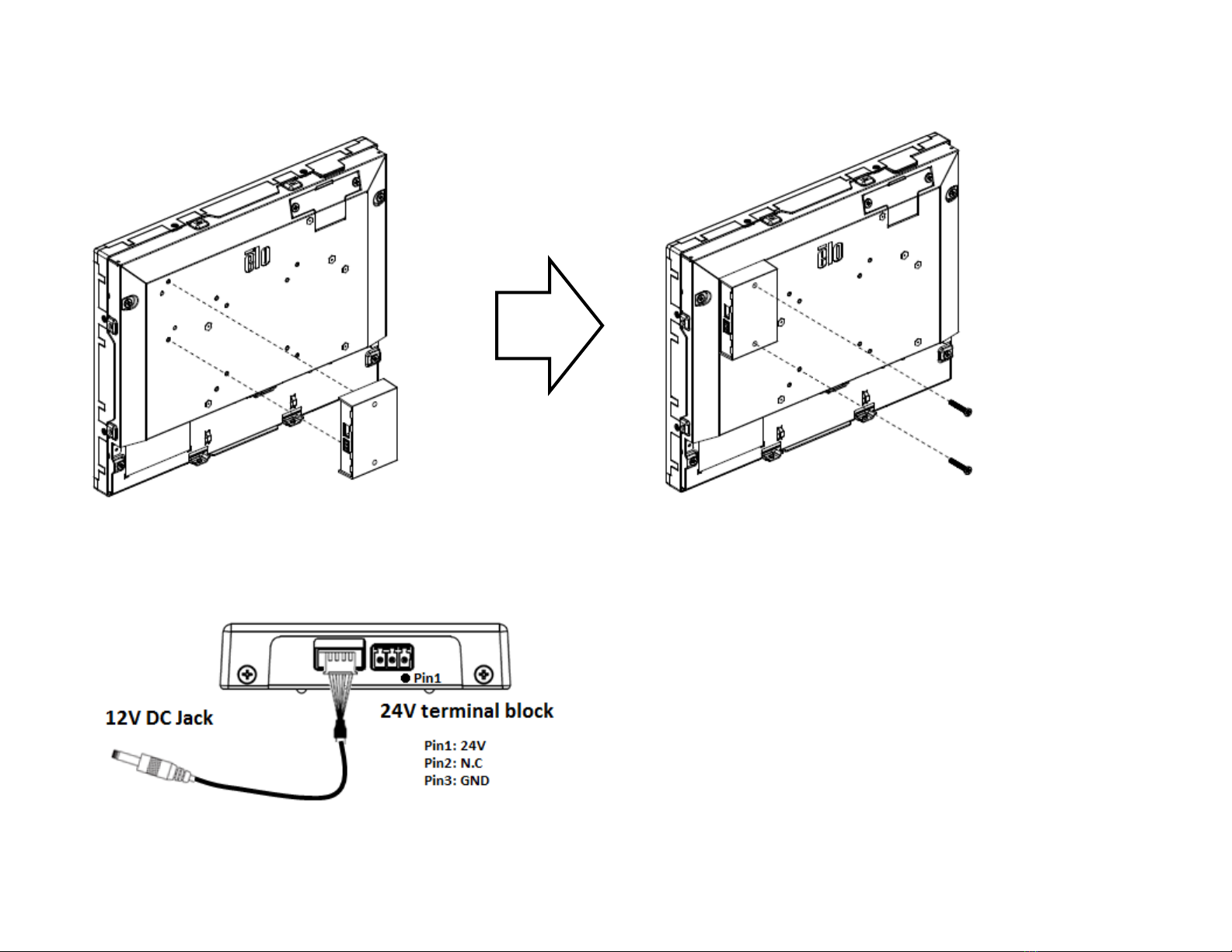

Installing Power D/C 24V to D/C 12V convertor (Optional kits)

User Manual: ET1598L

UM60119 Rev A, page 6 of 23

Please follow below install note to fix the kit on the back of the monitor.

Please connect the cable from power source to convertor via terminal block for 24V input and plug 12V

DC jack to our monitor for 12V output.

User Manual: ET1598L

UM60119 Rev A, page 7 of 23

Installing the Touch Technology Software Drivers

No additional drivers are required for your projected-capacitive touchscreen displays with Windows 7 and 8 operating systems, it uses Windows HID drivers. If the

monitor is used with Windows XP operating system, follow below steps to install Windows XP touch driver.

Todownload the latest touch drivers

Visit www.elotouch.com/Support/Downloads/Driver/DriverDownload/Default.aspx

Select the operating system from “Operating System” dropdown menu.

Select the technology from “Technologies” dropdown menu.

Click on the driver version required for your touchscreen display.

Click “Accept” once you are directed to the “Driver License Agreement” page.

Enter your email address, Click on “Next Step”. Your driver download will start automatically.

If you are a new user, fill in the required information and click on “Register”. Your driver download will start automatically.

User Manual: ET1598L

UM60119 Rev A, page 8 of 23

Section 3: Mounting

Side Bracket Mount

Side-mount Bracket Installation Notes:

Bracket shape varies for each model, drawing for illustration

purposes only. See dimensional drawing for exactdimensions.

User Manual: ET1598L

UM60119 Rev A, page 9 of 23

Rear VESA Mount

A four-hole (75x75mm, 100x100mm) mounting pattern for M4 screws is

provided on the rear of the monitor.

The VESA FDMI-compliant counting is coded: VESAMIS-E,C.
