EMachines E627 Series Manuale utente

eMachines E627 Series

Quick Guide

Changes may be made periodically to the information in this publication without obligation

to notify any person of such revisions or changes. Such changes will be incorporated in new

editions of this manual or supplementary documents and publications.

Record the model number, serial number, purchase date and place of purchase information in

the space provided below. The serial number and model number are recorded on the label

affixed to your computer. All correspondence concerning your unit should include the serial

number, model number and purchase information.

This booklet has been reviewed for accuracy. Although Acer makes all reasonable attempts for

this booklet to be printed in an accurate manner, Acer takes no responsibility for any

inadvertent errors or misprints. Acerís liability with respect to this booklet is subject to any

limitation of liability set out in the applicable product warranty.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in

any form or by any means, electronically, mechanically, by photocopy, recording or

otherwise,without the prior written permission of Acer Incorporated.

Model number: __________________________________

Serial number: ___________________________________

Date of purchase: ________________________________

Place of purchase: ________________________________

eMachines E627 Series Quick Guide

Original Issue: 06/2009

eMachines E627 Series Notebook PC

eMachines and the eMachines logo are registered trademarks of Acer Incorporated. Other

companies' product names or trademarks are used herein for identification purposes only and

belong to their respective companies.

First things first

We would like to thank you for making an eMachines notebook your choice for

meeting your mobile computing needs.

Your guides

To help you use your eMachines notebook, we have designed a set of guides:

First off, the Just for Starters... poster helps you get started with setting up your

computer.

The eMachines Generic User Guide contains useful information applying to all

models in the eMachines product series. It covers basic topics such as eMachines

Recovery Management, using the keyboard, audio, etc. Please understand that

due to its nature, the Generic User Guide as well as the eMachinesSystem User

Guide mentioned below will occasionally refer to functions or features which

are only contained in certain models of the series, but not necessarily in the

model you purchased. Such instances are marked in the text with language such

as "only for certain models".

The Quick Guide introduces you to the basic features and functions of your new

computer. For more on how your computer can help you to be more productive,

please refer to the eMachinesSystem User Guide. This guide contains detailed

information on such subjects as system utilities, data recovery, expansion

options and troubleshooting. In addition it contains warranty information and

the general regulations and safety notices for your notebook. It is available in

Portable Document Format (PDF) and comes preloaded on your notebook.

Follow these steps to access it:

1 Click on Start, All Programs, eMachinesSystem.

2 Click on eMachinesSystem User Guide.

Note: Viewing the file requires Adobe Reader. If Adobe Reader is not

installed on your computer, clicking on eMachinesSystem User Guide will

run the Adobe Reader setup program first. Follow the instructions on the

screen to complete the installation. For instructions on how to use Adobe

Reader, access the Help and Support menu.

English

Your eMachines notebook tour

After setting up your computer as illustrated in the Just for Starters... poster,

let us show you around your new eMachines notebook.

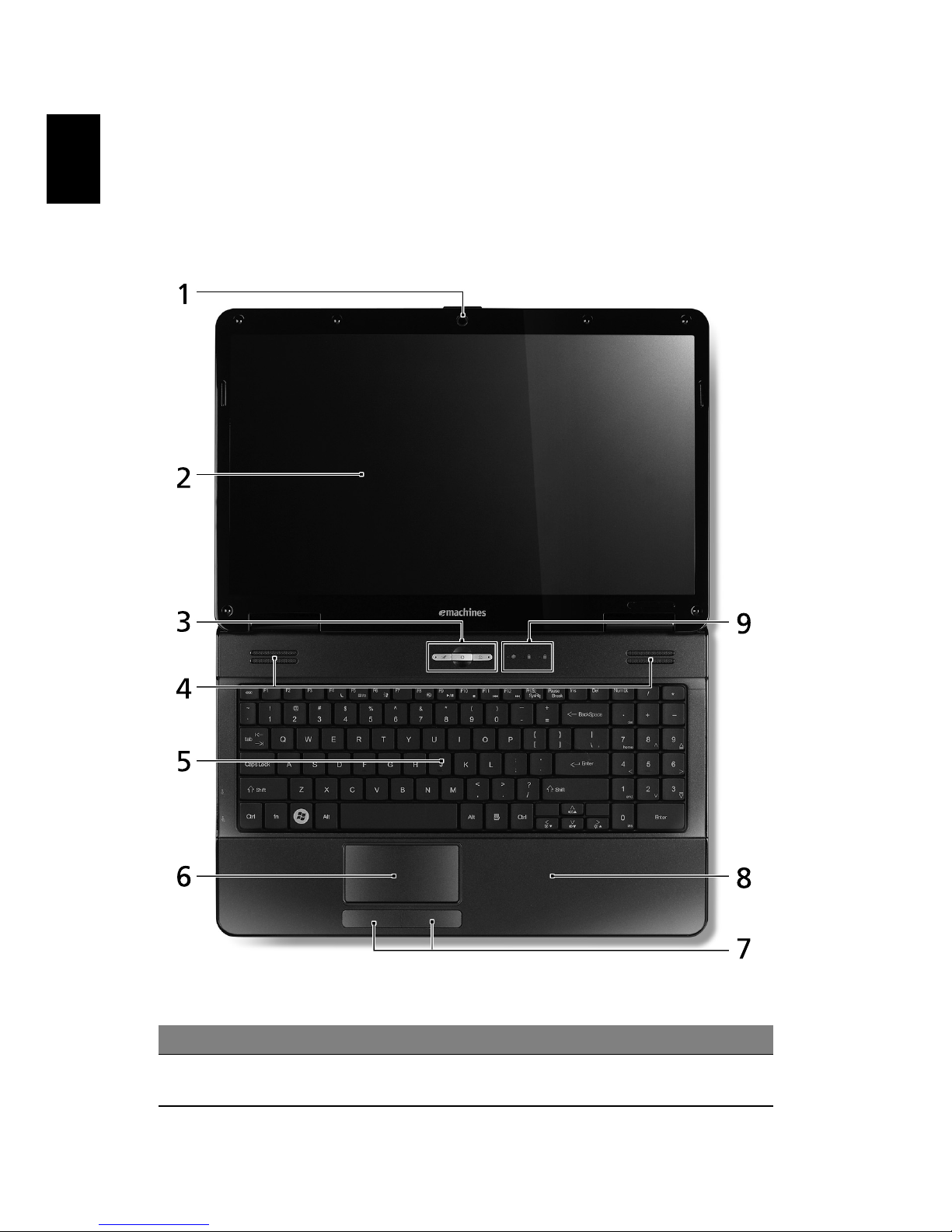

Top view

#Icon Item Description

1 Integrated

webcam

Web camera for video communication.

(only for certain models)

English

Hotkeys

The computer employs hotkeys or key combinations to access most of the

computer's controls like screen brightness and volume output.

To activate hotkeys, press and hold the <Fn> key before pressing the other key

in the hotkey combination.

2 Display screen Also called Liquid-Crystal Display (LCD),

displays computer output.

3 Touchpad toggle Turns the internal touchpad on and off.

Power button Turns the computer on and off.

Wireless LAN

communication

button/indicator

Enables/disables the wireless LAN function.

Indicates the status of wireless LAN

communication.

4 Speakers Left and right speakers deliver stereo

audio output.

5 Keyboard For entering data into your computer.

6 Touchpad Touch-sensitive pointing device which

functions like a computer mouse.

7 Click buttons

(left and right)

The left and right buttons function like the

left and right mouse buttons.

8 Palmrest Comfortable support area for your hands

when you use the computer.

9 HDD Indicates when the hard disk drive is active.

Num Lock Lights up when Num Lock is activated.

Caps Lock Lights up when Caps Lock is activated.

Hotkey Icon Function Description

<Fn> + <F4> Sleep Puts the computer in Sleep mode.

<Fn> + <F5> Display toggle Switches display output between the

display screen, external monitor (if

connected) and both.

<Fn> + <F6> Screen blank Turns the display screen backlight off

to save power. Press any key to

return.

#Icon Item Description

English

Closed front view

1. The front panel indicators are visible even when the computer cover is closed

up.

<Fn> + <F8> Speaker toggle Turns the speakers on and off.

<Fn> + < > Volume up Increases the sound volume.

<Fn> + < > Volume down Decreases the sound volume.

<Fn> + < > Brightness up Increases the screen brightness.

<Fn> + < > Brightness

down

Decreases the screen brightness.

#Item Description

1Power1Indicates the computer's power status.

Battery1Indicates the computer's battery status.

1. Charging: The light shows amber when the

battery is charging.

2. Fully charged: The light shows blue when in

AC mode.

2 Multi-in-1

card reader

Accepts Secure Digital (SD), MultiMediaCard

(MMC), Memory Stick (MS), Memory Stick PRO

(MS PRO), xD-Picture Card (xD).

Note: Push to remove/install the card. Only one

card can operate at any given time.

Hotkey Icon Function Description

English

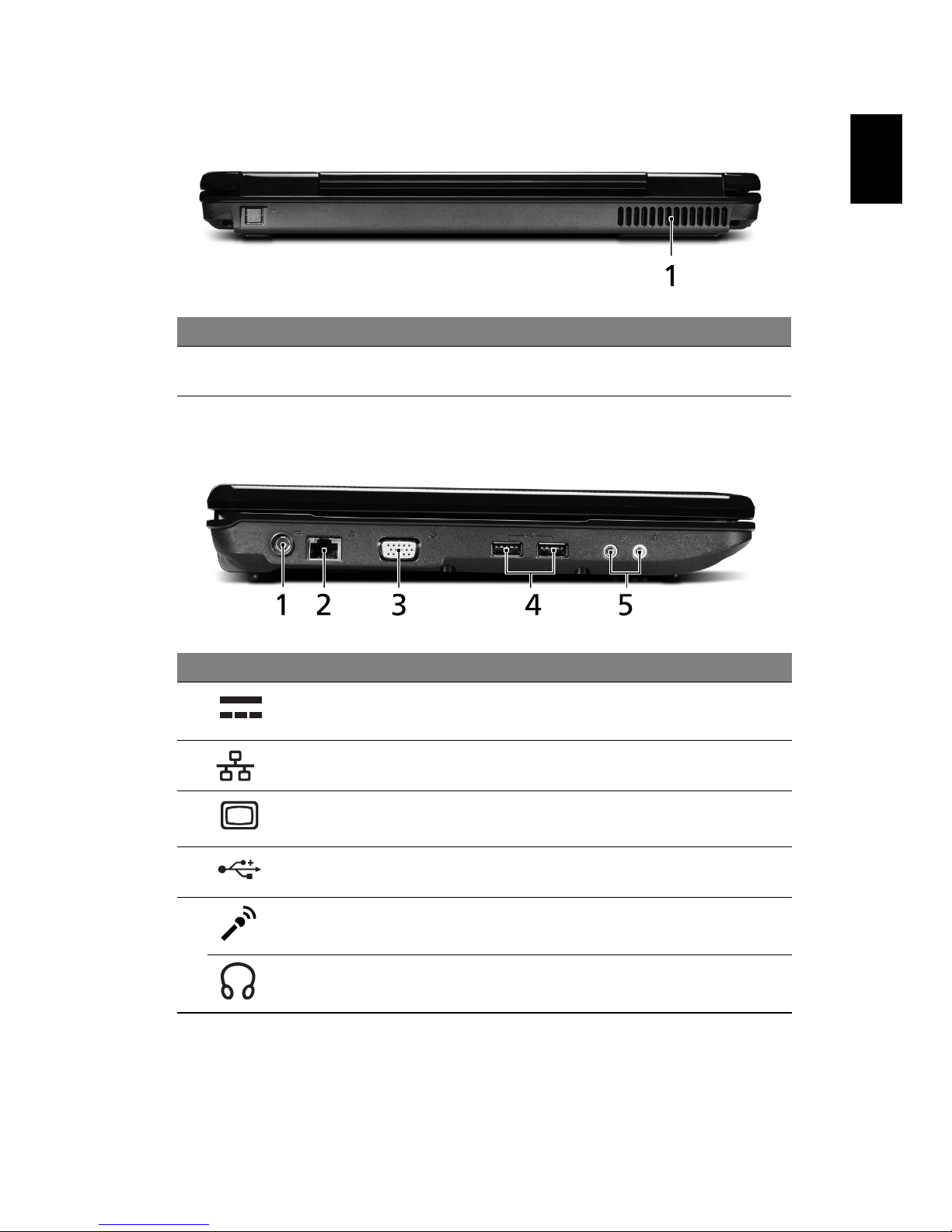

Rear view

Left view

#Item Description

1 Ventilation slots Enable the computer to stay cool, even after prolonged

use.

#Icon Item Description

1 DC-in jack Connects to an AC adapter.

2 Ethernet (RJ-45) port Connects to an Ethernet 10/100-based

network.

3 External display (VGA)

port

Connects to a display device (e.g.,

external monitor, LCD projector).

4 USB 2.0 port Connect to USB 2.0 devices (e.g., USB

mouse, USB camera).

5Microphone-in jack Accepts inputs from external

microphones.

Headphones/speaker/

line-out jack

Connects to audio line-out devices

(e.g., speakers, headphones).

English

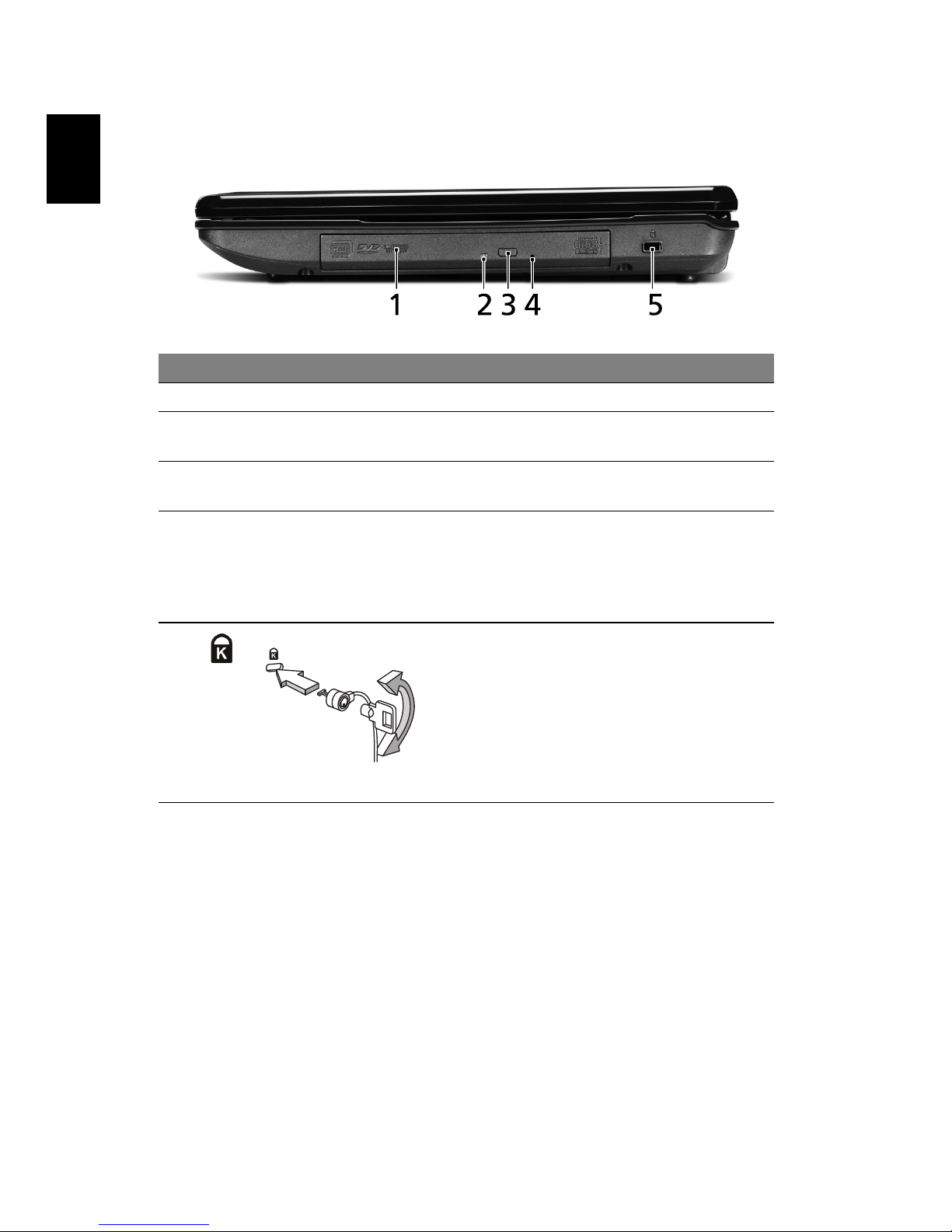

Right view

#Icon Item Description

1 Optical drive Internal optical drive; accepts CDs or DVDs.

2 Optical disk access

indicator

Lights up when the optical drive is active.

3 Optical drive eject

button

Ejects the optical disk from the drive.

4 Emergency eject

hole

Ejects the optical drive tray when the

computer is turned off.

Note: Insert a paper clip to the emergency

eject hole to eject the optical drive tray

when the computer is off.

5 Kensington lock slot Connects to a Kensington-compatible

computer security lock.

Note: Wrap the computer security lock

cable around an immovable object such as

a table or handle of a locked drawer. Insert

the lock into the notch and turn the key to

secure the lock. Some keyless models are

also available.

English

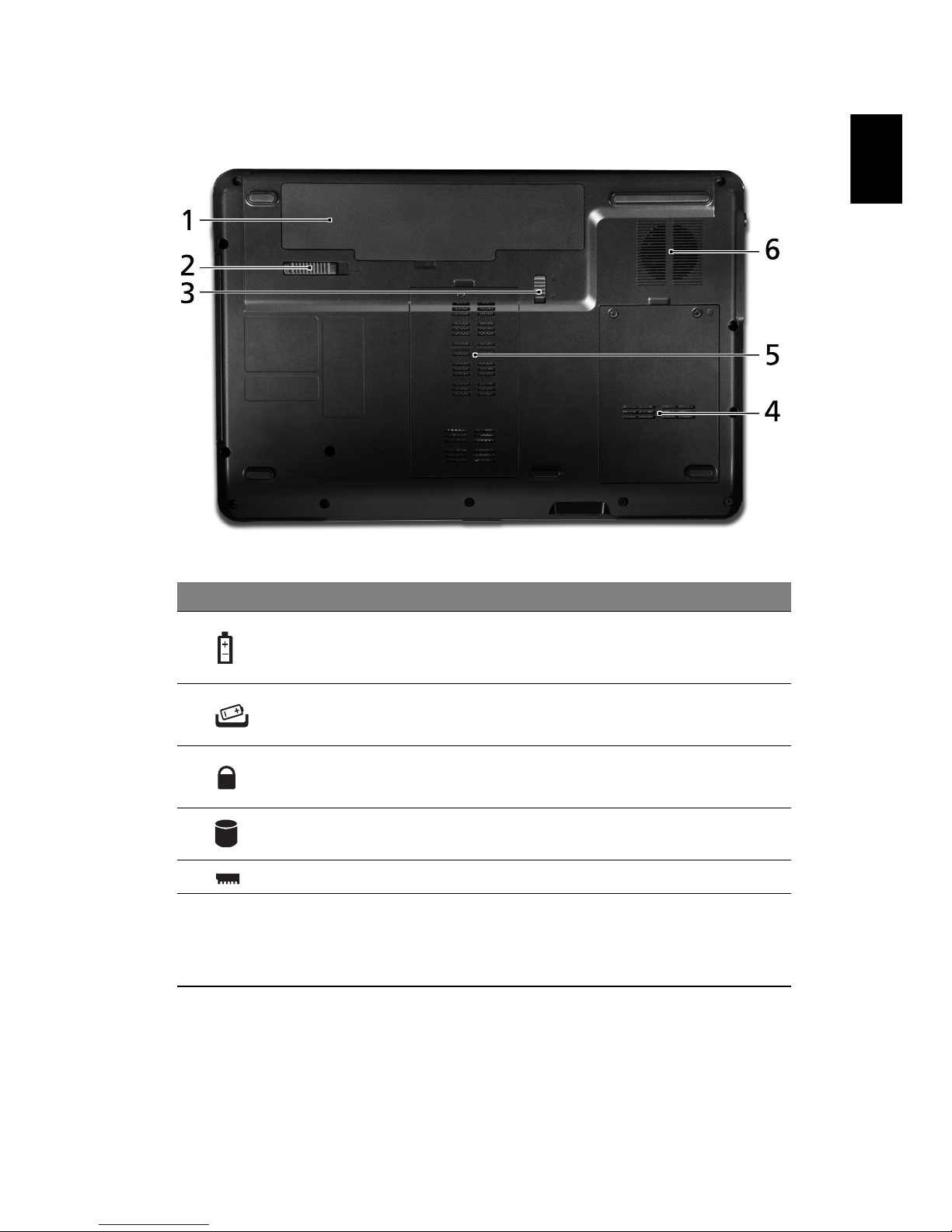

Base view

#Icon Item Description

1 Battery bay Houses the computer's battery pack.

2 Battery release latch Releases the battery for removal.

3 Battery lock Locks the battery in position.

4 Hard disk bay Houses the computer's hard disk (secured

with screws).

5 Memory compartment Houses the computer's main memory.

6 Ventilation slots and

cooling fan

Enable the computer to stay cool, even

after prolonged use.

Note: Do not cover or obstruct the

opening of the fan.

English

Specifications

Operating

system

•Genuine Windows Vista®

Platform •AMD Better By Design Program, featuring:

• AMD Athlon™ 64 X2 dual-core processor*

• AMD Athlon™ 64 single-core processor*

• AMD M780G Chipset

• IEEE 802.11b/g

System memory •Dual-channel support

•Up to 2 GB of DDR2 667 MHz memory, upgradeable

to 4 GB using two soDIMM modules

Display •15.6" HD 1366 x 768

•16:9 aspect ratio

Graphics •ATI Radeon™ HD 3200 Graphics

Storage

subsystem

•2.5" hard disk drive

• DVD-Super Multi double-layer drive

• Multi-in-1 card reader

Audio •Two built-in stereo speakers

•High-definition audio support

• MS-Sound compatible

Communication •Integrated webcam*

•WLAN: IEEE 802.11b/g

•LAN: Fast Ethernet; Wake-on-LAN ready

Dimensions •372.3 (W) x 246.5 (D) x 26.8/39.6 (H) mm

(14.4 x 10.8 x 1.1/1.5 inches)

•2.7 kg (6.0 lbs.) with 6-cell battery pack

Privacy control •BIOS user, supervisor, HDD passwords

•Kensington lock slot

Power

subsystem

•ACPI 3.0

•48.8 W 4400 mAh

•3-pin 65 W AC adapter

•ENERGY STAR®4.0*

Special keys

and controls

•99-/100-/103-key keyboard

•Touchpad pointing device
