EMachines D620 Series Manuale utente

eMachines D620 Series

Quick Guide

This company makes no representations or warranties, either express or implied, with respect

to the contents hereof and specifically disclaims the implied warranties of merchantability or

fitness for a particular purpose. Although care has been taken to ensure accuracy, this

company shall not be liable for any errors (including, but not limited to, typos, factual errors,

etc.) contained in this publication.

Changes may be made periodically to the information in this publication without obligation

to notify any person of such revisions or changes. Such changes will be incorporated in new

editions of this manual or supplementary documents and publications. This company makes

no representations or warranties, either expressed or implied, with respect to the contents

hereof and specifically disclaims the implied warranties of merchantability or fitness for a

particular purpose.

Record the model number, serial number, purchase date and place of purchase information in

the space provided below. The serial number and model number are recorded on the label

affixed to your computer. All correspondence concerning your unit should include the serial

number, model number and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in

any form or by any means, electronically, mechanically, by photocopy, recording or otherwise,

without the prior written permission of Acer Incorporated.

Model number: __________________________________

Serial number: ___________________________________

Date of purchase: ________________________________

Place of purchase: ________________________________

eMachines D620 Series Quick Guide

Original Issue: 09/2008

eMachines D620 Series Notebook PC

eMachines and the eMachines logo are registered trademarks of Acer Incorporated. Other

companies' product names or trademarks are used herein for identification purposes only and

belong to their respective companies.

First things first

We would like to thank you for making an eMachines notebook your choice for

meeting your mobile computing needs.

Your guides

To help you use your eMachines notebook, we have designed a set of guides:

First off, the Just for Starters... poster helps you get started with setting up your

computer.

The eMachines Generic User Guide contains useful information applying to all

models in the eMachines product series. It covers basic topics such as eMachines

Recovery Management, using the keyboard, audio, etc. Please understand that

due to its nature, the Generic User Guide as well as the eMachinesSystem User

Guide mentioned below will occasionally refer to functions or features which

are only contained in certain models of the series, but not necessarily in the

model you purchased. Such instances are marked in the text with language such

as "only for certain models".

The Quick Guide introduces you to the basic features and functions of your new

computer. For more on how your computer can help you to be more productive,

please refer to the eMachinesSystem User Guide. This guide contains detailed

information on such subjects as system utilities, data recovery, expansion

options and troubleshooting. In addition it contains warranty information and

the general regulations and safety notices for your notebook. It is available in

Portable Document Format (PDF) and comes preloaded on your notebook.

Follow these steps to access it:

1 Click on Start, All Programs, eMachinesSystem.

2 Click on eMachinesSystem User Guide.

Note: Viewing the file requires Adobe Reader. If Adobe Reader is not

installed on your computer, clicking on eMachinesSystem User Guide will

run the Adobe Reader setup program first. Follow the instructions on the

screen to complete the installation. For instructions on how to use Adobe

Reader, access the Help and Support menu.

English

Your eMachines notebook tour

After setting up your computer as illustrated in the Just for Starters... poster, let

us show you around your new eMachines notebook.

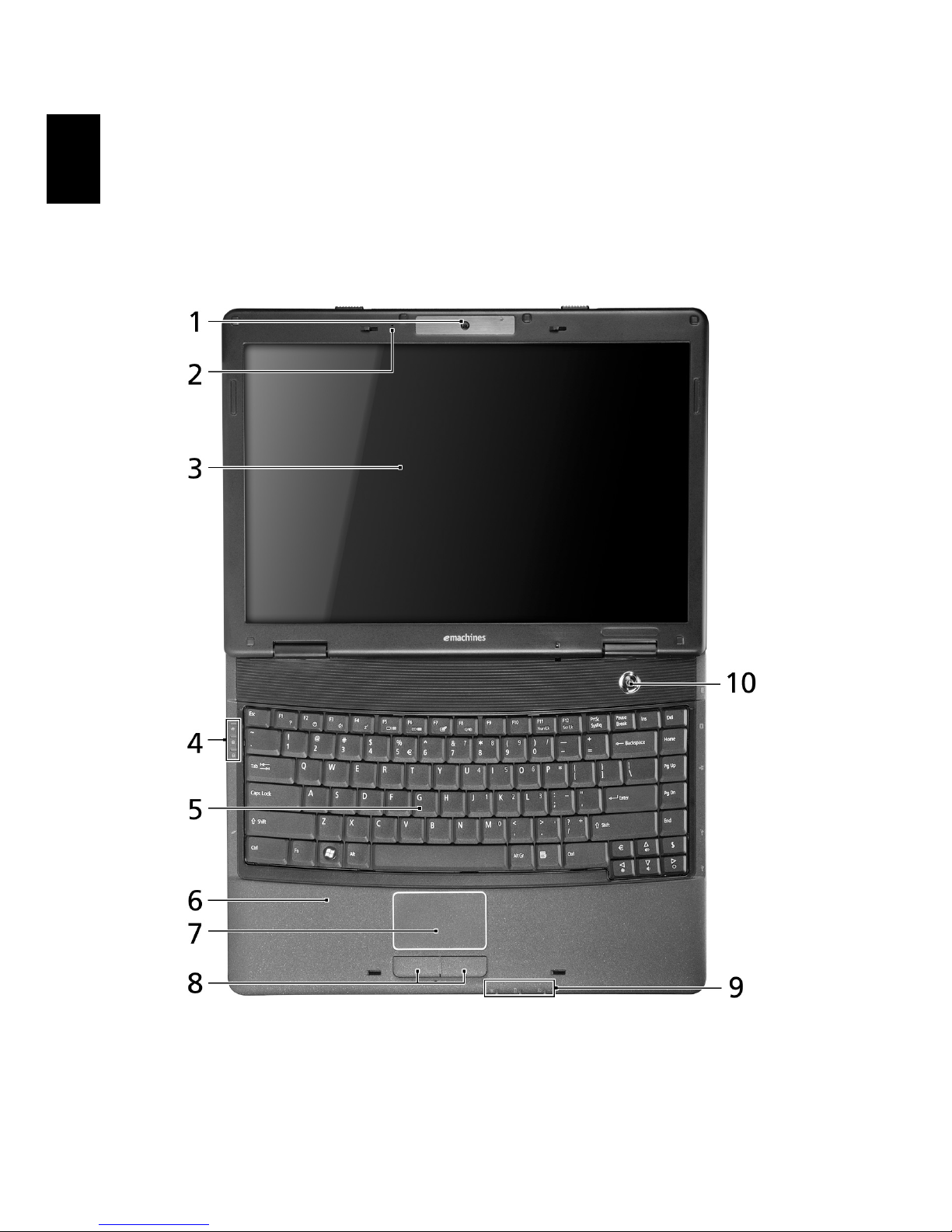

Top view

English

1. The front panel indicators are visible even when the computer cover is closed

up.

#Icon Item Description

1 Integrated

webcam

Web camera for video communication.

(only for certain models)

2 Microphone Internal microphone for sound recording.

3 Display screen Also called Liquid-Crystal Display (LCD),

displays computer output.

4 HDD Indicates when the hard disk drive is active.

Num Lock Lights up when Num Lock is activated.

Caps Lock Lights up when Caps Lock is activated.

5 Keyboard For entering data into your computer.

6 Palmrest Comfortable support area for your hands

when you use the computer.

7 Touchpad Touch-sensitive pointing device which

functions like a computer mouse.

8 Click buttons (left

and right)

The left and right buttons function like the

left and right mouse buttons.

9Power1Indicates the computer's power status.

Battery1Indicates the computer's batttery status.

1. Charging: The light shows amber when the

battery is charging.

2. Fully charged: The light shows green when

in AC mode.

Wireless LAN

communication

indicator

Indicates the status of wireless LAN

communication.

10 Power button Turns the computer on and off.

English

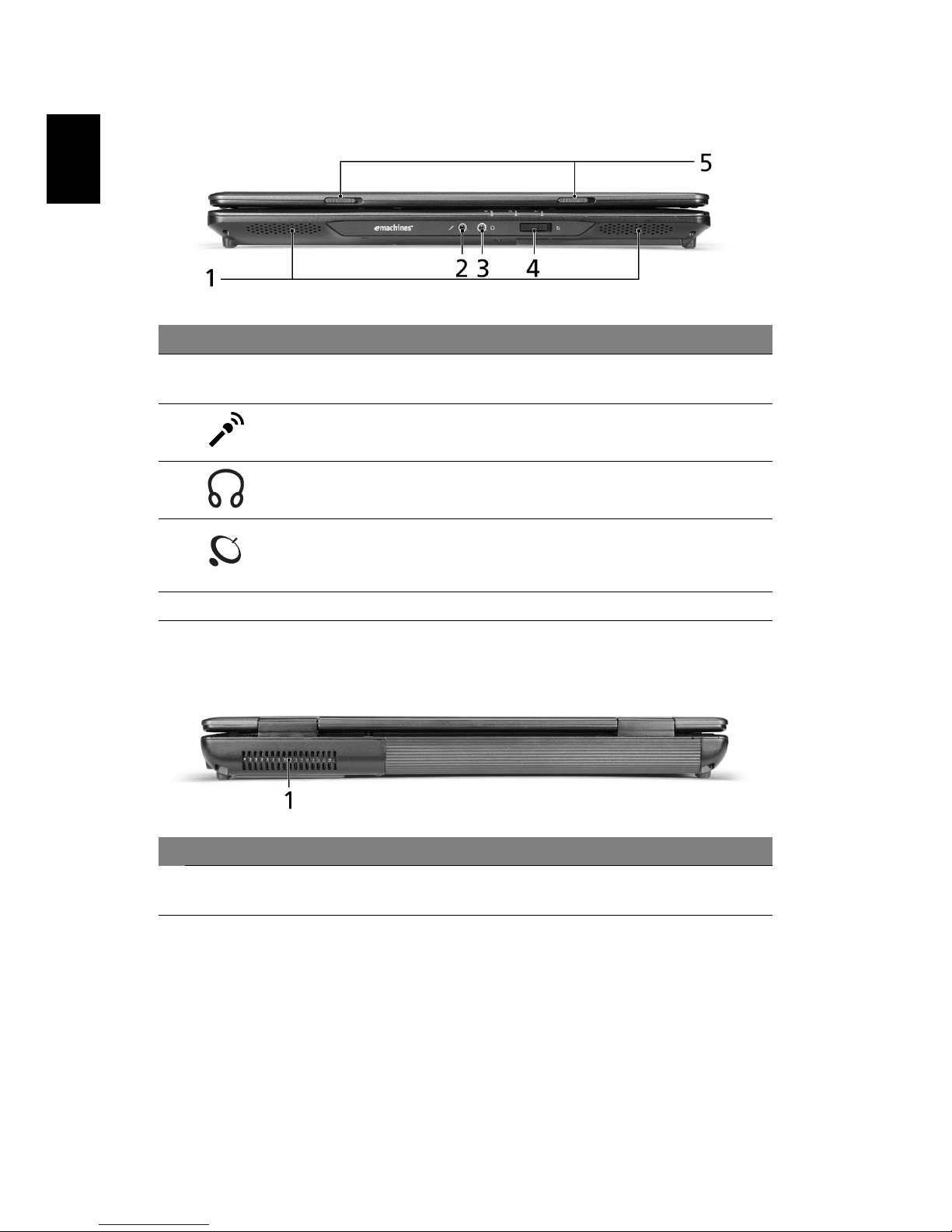

Closed front view

Rear view

#Icon Item Description

1 Speakers Left and right speakers deliver stereo

audio output.

2Microphone-in jack Accepts inputs from external microphones.

3 Headphones/

speaker/line-out jack

Connects to audio line-out devices

(e.g., speakers, headphones).

4 Wireless

communication

switch

Enable/disable the wireless function.

(manufacturing option).

5 Latch Locks and releases the lid.

#Item Description

1 Ventilation slots Enable the computer to stay cool, even after prolonged

use.

English

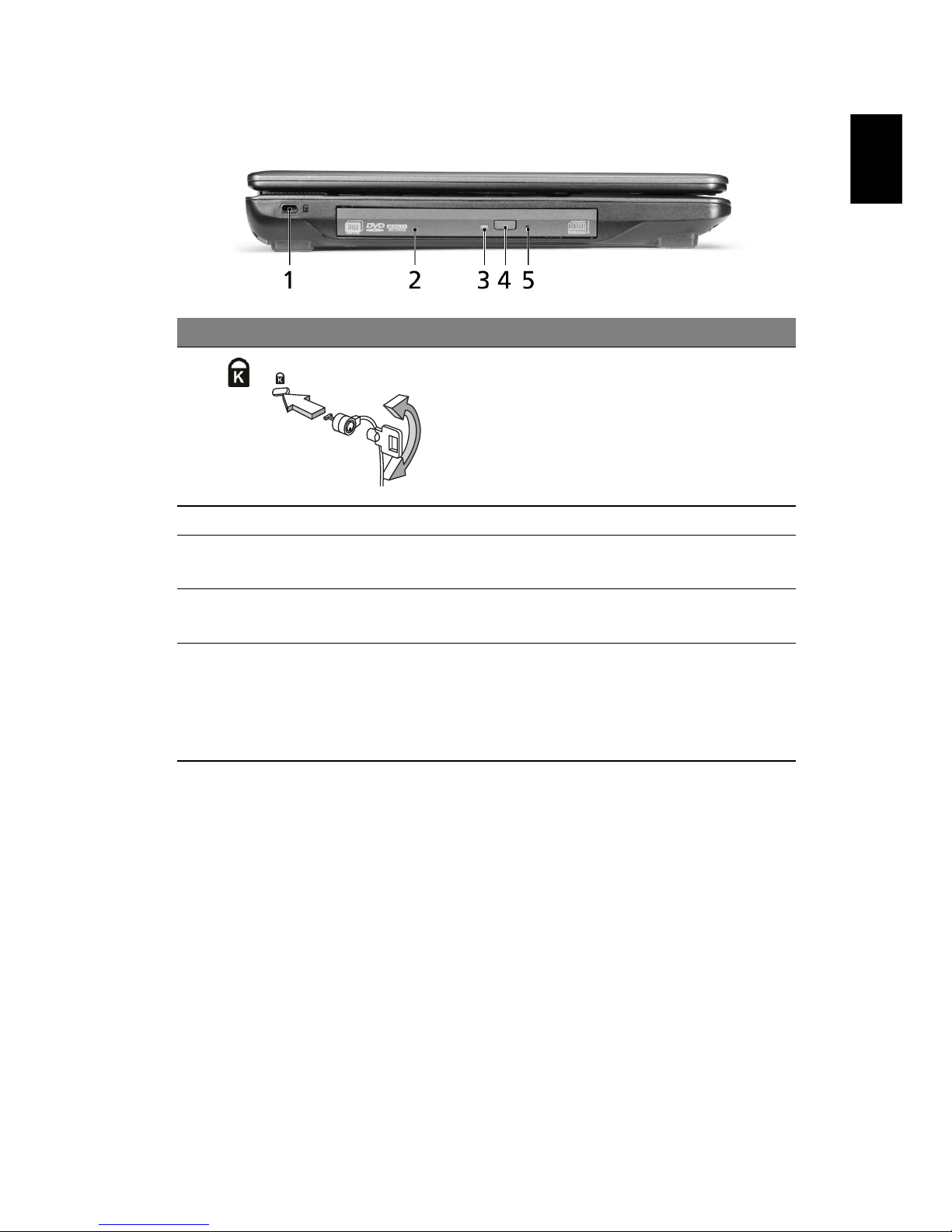

Left view

2. Location depends on model

#Icon Item Description

1 Kensington lock slot Connects to a Kensington-compatible

computer security lock.

Note: Wrap the computer security lock cable

around an immovable object such as a table

or handle of a locked drawer. Insert the lock

into the notch and turn the key to secure the

lock. Some keyless models are also available.

2 Optical drive Internal optical drive; accepts CDs or DVDs.

3 Optical disk access

indicator2

Lights up when the optical drive is active.

4 Optical drive eject

button2

Ejects the optical disk from the drive.

5 Emergency eject

hole2

Ejects the optical drive tray when the

computer is turned off.

Note: Insert a paper clip to the emergency

eject hole to eject the optical drive tray when

the computer is off.

English

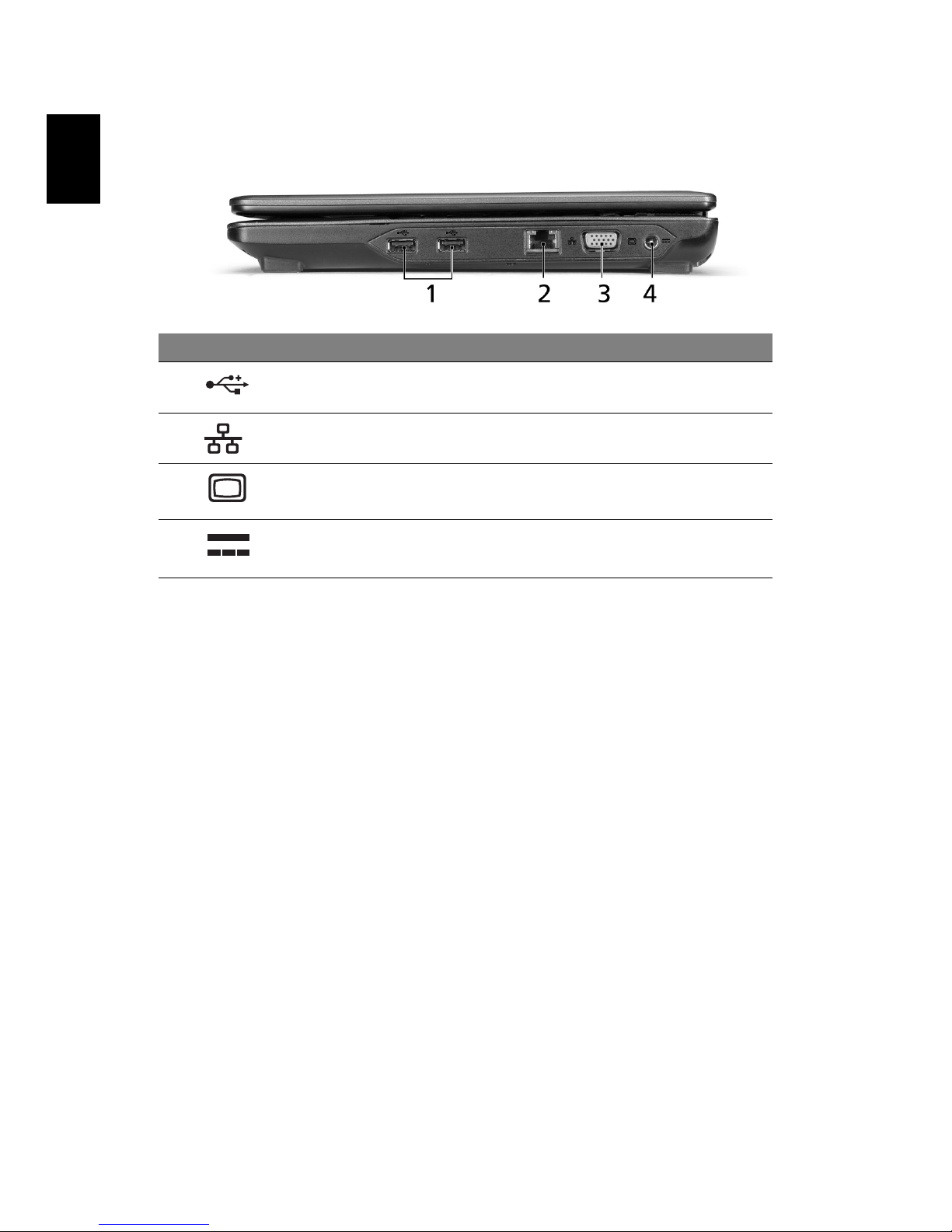

Right view

#Icon Item Description

1 USB 2.0 port Connect to USB 2.0 devices (e.g., USB

mouse, USB camera).

2 Ethernet (RJ-45)

port

Connects to an Ethernet 10/100-based

network.

3 External display

(VGA) port

Connects to a display device (e.g., external

monitor, LCD projector).

4 DC-in jack Connects to an AC adapter.

English

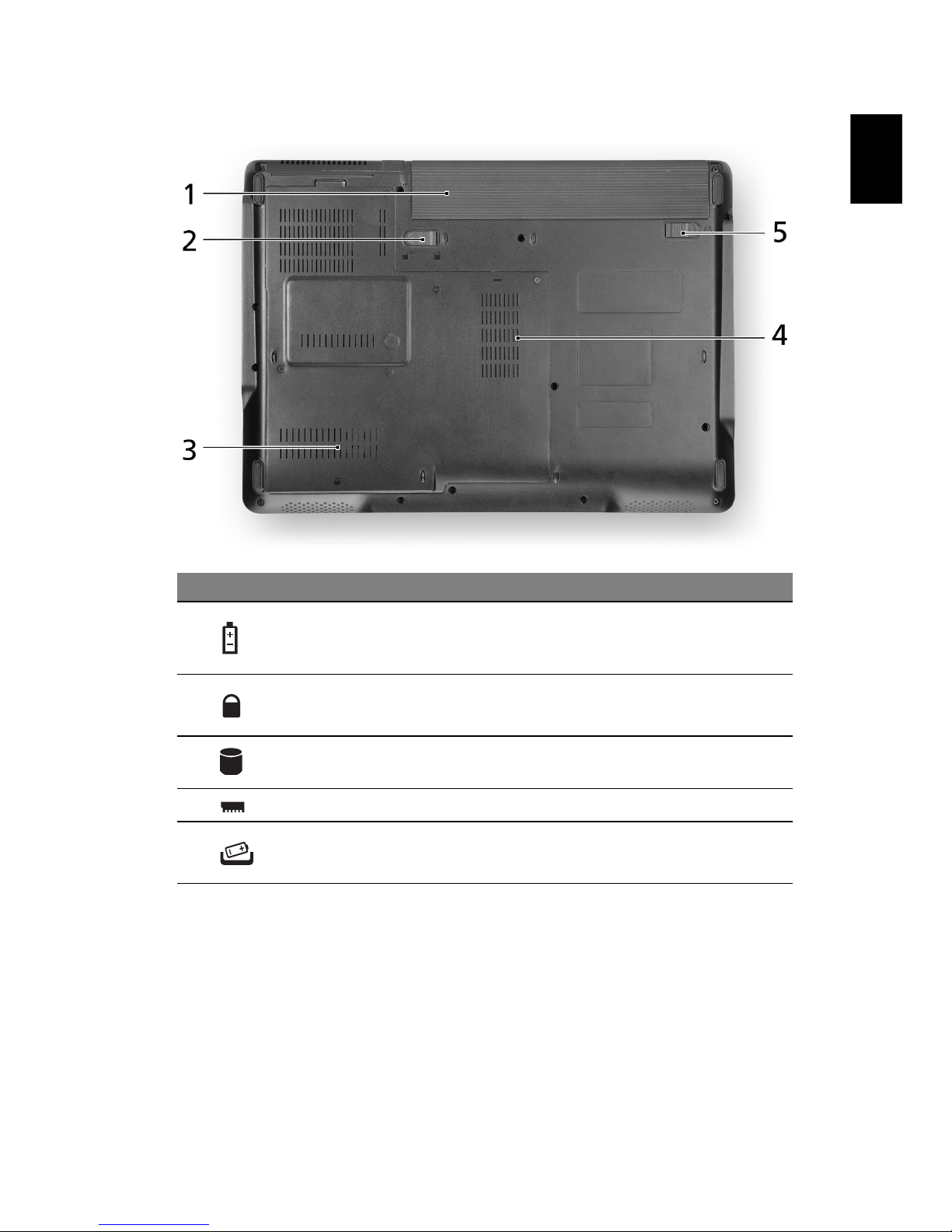

Base view

Item Description

1 Battery bay Houses the computer's battery pack.

2 Battery lock Locks the battery in position.

3 Hard disk bay Houses the computer's hard disk (secured

with screws).

4 Memory compartment Houses the computer's main memory.

5 Battery release latch Releases the battery for removal.

English

Specifications

Operating

system

•Genuine Windows Vista®

Platform •AMD Athlon™ 2650e* processor or higher

•AMD RS690MC/SB600 Chipset

•IEEE 802.11b/g

System memory •Dual-channel support

•Up to 2 GB of DDR2 667 MHz memory, upgradeable

to 4 GB using two soDIMM modules*

Display •14" WXGA 1280 x 800

Graphics •ATI Radeon™ Xpress 1200 Graphics

Storage

subsystem

•2.5" hard disk drive

•Optical drive option:

• DVD-Super Multi double-layer drive*

• DVD/CD-RW combo drive*

Audio •Two built-in stereo speakers

•High-definition audio support

• MS-Sound compatible

•Built-in microphone

Communication •Integrated webcam*

•WLAN: IEEE 802.11b/g

•LAN: Fast Ethernet; Wake-on-LAN ready

Dimensions •331 (W) x 248 (D) x 29.7/41.08 (H) mm

(13.03 x 9.76 x 1.16/1.61 inches)

•2.4 kg (5.29 lbs.) with 6-cell battery pack

Privacy control •BIOS user, supervisor, HDD passwords

•Kensington lock slot

Power

subsystem

•ACPI 3.0

•48.8 W 4400 mAh

•3-pin 65 W AC adapter

Special keys

and controls

•88-/89-key keyboard

•Touchpad pointing device

I/O interface •USB 2.0 port

•External display (VGA) port

•Headphones/speaker/line-out jack

•Microphone-in jack

•Ethernet (RJ-45) port

•DC-in jack for AC adapter
