EMC Celerra NX4 Manuale utente

EMC®Celerra®NX4 System

Dual Blade

Installation Guide

P/N 300-010-728 Rev A01Version 6.0

EMC believes the information in this publication is accurate as of its publication date. The information is

subject to change without notice.

THE INFORMATION IN THIS PUBLICATION IS PROVIDED “AS IS.” EMC CORPORATION MAKES

NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WITH RESPECT TO THE

INFORMATION IN THIS PUBLICATION, AND SPECIFICALLY DISCLAIMS IMPLIED WARRANTIES

OF MERCHANTABILITY OR FITNESS FORA PARTICULAR PURPOSE.

Use, copy, or distribution of any EMC software described in this publication requires an applicable

software license.

For the most up-to-date regulatory document for your product line, go to the Technical Documentation

and Advisories section on EMC Powerlink. For the most up-to-date listing of EMC product names, see

EMC Corporation Trademarks on EMC.com.

All other trademarks used herein are the property of their respective owners.

The label, settings, and system cabling information in this document are for your reference. Paste the

Control Station label in the provided space.

CNS 001365

For more information, refer to Celerra Tools on http://Powerlink.EMC.com

Before you begin

Software upgrade

If you bought a software maintenance contract, you are entitled to a software upgrade

that is performed only after the installation, Celerra Startup Assistant (CSA), and

registration have successfully completed.

Site preparation

Complete the site preparation by verifying the following activities before installation:

• Network connections

• Power requirements

• Rack space requirements

Internal system addresses Factory values

Primary internal network 128.221.252.100

Backup internal network 128.221.253.100

Netmask 255.255.255.0

IP address of storage processor A 128.221.252.200

IP address of storage processor B 128.221.253.201

Gateway IP address of storage processor A 128.221.252.104

Gateway IP address of storage processor B 128.221.253.104

Default IP addresses

The system components communicate with each other using a private Internet Protocol

(IP) network. By default, this network uses the IP addresses listed in the “

Internal

system addresses

.”

If your existing IP network uses addresses on these subnets, you are required to

change the private network addresses of your Celerra Network Server to different

subnets before the installation.

Welcome

The system that you are about to install comes factory pre-loaded with EMC®Celerra®

Network Server software (DART) and CLARiiON®storage array software (FLARE®).

For more information, refer to Celerra Tools on http://Powerlink.EMC.com

Installation overview

Step 5. Configure for production.

Installation

Step 4. Register with the

service provider.

Implementation

Step 3. Install the

Celerra Startup Assistant.

This CD contains the intellectual property of

EMC Corporation or is licensed to EMC Corporation

from third parties. Use of this CD and the intellectual

property contained herein is expressly limited to the

terms and conditions of the License Agreement.

EMC® Celerra® NS20

Back Next Cancel

EMC® Celerra® NS20 System

Tutor ial

CSA Installation

P/N nnn-nnn-nnn-A0n

EMC®

Tutorial

CSA Installation

P/N nnn-nnn-nnn-A0n

Step 2. Assemble and cable

the Celerra NX4 on site.

Step 1. Order the Celerra NX4

and prepare the site.

CNS-001409

For more information, refer to Celerra Tools on http://Powerlink.EMC.com

Installation overview steps

Installation steps:

1. You should review and complete the worksheets included in this document,

pages 25-30, and verify that the site is properly prepared for the installation of your

Celerra NX4.

About 20 minutes.

2. If your Celerra NX4 is to be installed in a customer-supplied rack, use this document to

unpack the system from the disposable mini-rack shipping container, and install the system

in your available rack.

About 40 minutes.

Note: If your Celerra NX4 system arrives at your site in a pre-installed cabinet and is

previously cabled, verify the cabling before you begin the use of your system.

Cable your system according to the instructions and illustrations contained in this document.

Ensure that all of your cables are seated securely.

About 45 minutes.

3. When you install your Celerra NX4, use the Celerra Startup Assistant (CSA) to conﬁgure

your system. The CSAis on the Celerra Applications & Tools CD. The CSA will help you

to create CIFS shares, NFS exports, and iSCSI LUNs, and to register your Celerra NX4

system.

About 15 minutes.

4. Register your system with the service provider. If you do not register your system now, using

the Celerra Startup Assistant, your request for support from your service provider will be

delayed.

About 5 minutes

Implementation step:

5. After you have registered your Celerra NX4 system, you must conﬁgure the system for

production. You can use the Provisioning Wizard in the CSA, one of the several

pre-packaged implementation conﬁgurations based on common usages, or your own

implementation using Unisphere software to conﬁgure your system. At the end of each

one of these conﬁgurations, your system will be ready for production.

For more information, refer to Celerra Tools on http://Powerlink.EMC.com

If your Celerra NX4 system was purchased and shipped in an EMC 40 unit cabinet of 70 in.,

where 1 unit =1.75 in., start on page 12 of this document and conﬁrm that the cables are

installed correctly and securely.

Otherwise, start unpacking your Celerra NX4 system that is shipped in a disposable mini-rack.

Unpacking your Celerra NX4 system

CNS-001428

For more information, refer to Celerra Tools on http://Powerlink.EMC.com

Accessory box

Standby power supply interconnect

cable kit

Crossover cables

Fibre Channel cables Ethernet cables for internal network

Power cables Bezels

Serial cables Hardware for non-factory installs

Contents of the disposable mini-rack container

Note: If additional accessory boxes are necessary, they will be shipped separately.

Front

Disk processor

enclosure (DPE)

Standby power supply (SPS)

Control Station (CS)

Blade enclosure

Accessory box

CNS-001427

Shrink-wrapped

Installation Guide,

environmental information,

and notices.

TLASerial Number

ModelNumber

DARTVersion

FlareVersion

UnitTested

Pre-Configured

MACAddress

SPAIP: 192.168.1.200

SPBIP: 192.168.2.201

Disposable mini-rack

shipping container.

Ganged rails

Document inventory list

Installation Guide with cabling diagrams Environmental compliance information

and notices

Disposable mini-rack

Ganged rails Standby power supply

Disk processor enclosure Blade enclosure

Control Station

For more information, refer to Celerra Tools on http://Powerlink.EMC.com

Remove components from shipping container

Caution: Two people are required to remove the components. Only remove the

screws holding the components in place at this time. Do not remove the screws holding

the mini-rack rails in place; this may cause damage to the components. Only remove

one component at a time.

TLASerial Number

ModelNumber

DARTVersion

FlareVersion

UnitTested

Pre-Configured

MACAddress

SPAIP:192.168.1.200

SPBIP: 192.168.2.201

Control Station (CS)

Standby power supply (SPS)

Disk processor

enclosure (DPE)

Blade enclosure

Do not remove the mini-rack

from shipping container.

CNS-001429

Remove this label and

paste it on the back of

the front cover of this

installation guide.

Disk processor

enclosure

Standby power supply

Control Station

Blade enclosure

TLASerial Number

ModelNumber

DARTVers ion

FlareVersion

UnitTested

Pre-Configured

MACAddress

SPAIP:192.168.1.200

SPBIP: 192.168.2.201

2. Carefully set aside each component as

it is removed (1-4) from the disposable mini-rack

shipping container.

3. The ganged rails remain in the mini-rack

shipping container at this time.

1. Using a Phillips-head screwdriver, remove only

six

screws per side.

Keep the screws to install the components in your site rack.

For more information, refer to Celerra Tools on http://Powerlink.EMC.com

Ganged rail slide

Rail extensions

Remove rear screws.

CNS-001411MOD

Front of your rack

Rear of your rack

Rail slide

Install 2 screws

to hold the rail

in place.

Rail extensions

Install rear screws.

Only remove the screws

holding the ganged rails

in the mini-rack.

Protruding PEM screw holes

are located in 4 places on

the front of the rails.

Marked holes on both rails

indicate the place

for initial screws.

Threaded

screw holes

Remove the

ganged rails

Install 2 screws

on each side

of the rack to

hold the rail

in place.

Ganged rail slide

1. Remove the larger-headed screws holding the ganged rails in place. Keep the screws to install the

ganged rails in your rack.

2. Remove the ganged rails. Do not remove the metal mini-rack, it is part of the shipping container. The

components are to be installed into your rack with the smaller-headed screws

3. Insert the ganged rail slides and seat the

rail extensions into the rear channels. With

the larger-headed screws you have kept,

start installing the ganged rails into your

rack.

4. Do not fully tighten

the initial two front

screws that join the

rails to the rack.

This allows some

adjustment space

for the installation

of the components.

Remove rails from mini-rack

For more information, refer to Celerra Tools on http://Powerlink.EMC.com

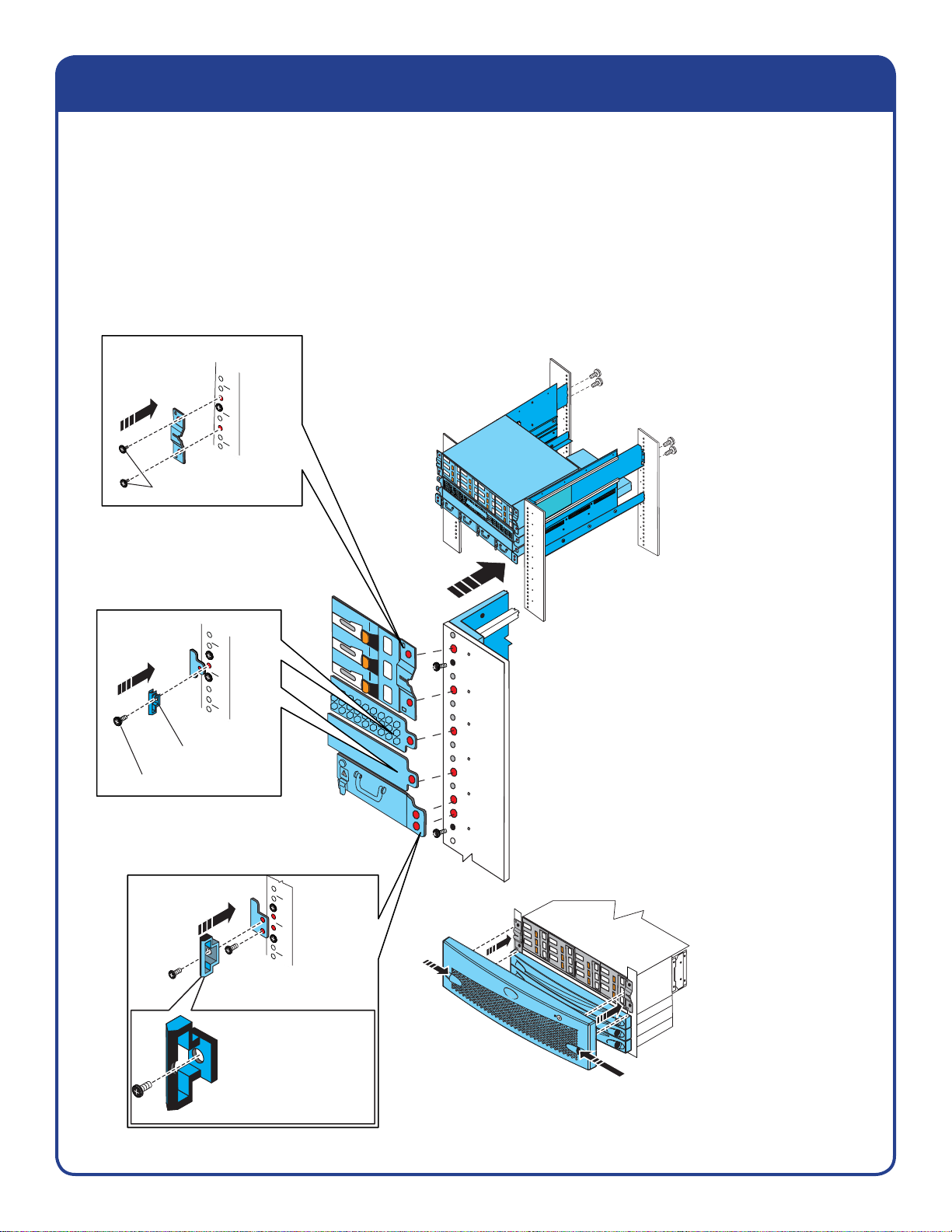

Components, latches, and bezels

1. Install the bottom component first

( 1 2 3 4 ). Ensure that each component

is secure before you install the next

component above it.

2. Snap on the bezels.

Disk processor enclosure (DPE)

2U latch and 2 screws each side

2 screws each side

Right front side

CNS-001430

Rail catch

1 screw each side

Control Station (CS) and

standby power supply (SPS)

1U latch each and

1 screw each, each side

Right front side

Press

Snap on bezels

Press to install the bezel,

then release.

The indentation goes

toward the inside of

the rack.

Install the lower

screw first with 2 screws

on each side.

Right front side

Inside

Blade enclosure

1U latch, 2 screws each side

Inside

1. Install the bottom component ﬁrst, and continue to individually install each component.

2. Ensure that each component and all screws are secure as the component is installed;

also install the latches as you install each component.

3. After all of the components and latches are in place, snap on the bezels.

Indice

Altri manuali EMC Magazzinaggio

EMC

EMC D860 Archiver Istruzioni per il montaggio

EMC

EMC DATA DOMAIN DD4500 Istruzioni per il montaggio

EMC

EMC Data Domain DD990 Istruzioni per il montaggio

EMC

EMC DLm120 Manuale tecnico

EMC

EMC CLARiiON AX150 Series Guida del prodotto

EMC

EMC DATA DOMAIN DD160 Istruzioni per il montaggio

EMC

EMC DATA DOMAIN DD4200 Istruzioni per il montaggio

EMC

EMC VNX5300 Block Manuale utente

EMC

EMC EMC2 DATA DOMAIN DD660 Istruzioni per il montaggio

EMC

EMC CelerraNS-120 Manuale utente

EMC

EMC DL3D 1500 Manuale di servizio

EMC

EMC VNX5300 Block Manuale del proprietario

EMC

EMC VNX Series Manuale utente

EMC

EMC VNX Series Manuale del proprietario

EMC

EMC VNX Series Manuale utente

EMC

EMC EMC Unity Family Manuale utente

EMC

EMC FC4700 Manuale tecnico

EMC

EMC CloudBoost 100 Istruzioni per il montaggio

EMC

EMC Celerra NS20FC Manuale utente

EMC

EMC Atmos Istruzioni per l'installazione

EMC

EMC VNX Series Manuale del proprietario

EMC

EMC Symmetrix DMX-3 Manuale utente

EMC

EMC CX500I - Insignia CLARiiON NAS Server Manuale utente

EMC

EMC Celerra NS20 Manuale utente

Manuali Magazzinaggio popolari di altre marche

QNAP

QNAP TS 32PXU Series Manuale utente

LaCie

LaCie RUGGED RAID Manuale utente

Freecom

Freecom CLS DOCK Manuale utente

PNY

PNY Attache P-FD64MBATT3 Manuale utente

HP StorageWorks MSL2024 Manuale utente

OLT

OLT 6x6 Maximizer Manuale utente

Transcend

Transcend JetFlash 160 Manuale utente

LaCie

LaCie RUGGED MINI Manuale utente

Thunderbolt

Thunderbolt 600 Manuale utente

Panasonic

Panasonic LB-DH8 series Manuale

Intel

Intel RAID High Availability Manuale utente

LaCie

LaCie 12big Thunderbolt 3 Manuale utente

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuale utente

Panasonic

Panasonic LKM-F931-1 Manuale utente

Tabernus

Tabernus Enterprise Erase E2400 Manuale utente

Rocstor

Rocstor COMMANDER 3F series Manuale utente

HP P9000 Manuale utente

Western Digital

Western Digital Ultrastar Data60 Manuale utente
