EMC Disk Library DL4106 Manuale utente

EMC Corporation

Corporate Headquarters:

Hopkinton, MA 01748-9103

-508-435-1000

www.EMC.com

EMC®

Disk Library

DL4106

SETUP AND CABLING GUIDE

P/N 300-005-921

REV A03

Notice

Published May, 2008

EMC believes the information in this publication is accurate as of its publication date. The information is subject to

change without notice.

THE INFORMATION IN THIS PUBLICATION IS PROVIDED “AS IS.” EMC CORPORATION MAKES NO

REPRESENTATIONS OR WARRANTIES OF ANY KIND WITH RESPECT TO THE INFORMATION IN THIS

PUBLICATION, AND SPECIFICALLY DISCLAIMS IMPLIED WARRANTIES OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE.

Use, copying, and distribution of any EMC software described in this publication requires an applicable software

license.

For the most up-to-date regulatory document for your product line, go to the Technical Documentation and

Advisories section on EMC Powerlink.

For the most up-to-date listing of EMC product names, see EMC Corporation Trademarks on EMC.com.

All other trademarks used herein are the property of their respective owners.

Overview

This guide explains how to set up and initialize the EMC®Disk Library DL4106,

where the DL4106 hardware components are rackmounted and cabled, and shipped

from the factory in EMC-supplied 40U-60 cabinets.

Refer to the Services website (http://www.cs.isus.emc.com/csweb2/dgweb/

DiskLibrary/index.htm) or to the Powerlink® website (http://Powerlink.EMC.com)

for the latest EMC Disk Library DL4100, DL4106, DL4200, DL4206, DL 4400, and

DL4406 setup and cabling, and service documentation.

Only an authorized service provider should perform the procedures in this guide.

The Disk Library server (DL server) is also referred to as the DL engine.

Step 1

Prepare your environment

Make sure the site where you intend to set up the DL4106 Disk Library has the

following:

❒Adequate network wiring to provide the DL server and each storage-system

storage processor (SP) with a management port Ethernet connection.

❒Appropriate electrical wiring in place to accommodate the cabinet’s power

cables. For EMC cabinets, see the Site Preparation Guide for CX3-Series Storage

Systems in a 40U-C Cabinet (on the EMC Powerlink website). To support all of the

storage system’s high-availability features, the cabinet must receive power from

at least two discrete circuits.

❒A host connected to the same network as the storage system to manage and

monitor the storage system. We recommend the following minimum

configuration for the management workstation:

• Intel compatible 500 MHz computer with at least 512 MB RAM and 50 MB of free

disk space.

• Video driver resolution set to a minimum of 1024x768 with 256 colors and small

fonts.

• Network interface controller.

• US keyboard and pointing device.

• DB-9 COM port connector.

• Windows 2000, Windows Server 2003 or Windows XP Professional.

• TCP/IP network connection to each storage processor in the CX3-80 storage

system that the customer will be managing and monitoring.

• Java Runtime Environment (JRE) Standard Edition 1.5.0_06 installed. However,

EMC recommends JRE 1.6.0 due to known performance issues with prior versions

of the JRE. Optimally, other JREs should be uninstalled and there must be only

one JRE installed on the station running the CLARalert® Suite.

• Web browser software: Microsoft Internet Explorer version 5.5 or greater,

Netscape Navigator version 6.0 or greater, Mozilla 1.1 or greater, or Firefox 1.0 or

greater.

IMPORTANT Updates, service tools and current documentation require

Internet access to a support website.

Step 1 continued

Prepare your environment

❒A service laptop or customer workstation to initialize the storage system, set up

with the following:

• Windows 2000, Windows Server 2003 or Windows XP Professional. However,

EMC recommends JRE 1.6.0 due to known performance issues with prior versions

of the JRE. Optimally, other JREs should be uninstalled and there must be only

one JRE installed on the station running the CLARalert Suite.

• Java Runtime Environment (JRE) Standard Edition 1.5.0_06 installed.

• Web browser software: Microsoft Internet Explorer version 5.5 or greater,

Netscape Navigator version 6.0 or greater, Mozilla 1.1 or greater, or Firefox 1.0 or

greater.

•Navisphere

®Storage System Initialization Utility from the CX3-Series Core Server

Support Products CD Version 6.26.X

• Service providers can download the latest Management UI from the EMC service

website. After you download the Management UI, save it to your desktop.

• EMC Navisphere Command Line Interface (CLI) Version 6.26.xx

Step 2

Plan your configuration

DL configuration planning worksheet

To plan your installation, fill out the information in the following tables. The network

administrator should provide most of this information.

Table 1: Storage-system management port information

Storage-system information

Storage-system serial number:

Network information

SP A management port IP

address:

SP A name: SP B management port IP

address:

SP B name:

Subnet mask:

Gateway:

Table 2: DL server management port information

Disk Library server information

Management IP address of DL server:

Subnet mask:

Default gateway:

(Optional)

DNS (up to two):

(Optional) Domain name:

Step 3

Verify the parts

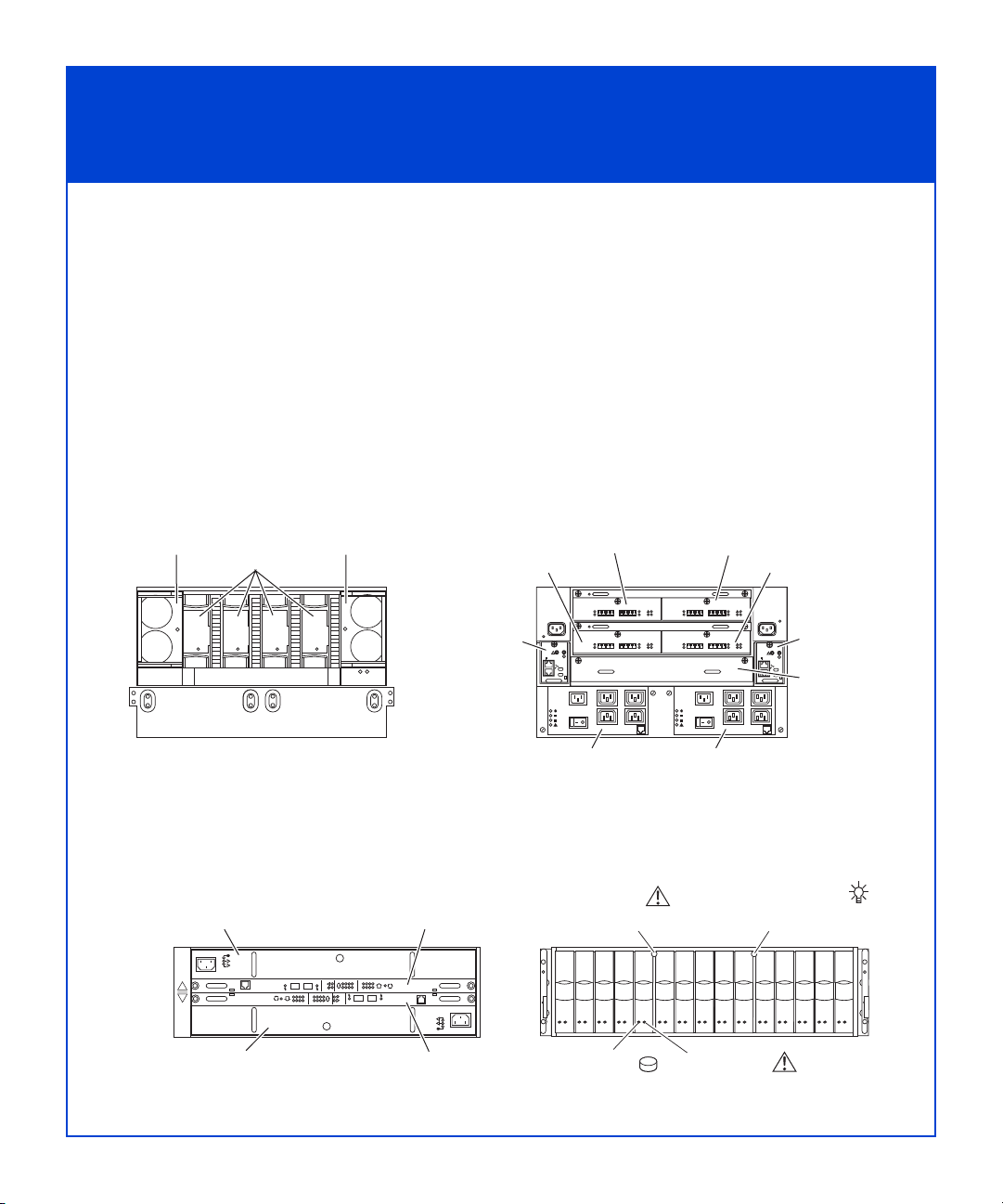

The following DL4106 Disk Library components are rackmounted and cabled in the

EMC-supplied 40U-60 cabinet(s):

❒One CX3-80 storage processor enclosure (SPE) with:

❒Two storage processors (SPs) each with two I/O modules

❒Two management modules

❒Two power supplies

❒Four blower modules

❒Two standby power supplies (SPSs)

❒One 4-gigabit disk-array enclosure (DAE3P) with six Fibre Channel (FC) boot

disk drives and one FC hot spare disk drive

ABC D

! !

Blower modules

Power supply A Power supply B

Rear

I/O module 0, SP B I/O module 1, SP B

Management

module B

Management

module A

Filler

panel

Front I/O module 0, SP A I/O module 1, SP A

EMC3432

SPSASPSB

EXP PRI

EXPPRI

EXP PRI

EXPPRI

Power LED

(green)

Fault LED

(amber)

Power/cooling module B Link control card B

Fault LED

(amber)

Disk activity

LED (green)

Power/cooling module A Link control card A

EMC3437

Step 3 continued

Verify the parts

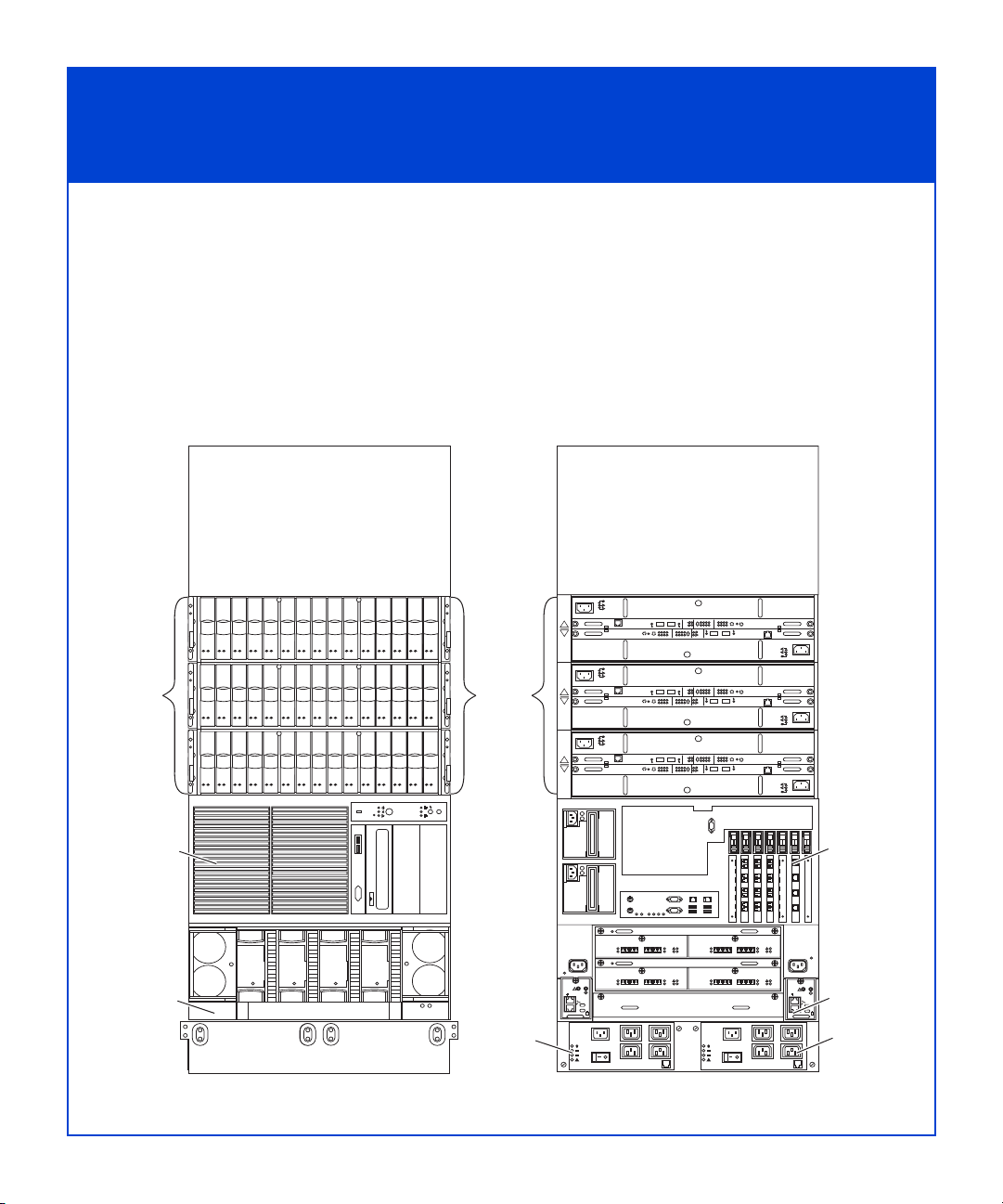

❒One disk-array enclosure (DAE3P) with fifteen 4-gigabit SATA (Serial Advanced

Technology Attachment) disk drives

❒Optional additional disk-array enclosures (DAE3Ps) with 4-gigabit SATA drives

(DL4106 can have a maximum of 32 DAE3Ps including the first DAE3P with boot

drives)

❒One Disk Library server (DL engine)

A B C D

DVD

ROM

I D

EXP PRI

EXPPRI

EXP PRI

EXPPRI

EXP PRI

EXPPRI

EXP PRI

EXPPRI

EXP PRI

EXPPRI

EXP PRI

EXPPRI

NIC 1 NIC 2

I O I O I

+ -

CL3747

Front Rear

Engine

CX3-80

SPE

Engine

CX3-80

SPE

Disk

DrivesDAE3P

SPSA

SPSB

Step 3 continued

Verify the parts

The following cables ship in an accessory box, or are customer-provided as

indicated:

❒Ethernet LAN RJ45 cable (one per SP and a maximum of four for the DL server)

for storage-system management (customer-provided)

❒One LAN 10/100BaseT crossover cable for configuration with the service laptop

❒Power cords – one per power supply

❒A maximum of ten 5-meter copper Fibre Channel HSSDC2-HSSDC2 cables for

back-end connection between cabinets for a full DL4106 configuration with three

cabinets

❒A maximum of eight Fibre Channel optical cables for DL4106 host/switch

connections (customer-provided)

❒EMC Disk Library Console and Software Documentation CD (P/N 053-001-785)

❒CX3-Series Core Server Support Products CD (P/N 053-001-725)

Step 4

Verify storage-system back-end connections

Use the information below and the illustration on the following page to verify the

bus (loop) cabling between the SPE and the DAE3Ps. Make sure you connect the

back-end cabling between the cabinets.

The illustration depicts a complete DL4106 configuration with three cabinets. The cabinet with

the CX3-80 storage system and the DL engine is in the middle with the first spillover cabinet

on the left, and the second spillover cabinet on the right.

A DL4106 configuration with fewer DAE3Ps looks different from the illustration shown on the

following page.

The CX3-80 SPE2 supports four redundant Fibre Channel back-end buses: 0, 1, 2 and

3 from SP A and 0, 1, 2, and 3 from SP B. On each bus the two independent loops

from SP A and SP B are paired, and share access to the same dual-port disk drives.

Each CX3-80 storage processor has four back-end (BE) ports that connect to the

corresponding primary (PRI) ports on the first disk enclosure in each bus. The disk-

array enclosure expansion (EXP) ports connect to the next PRI ports in their loops.

For the system to boot and operate, the first DAE3P – connected to BE 0 on both SPs

– must have enclosure address (EA) 0. A DAE3P with boot disks and the CX3-80

operating system is always assigned enclosure address 0 prior to shipment.

Each DAE3P in a bus requires a unique EA. The first DAE3P has an EA of 0, since it is

the first EA on the bus (bus 0). A second DAE3P (the first on bus 1) also has an EA of

0; a DAE3P connected to BE 2 or BE 3 is also EA 0 on that bus. Numbering

sequentially, the second EA on each bus is 1, the third 2, the fourth 3, and so on.
