Emerio PH-122042 Manuale utente

PH-122042

Panel Heater (EN)

Flächenheizung (DE)

Panneau chauffant (FR)

Radiatore a pannello (IT)

- 1 -

Content –Inhalt –Teneur –Contenuto

Instruction manual –English......................................................................................- 2 -

Bedienungsanleitung –Deutsch...............................................................................- 15 -

Mode d‘emploi – Français ........................................................................................- 28 -

Manuale d'istruzioni –Italiano.................................................................................- 41 -

- 2 -

Instruction manual –English

Important: read this instruction fully before using the heater;

retain these instructions for future reference.

This product is only suitable for well insulated spaces or

occasional use.

SAFETY INSTRUCTIONS (READ BEFORE OPERATING THE

HEATER)

1. Read and save these instructions. Attention: pictures in

the IM are for reference only.

2. This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction

concerning use of the appliance in a safe way and

understand the hazards involved.

3. Children shall not play with the appliance.

4. Cleaning and user maintenance shall not be made by

children without supervision.

5. Children of less than 3 years should be kept away unless

continuously supervised.

6. Children aged from 3 years and less than 8 years shall only

switch on/off the appliance provided that it has been

placed or installed in its intended normal operating

position and they have been given supervision or

instruction concerning use of the appliance in a safe way

and understand the hazards involved. Children aged from

3 years and less than 8 years shall not plug in, regulate and

clean the appliance or perform user maintenance.

7. CAUTION —Some parts of this product can become very

hot and cause burns. Particular attention has to be given

where children and vulnerable people are present.

- 3 -

8. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

9. This appliance is intended to be used in household and

similar applications.

10. The heater is not intended for use in bathrooms, laundry

areas or similar indoor locations. Never place the heater

where it may fall into a bathtub or any other water

container.

11. Do not use outdoors. Do not use to dry clothes or any

fabric.

12. Do not place the heater on carpets with a very deep pile.

13. The heater must not be located immediately below a

socket outlet.

14. Do not use the heater in areas where flammable liquids

are stored or where flammable fumes may be present.

15. Always unplug the heater when moving it from one

location to another.

16. Do not use the heater if the power cord is damaged.

17. Do not use this heater in the immediate surroundings of a

bath, a shower or a swimming pool.

18. WARNING: In order to avoid overheating, do not cover the

heater.

19. WARNING: The heater must not be used if the plaster

panels are damaged.

20. This heating device is not suitable for assembling in

vehicles and machines.

21. Means “DO NOT COVER“.

22. Regarding the information for FEET ASSEMBLY, please refer

to the below paragraph of the manual.

23. Always use the heater in an upright position. Keep

combustible material such as furniture, cushions, bedding,

- 4 -

paper, clothes, curtains etc. at least 100cm away from the

heater.

24. This heater has hot and arcing or sparking parts inside. Do

not use it in the areas where gasoline, paint, or flammable

liquids are used or stored.

25. To prevent overloading a circuit, do not plug the heater

into a circuit that already has other appliances working.

Do not install the heater under the wall socket.

26. Always unplug the appliance when not in use.

27. The appliance is hot when in use. To avoid burned, do not

let bare skin touch hot surfaces.

- 5 -

PH-122042 EN

PARTS DESCRIPTION

1. Heater body

2. Temperature sensor

3. Power switch

4. Control panel

5. Feet

a) LED display

b) Standby button

c) Timer and WIFI button

d) Value increase / decrease buttons

e) WI-FI indicator light

f) Timer indicator light

FEET ASSEMBLY (FREE STANDING)

1. Place the free standing feet on the ground. Insert the appliance into the slots of the feet.

2. Screw firmly with the two bolts.

WALL MOUNTING

There is a pack of accessories provided with the appliance. Please use it for wall mounting according to below

illustrations.

- 6 -

Accessories pack 1 set:

-1 x drill bit (8mm)

-4 x rail fittings

-4 x screw bolts

-4 x caps for bolts

1. Mark the positions of the four holes to be drilled on the wall. (Better install the appliance in a height of

20cm –100cm from the floor to get the best performance.)

2. Drill the holes with the drill bit.

3. Insert the plastic rail fittings into the holes.

4. Attach the appliance onto the four rail fittings through the four holes in the appliance.

5. Screw the four bolts into the plastic rail fittings.

6. Cover the bolts with the caps. It is recommended to use some glue to make the caps stick onto the bolts

firmly.

NOTE: make sure the distance between the bottom of the appliance and the floor is no less than 20cm when

the appliance is installed.

OPERATION

Plug the appliance into an appropriate electrical outlet. Turn on the appliance by pressing the power switch to

position “I”. The power switch will be illuminated. The appliance is standby. Press the standby button “” to

run your appliance.

1. Temperature setting

Press button “+” or “-” to set the desired temperature. You can choose from 0℃to 37℃. When you set your

desired temperature, the heater starts or stops heating automatically to maintain the room temperature. You

can long press the button “+“or “-” in the control panel for rapid adjustment.

- 7 -

2. Time setting

Press button “M” in the control panel, the timer 00 shows in the display. Press button “+” or “-” to set the

desired working time from 0 hour to 24 hours. The appliance will shut itself off automatically when the time is

up.

You can long press the button “+“or “-” in the control panel for rapid adjustment.

3. Turn off

Press button “ ” again to turn off the appliance. Turn off the main power switch and unplug the power cord

from the outlet.

WI-FI FUNCTION

This product is equipped with a Wi-Fi function. You can download APP in your mobile phones and use it like

the remote control. You can control the appliance from long distance by setting the on/off, timer, temperature,

and weekly schedule.

Long press the standby button “ ” to turn on/off the Wi-Fi function, the blue indicator light will be

blinking/off accordingly.

1. Download APP

1) For Apple system:

Open the “App store” software on your iPhone or iPad. Search “TuyaSmart” or “Smart Life” and download

either of them. This is free of charge.

2) For Android system:

Open the “Google Play” software on your Android phone. Search “TuyaSmart” or “Smart Life” and

download either of them. This is free of charge.

2. Open the APP and select “Register”. Enter your mobile phone number to get verification code. The country

code has already been filled in for you.

3. The verification code will send to your mobile phone within 60 seconds. Enter this verification code and

then set your password. Click “Done” to confirm the registration.

4. Select “Create Family” to enter family name, set location and rooms with smart devices. Click “Done” to

confirm the setting. Then, the home screen appears.

- 8 -

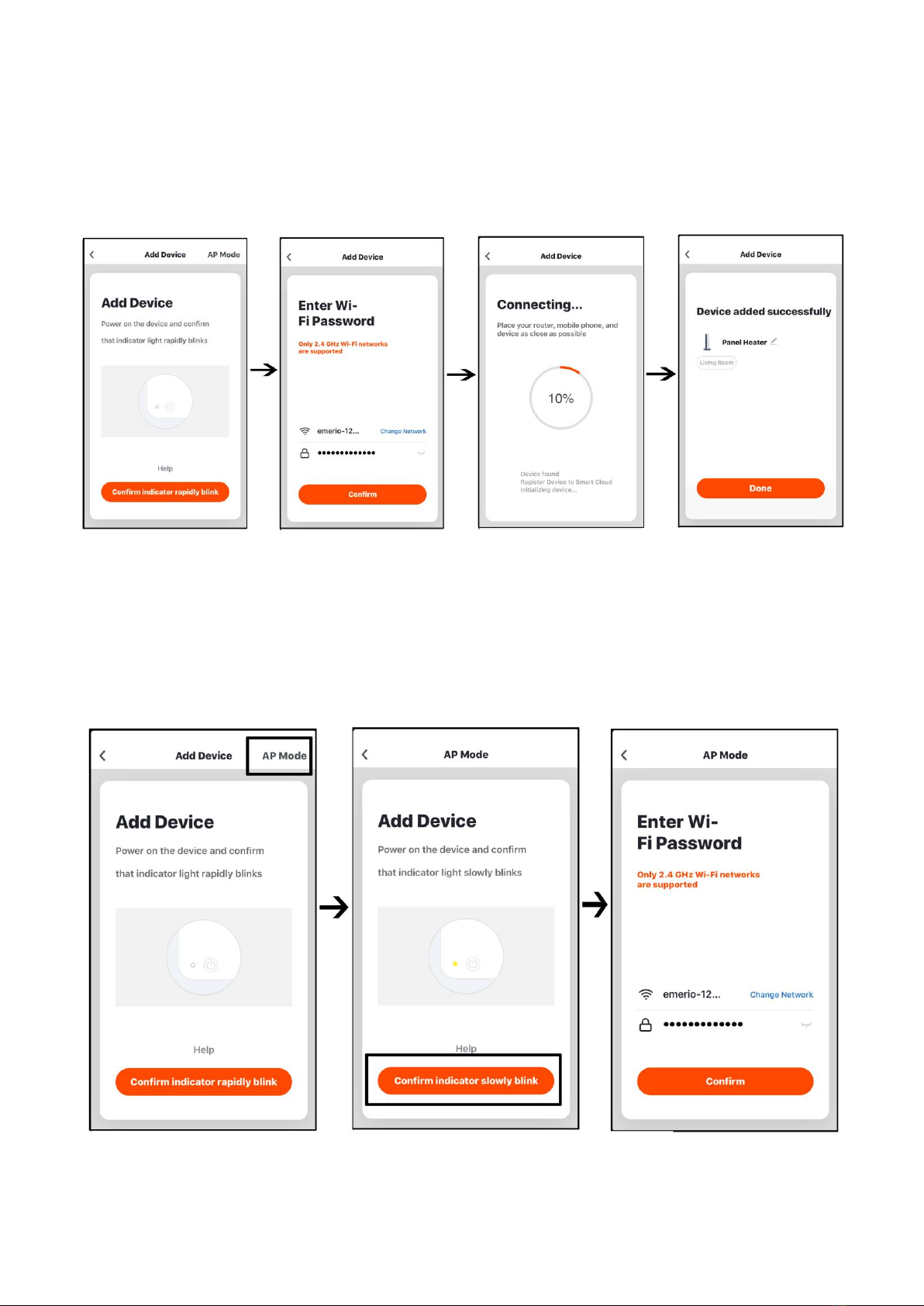

5. Connect your heater and your mobile phone at the same WI-FI Internet.

1) Make sure the blue Wi-Fi indicator light is blinking rapidly.

a) Click “Add Device” to enter into the next screen. Select “Add Manually”, and then choose the correct

product category (Small Home Appliance → Heater), then come into the next screen, click “Confirm

indicator rapidly blink”.

b) Type in the Internet password (the network name has already been filled in for you) and confirm. The

connection begins.

2) If the “rapid blink” connection is failed, long press button “M” to get slow blink, then try again.

a) Click “Add Device” to enter into the next screen. Select “Add Manually”, and then choose the correct

product category (Small Home Appliance → Heater), then come into the next screen; choose “AP

Mode”, come to the next screen and click “Confirm indicator slowly blink”.

b) Type in the Internet password (the network name has already been filled in for you) and confirm.

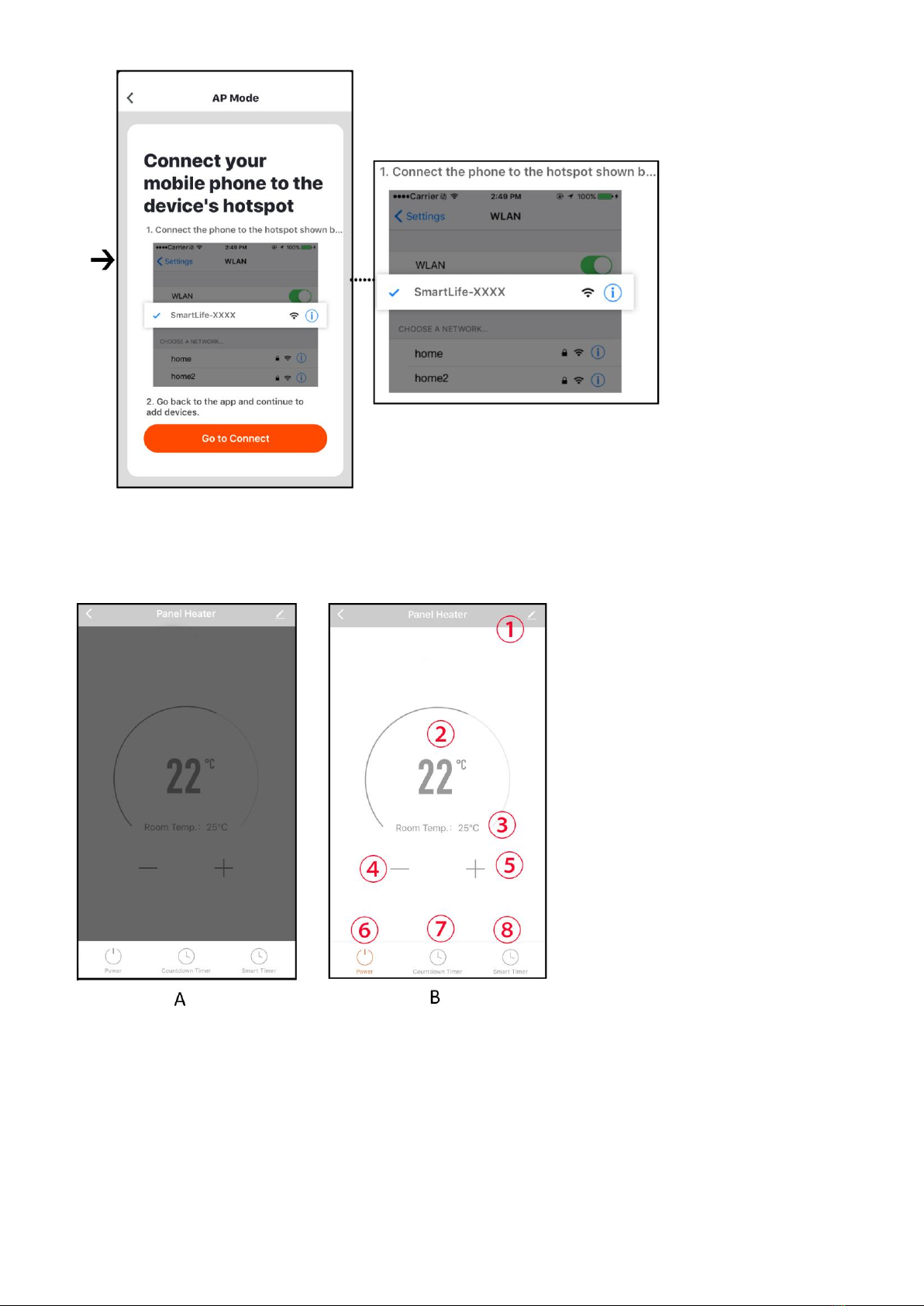

c) You will get the hint “connect your mobile phone to the device’s hotspot”, click “Go to Connect”, you

will come to WLAN settings, choose “SmartLife-XXXX”. Return to the APP. The connection will begin.

- 9 -

3) When the connection is done, you will come to a screen write “Device added successfully”. Click “Done”,

then you will come to the screen like below picture A. Now you can use your mobile phone like the

remote control to control your heater.

4) Click button “Power”, the appliance will be on. And you will come to the screen like picture B.

1. More information

2. Set temperature

3. Room temperature

4. Value decrease button

5. Value increase button

6. Power on/off

7. Countdown Timer

8. Smart Timer
