EM3140 Wireless Mini Keyboard with touchpad and laser pointer

ENGLISH

EM3140 Wireless Mini keyboard with

touchpad and laser pointer

Table of contents

1.0 Introduction ...........................................................................................................2

1.1 Functions and features ......................................................................................2

1.2 Packing contents ...............................................................................................3

2.0 Explanation of the buttons .....................................................................................3

3.0 Using the EM3140 with your Eminent HD media player.........................................5

3.1 Connecting the EM3140 ....................................................................................5

3.2 Using the EM3140 to play a movie (or other media file) .....................................5

3.3 Using the EM3140 with the webbrowser of the media player.. .. ........................5

3.4 Shortcut.............................................................................................................6

4.0 Using the EM3140 on your computer.....................................................................6

4.1 Installing and using the EM3140 as keyboard and mouse..................................6

4.2 Using the EM3140 with presentations................................................................7

5.0 Other functions ......................................................................................................7

5.1 Using the backlight of the EM3140 ....................................................................7

5.2 Recharging........................................................................................................7

5.3 Changing the channel........................................................................................7

6.0 Frequently asked questions and other related information .....................................8

7.0 Service and support...............................................................................................8

8.0 Warning and points of attention .............................................................................9

9.0 Warranty conditions...............................................................................................9

10.0 Declaration of Conformity ....................................................................................9

1.0 Introduction

Congratulations with the purchase of this high-quality Eminent product! This product

has undergone extensive testing by Eminent’s technical experts. Should you

experience any problems with this product, you are covered by a two-year Eminent

warranty. Please keep this manual and the receipt in a safe place.

1.1 Functions and features

The Eminent EM3140 Wireless Mini Keyboard is the ultimate extension for your

Eminent HD media player. Typing text is easy using the EM3140. When using your

Eminent HD media player, visiting websites will become an experience. Use the

touchpad of the EM3140 to easily navigate through websites. The EM3140 can also

be used as remote control for your HD media player.

ENGLISH

Some buttons on the EM3140 also act as shortcut when connected to your HD media

player. You can use the ‘O’ button on the EM3140 to open the option menu while

playing files, use the ‘S’ button to stop files etc.

The EM3140 Wireless Mini Keyboard also has a backlight function which allows you to

use the keyboard even when it is dark.

The EM3140 has a built-in laser pointer which can be used for (professional)

presentations. Since the EM3140 also has a built-in keyboard and touchpad function,

you will be able to control your computer or laptop, but also being able to present

using one and the same device. The EM3140 even has the possibility to rotate the

touchpad 90 degrees which is ideal for your presentations.

The EM3140 has a compact, elegant and contemporary design. Thanks to it’s

compact design, the EM3140 is easy to carry. The USB receiver can be stored in the

EM3140 itself.

The EM3140 is equipped with a Lithium-ion battery with a stand-by time up to a

month. If the battery is depleted, you can easily recharge the battery by connecting the

EM3140 to the supplied USB cable and connecting the other end to a USB port of

your media player or computer.

Please note that functionality of buttons may vary , depending on the type mediaplayer

you are using.

1.2 Packing contents

The following parts need to be present in the packing:

•EM3140 Wireless Mini Keyboard

•USB receiver

•USB cable (for recharging)

•Manual

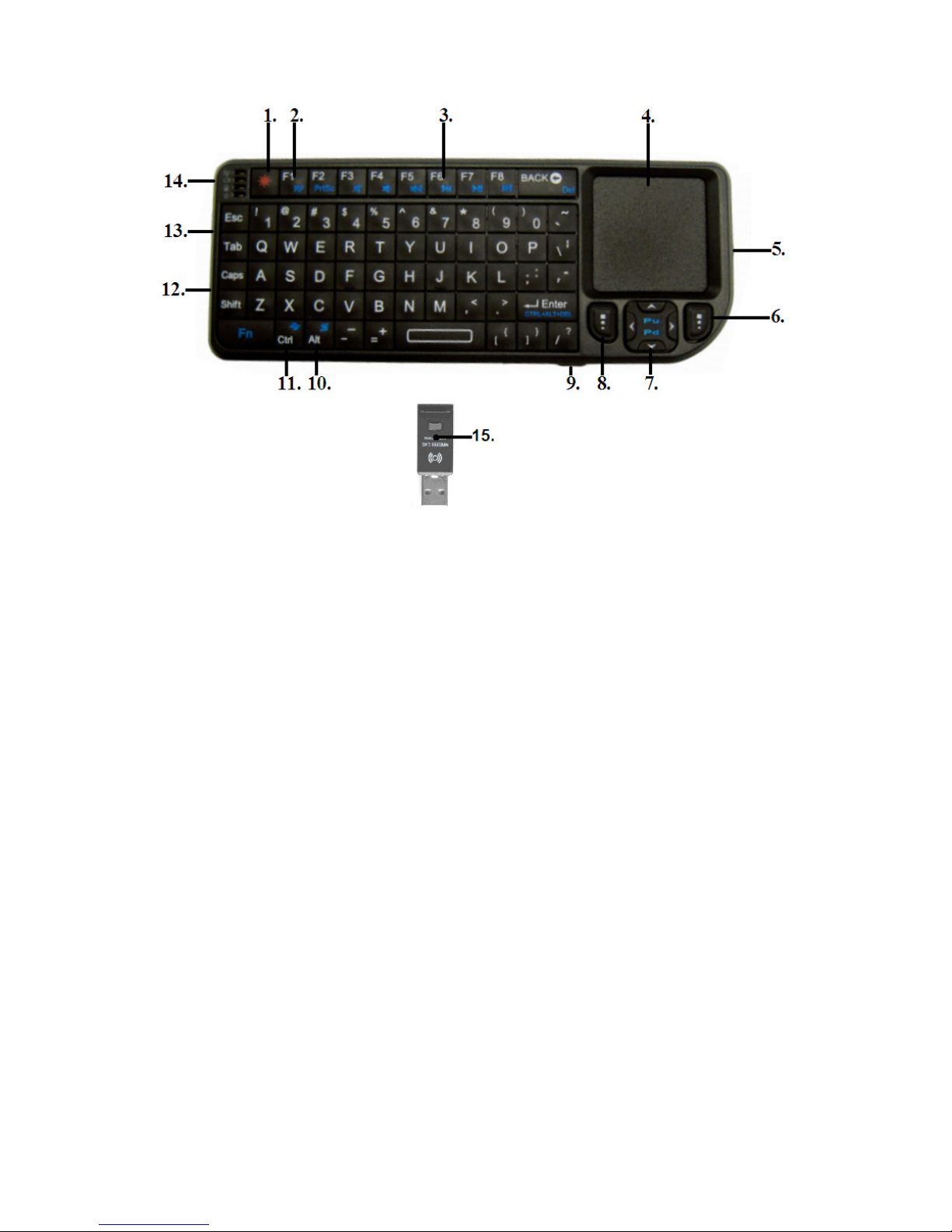

2.0 Explanation of the buttons

ENGLISH

1. Backlight button: Turn the backlight on/off.

2. F1/Help button: Activates the help function (Windows).

3. Multimedia buttons: Used to control media files (Windows).

4. Touchpad: Used to control the mouse indicator in the same way as

on a notebook)

5. Laser LED: Laser of the pointer. Used when presenting.

6. Right mouse button: Used to right-click an item.

7. Navigation buttons: Used to navigate through the menu’s (media player).

8. Left mouse button: Used to left-click an item.

9. Laser button: Used to activate the laser.

10. Alt button: Used to rotate the touchpad in combination with the Fn

button.

11. CTRL button Shortcut (Windows).

12. USB connection: Charging interface. Used to charge the EM3140.

13. On/Off switch: Used to switch the EM3140 on and off.

14. Indicator LED’s: LED’s which indicate the RF status, battery status etc.

15. USB receiver: Needs to be connected to a free USB port of the media

player or computer.

ENGLISH

3.0 Using the EM3140 with your Eminent HD

media player

3.1 Connecting the EM3140

1. Take the EM3140 and receiver out of the packing.

2. Make sure your media player is completely started.

3. Place the USB receiver into a free USB port of the media player.

4. Turn on the EM3140 by sliding the power button to the ‘ON’ position.

5. The media player will recognize the EM3140 automatically.

3.2 Using the EM3140 to play a movie (or other media file)

The EM3140 can be used on the same manner as the original remote control of the

media player. We will explain how to play a movie with separate (SRT) subtitles.

1. Use the arrow buttons beneath the touchpad to navigate through the menu.

2. Go to ‘Movies’ and press the ‘enter’ button on the EM3140.

3. Press the ‘O’ button on the EM3140 if you want to see the ‘Options’ menu.

4. Select the movie you want to play and press the ‘Enter’ button on the EM3140

after which the movie starts to play.

5. To select the subtitle, press the ‘O’ button, select ‘Subtitle’ and press the ‘Enter’

button.

6. Select the subtitle and press the ‘Enter’ button on the EM3140 after which the

subtitle starts to play.

7. If you want to stop the movie, press the ‘S’ button on the EM3140 after which the

movie will be stopped.

3.3 Using the EM3140 with the webbrowser of a media

player

1. Use the arrow buttons of the EM3140 to go to ‘Apps’ and press the ‘Enter’ button

of the EM3140.

2. Select the web browser and press the ‘Enter’ button after which the browser page

will be opened.

3. Press the ‘O’ button on the EM3140 after which the address bar will be shown.

4. Select the address bar and press the ‘Enter’ button.

5. You can now fill out the web address you want to visit.

6. Use the arrow buttons to select ‘OK’ and press the ‘Enter’ button on the EM3140.

7. Select ‘Go’ using the touchpad and click ‘Go’ using the left mouse button. The

page will be opened.

8. You can use the touchpad and the mouse buttons to navigate through the

website and be able to click links.

ENGLISH

9. If you want to visit another website, then you have to press the ‘O’ button again

and fill out a new website in the address bar.

3.4 Shortcut

The EM3140 has some buttons which function as shortcut. This can be handy while

browsing or playing files on your media player. We will explain these shortcuts.

Please note that functionality of buttons may vary , depending on the type mediaplayer

you are using.

Symbol

Function

ESC

Used to go back to the previous step. Also used to stop a file while being

played.

Used to change the screen resolution.

Used to decrease the sound volume.

Tab

Used to enter the settings menu/turn back to the main menu.

Used to select/switch between audio sources while playing files.

Used to select the time frame window.

Used to select main menu options when a category (Movies etc) has been

selected.

Used to mute the sound.

Used to open the address bar when using the web browser. Also used to

open the ‘Options’ menu when a media file is being played.

Used to stop a file.

Used to slowdown a played file.

Used to fast-forward a played file.

Used to zoom in while playing files.

4.0 Using the EM3140 on your computer

The EM3140 can also be used on your computer as a ‘regular’ keyboard and mouse.

Also, the EM3140 can be used when presenting.

4.1 Installing and using the EM3140 as keyboard and

mouse

1. Connect the USB receiver to a free USB port on your computer.

2. Turn on the EM3140 by sliding the power button to the ‘ON’ position.

3. It is possible Windows notifies you a keyboard and mouse have been found.

Windows will automatically install the correct drivers.

ENGLISH

4. You will now be able to use the EM3140 as keyboard and mouse. Also, the F1-

F8 and multimedia buttons will be available.

4.2 Using the EM3140 with presentations

1. Once the EM3140 has been installed, you can also use the EM3140 as

presenter. Use the following steps:

2. Use the EM3140 to select a presentation file such as a .PPT file.

3. Once the file has been opened, you can use the navigation buttons to select the

next step of the presentation or to go back one step.

4. Press the laser button( ) to activate the laser pointer itself. You need to

keep pressing the laser button if you want to keep using the laser pointer.

Hint: The touchpad can rotate 90 degrees by pressing the ‘Fn’ and ‘Alt’ button

simultaneously. This is the ideal setting when presenting.

5.0 Other functions

5.1 Using the backlight of the EM3140

The EM3140 also has a backlight function which is ideal when you are in a dark

environment.

1. Make sure the EM3140 has been set to the ‘On’ position.

2. Press the backlight button ( ) to activate the backlight. All buttons will be lit.

3. Press the backlight button again to deactivate the backlight function. The

backlight function will also be deactivated automatically if the keyboard is not

being used for about 25 seconds.

5.2 Recharging

Once the battery of the EM3140 is depleted, the battery needs to be recharged. Once

the battery is (almost) depleted, the battery symbol on the EM3140 will start to blink.

1. Connect the supplied USB cable to a free USB port of your computer of to a free

USB port of your media player.

2. Once connected, the battery symbol will change to a red color.

3. As long as the battery symbol is red indicated, the battery is being recharged.

4. When fully recharged, the battery symbol will not be lit anymore.

5.3 Changing the channel

The EM3140 runs on a 2.4Ghz channel. It is possible interference occurs when using

multiple 2.4Ghz devices. In that case, the EM3140 may not be as responsive as it

should be. Follow the steps below to change the channel of the EM3140.

ENGLISH

1. Make sure the EM3140 is set to the ‘On’ position and the USB receiver is

connected to your media player or computer.

2. Press the ‘Fn’ and ‘Alt’ button simultaneously. The LED’s on the keyboard will

start to flash slowly.

3. Keep pressing down the ‘FN’ and ‘Alt’ buttons during ten seconds and then stop

pressing the buttons.

4. The LED’s on the keyboard will then flash quickly. After a few moments, the

LED’s will begin to flash slowly which indicates the channel has been changed.

6.0 Frequently Asked Questions and other

related information

The latest Frequently asked questions for your product can be found on the support

page of your product. Eminent will update these pages frequently to assure you have

the most recent information. Visit www.eminent-online.com for more information about

your product.

7.0 Service and support

This users manual has been carefully written by Eminent’s technical experts. If you

have problems installing or using the product, please fill out the support form at the

website www.eminent-online.com/support.

You can also contact us by phone. Below you will find a list with phone numbers for

each supported country.

Country Phone number Rate per minute*

Belgium (Dutch) 070 277 286 €0.30

Belgium (French) 070 277 286 €0.30

Denmark +45 69918565 Local Costs

Finland +35 8942415826 Local Costs

Germany 1805 982 234 €0.14

Italy +39 0240042016 Local Costs

Norway +47 21075033 Local Costs

Spain 807 080 042 €0.41

Sweden +46 840 309985 Local Costs

The Netherlands 0900-3646368 €0.45

UK 905 871 0013 £0.30

Hungary 1-4088902 (From

Budapest)

Local Costs

Hungary 06-1-4088902

(From the rest of

Hungary)

Local Costs

ENGLISH

Hungary +36 1-4088902

(International)

Local Costs

* Rates mentioned in this table do not include cell phone charges.

8.0 Warning and points of attention

Due to laws, directives and regulations set out by the European parliament, some

(wireless) devices could be subject to limitations concerning its use in certain

European member states. In certain European member states the use of such devices

could be prohibited. Contact your (local) government for more information about this

limitations.

Always follow up the instructions in the manual, especially where it concerns devices

which need to be assembled.

Warning: In most cases this concerns an electronic device. Wrong/improper use may

lead to (severe) injuries!

Repairing of the device should be done by qualified Eminent staff. The warranty

immediately voids when products have undergone self repair and/or by misuse. For

extended warranty conditions, please visit our website at www.eminent-

online.com/warranty

9.0 Warranty conditions

The five-year Eminent warranty applies to all Eminent products unless mentioned

otherwise before or during the moment of purchase. When having bought a second-

hand Eminent product the remaining period of warranty is measured from the moment

of purchase by the product’s first owner. The Eminent warranty applies to all Eminent

products and parts inextricably connected to and/or mounted on the main product.

Power supply adapters, batteries, antennas and all other products not integrated in or

directly connected to the main product and/or products of which, without reasonable

doubt, can be assumed that wear and tear show a different pattern than the main

product are not covered by the Eminent warranty. Products are not covered by the

Eminent warranty when subjected to incorrect/improper use, external influences

and/or when opened by parties other than Eminent.

10.0 Declaration of Conformity

To ensure your safety and compliance of the product with the directives and laws

created by the European Commission you can obtain a copy of the Declaration of

Conformity concerning your product by sending an e-mail message to: info@eminent-

online.com. You can also send a letter to:

ENGLISH

Eminent Europe BV

PO Box 276

6160 AG Geleen

The Netherlands

Clearly state ‘Declaration of Conformity’ and the article code of the product of which

you would like to obtain a copy of the Declaration of Conformity.

EM3140 | 12-2011

Indice

Altri manuali Eminent Tastiera

Eminent

Eminent EM3141 Manuale utente

Manuali Tastiera popolari di altre marche

Vortexgear

Vortexgear POK3R Manuale utente

Razer

Razer RZ03-0188 Manuale utente

Logitech

Logitech RUGGED LITE Manuale utente

Honeywell

Honeywell ADEMCO 5839 Istruzioni per il montaggio

Hama

Hama AK-120 Manuale utente

Rodgers

Rodgers RK-76 Manuale utente

Logic Controls

Logic Controls KB5000 Series Manuale utente

Rapoo

Rapoo E9270P Manuale utente

iKey

iKey DP-88 Manuale utente

Logitech

Logitech G413 TKL SE Istruzioni di montaggio

Keychron

Keychron C1 Manuale utente

Dahua

Dahua NKB Manuale utente

Ultimate Technology

Ultimate Technology 500 POS Manuale utente

Ducky

Ducky Shine 5 Manuale utente

Mace

Mace MACALLY MERGOKEY Manuale utente

iKey

iKey KYB-42-KIOSK Manuale utente

Akko

Akko MX108 Manuale utente

Viper

Viper V770 Manuale utente
