USERS’ MANUAL
ENCARDIO-RITE ELECTRONICS PVT. LTD.
A-7, Industrial Estate, Talkatora Road Lucknow, UP - 226011, India | P: +91 522 2661039-42 | Email: geotech@encardio.com | www.encardio.com
International: UAE | Qatar | Bahrain | Bhutan | Europe | UK | USA
India: Lucknow | Delhi | Kolkata | Mumbai | Chennai | Bangalore | Hyderabad | J&K
Doc. # WI 6002.119 Rev. 0 |
Jan 2020
WIRELESS DIGITAL NODE
MODEL EWN-01D
Users’ Manual Digital Node (Wireless-RF)
Page | 1
1 QUICK START GUIDE
Generally, we send devices pre-configured. If your devices are pre-configured by us, please go through
the user-friendly procedure to get started with your ER Beam system, which takes only a few minutes to
get the process rolling.
1 Power on Gateway and turn on its inbuilt Wi-Fi network.
2 Connect your Android phone to the ER Beam Wi-Fi network.
3 Connect the Android cable to the phone first using the OTG adapter.
4 Open the ER Beam Offline Android app.
5 Load the project and tap on it to go to the home screen of the app.
6 Then connect the Android cable's other end to the Node and click on Setup Device and follow the
wizard.
7 Repeat step 6 for all your Nodes.
8 Then press the Cloud Sync on the app to sync back all the Node settings to the gateway.
9 Now the Nodes will send the sensor data at the configured time intervals.
10 Optionally, the data can be exported and engineering conversions can be set using the Gateway
software.
Users’ Manual Digital Node (Wireless-RF)
Page | 2
2 SETTING UP WIRELESS DIGITAL NODE
This section provides information on setting up a Digital Node to work with the offline ER Beam gateway.
2.1 Installation
The Nodes can be directly affixed to a flat surface using M6 screws. However, for more sophisticated
mounting scenarios, we recommend using the node bracket. The node bracket can be used to easily mount
the node on flat surfaces, on pipes using U-bolts or cable-ties, or in other complicated settings.
If you are using the bracket, first fix the node device to the bracket using M6 screws and nuts as shown
below.
Use four screws and nuts to attach the node to the bracket (Refer to figure 1).
Connect the SMA antenna to the bulkhead. Once the mounting is complete, the node should look as in
figure 2.
Figure 1: Attachment for nodes
Figure 2: Node (after installation)
Users’ Manual Digital Node (Wireless-RF)
Page | 3
2.2 Node Setup
1 Connect the node antenna to the antenna bulkhead.
2 Connect the sensor wires to the node while ensuring that the wires are plugged in correctly.
PWR: +12 V Supply
GND: Ground
SIG1: Output Signal
SIG2: If reqd
SHLD: Shield wire of sensor
3 Switch off the Node and insert the battery while ensuring the correct polarity.
2.3 Configuring via the ER Offline App
1 Obtain an Android phone and connect it to the ER_Beam Wi-Fi network. (See the Gateway section to
learn about switching on the ER_Beam Wi-Fi network)
2 Connect the Android smartphone to the Node via an OTG adapter.
NOTE: Please make sure the Node is switch off before connecting to your Android phone.
Users’ Manual Digital Node (Wireless-RF)
Page | 4
3 Switch on the Node.
4 Open the ER Beam app on the phone.
NOTE: You need to add the Node and create the project first before you commission the digital
node. Please refer to ‘Gateway Setup’ section in the users’ manual for Gateway for
details. Then click on the Encardio-rite Node Configuration app software Icon.
(i) Search for the project, which you have already created once you open your ER app. Select and
click the button to download the project and enter in to the project, where the project details would
be mentioned.
Users’ Manual Digital Node (Wireless-RF)
Page | 5
(ii) Click on “Setup Device” on the menu (at the bottom of screen), the app will show connected node
information.
(iii) Optional Step: If Wireless Mesh (Relay) function is to be deployed, click on "Wireless Mesh" toggle
button to enable. Once done, click on “Setup Sensor”, you can now configure the sensor settings
Users’ Manual Digital Node (Wireless-RF)
Page | 6
(i) After pressing Setup Sensor, Sensor Setup page will open. A + sign button at the bottom right of
the screen is to be clicked to configure the sensor.
(iv) Sensor setting can be made as follows:
Sensor Code: Desired sensor name.
Sensor Address: Type the respective sensor address of the individual sensor.
Sensor Type: Select respective sensor type.
Parameters: Turn on the parameters as connected to the Node.
Users’ Manual Digital Node (Wireless-RF)
Page | 7
(v) Click Save Settings. The Node will now read the configured sensor.
(vi) On next page, you will see the first reading.
Users’ Manual Digital Node (Wireless-RF)
Page | 8

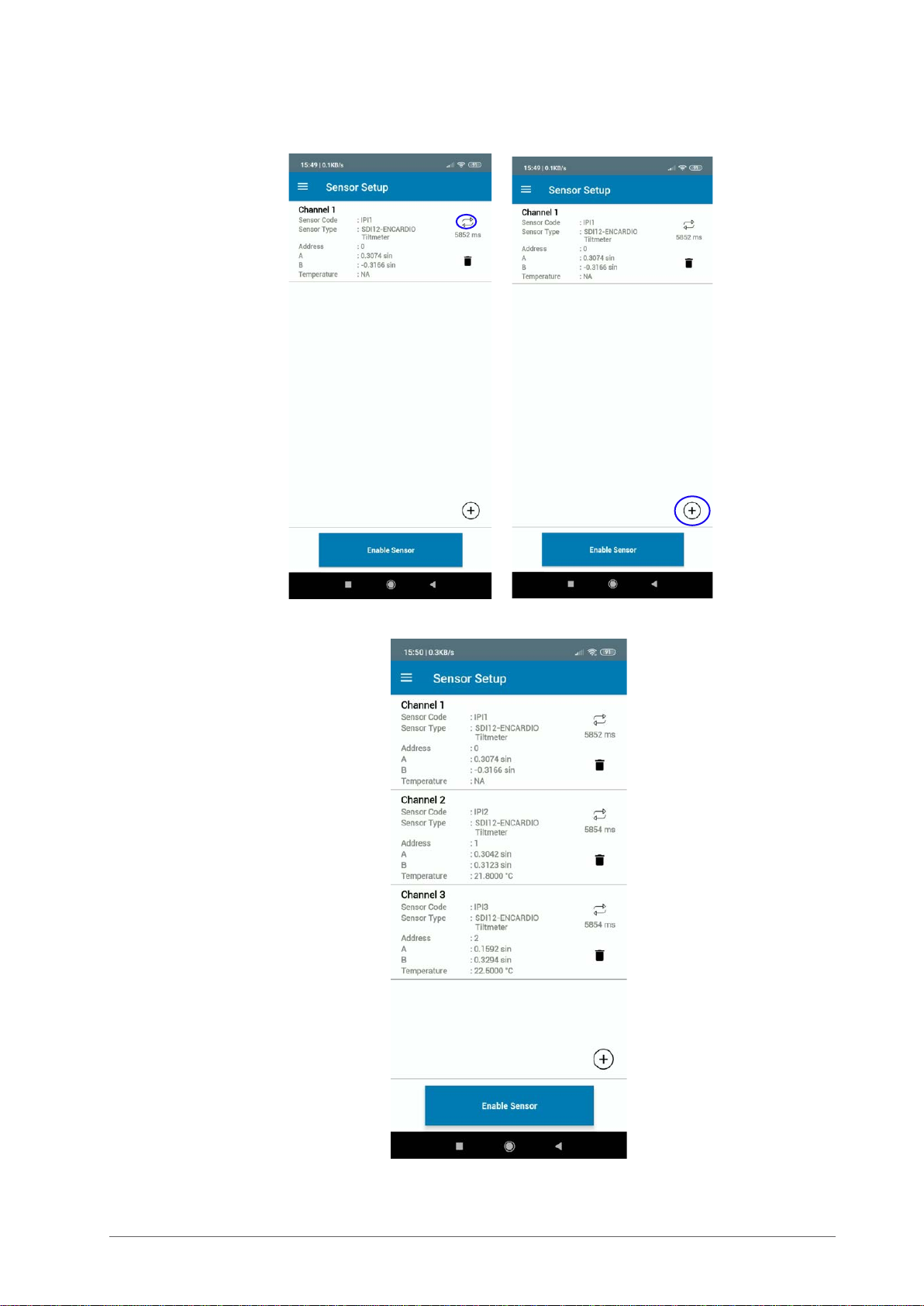

(ii) To get another reading, click on the arrow icon. Click on + icon to add more sensors.
(vii) Repeat above steps to configure other sensors connected to the Node.
