Endress+Hauser EngyCal RS33 Specifiche tecniche

Brief operating instructions

EngyCal® RS33

Steam calculator

These instructions are Brief Operating Instructions.

For detailed information, refer to the Operating Instructions and other

documentation on the CD-ROM provided or under "www.endress.com/

deviceviewer".

These Brief Operating Instructions do not replace the Operating Instructions.

The complete device documentation consists of:

•These Brief Operating Instructions

• A CD-ROM with:

– The Operating Instructions.

– Approvals and safety certificates.

– Other device-specific information.

KA00293K/09/EN/01.11

71134232

Table of contents EngyCal® RS33

2 Endress+Hauser

Table of contents

1 Safety instructions ......................................... 3

1.1 Designated use ............................................... 3

1.2 Installation, commissioning and operation .................................. 3

1.3 Operational safety .............................................. 3

1.4 Return ................................................... 3

1.5 Notes on safety conventions and icons .................................... 3

2 Identification ............................................. 5

2.1 Device tag ................................................. 5

2.2 Scope of delivery .............................................. 5

2.3 Certificates and approvals .......................................... 6

3 Installation .............................................. 6

3.1 Incoming acceptance, transport and storage ................................. 6

3.2 Dimensions ................................................. 7

3.3 Installation conditions ............................................ 9

3.4 Installation instructions ........................................... 9

3.5 Temperature sensor installation instructions ................................. 14

3.6 Pressure sensor installation instructions ................................... 15

4 Wiring ................................................. 16

4.1 Connection requirements ......................................... 16

4.2 Quick wiring guide ............................................. 16

4.3 Connecting the sensors ........................................... 19

4.4 Outputs .................................................. 25

4.5 Communication .............................................. 25

4.6 Post-connection check ........................................... 27

5 Operation .............................................. 28

5.1 General notes for operation ......................................... 28

5.2 Display and operating elements ....................................... 28

5.3 Operating matrix .............................................. 31

6 Commissioning ........................................... 32

6.1 Quick commissioning/make it run ..................................... 32

EngyCal® RS33 Safety instructions

Endress+Hauser 3

1 Safety instructions

Safe operation of the device is only guaranteed if the Operating Instructions have been read and

the safety instructions they contain have been observed.

1.1 Designated use

The steam calculator is a flow computer for calculating the mass and energy flow of steam. The

mains powered device is designed for use in industrial environments.

• The manufacturer cannot take responsibility for any damage caused by misuse of the device.

It is not permitted to make any changes or reconstruction to the device.

• The device may be operated in built-in state only.

1.2 Installation, commissioning and operation

The device is safely manufactured using state-of-the-art technology and complies with the

respective regulations and EU Directives. The device could be dangerous if it is incorrectly

installed or used.

Installation, wiring and maintenance of the device must be carried out only by trained, skilled

personnel authorized to perform such work and instructed by the facility's owner-operator. The

skilled personnel must have read and understood these Operating Instructions and it is mandatory

for them to follow the instructions they contain. The operator must ensure that the measuring

system is correctly wired in accordance with the wiring diagrams. When the housing cover is

removed, the shock protection is disabled (danger of electrocution). The housing may be opened

by trained skilled personnel only.

The device may be operated in built-in state only.

1.3 Operational safety

Technical improvement

The manufacturer reserves the right to improve and update the technical details. For details of

improvements or additions to these instructions, please contact your local sales organization.

1.4 Return

For a return, e.g. in case of repair, the device must be sent in protective packaging. The original

packaging offers the best protection. Repairs must only be carried out by your supplier's service

organization.

When sending in for repair, please enclose a note with a description of the error and the

application.

1.5 Notes on safety conventions and icons

The devices are safely manufactured and tested using state-of-the-art technology and have left

the factory in safety-related flawless condition. The devices comply with the respective

regulations and EU Directives. The devices could be dangerous if incorrectly installed or used.

Safety instructions EngyCal® RS33

4 Endress+Hauser

Therefore, consequently observe safety notes which are labeled with the following safety icons

and symbols in these operating instructions:

Symbol Meaning

DANGER

A0011189-EN

DANGER!

This symbol alerts you to a dangerous situation. Failure to avoid this situation will

result in serious or fatal injury.

WARNING

A0011190-EN

WARNING!

This symbol alerts you to a dangerous situation. Failure to avoid this situation can

result in serious or fatal injury.

CAUTION

A0011191-EN

CAUTION!

This symbol alerts you to a dangerous situation. Failure to avoid this situation can

result in minor or medium injury.

NOTICE

A0011192-EN

NOTICE!

This symbol contains information on procedures and other facts which do not result

in personal injury.

EngyCal® RS33 Identification

Endress+Hauser 5

2 Identification

2.1 Device tag

2.1.1 Nameplate

Compare the nameplate on the device with the following figure:

A0013583

å 1 Device nameplate (example)

1 Device tag

2 Order code and serial number

3 Supply voltage

4 Power consumption

5 Firmware version

6 Approvals, if available

7 Ambient temperature range

8 Device revision

9 Equipment protected throughout by double insulation or reinforced insulation

10 Place and year of manufacture

2.2 Scope of delivery

The scope of delivery of the steam calculator comprises:

•Steam calculator (field housing)

• Brief Operating Instructions in paper form, Operating Instructions and additional

documentation (on CD-ROM)

• Optional interface cable and DVD set with FieldCare Device Setup parameter configuration

software

Installation EngyCal® RS33

6 Endress+Hauser

• Optional Field Data Manager software MS20

•Optional mounting hardware for top-hat rail, panel mounting, pipe mounting

• Optional overvoltage protection

Please note the device accessories in Section 8 ’Accessories’ of the Operating Instructions

on CD-ROM.

2.3 Certificates and approvals

The steam calculator complies with the general requirements for steam calculators according to

OIML R75 and EN-1434.

According to European law, steam calculators are not subject to mandatory verification.

However, approval as part of individual measuring point verification is possible. Furthermore,

national type approvals are currently pending for the device.

CE mark, declaration of conformity

The device is safely built and tested according to state-of-the-art technology and has left the

factory in perfect condition as regards technical safety. The device meets the relevant standards

and directives as per EN 61010-1 "Safety requirements for electrical equipment for measurement,

control and laboratory use".

Thus, the device described in these Operating Instructions meets the legal requirements of the

EU Directives. The manufacturer confirms successful testing of the device by affixing to it the

CE mark.

3 Installation

3.1 Incoming acceptance, transport and storage

The permitted environmental, storage and transportation conditions must be complied with. For

detailed specifications, refer to the "Technical data" chapter in the Operating Instructions on CD-

ROM.

3.1.1 Incoming acceptance

On receipt of the goods, check the following points:

• Are the packaging or contents damaged?

• Are the delivered goods complete? Compare the scope of delivery with your order information.

3.1.2 Transport and storage

Observe the following points:

• Pack the device in such a way as to protect it reliably against impact for storage (and

transportation). The original packaging provides optimum protection.

• The permitted storage temperature range is –40 to +85 °C (–40 to +185 °F); storage in the

temperature limit ranges is possible for a limited time only (maximum of 48 hours).

EngyCal® RS33 Installation

Endress+Hauser 7

3.2 Dimensions

A0013438

å 2 Dimensions of the device

Installation EngyCal® RS33

8 Endress+Hauser

A0014169

å 3 Dimensions of mounting plate for wall, pipe and panel mounting

A0014171

å 4 Dimensions of the panel cutout

EngyCal® RS33 Installation

Endress+Hauser 9

A0014610

å 5 Dimensions of top-hat rail adapter

3.3 Installation conditions

The device with field housing and accessories is suitable for wall mount, pipe mounting, panel

mounting and top-hat rail installation 1).

The orientation is only determined by the legibility of the display. Connections and outputs are

fed out of the bottom of the device. The lines are connected via coded clamps.

Operating temperature range: –20 to 60 °C (–4 to 140 °F)

Further information, see "Technical data".

NOTICE

Overheating of the device due to insufficient cooling

►To prevent heat build-up, do not expose the device to excessive heat or strong direct sunshine.

Operating the device in the upper temperature limit range decreases the operating life of the

display.

3.4 Installation instructions

3.4.1 Wall mounting

1. Use the mounting plate as the template for drilled holes, dimensions (® å 3, ä 8)

2. Attach the device to the mounting plate and fasten it in place from the rear using 4 screws.

3. Fasten the mounting plate to the wall using 4 screws.

1) According to UL approval panel or surface mountable only.

Installation EngyCal® RS33

10 Endress+Hauser

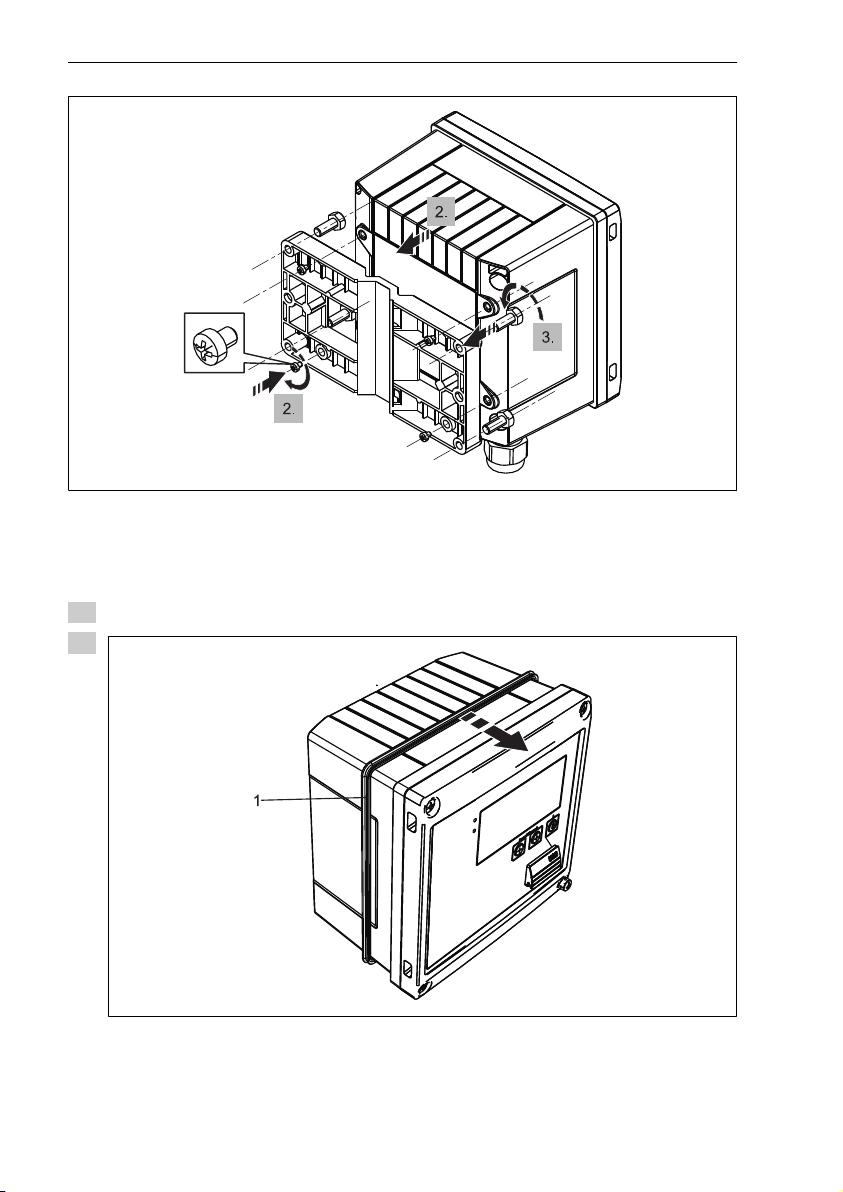

A0014170

å 6 Wall mounting

3.4.2 Panel mounting

1. Make the panel cutout in the required size, dimensions (® å 4, ä 8)

A0014172

å 7 Panel mounting

Attach the seal (item 1) to the housing.

Altri manuali per EngyCal RS33

Indice

Altri manuali Endress+Hauser Strumento di misura

Endress+Hauser

Endress+Hauser Prosonic T FMU30 Specifiche tecniche

Endress+Hauser

Endress+Hauser SpectraSensors OXY5500 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promass 80H Manuale

Endress+Hauser

Endress+Hauser Cerabar PMC11 Manuale

Endress+Hauser

Endress+Hauser Liquiline System CA80AM Manuale utente

Endress+Hauser

Endress+Hauser Ceraphant T PTC31 Manuale utente

Endress+Hauser

Endress+Hauser Proline t-mass 65 Manuale utente

Endress+Hauser

Endress+Hauser MODBUS RS485 Manuale utente

Endress+Hauser

Endress+Hauser Cerabar S PMC71 Manuale utente

Endress+Hauser

Endress+Hauser Soliwave FQR56 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag 50 Series Manuale dell'operatore

Endress+Hauser

Endress+Hauser prosonic flow 92 Manuale utente

Endress+Hauser

Endress+Hauser Gammapilot M FMG60 Manuale utente

Endress+Hauser

Endress+Hauser Levelflex M FMP45 Manuale utente

Endress+Hauser

Endress+Hauser Proline t-mass T 150 Specifiche tecniche

Endress+Hauser

Endress+Hauser Hart Cerabar PMP71B Manuale utente

Endress+Hauser

Endress+Hauser Levelflex M FMP43 Manuale utente

Endress+Hauser

Endress+Hauser Proline Prosonic Flow P 500 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promass P 300 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promass E 200 Manuale utente

Endress+Hauser

Endress+Hauser Cerabar S PMC71 Manuale utente

Endress+Hauser

Endress+Hauser Liquiline System CAT860 Manuale utente

Endress+Hauser

Endress+Hauser Levelflex M FMP43 Manuale utente

Endress+Hauser

Endress+Hauser FOUNDATION Fieldbus Levelflex FMP50 Specifiche tecniche

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente

Acterna

Acterna MS1400 Manuale utente

R&S

R&S ZPH Manuale utente
